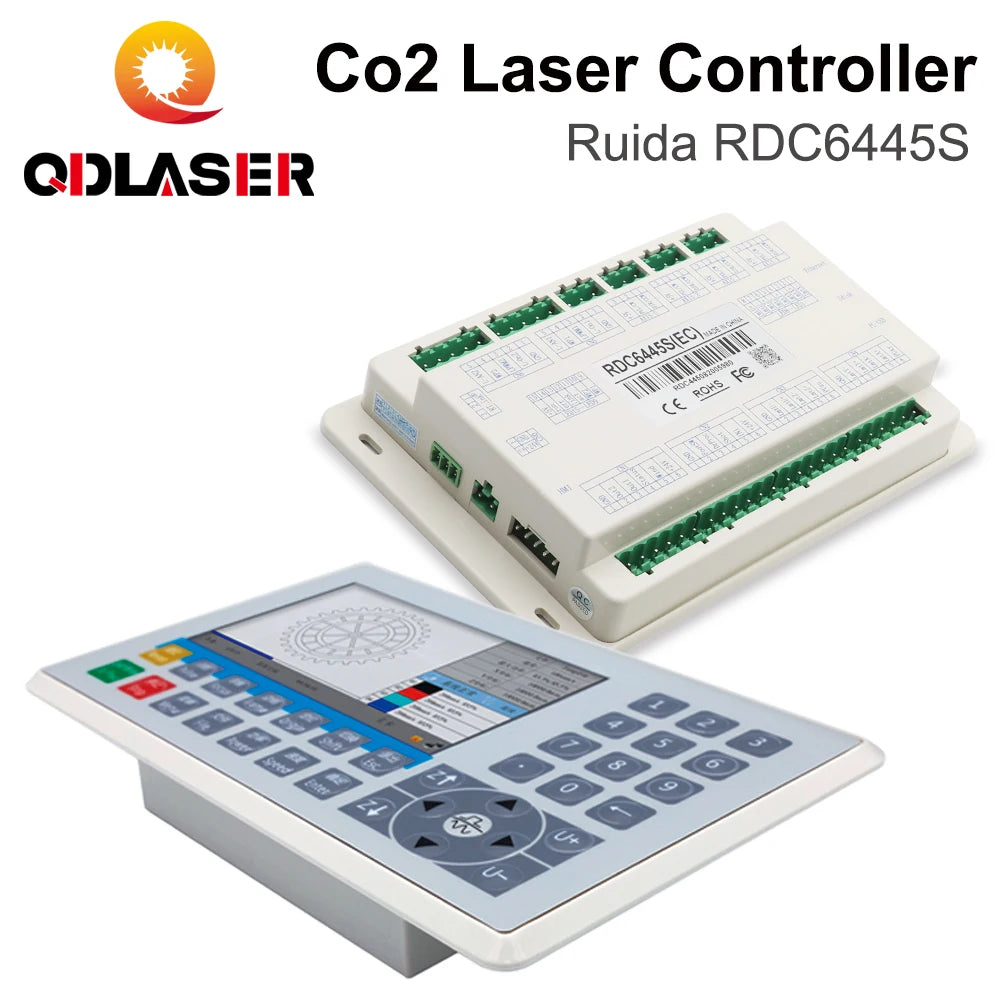

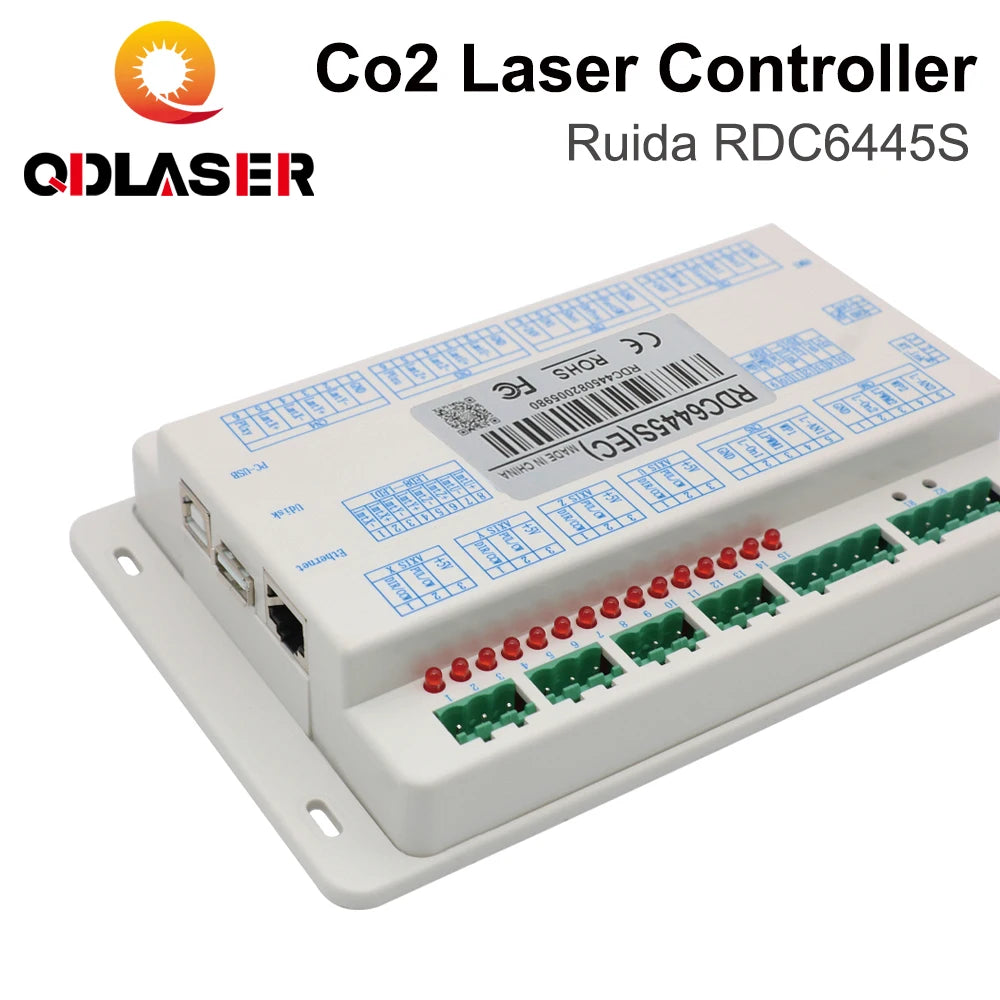

Ruida RDC6445S RDC6445G Laser Controller for CO2 Laser Engraving and Cutting Machine DSP Laser Control System
Ruida RDC6445S RDC6445G Laser Controller for CO2 Laser Engraving and Cutting Machine DSP Laser Control System
Regular price
$75.00 USD
Regular price
$75.00 USD
Sale price
$75.00 USD
Unit price
per
Couldn't load pickup availability
Ruida RDC6445S RDC6445G Laser Controller For CO2 Laser Engraving And Cutting Machine DSP Laser Control System RD Laser Control
Products Description

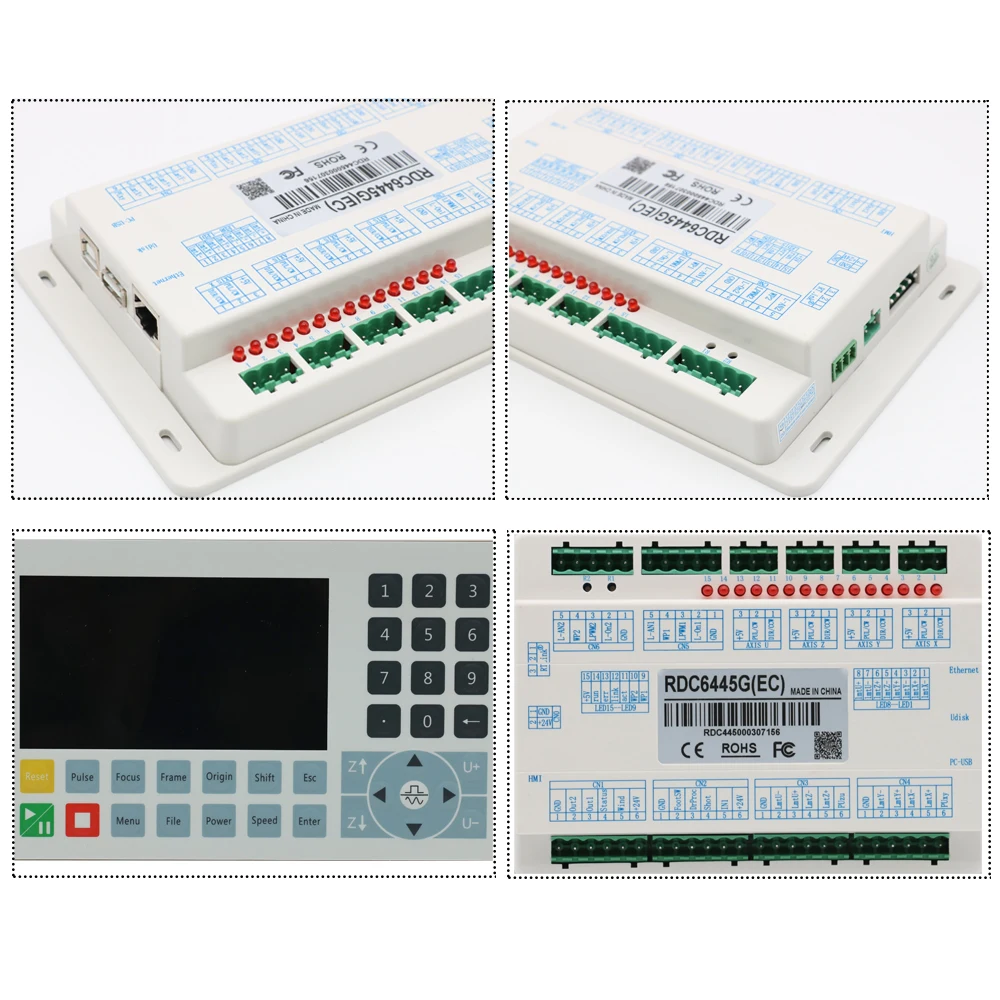

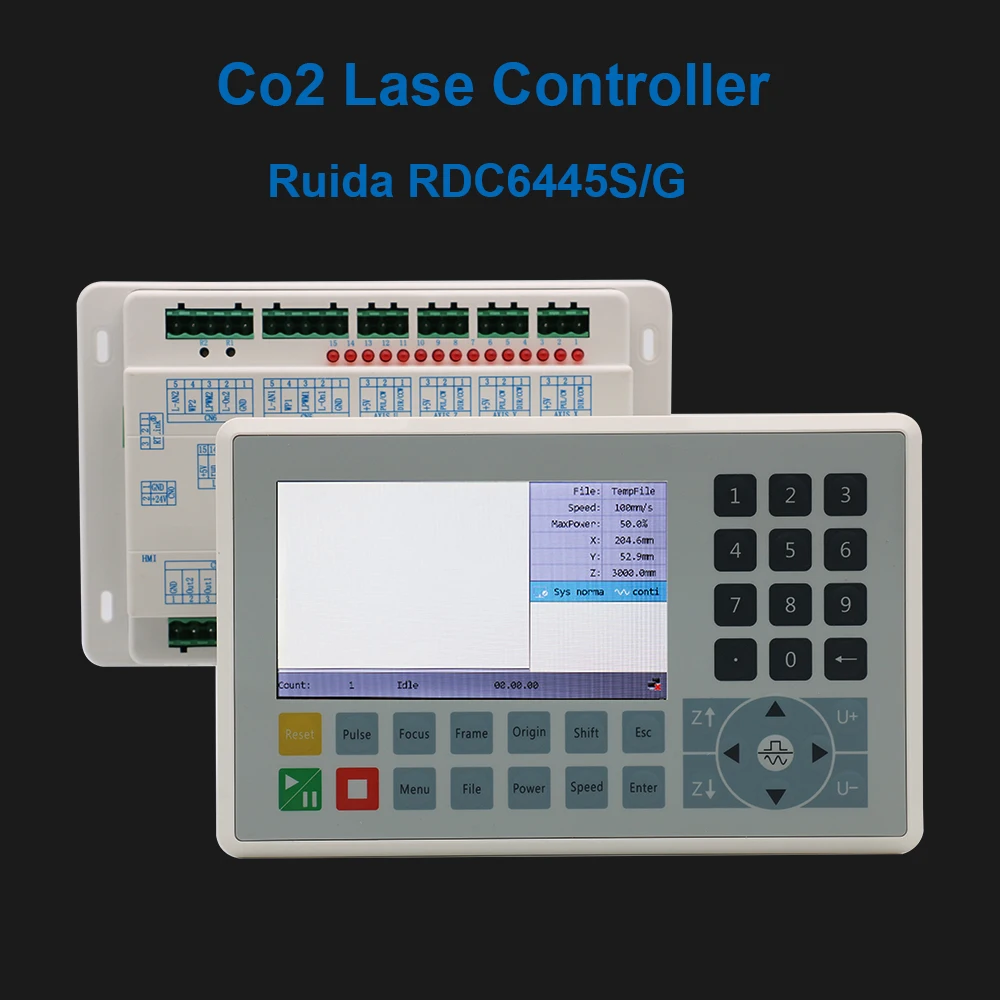

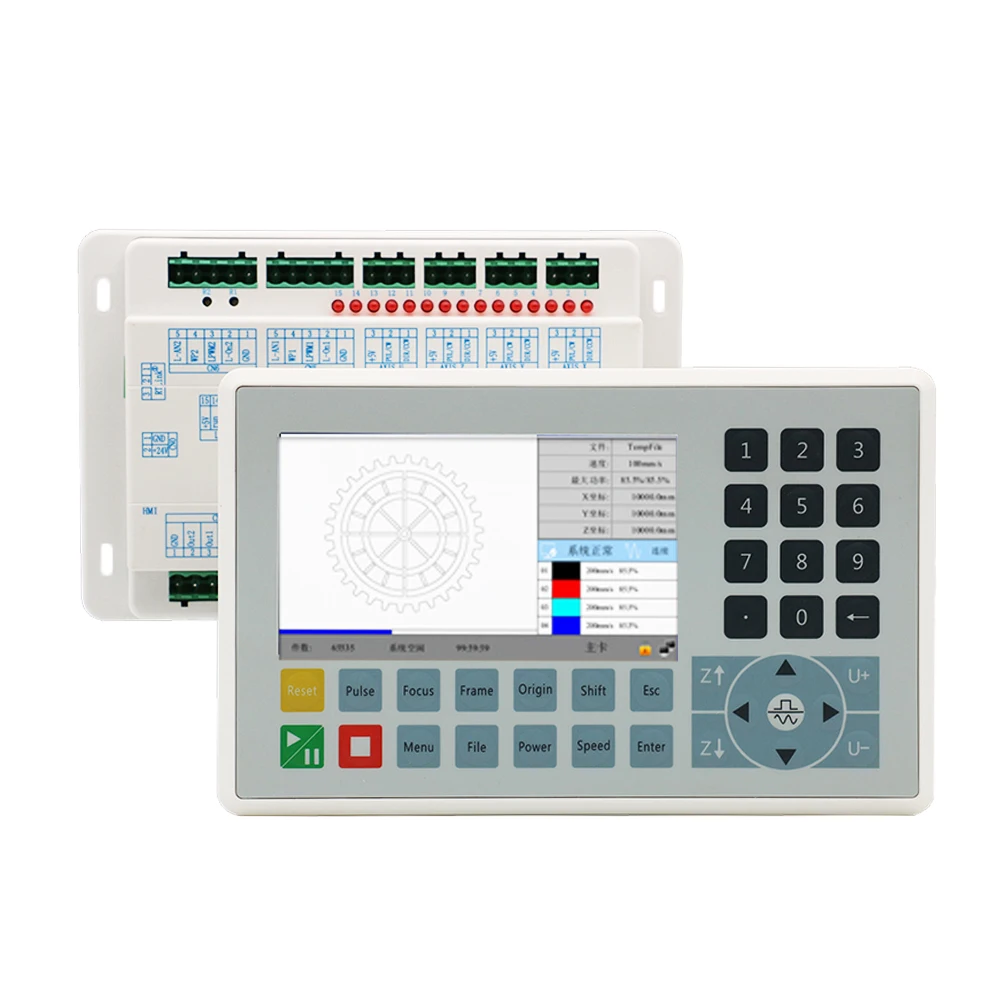

RDC6445G controller:
4-axis Laser Engraving&Cutting
4-axis Laser Engraving&Cutting
10/100M Ethernet + USB2.0

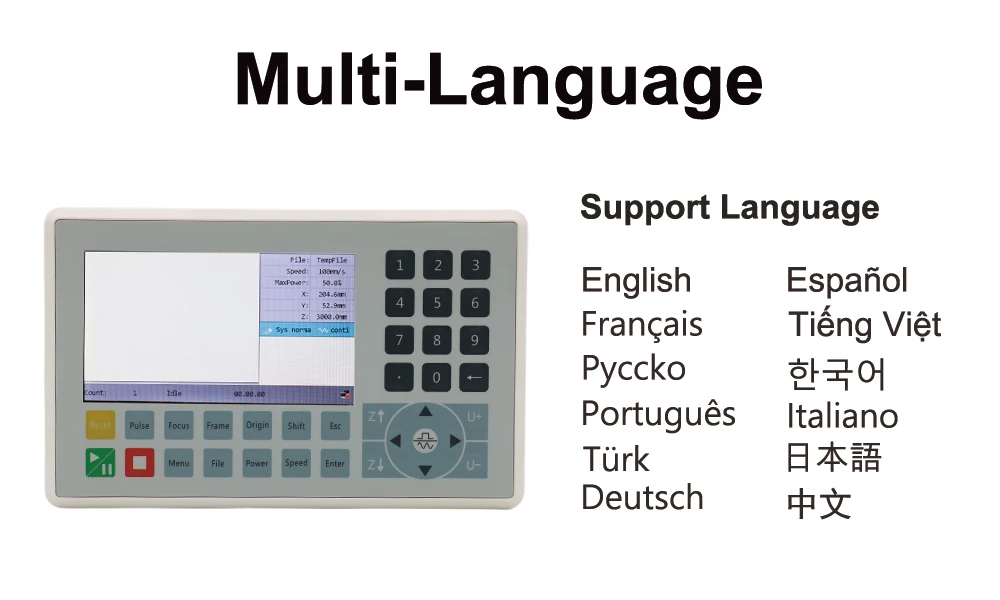

Control Multi-language (En Ru Es Pt)

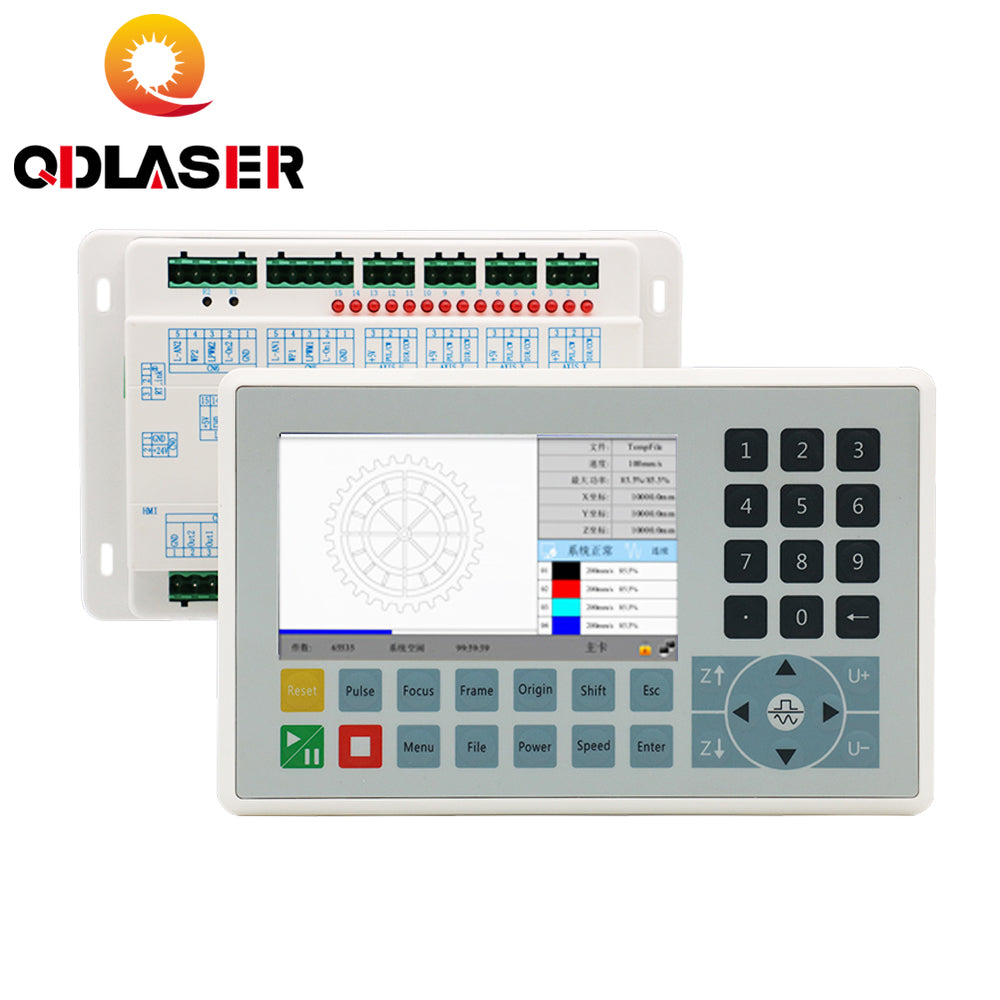

RDC6445G system is the latest generation of laser engraving / cutting control system developed by Ruida Technology. The control system has better hardware stability and better resistance to high voltage and static electricity. The human-machine operating system based on the 5-inch color screen has a more friendly operation interface and more powerful functions. The controller includes more perfect
Technical Parameters:

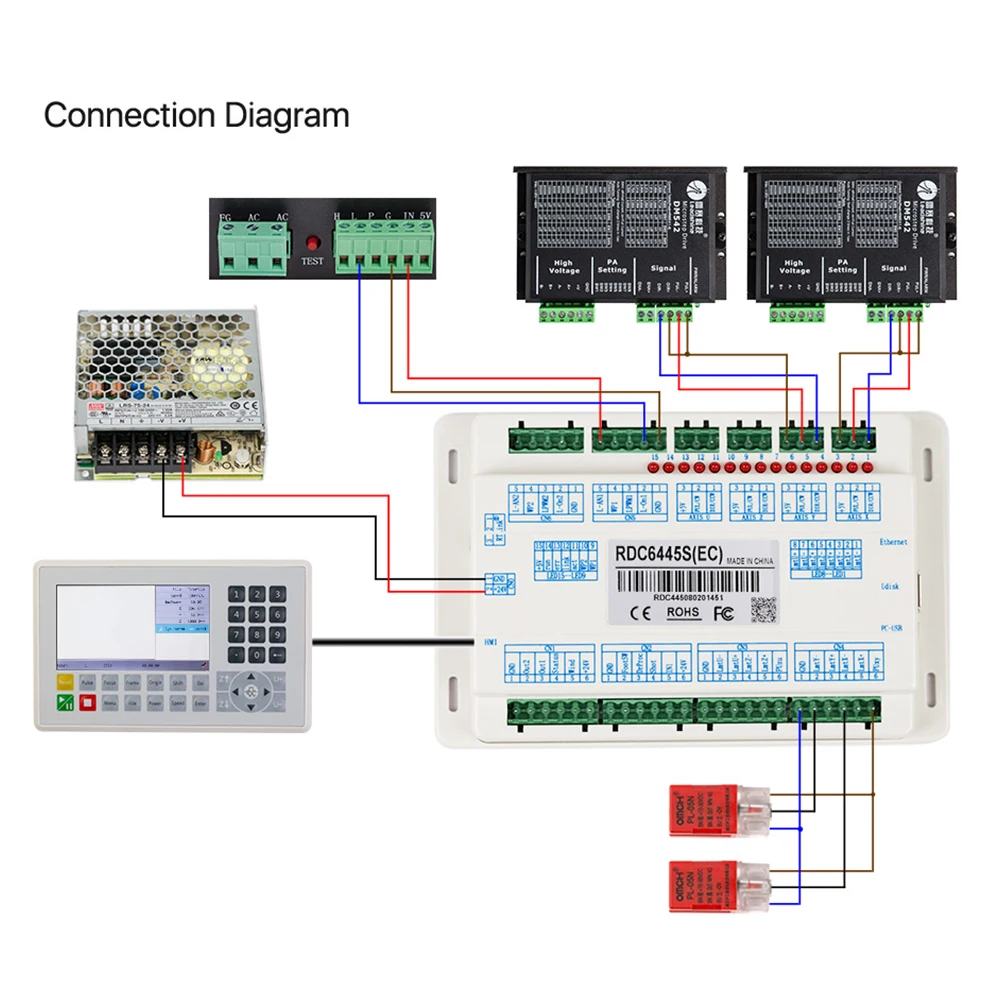

1. 4-way motor interface, output maximum 400KHZ frequency; drive capacity 20mA, common anode interface;
2. On-board 128M non-releasable memory;
3. USB maximum transfer rate is 12M, the longest distance is 5 meters;
4. The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;
5. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;
6. 4 general-purpose opto-isolated OC gate outputs, with a maximum driving capacity of 300mA (with freewheel protection), can
directly drive 24V / 5V DC relays
7. 4 universal photoelectric isolation inputs, compatible with 5V / 12V / 24V logic level;
Function description:
1. Support up to 4 servo / stepper motor control;
2. Supports one extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with RS232 standard interface;
3. Support 4 OC gate outputs, can directly drive 5V / 24 relay;
4. Support mobile APP;
5. Support dual-head electric mutual shift control and super-format split cutting processing;
6. Support dual-head asynchronous processing;
7. Support large format vision, mark point visual cutting and projection cutting and other processing methods;
1. 4-way motor interface, output maximum 400KHZ frequency; drive capacity 20mA, common anode interface;
2. On-board 128M non-releasable memory;
3. USB maximum transfer rate is 12M, the longest distance is 5 meters;
4. The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;
5. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;
6. 4 general-purpose opto-isolated OC gate outputs, with a maximum driving capacity of 300mA (with freewheel protection), can
directly drive 24V / 5V DC relays
7. 4 universal photoelectric isolation inputs, compatible with 5V / 12V / 24V logic level;
Function description:
1. Support up to 4 servo / stepper motor control;
2. Supports one extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with RS232 standard interface;
3. Support 4 OC gate outputs, can directly drive 5V / 24 relay;
4. Support mobile APP;
5. Support dual-head electric mutual shift control and super-format split cutting processing;
6. Support dual-head asynchronous processing;
7. Support large format vision, mark point visual cutting and projection cutting and other processing methods;
