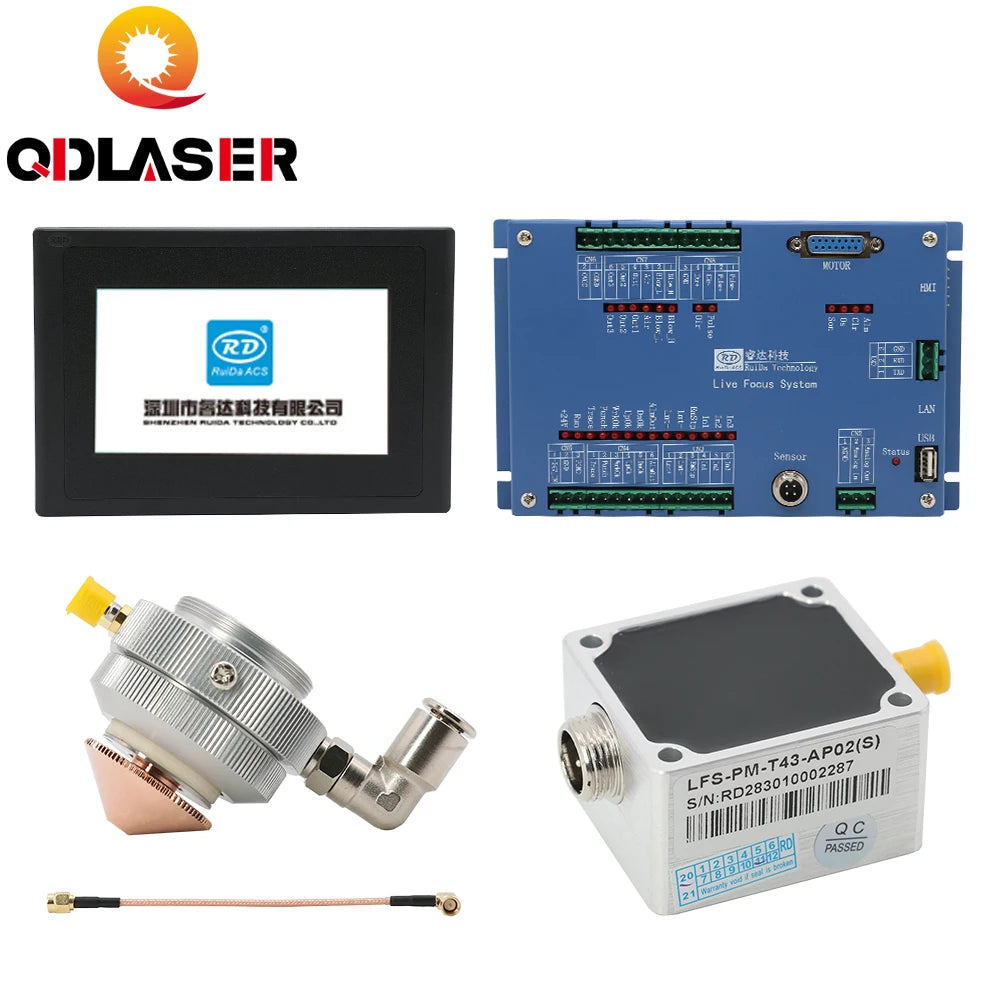

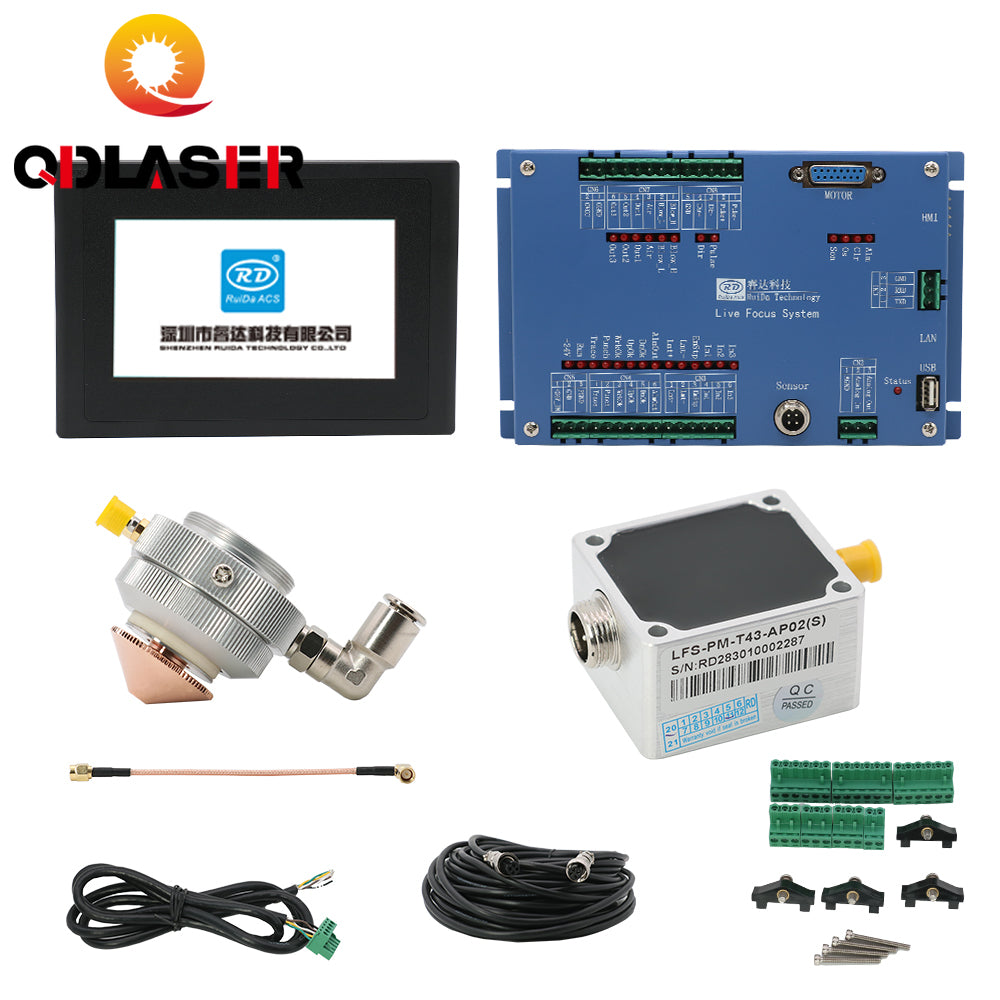

Ruida LFS-PM-T43 Analog Metal Live Focus System With Touch Screen for Metal Co2 Laser Cutting Machine
Product Description
Technical Parameters:
1. The sampling rate frequency is 1ms;
2. Dynamic following accuracy is less than 0.1mm;
3. Detection accuracy is less than 0.01mm;
4. The maximum speed can reach 600mm / s and the maximum acceleration can reach 8000mm / s ^ 2;
5. The capacitance detection range is 0-9.9mm;
6. Motor pulse output frequency can reach 1MHz;
7, analog voltage output 0-10V;
8. Analog voltage detection input 0-10V;

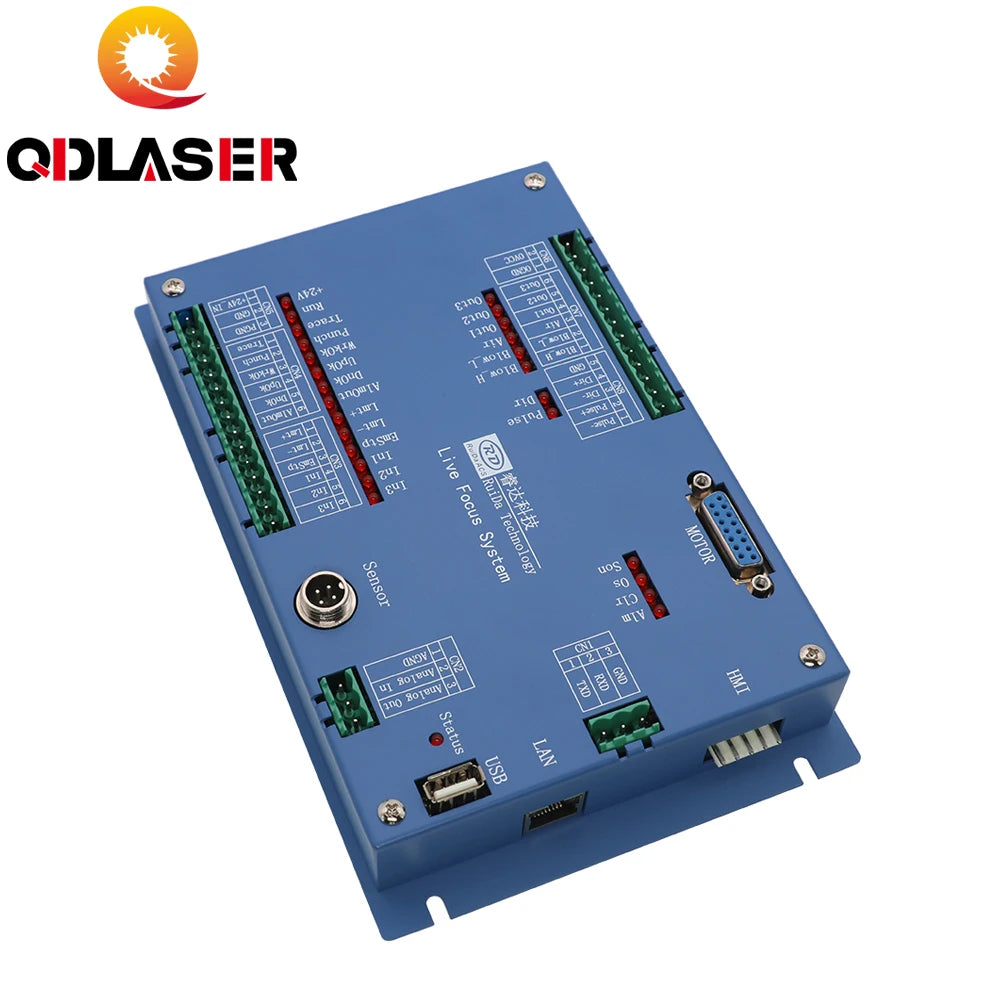

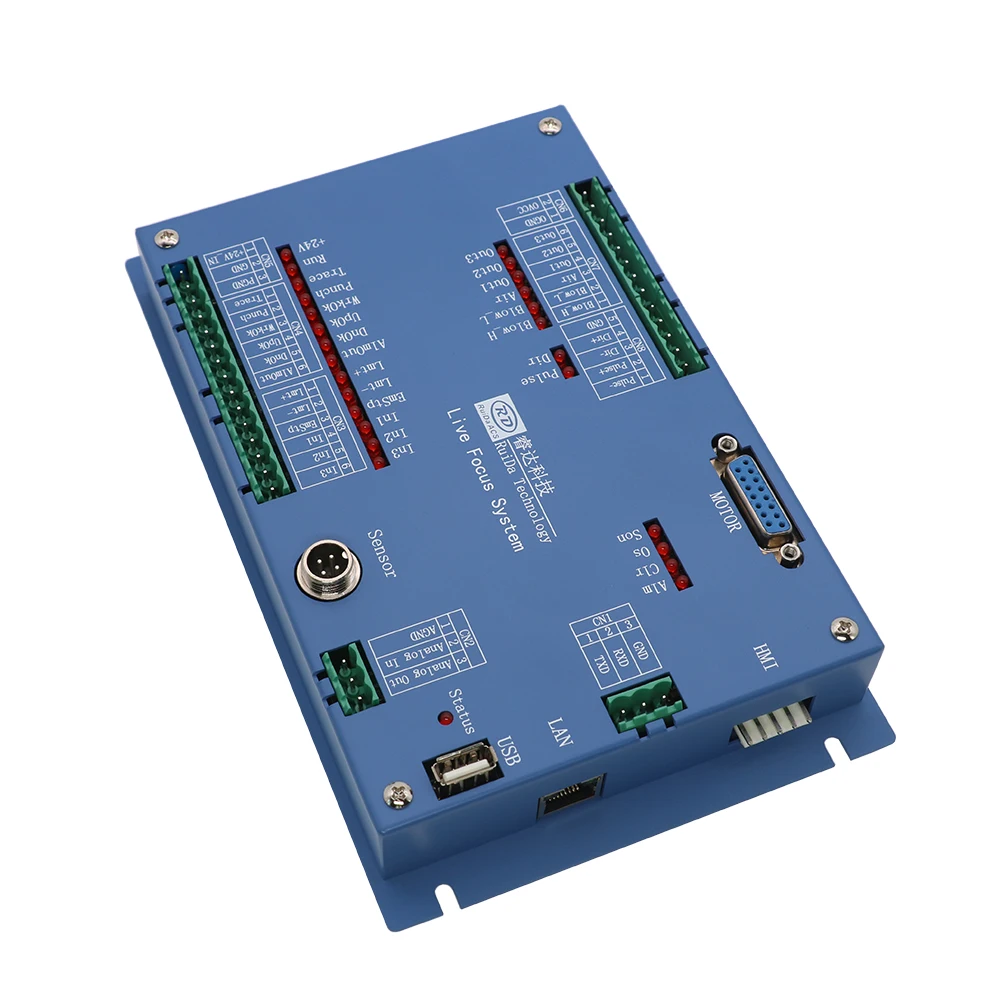

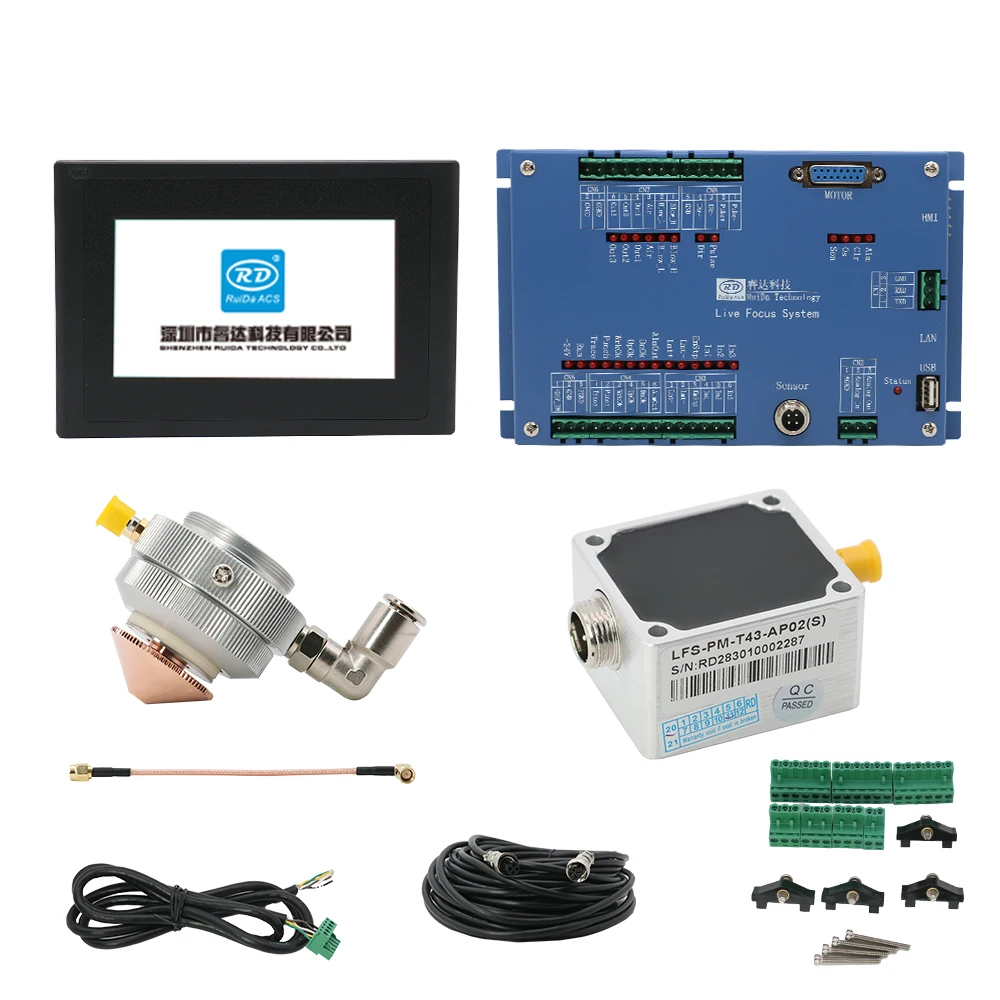

LFS-PM-T43 automatic height-adjusting control system is a system specially developed for metal and non-metal mixed cutting system

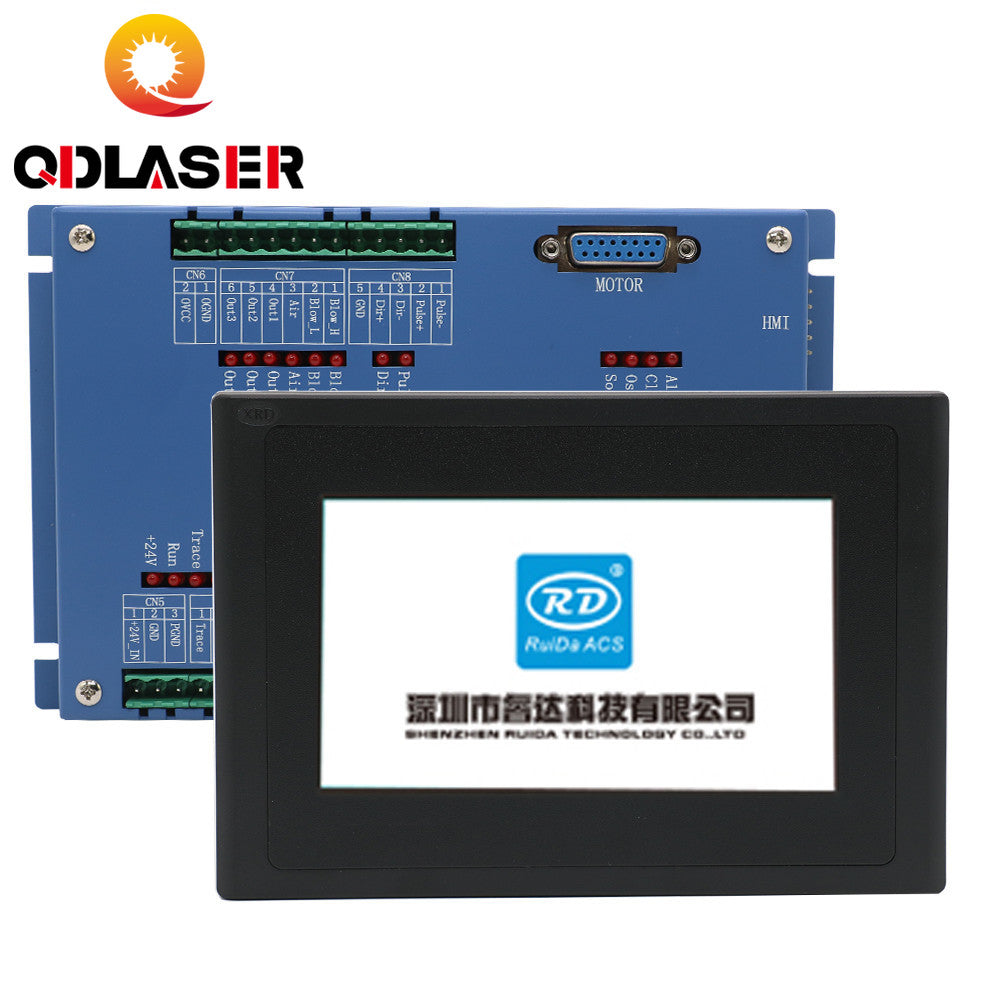

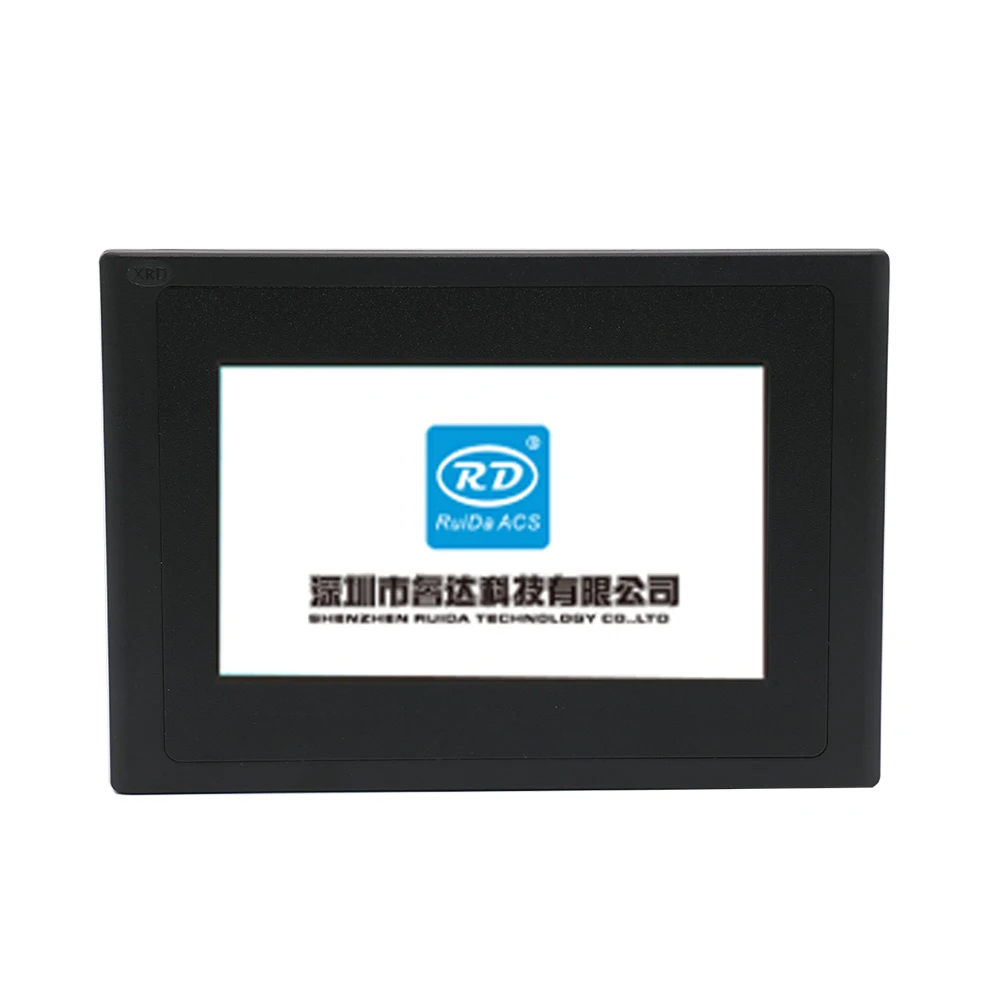

developed by Ruida Technology. Equipped with 4.3-inch industrial TFT true color touch screen, real-time status and data display,
and user-friendly operation interface. Adopt high-performance amplifier and professional anti-interference design, greatly improve
the speed and response speed of the height controller, and achieve accurate automatic height adjustment control.
Function description:
1. Realize high-speed movement speed and response speed of servo motor or stepper motor;
2.Support various protection functions such as collision alarm, limit protection, servo alarm, etc .;

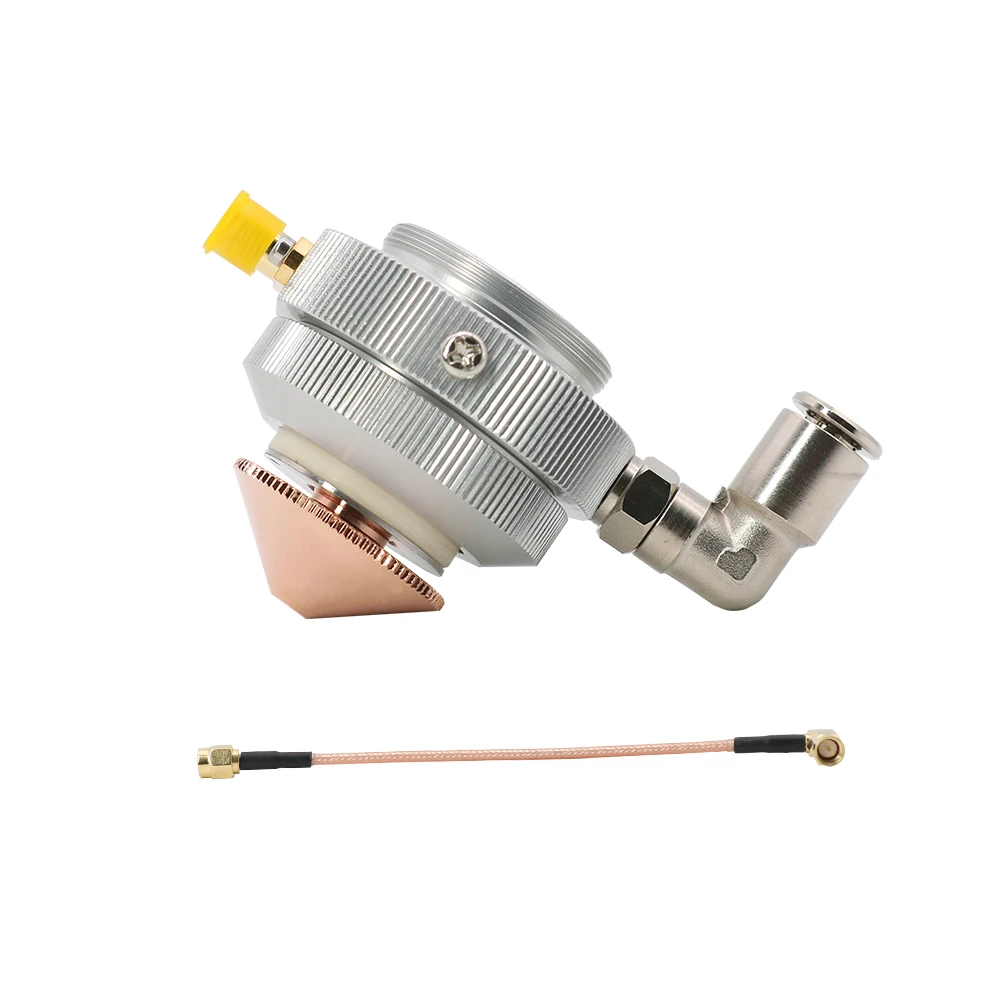

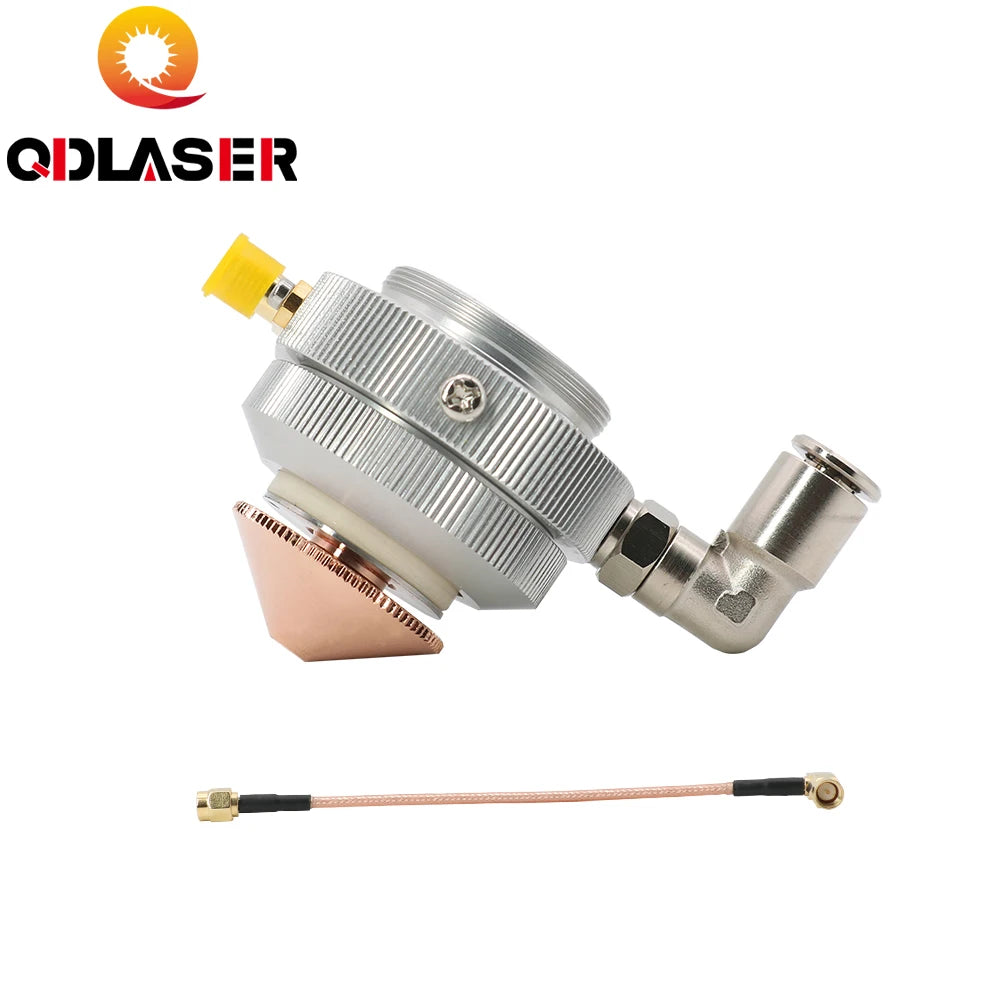

3. It can realize the automatic calibration function of the capacitance parameter and match with any cutting head;
4. Online focus position modification and real-time position detection, capacitance detection range is 0-9.9mm;
5. Real-time movement status display of cutting head and various alarm information prompts;
6. Support different settings of lifting height and speed to facilitate cutting in different ways;
7. Optimized air blowing control, effectively reducing gas loss, 3 channels of gas control output, which can be used for switching
between metal and non-metal cutting;
8. Support U-disk remote online upgrade;
