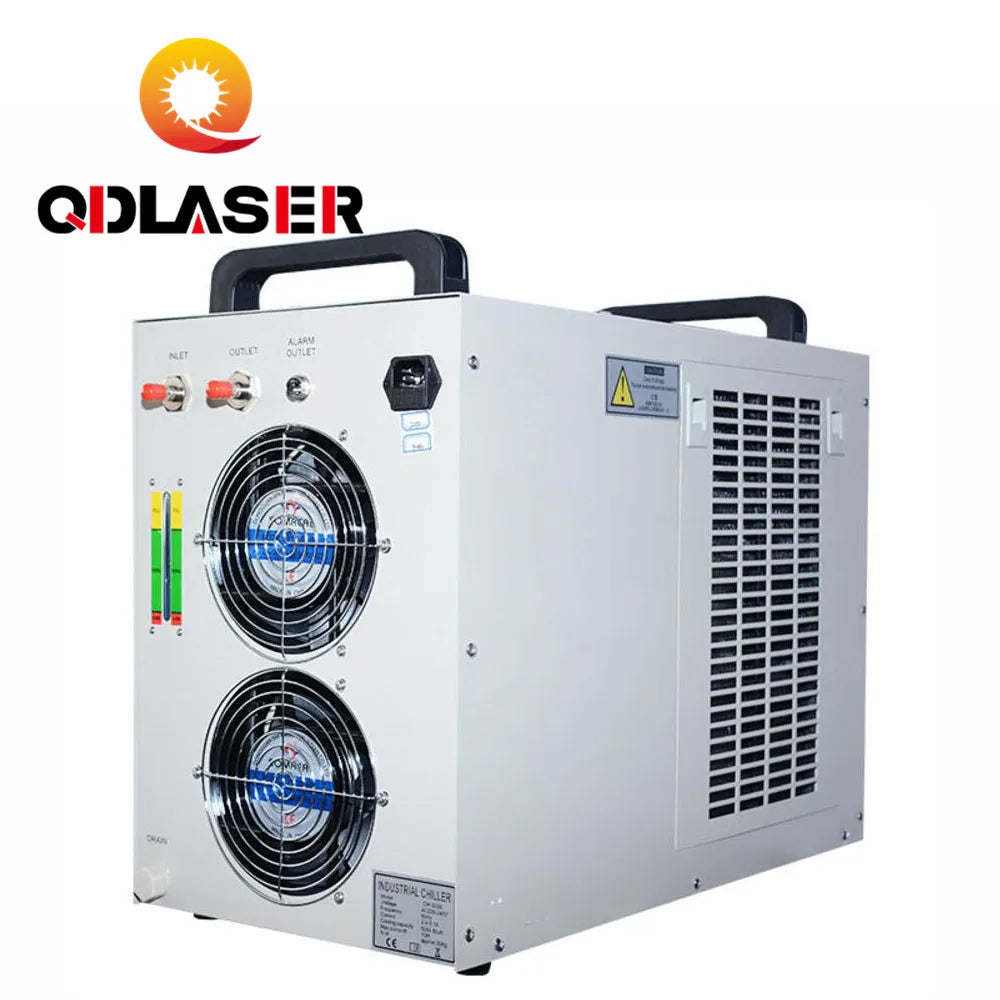

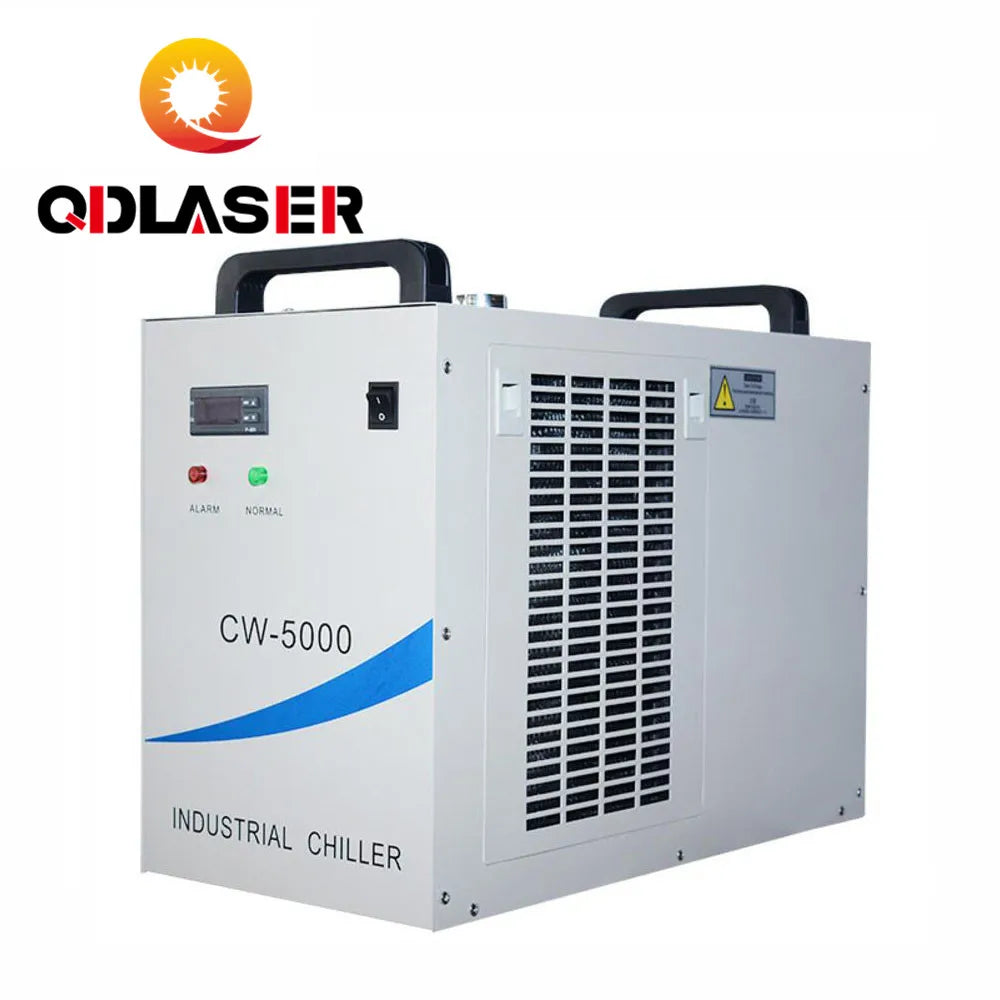

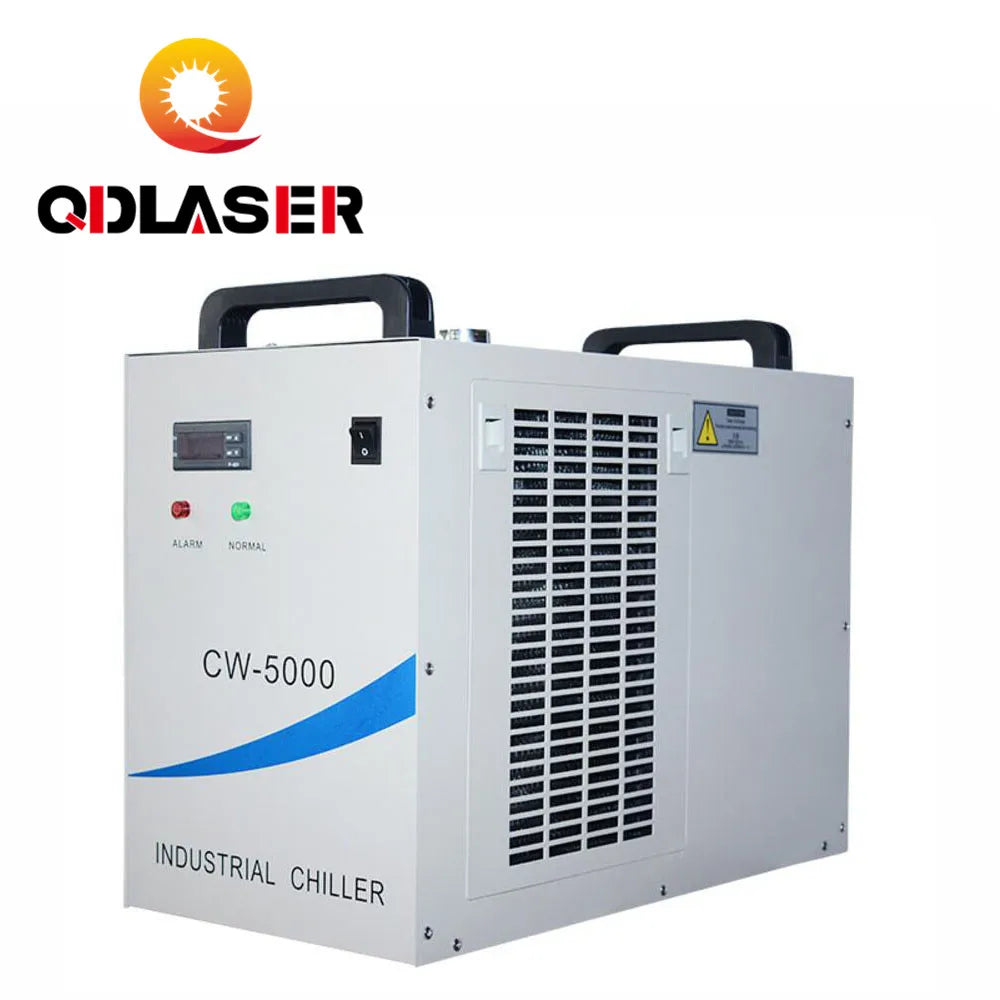

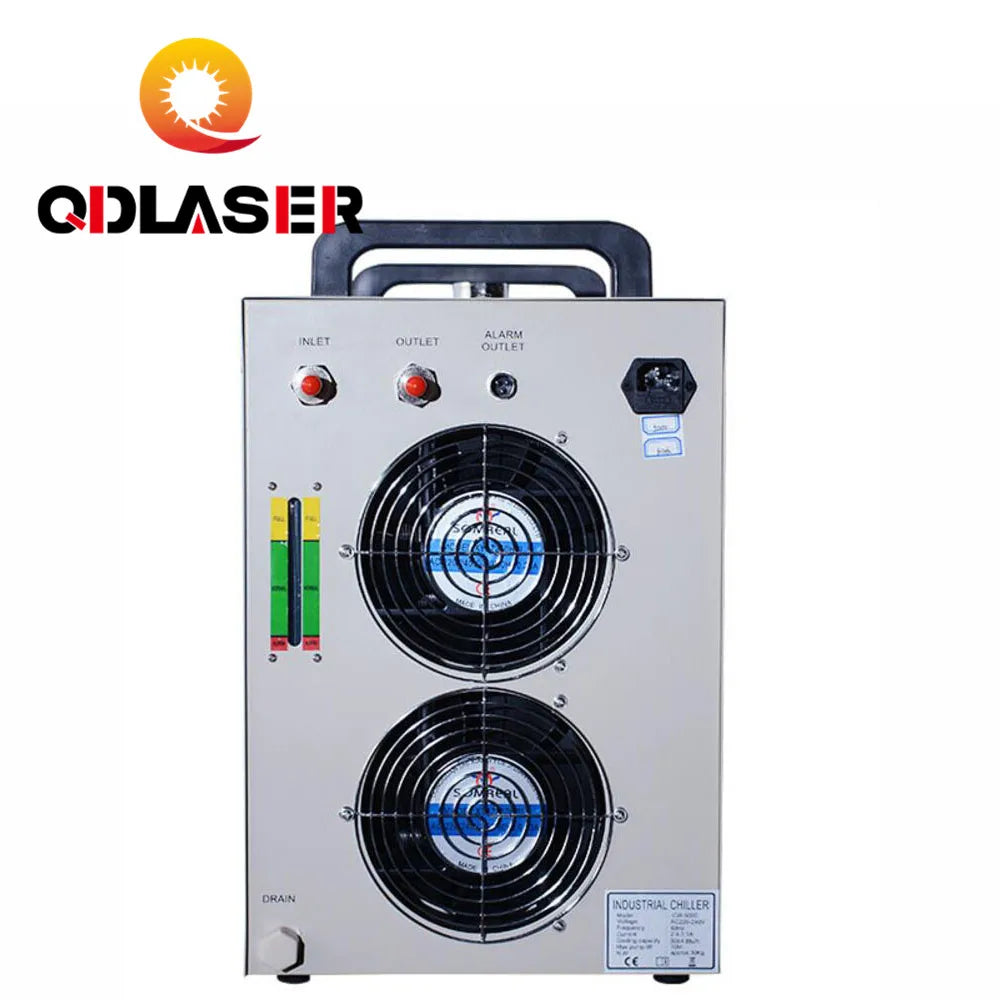

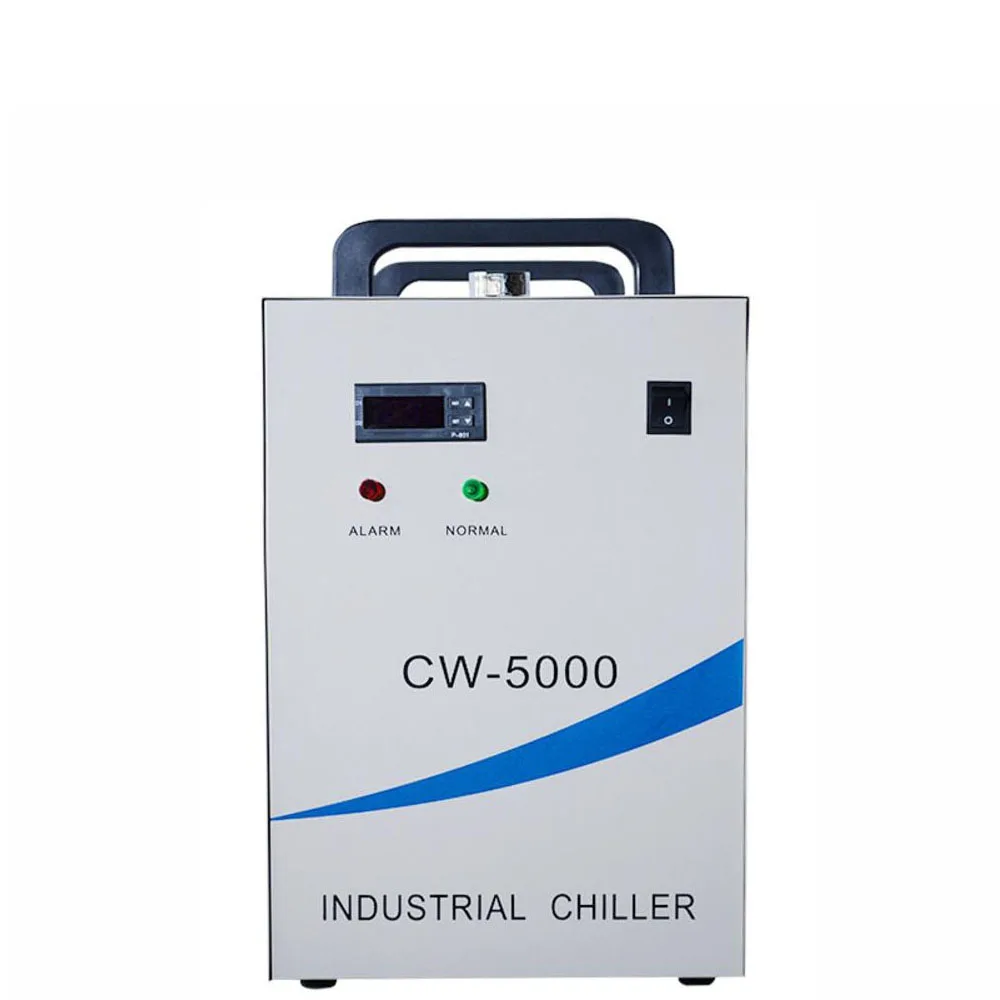

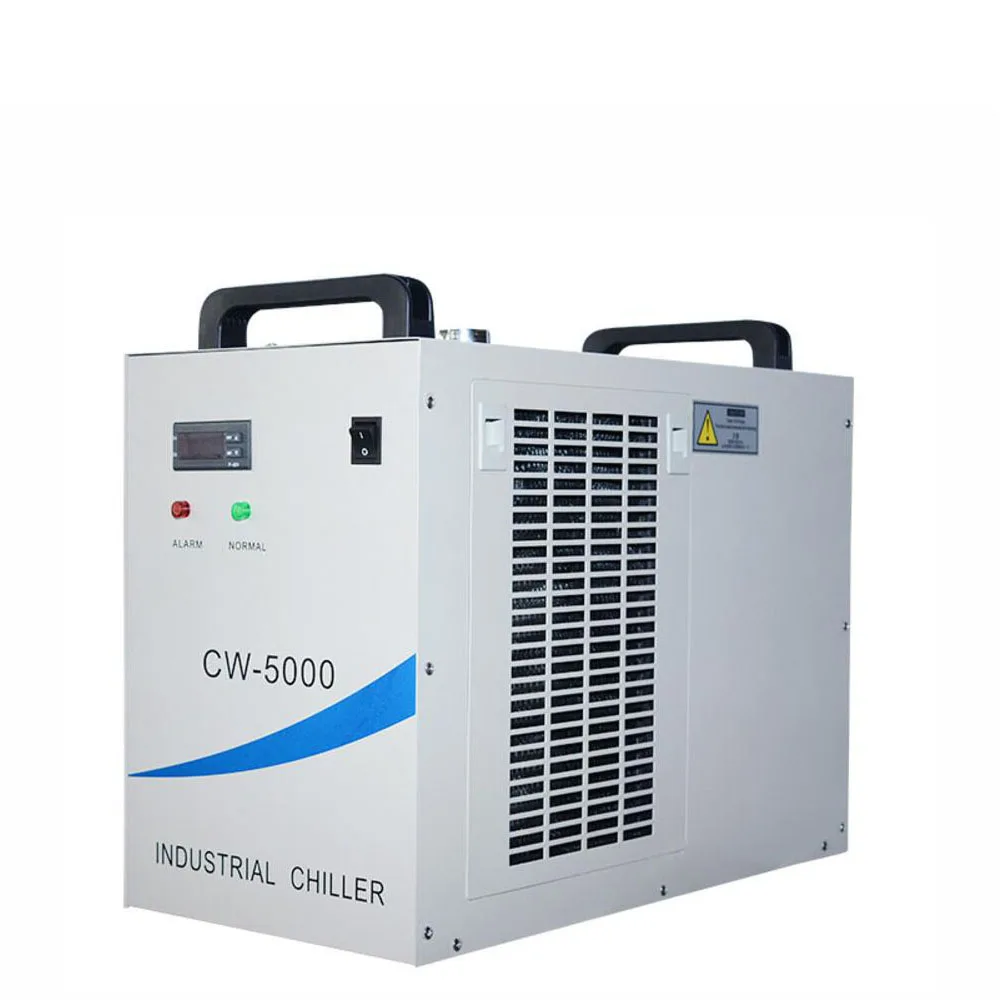

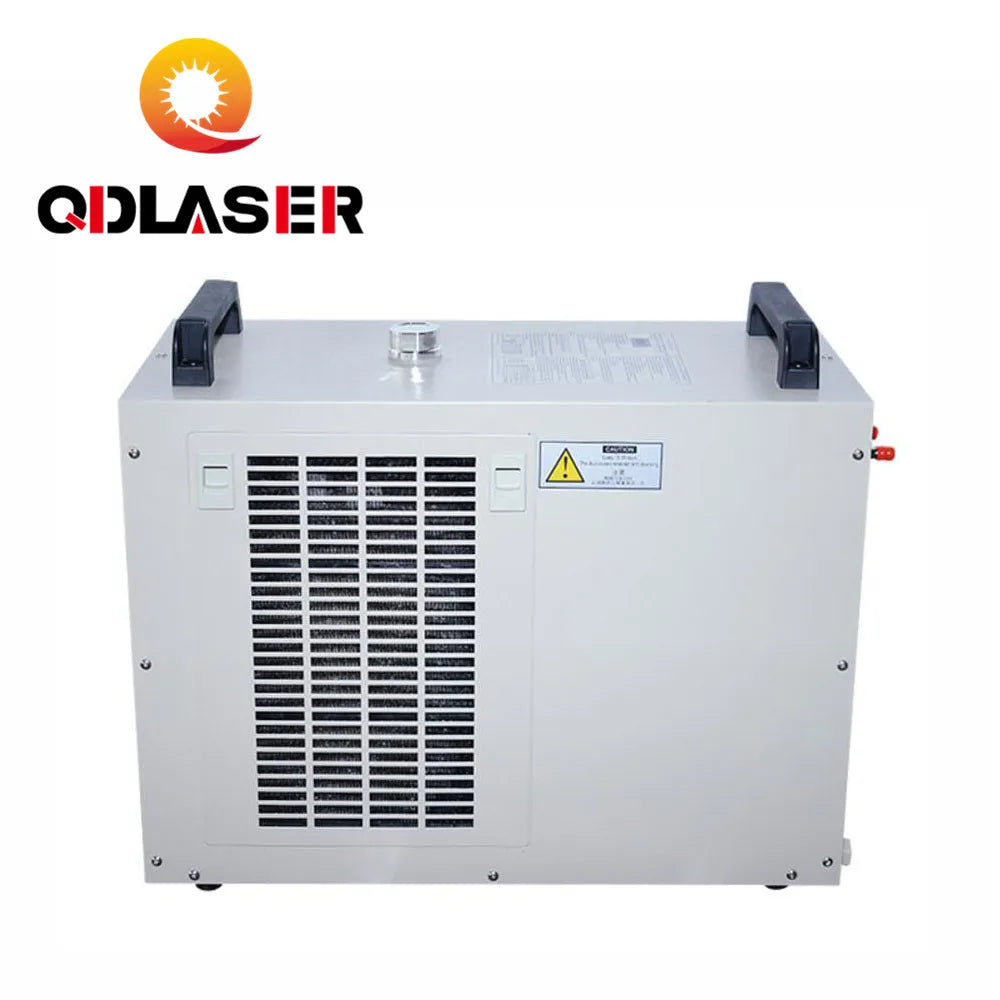

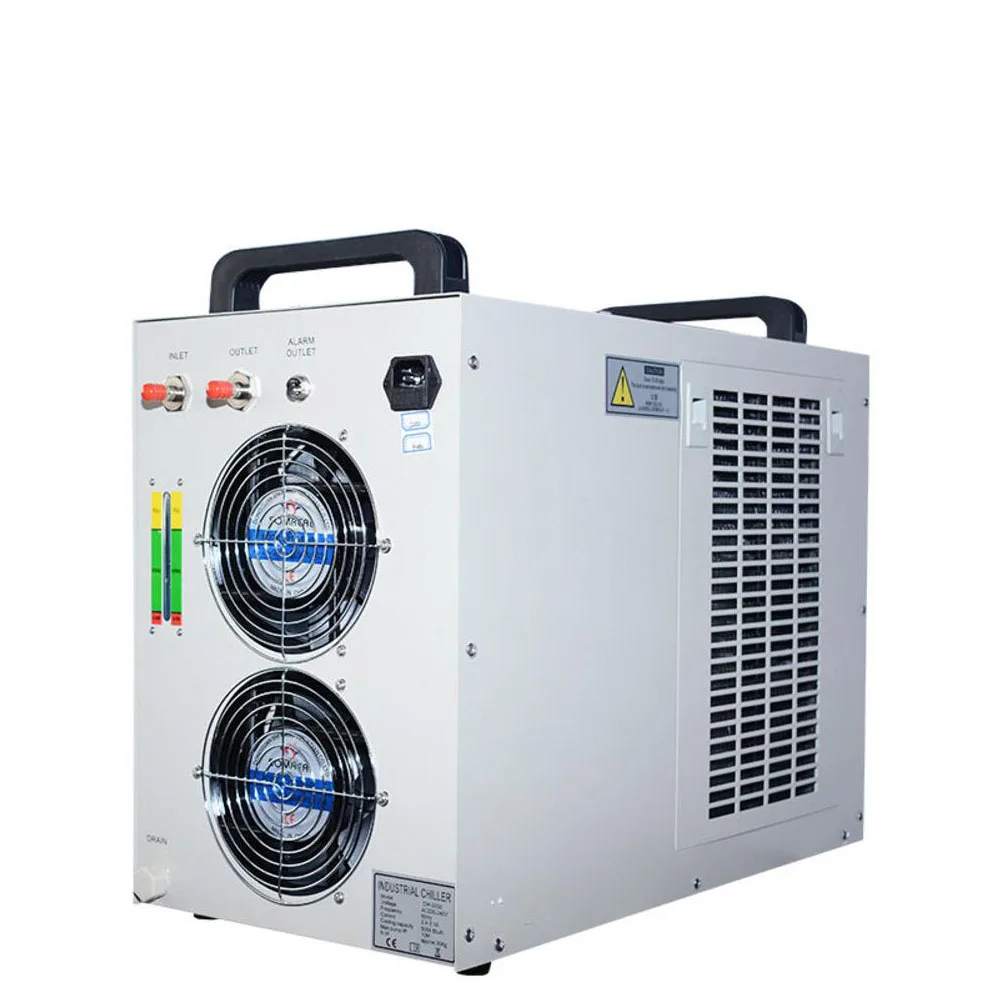

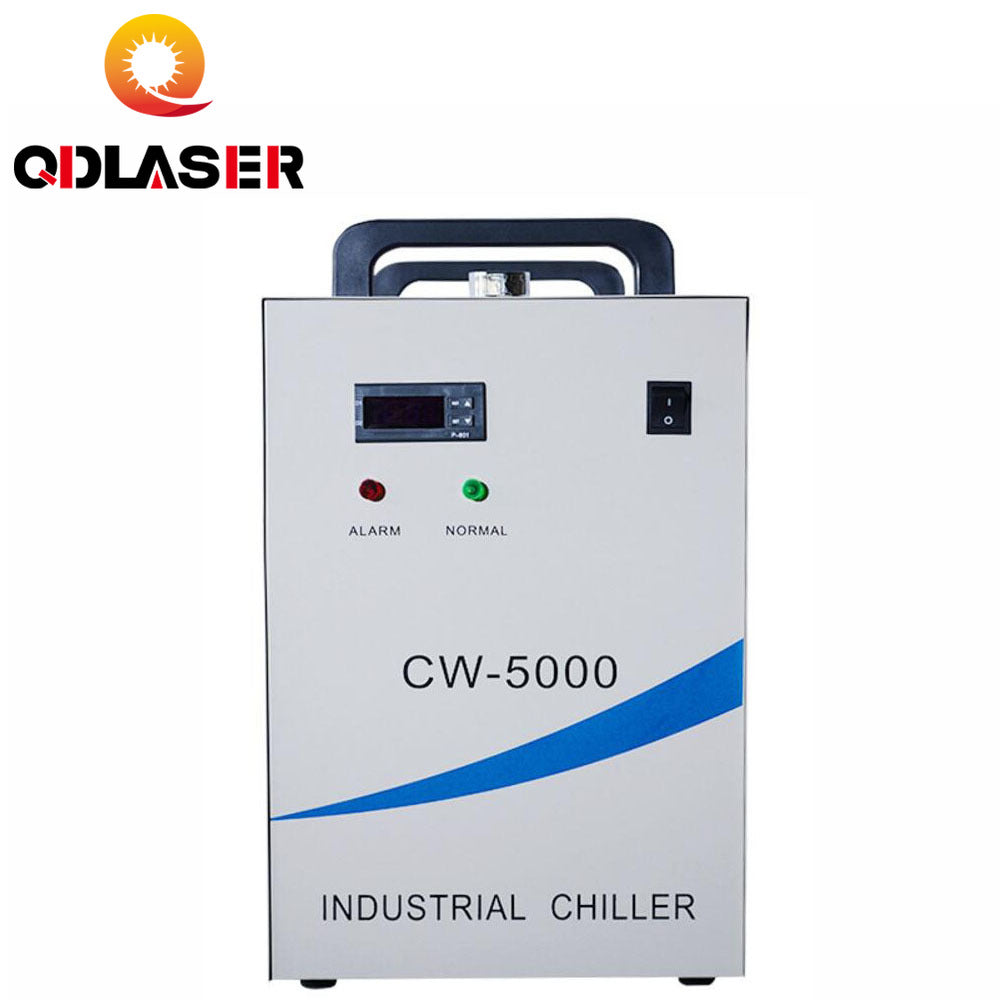

QDLASER Water Industrial Chiller 110V 60Hz CW5000-DG for Co2 Laser Engraving Cutting Machine

Name: QDLASER Water Industrial Chiller 110V 60Hz CW5000-DG for Co2 Laser Engraving Cutting Machine
Brand: QDLASER
Price: 482.16 USD
Availability: InStock

$482.16 USD

~~$482.16 USD~~ $482.16 USD

Sale Sold out

model number CW5000-DG

Product variants

Quantity

QDLASER Water Industrial Chiller 110V 60Hz CW5000-DG for Co2 Laser Engraving Cutting Machine

Feature :

Laser Chiller Features

1. Cooling capacity of CW 5000 laser chiller: 800W; use environmental refrigerant;

2. Compact size, long working life and simple operation;

3. ±0.3鈩� precisely temperature control, ±0.1鈩� temperature control is optional;

4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

6. Multiple power specifications; CE approval;

7. Optional heater and water filter.

Introduction of CW 5000 Water Chiller

CW 5000 water chiller adopts the new imported famous brand compressor and large flow and high lift pump, safety and environmental protection, energy saving and durable.

Spare parts: Most parts use the "Baodian" original products, various model configurations, stable performance, long service life.

Laser Chiller Applications :

One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.

CW-5000AG laser chiller : applied to cool a single 100W CO2 laser tube ;

CW-5000AI laser chiller: applied to cool a single 5W-10W solid-state laser ;

CW-5000AH laser chiller: applied to cool a single 5KW spindle or welding equipment.

Mini Chiller CW 5000 Specification

Model of mini chiller	CW-5000AG	CW-5000BG	CW-5000DG	CW-5000AI	CW-5000BI	CW-5000DI
Voltage	220V	220V	110V	220V	220V	110V
Frequency	50Hz	60Hz	60Hz	50Hz	60Hz	60Hz
Current	1.4~2.1A		3.5~5.6A	1.4~2.1A		3.5~5.6A
Compressor power	0.52KW	0.5KW	0.68KW	0.52KW	0.5KW	0.68KW
Refrigeration capacity	1.49KW	1.46KW	1.52KW	1.49KW	1.46KW	1.52KW
Refrigerant	R-22/R-134a
Refrigerant charge	360g	380g	350g	360g	380g	350g
Precision	±0.3鈩�
Reducer	Capillary
Protection	Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power	28.8W			0.1KW
Tank capacity	9L

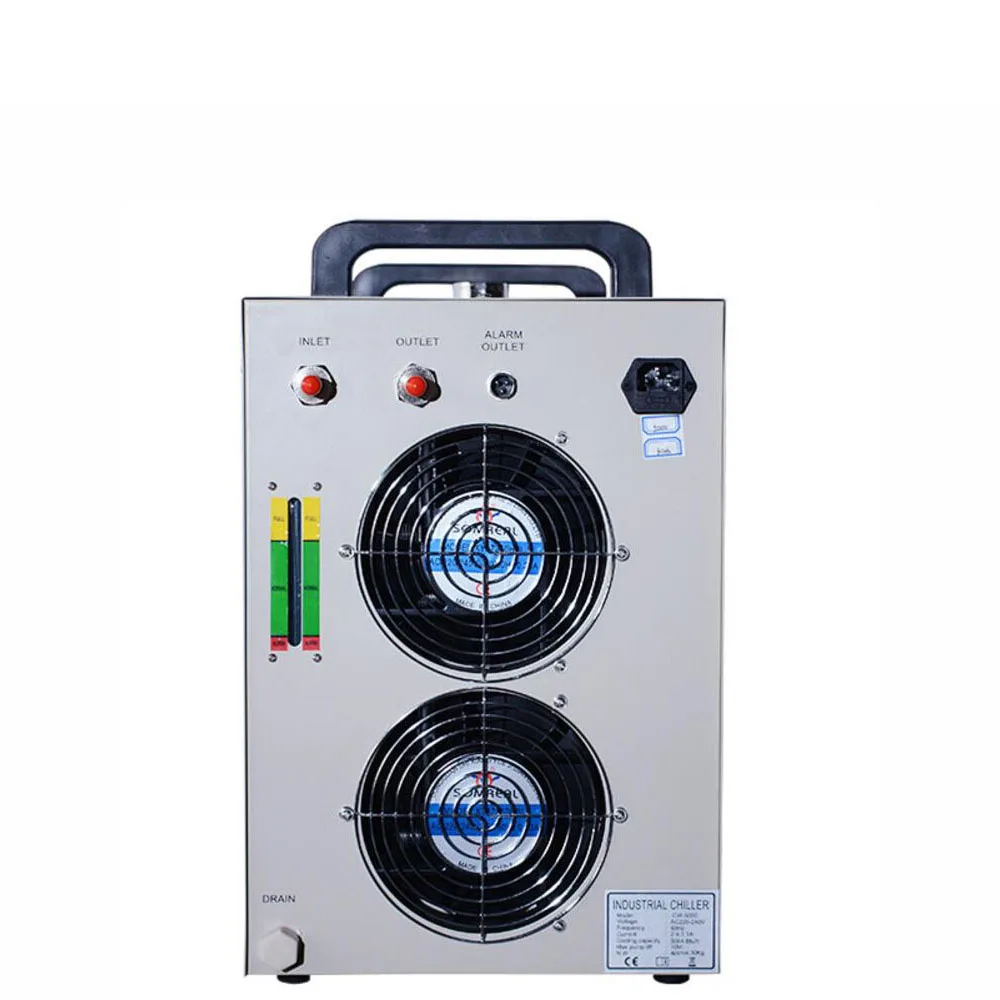

Inlet and outlet	External Φ10mm Tower shaped joint			Diameter Φ10mm speedy connector
Max. lift	8M			25M
Max. flow	10 L/min			16 L/min
N.W	28 Kgs
G.W	31Kgs
Dimension	56 X 28X 47 cm (L X W X H)
Package dimension	72 X 44 X 57 cm (L X W X H)

Note: other electric sources can be customized; heating and higher temperature control precision functions are optional .
