QDLASER Ruida RDC6585G Controller 8-axis CO2 Motion Controller Controller System for CO2 Laser Engraving and Cutting Machines
QDLASER Ruida RDC6585G Controller 8-axis CO2 Motion Controller Controller System for CO2 Laser Engraving and Cutting Machines
Regular price
$462.00 USD
Regular price
$462.00 USD
Sale price
$462.00 USD
Unit price
per
Couldn't load pickup availability
Products Description

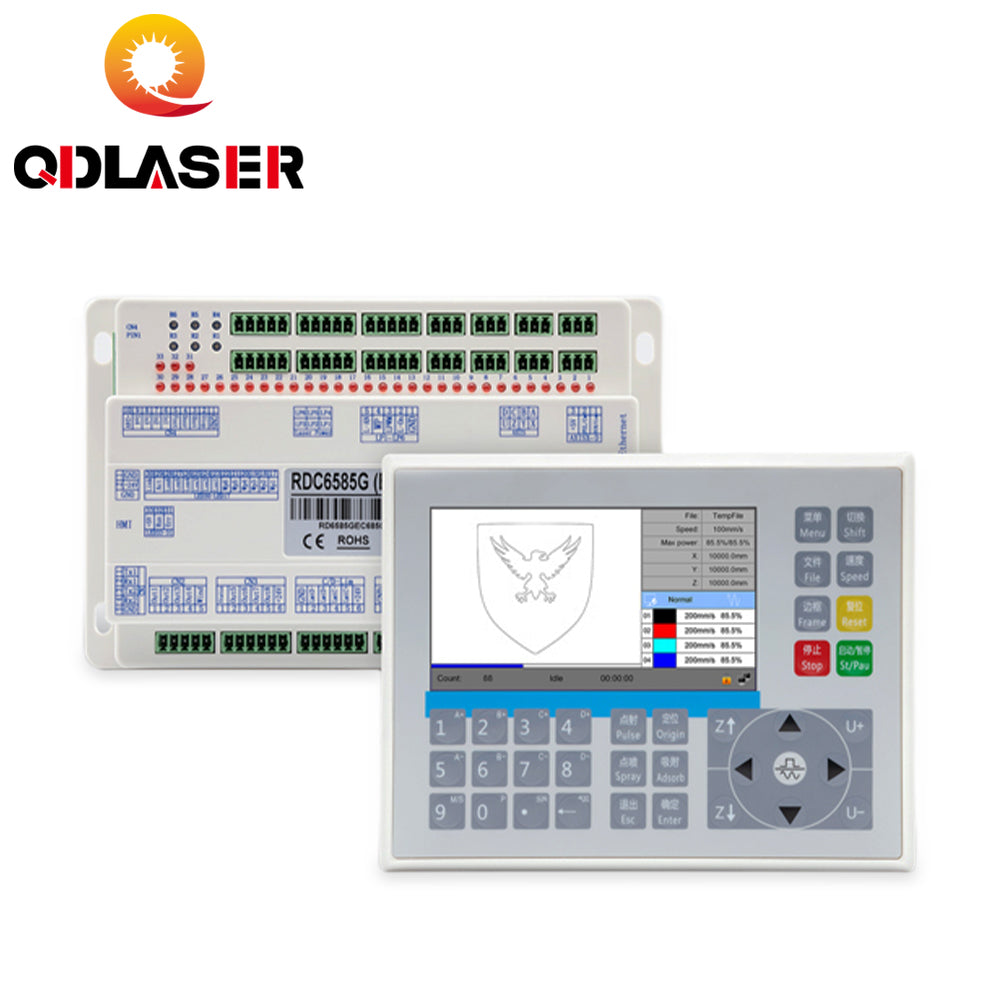

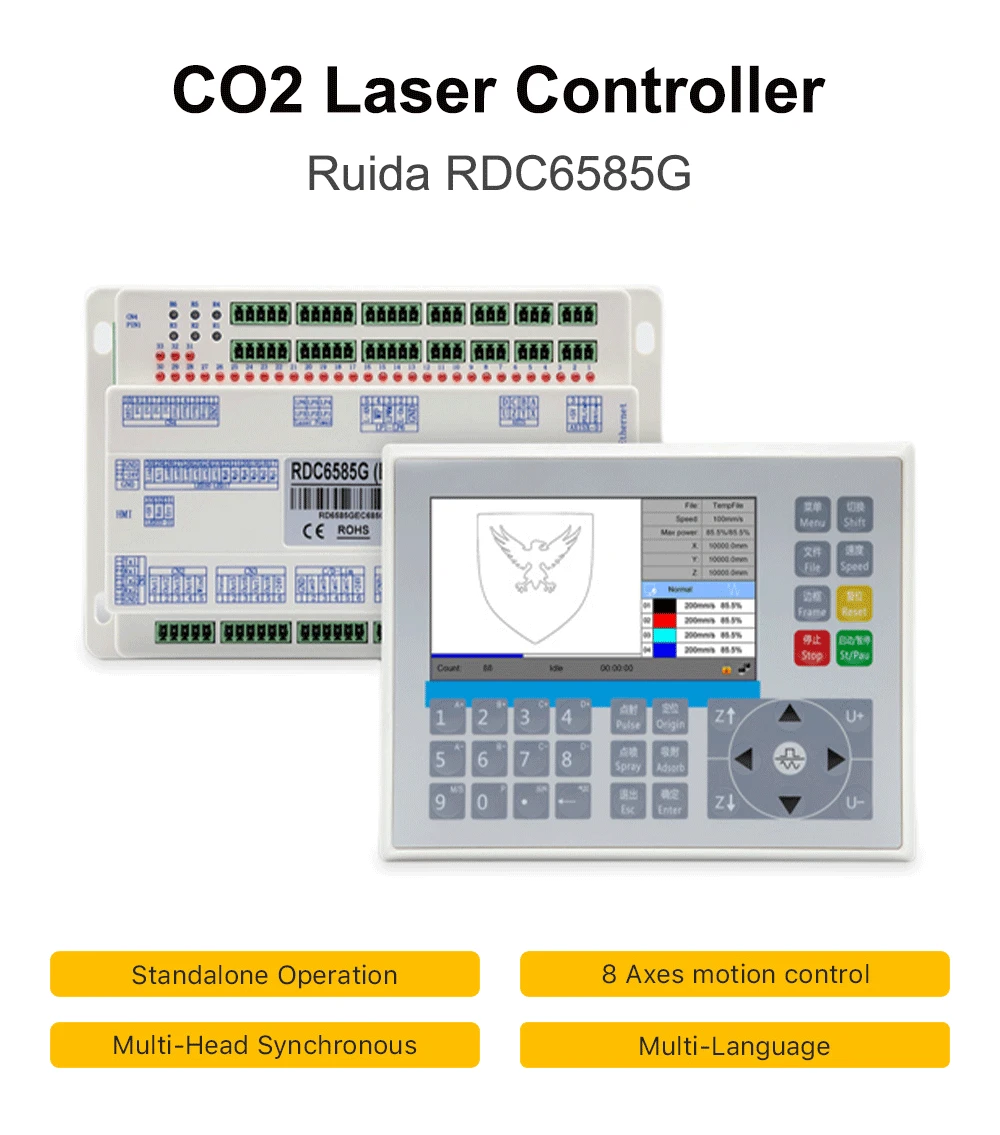

QDLASER Ruida RDC6585G Controller 8-axis CO2 motion controller Controller system for CO2 laser engraving and cutting machines

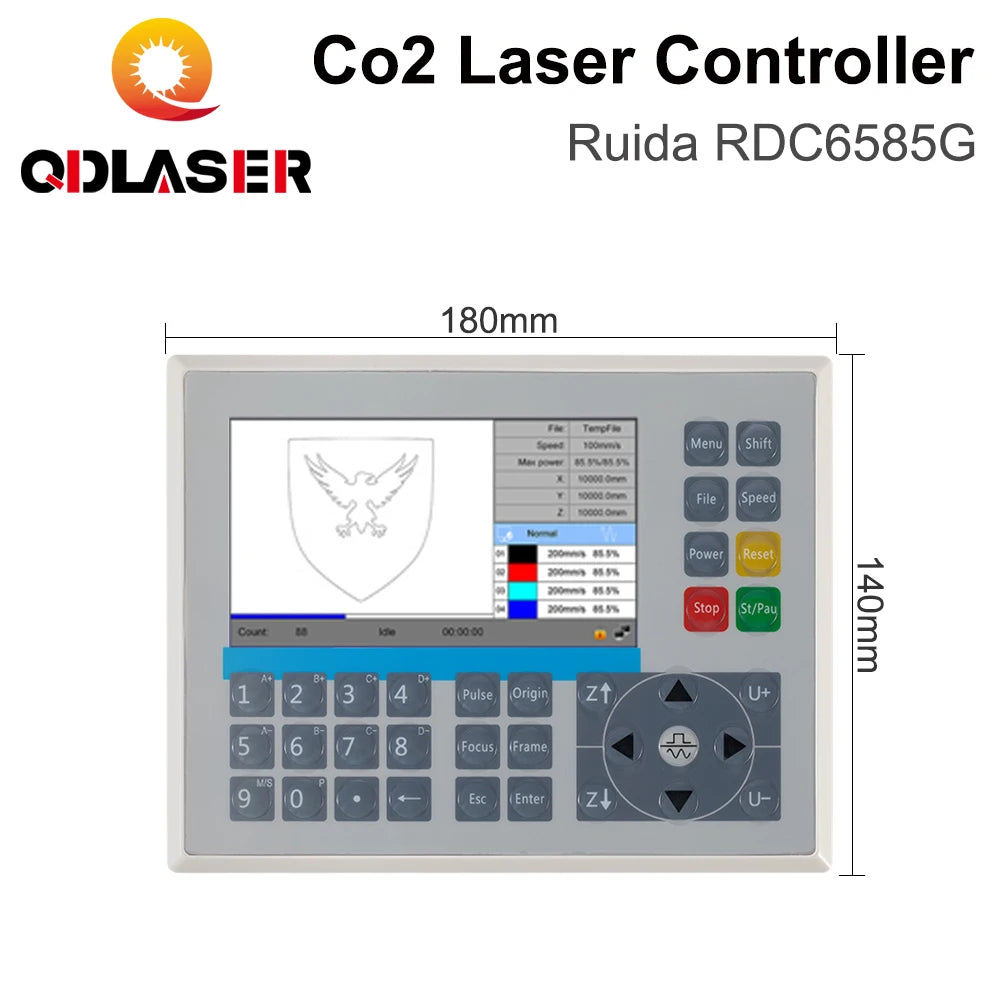

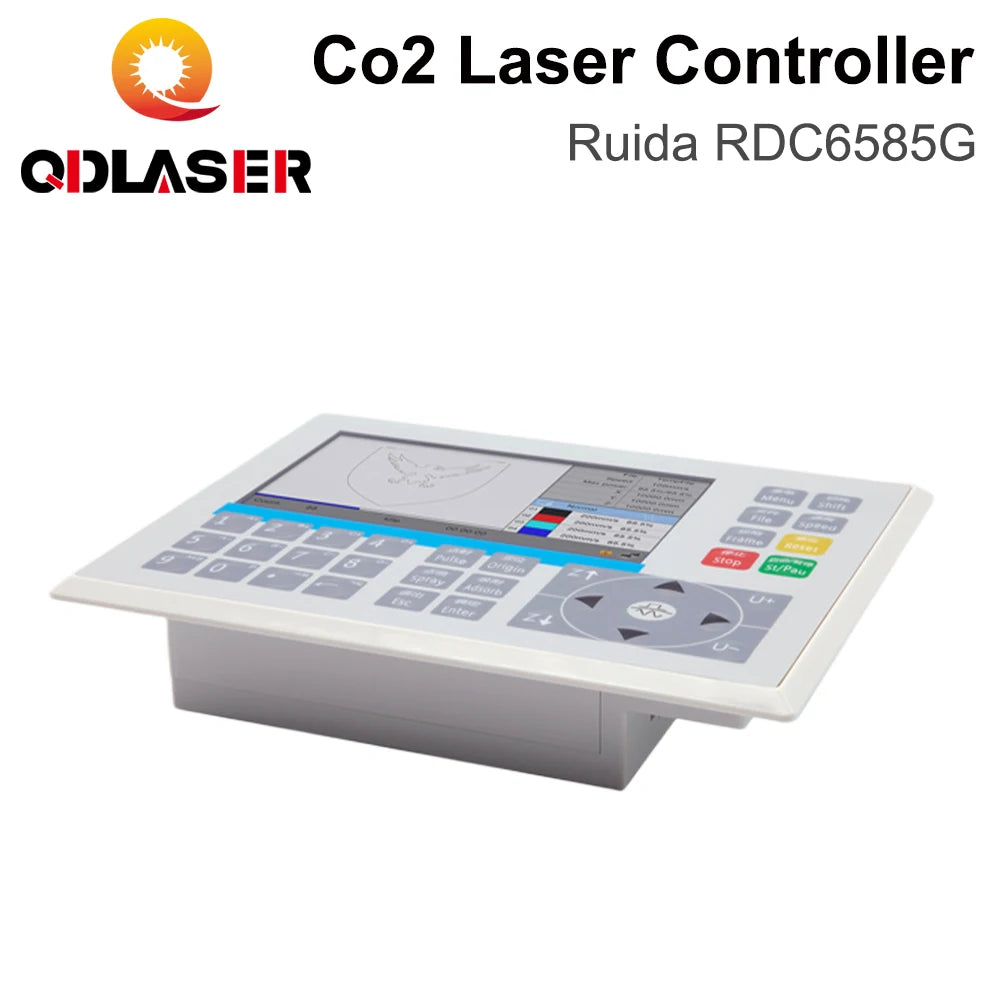

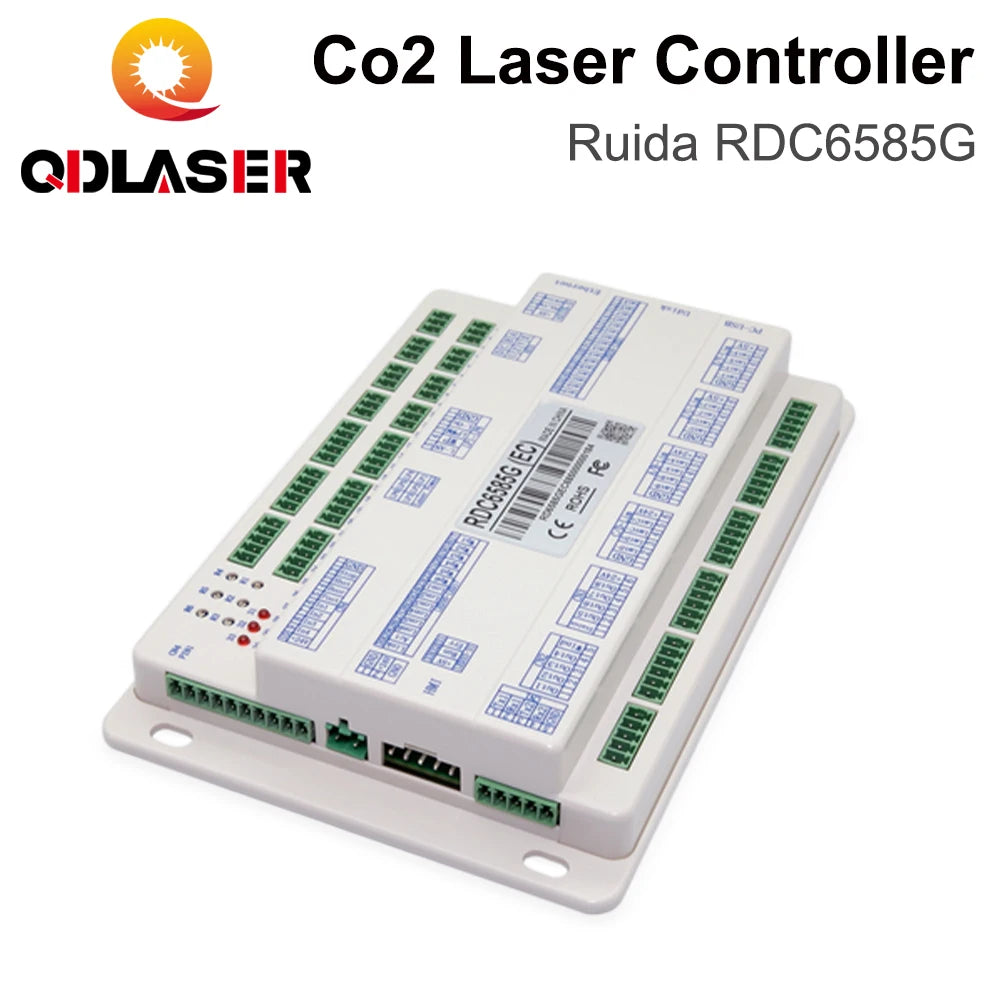

Name:Co2 Laser Controller
Model: Ruida RDC6585G
Feature:
1. Working standalone.256M memory on board.
2. Support USB/Ethernet communication and U disk.

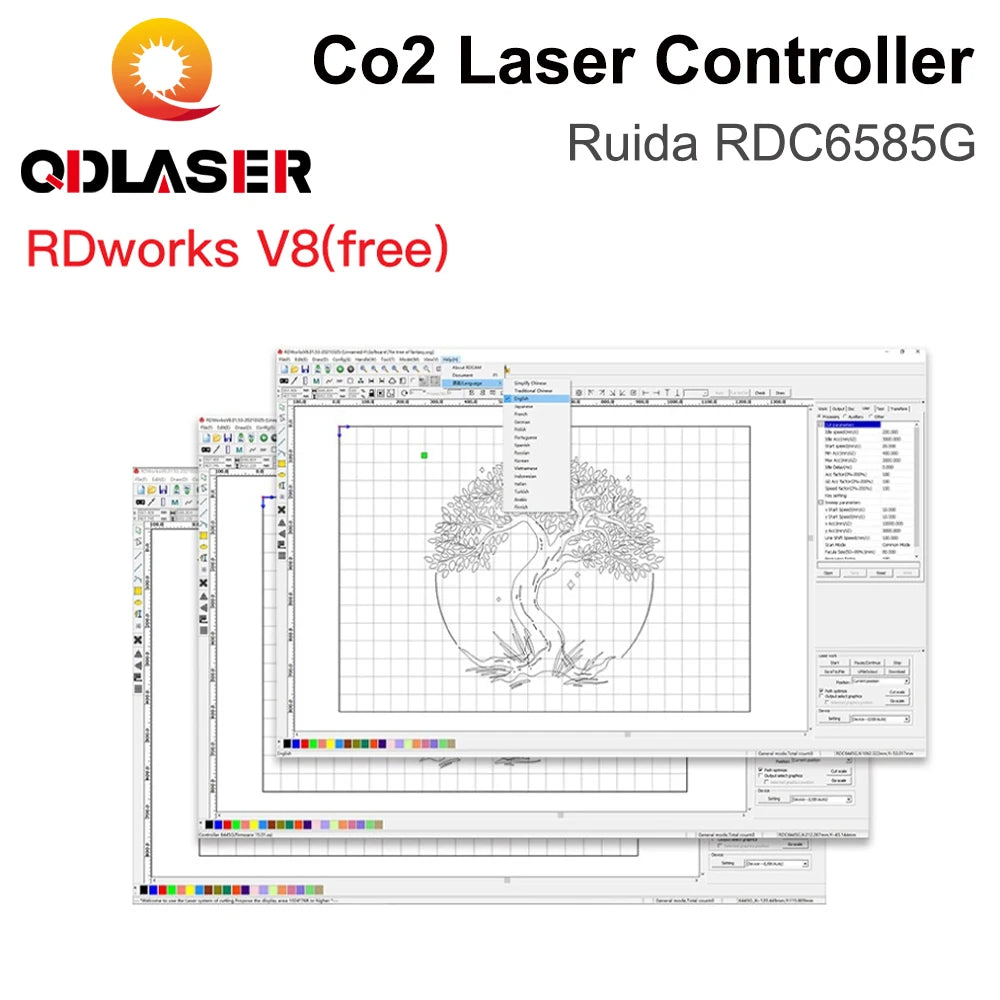

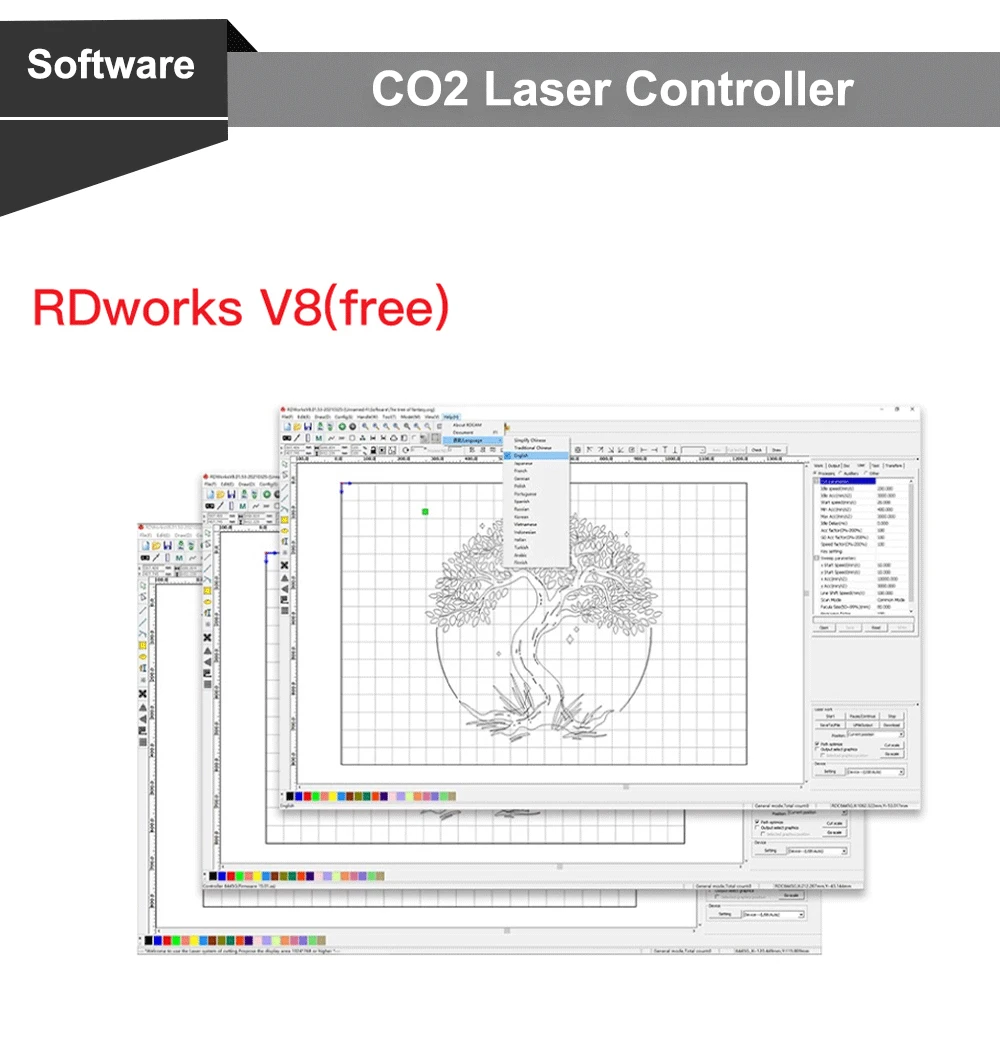

3. Application software: RDWorksV8, plug-in software RDPlug, virtual printing, RDImage.
4. Support 8 axes motion control and 6 channels laser control.
5. Support panel to modify manufacturer/user parameters.
6. Support manual point/continuous switch,automatic focus and docking point setting functions.
7. U axis/ Y and U axes feeding synchronously.
8. Support 2/3/4/6 heads synchronous and Y axis rotation.
Parameters:
1. Axis: 8 axis.
2. Laser control: 6 channels
3. Safety protection: Security protection and software protection
4. Rotary axis: Y axis rotation
5. Engraving function: Plane engraving/slope engraving/gray engraving
6. Docking position: Support manual input/automatic extraction of docking coordinates
7. Adaptive: CO2 glass tube, CO2 metal RF, fiber and UV laser
8. Virtual print: Support
9. Firmware upgrade: Support remote upgrade the mainboard and touch screen program

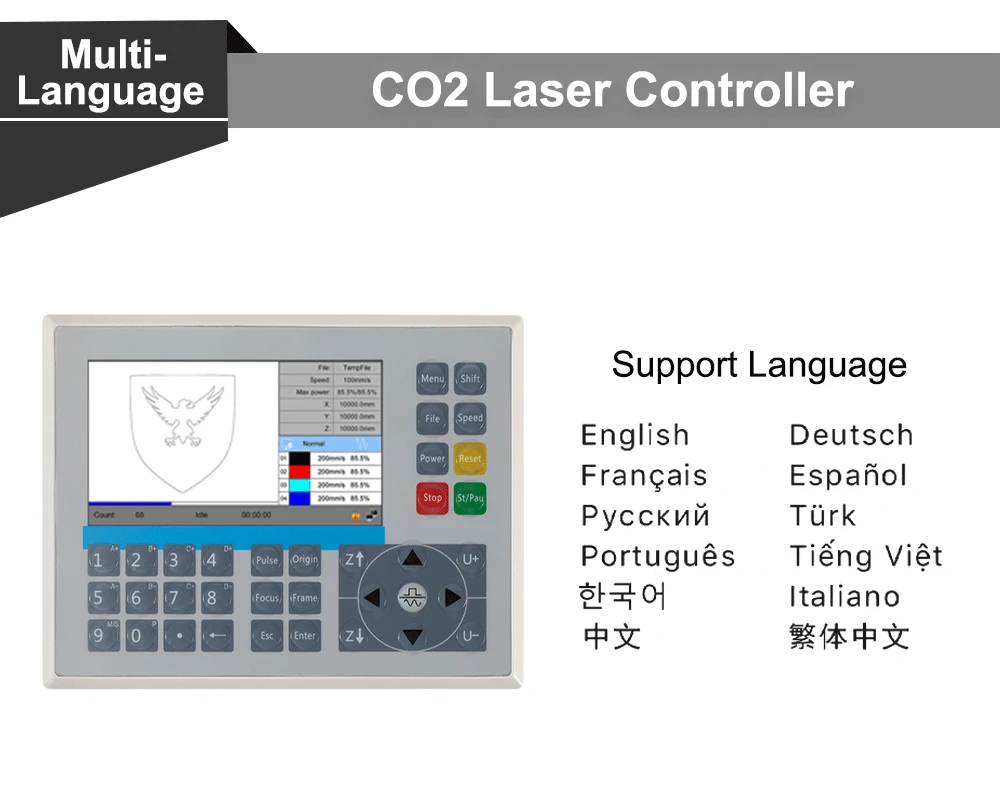

Multiple Languages:
1. Support simplified Chinese, traditional Chinese,English,Japaness, German, Russia, Spanish,Portuguese,Korean,French and other 16
languages.
Multiple Languages:
1. Support PLT,DXF,AI,DST and other file formats, display and edit functions, support image file import ans peocessing.
