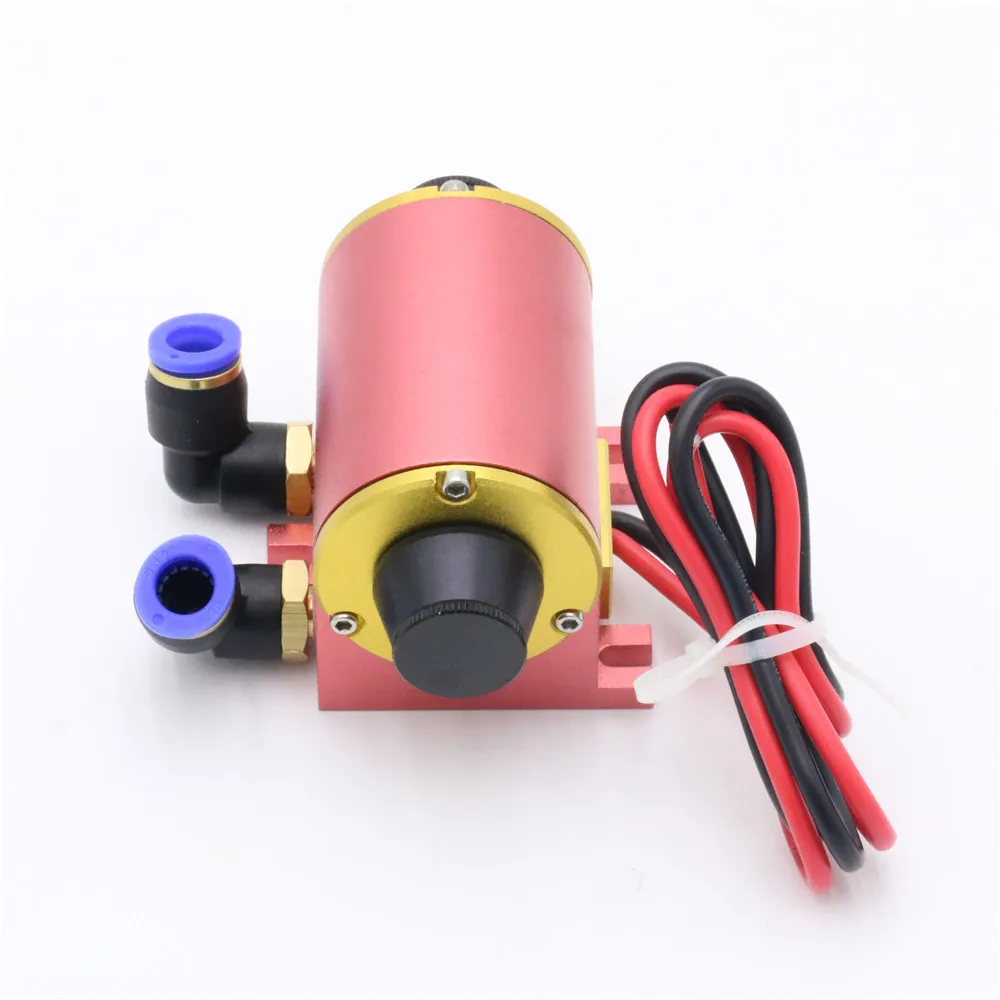

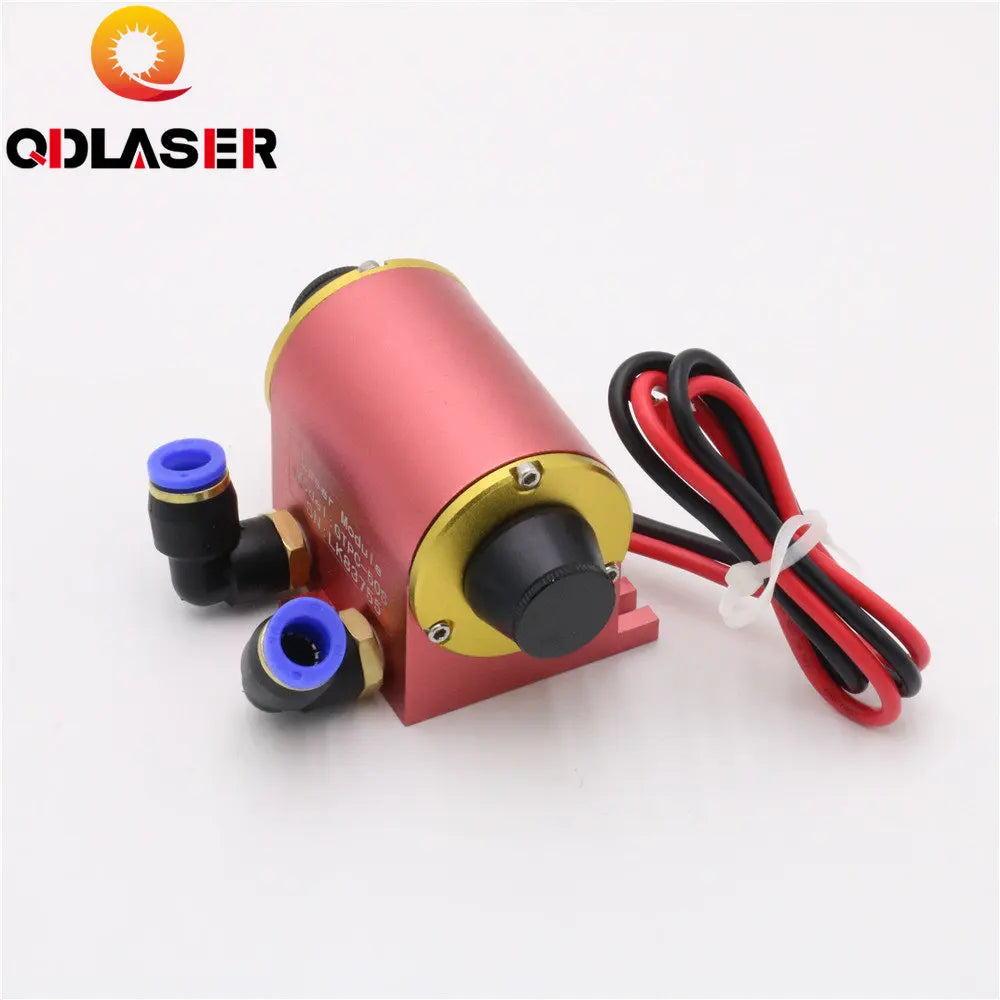

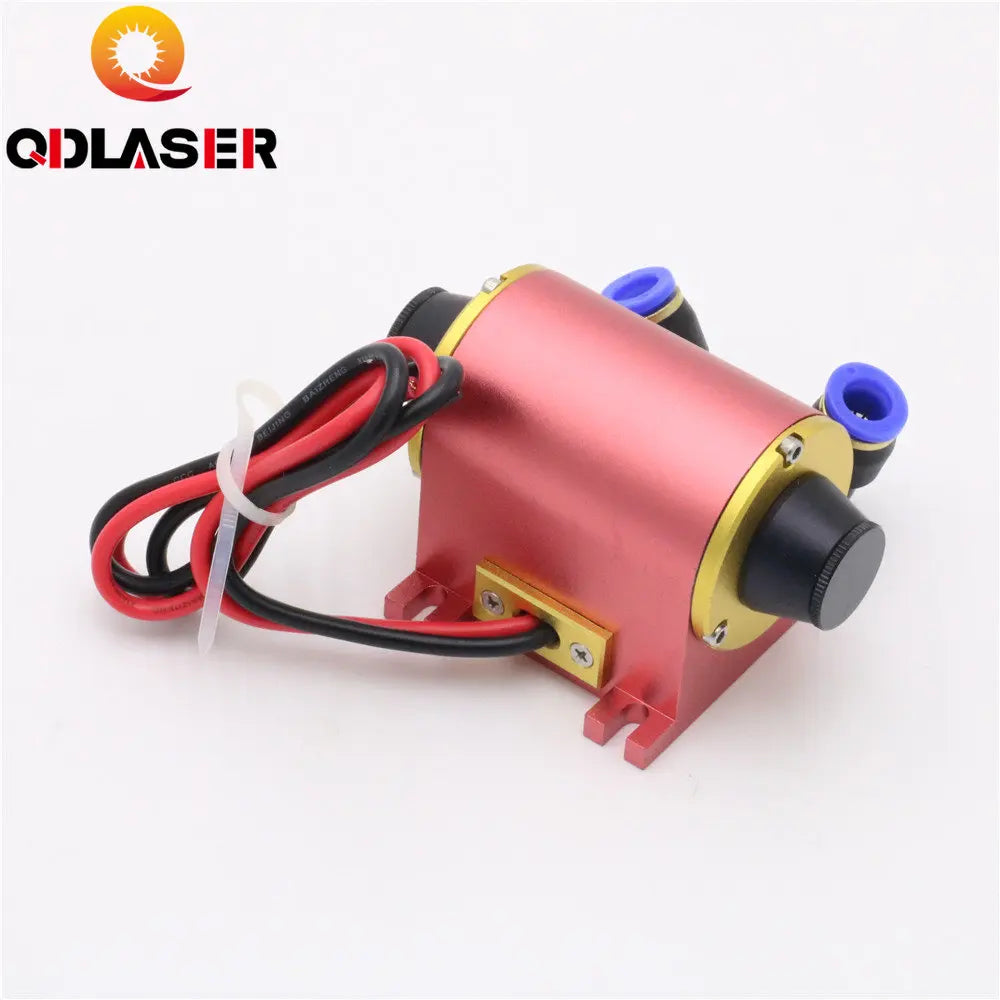

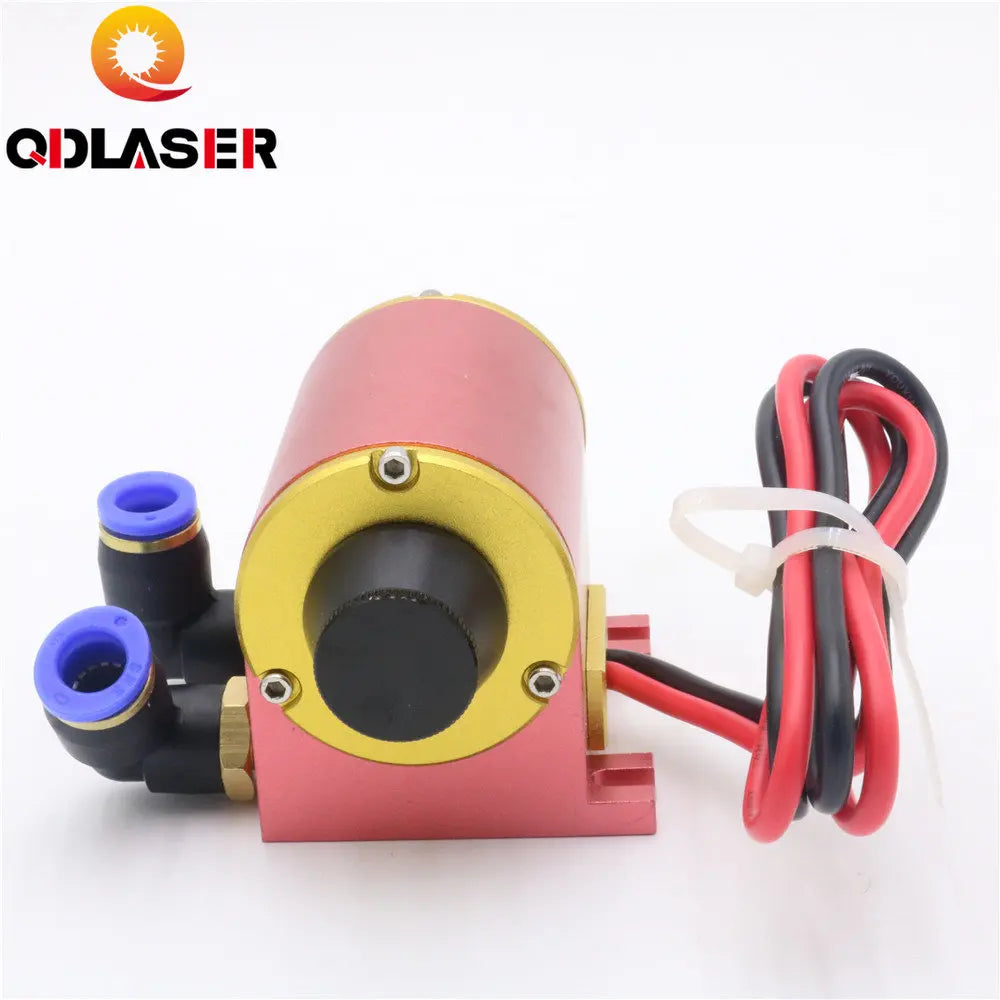

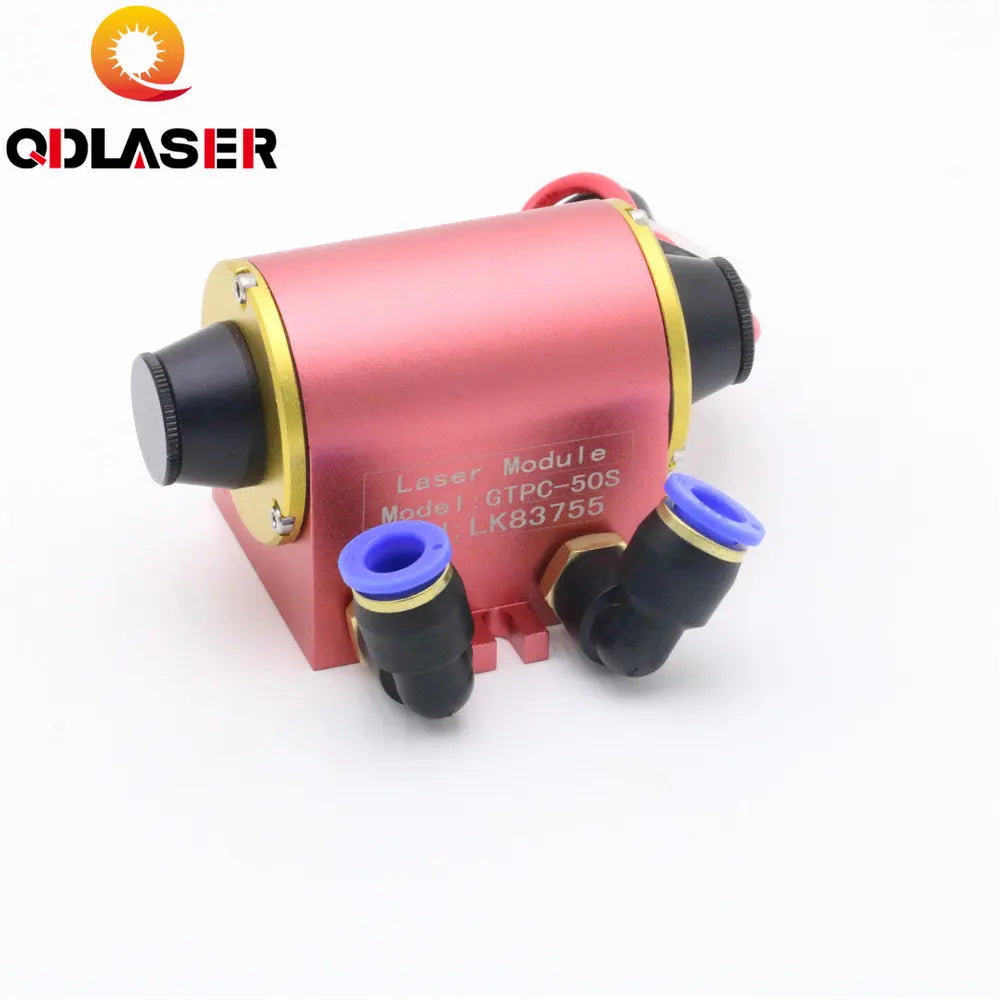

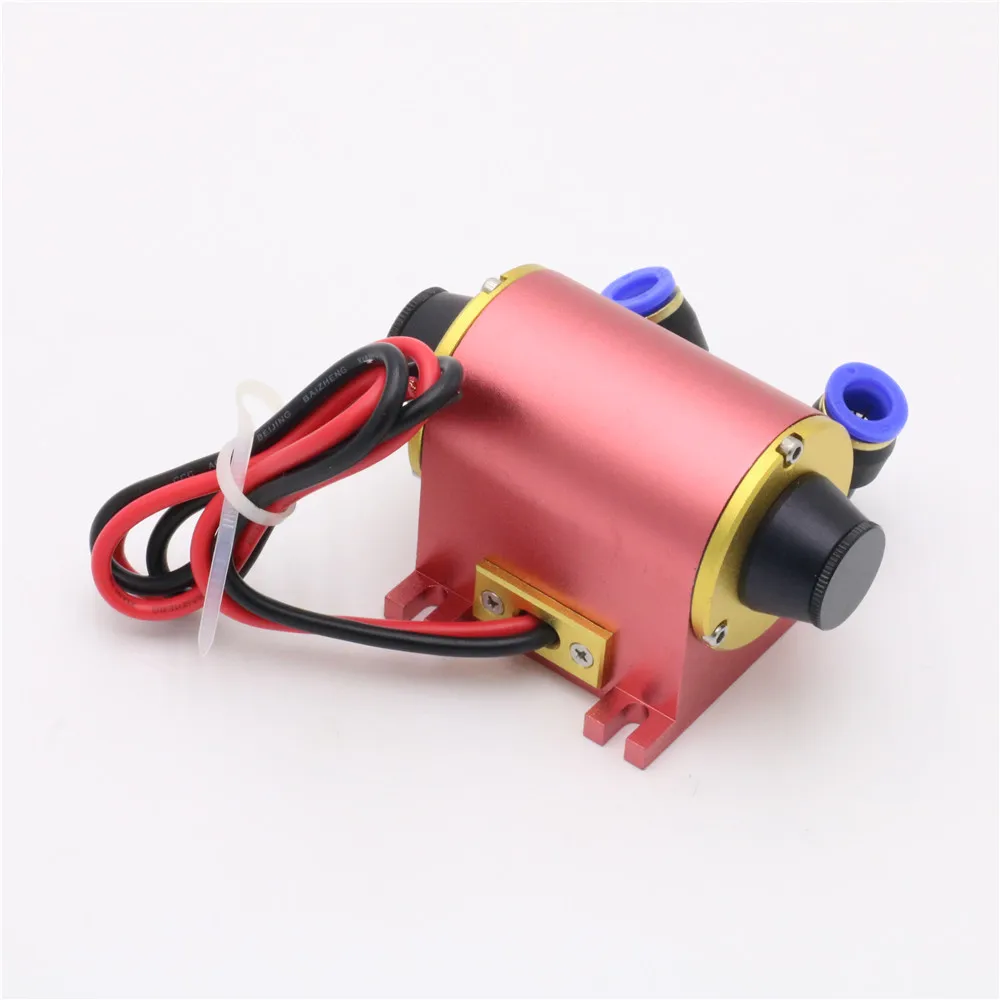

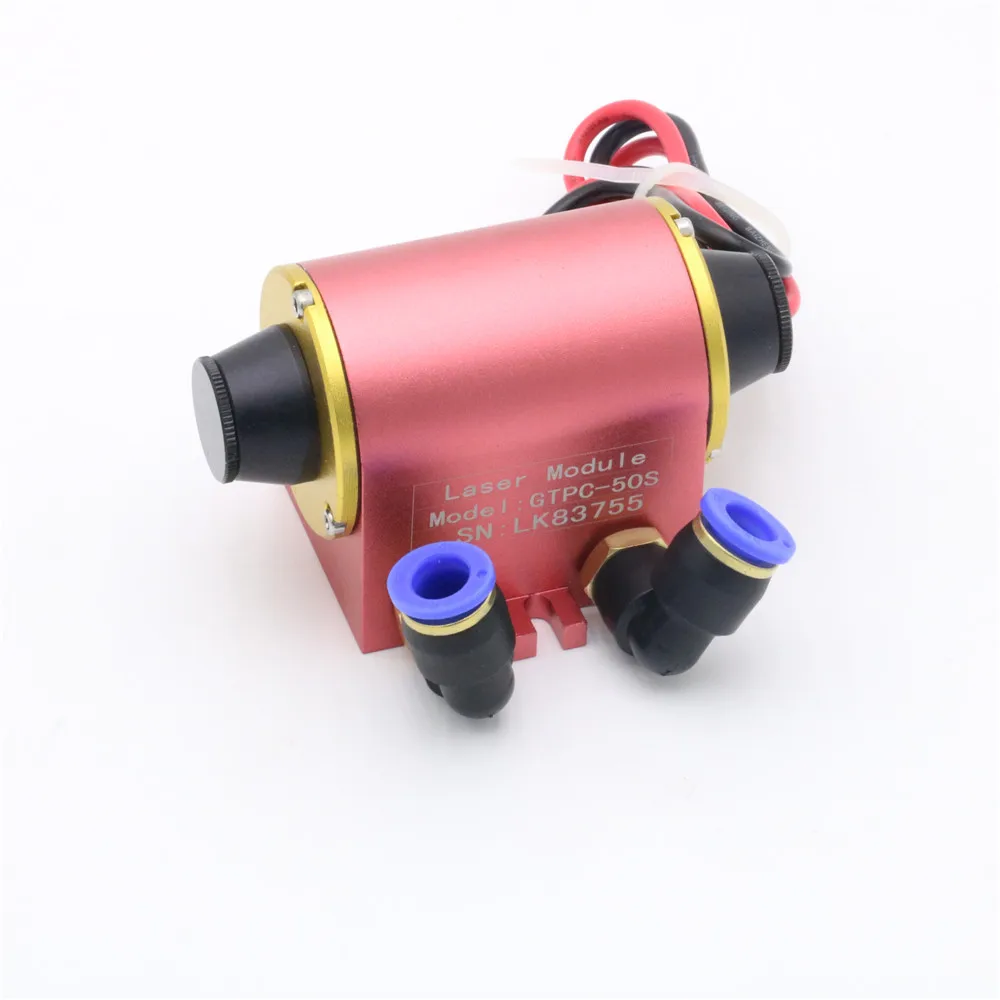

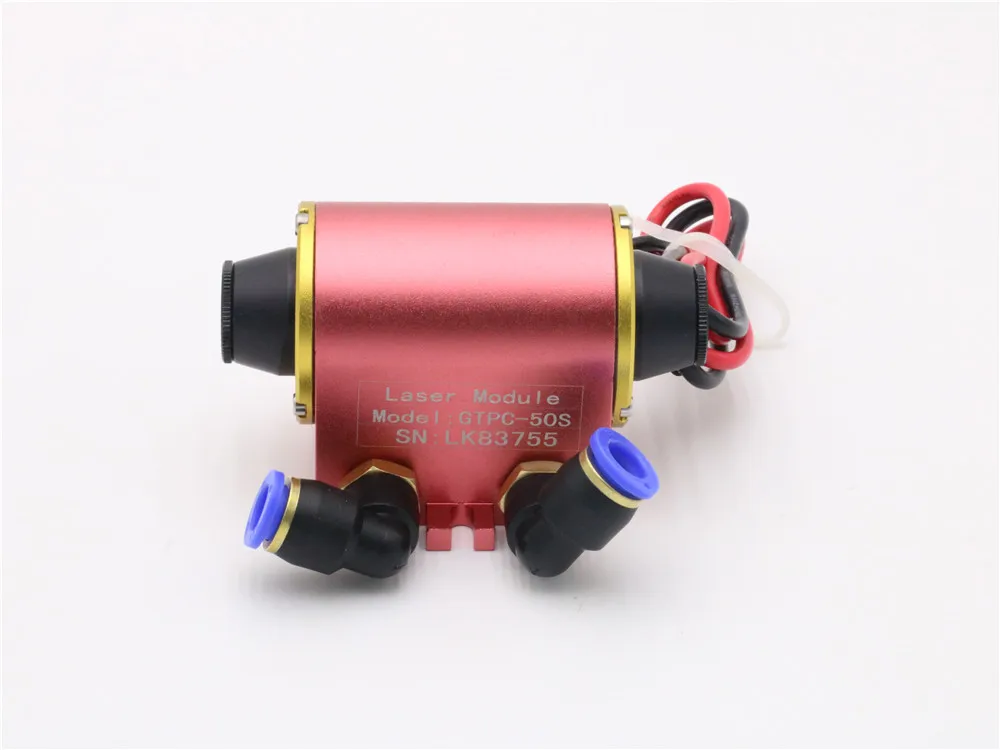

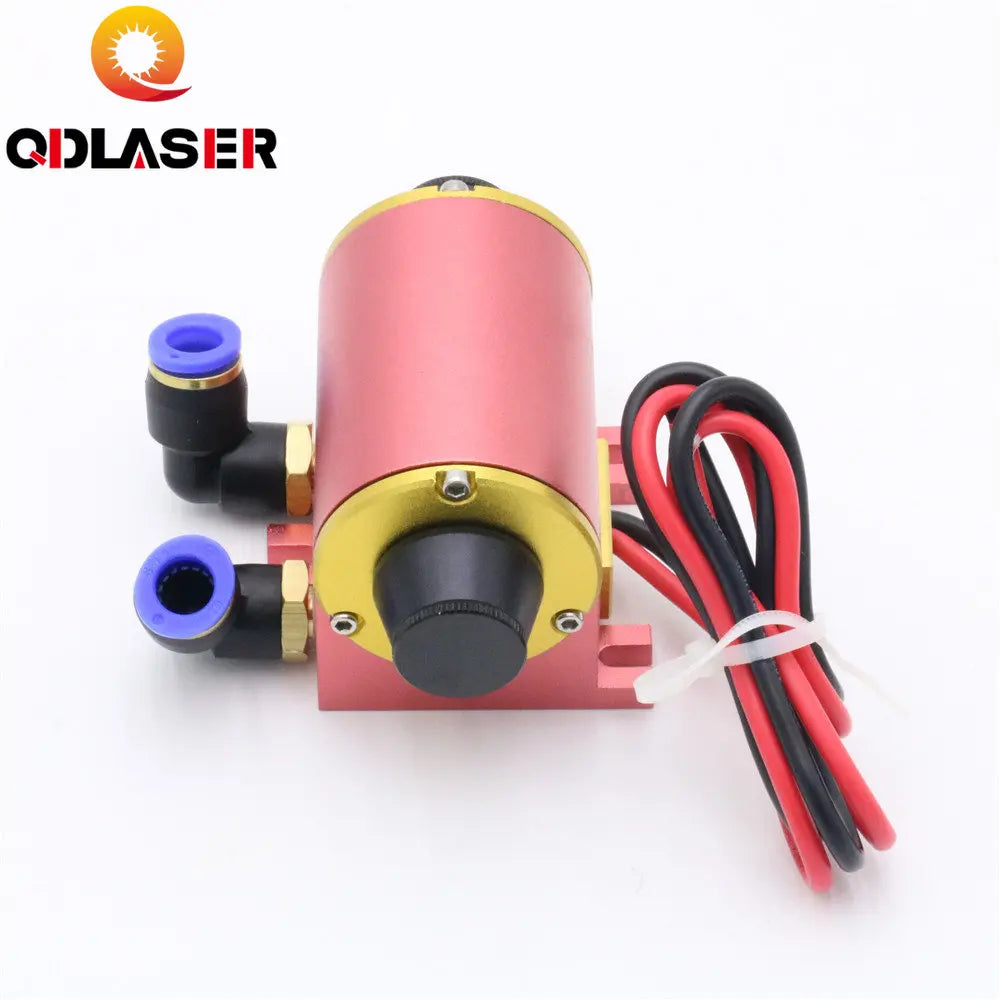

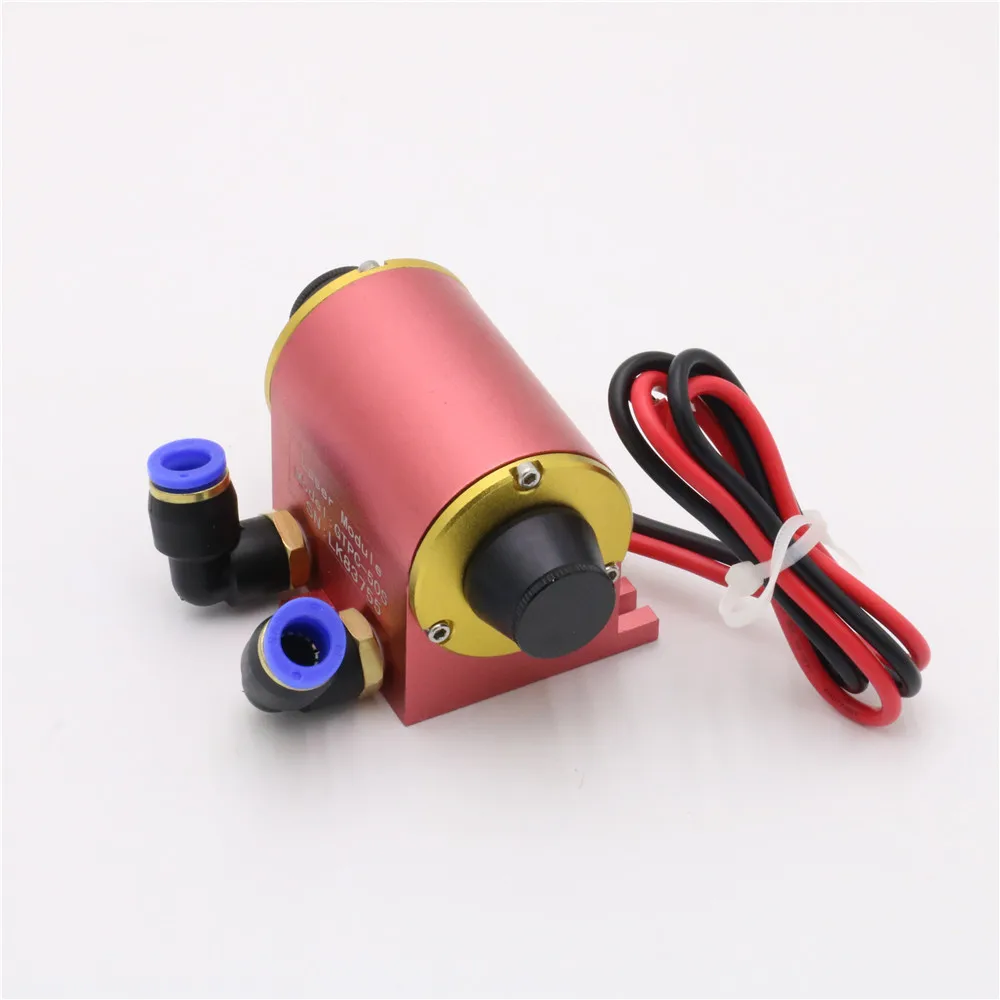

QDLASER GTPC-50S Diode Pumped Laser Module 50W Beijing Origin for Laser Marking Machine Warranty 1 Year
QDLASER GTPC-50S Diode Pumped Laser Module 50W Beijing Origin for Laser Marking Machine Warranty 1 Year
Regular price
$1,072.99 USD
Regular price
$1,072.99 USD
Sale price
$1,072.99 USD
Unit price
per
Couldn't load pickup availability
Products Description
QDLASER GTPC-50S Diode Pumped Laser Module 50W Beijing Origin for Laser Marking Machine Warranty 1 Year

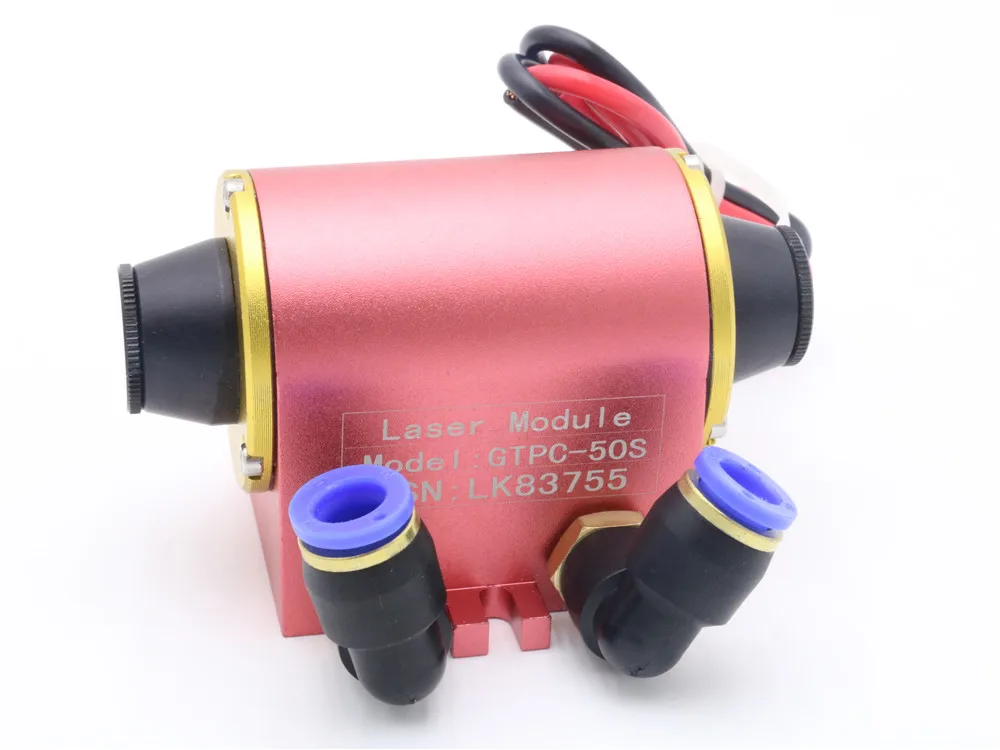

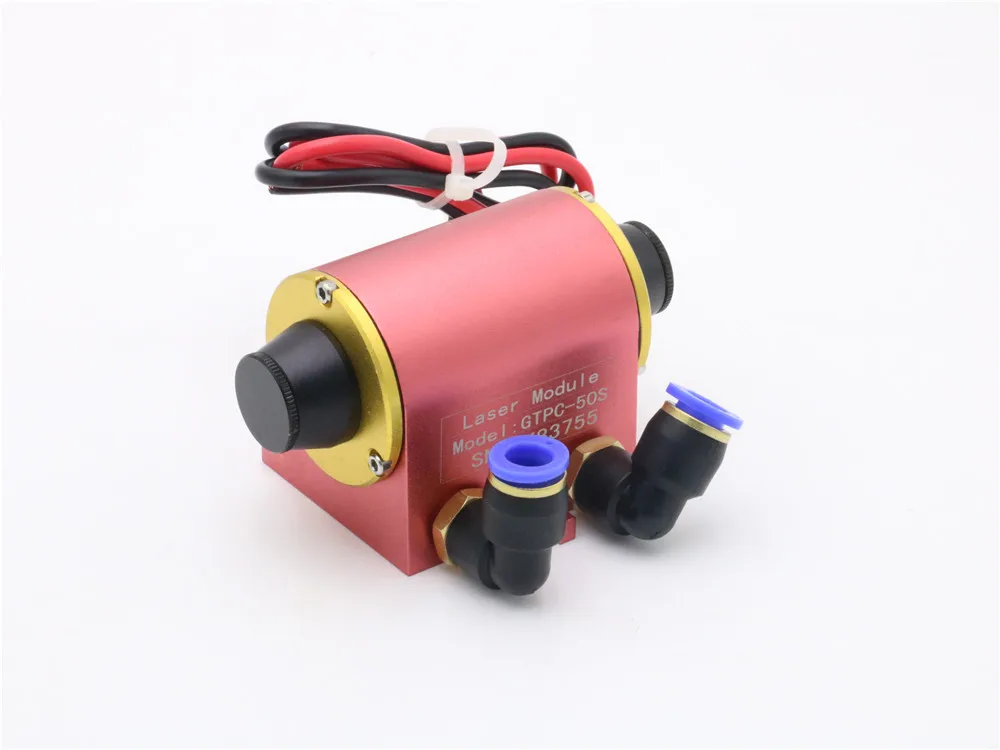

GTPC-50S
SN: XXXX
1. Technical parameters
CW Output Power: 50W
Threshold Current: ~6A
Operating Current: ~18A
Forward Voltage: ≤18V
Center Wavelength: 1064nm
The length of the YAG rod:65mm
The Diameter of the YAG rod:3mm
YAG Terminal: Flat/AR at 1064nm/YAG doped 1%
The cooling water flux: 4-5L/min
Cooling power: >100W
Optimum temperature: 20°C
Temperature Range (Storage): -20°C~ 70°C
2. Typical Performance Curves
Note: Testing conditions
1. The length of the cavity is 170 mm;
2. The transmission of the output mirror is 20%.
3. The temperature of the chilling water is determined by the optimized result, each module has recommended optimum temperature.
The output power can be changed while the cavity length, the output transmission or the temperature of the chilling water is
changed.
GTPC-50S
SN: XXXX
1. Technical parameters
CW Output Power: 50W
Threshold Current: ~6A
Operating Current: ~18A
Forward Voltage: ≤18V
Center Wavelength: 1064nm
The length of the YAG rod:65mm
The Diameter of the YAG rod:3mm
YAG Terminal: Flat/AR at 1064nm/YAG doped 1%
The cooling water flux: 4-5L/min
Cooling power: >100W
Optimum temperature: 20°C
Temperature Range (Storage): -20°C~ 70°C
2. Typical Performance Curves
Note: Testing conditions
1. The length of the cavity is 170 mm;
2. The transmission of the output mirror is 20%.
3. The temperature of the chilling water is determined by the optimized result, each module has recommended optimum temperature.
The output power can be changed while the cavity length, the output transmission or the temperature of the chilling water is
changed.
