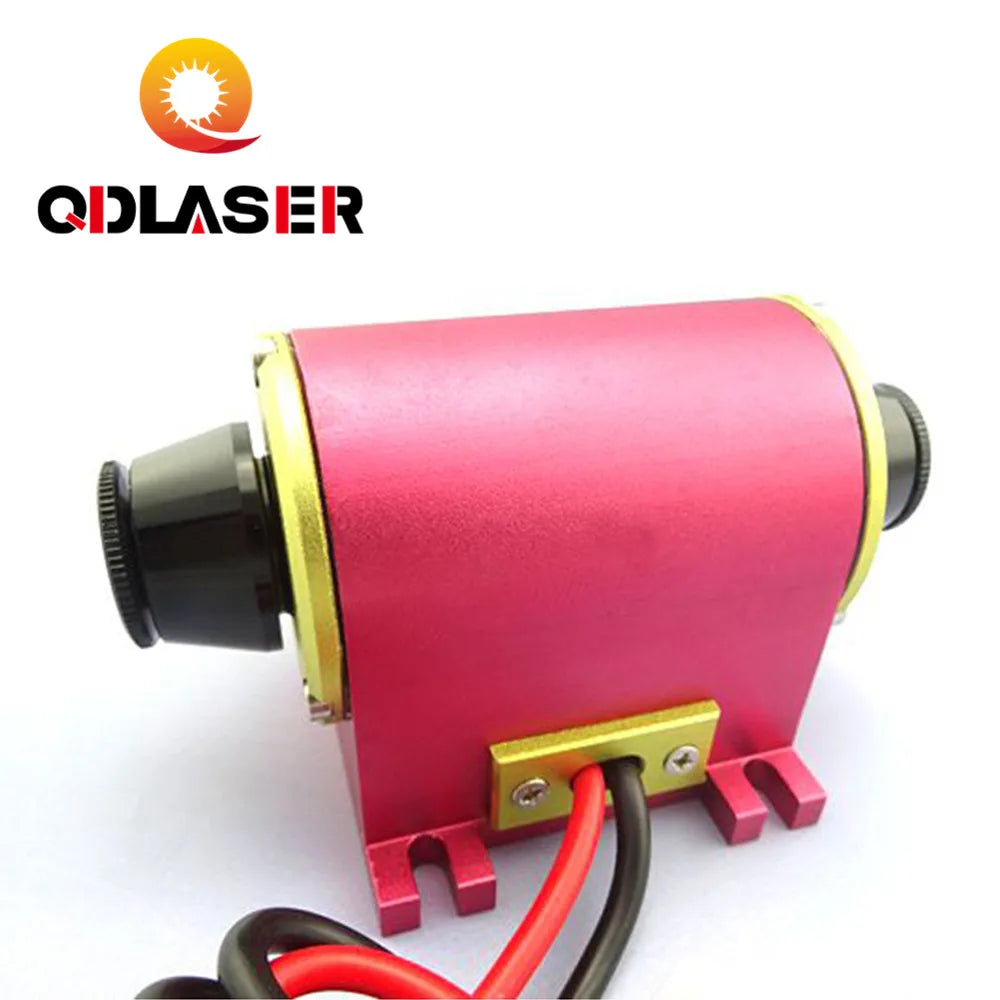

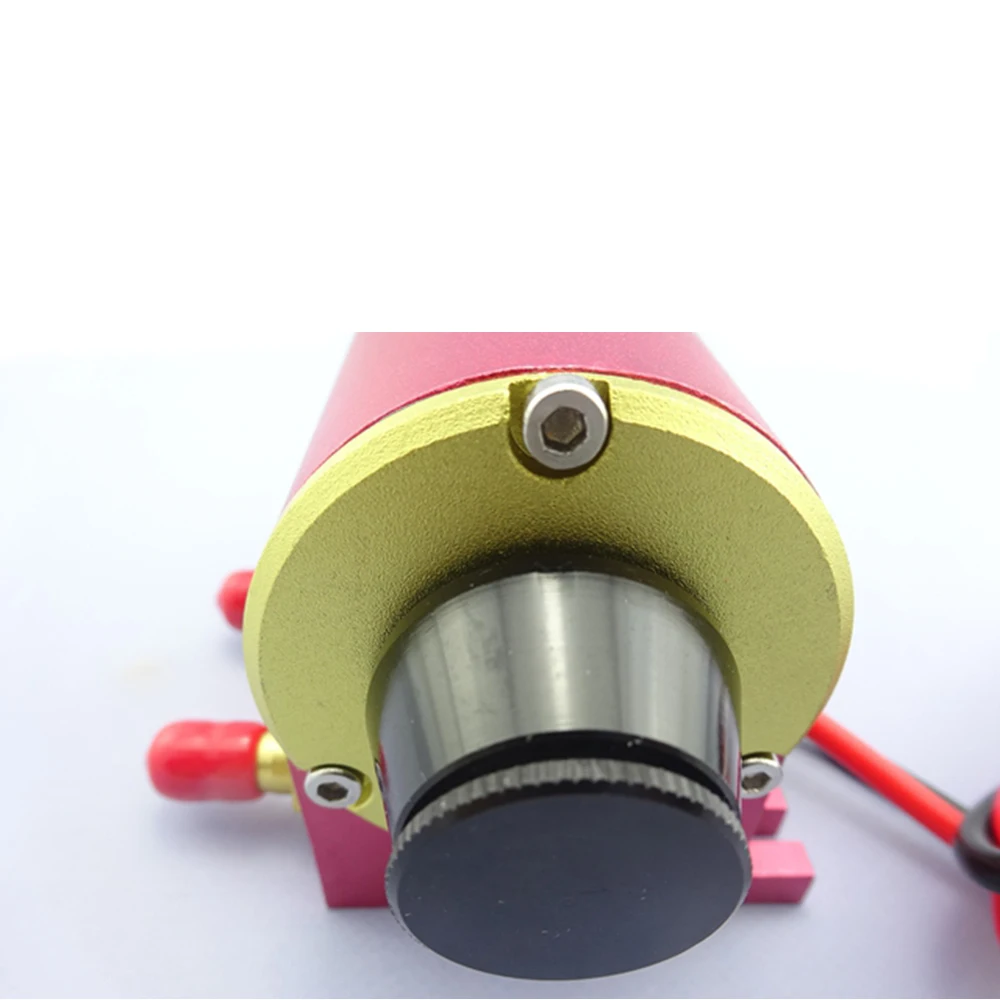

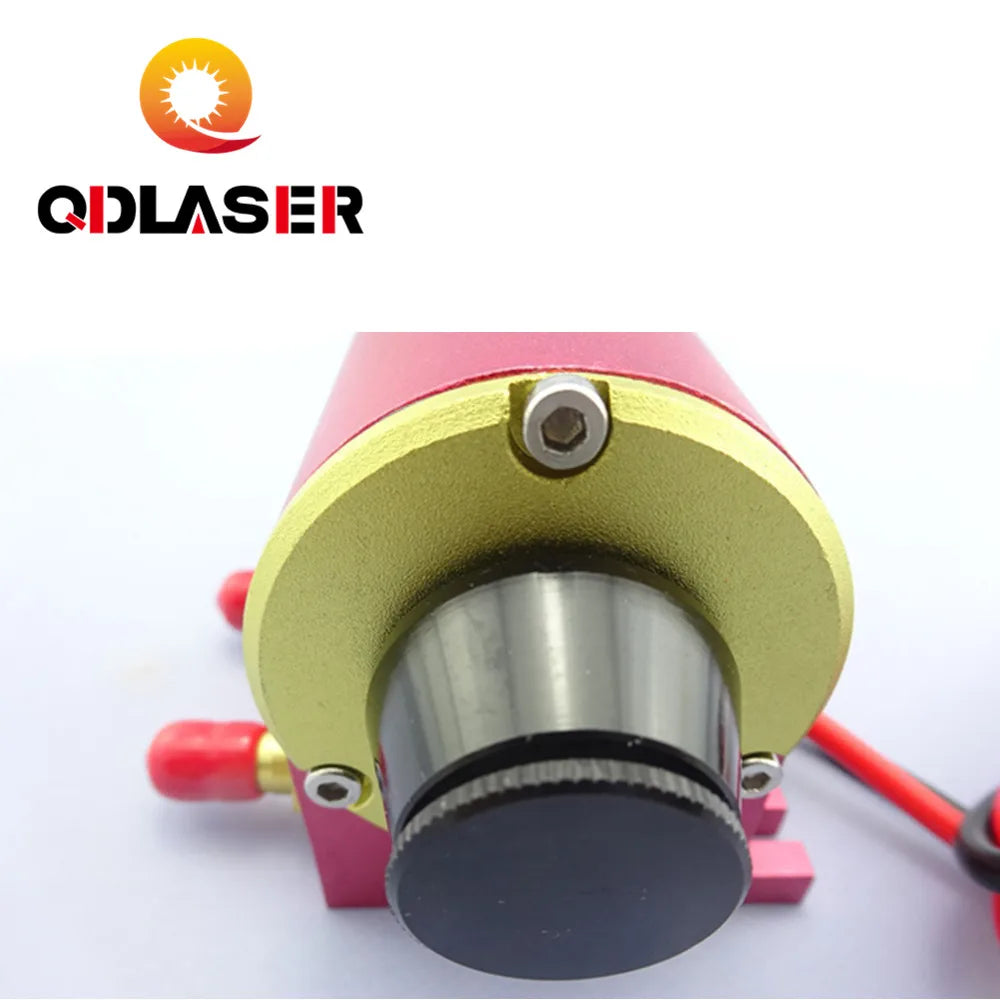

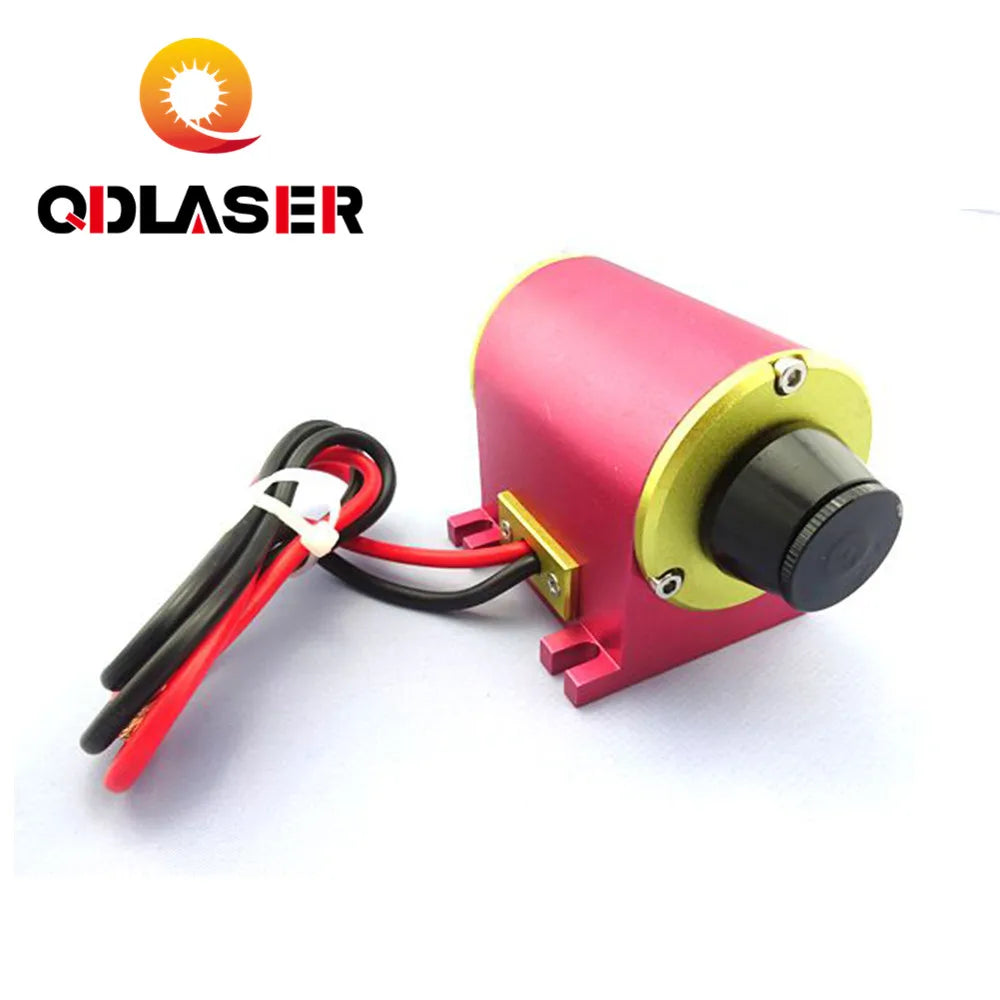

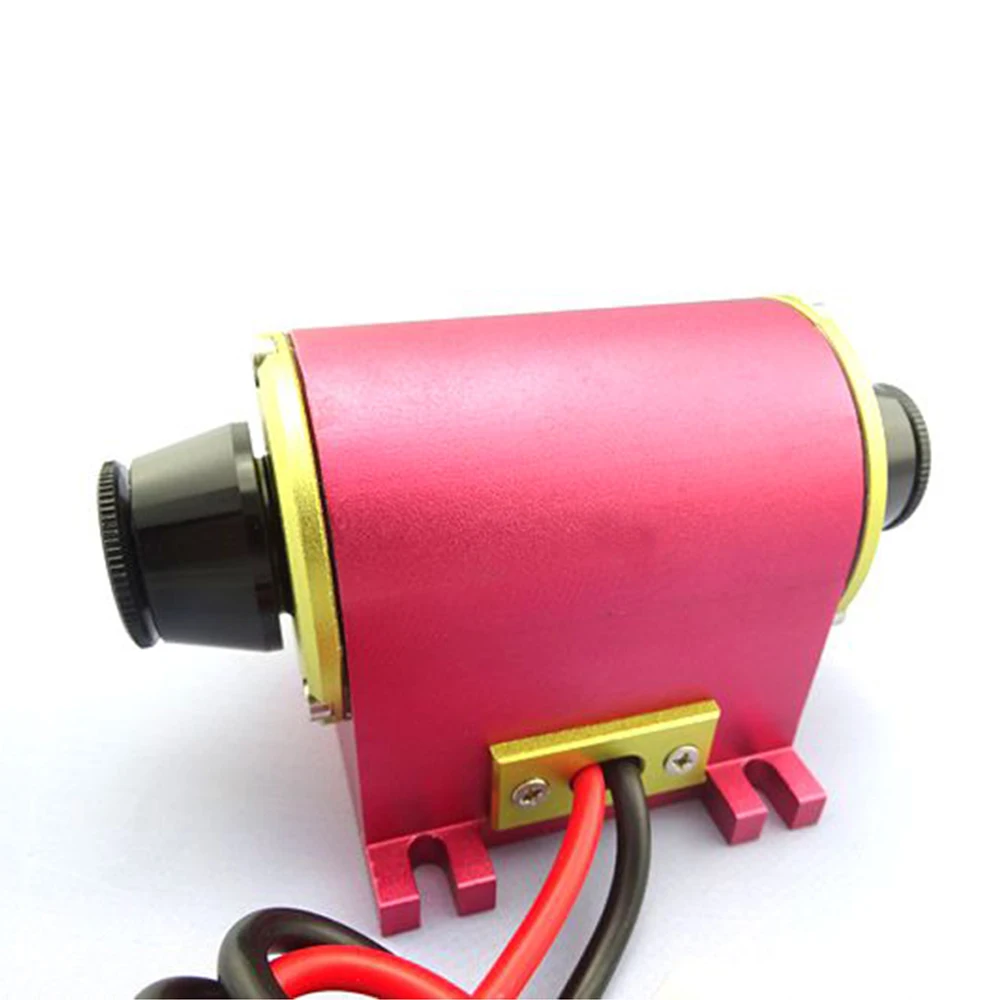

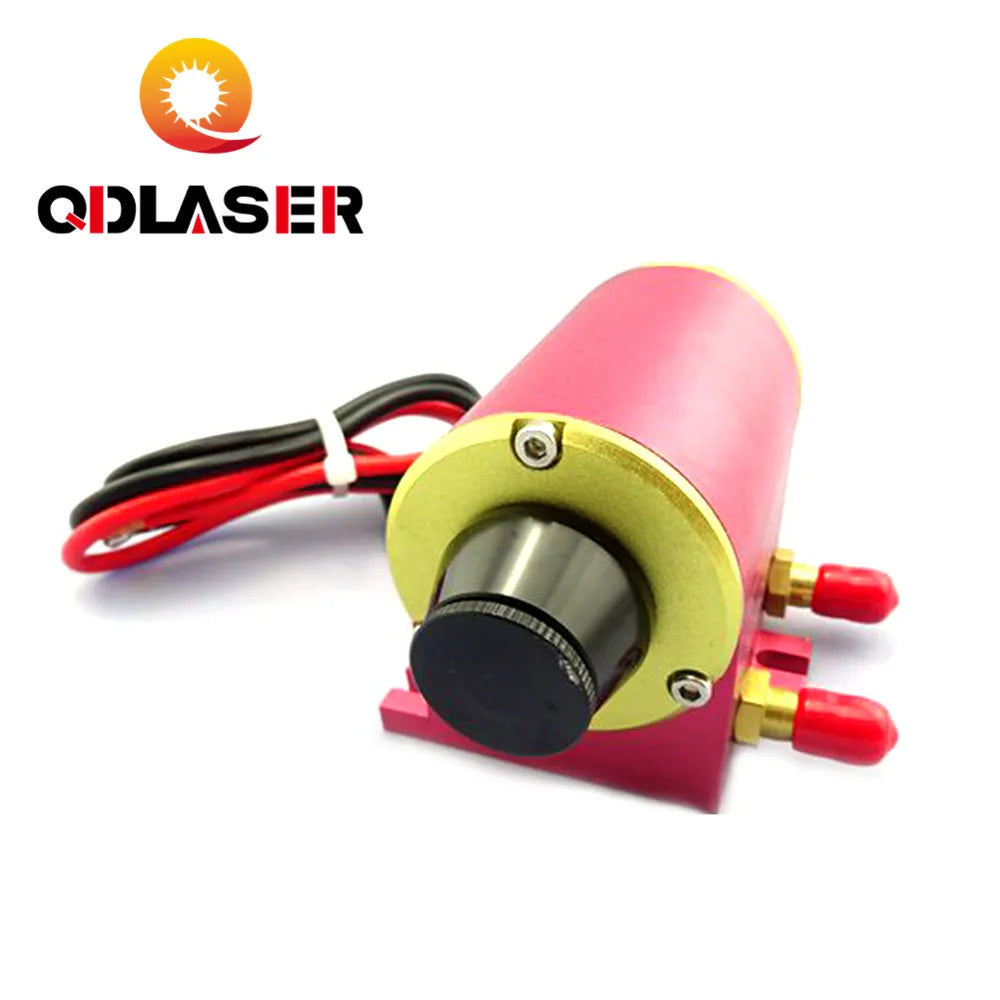

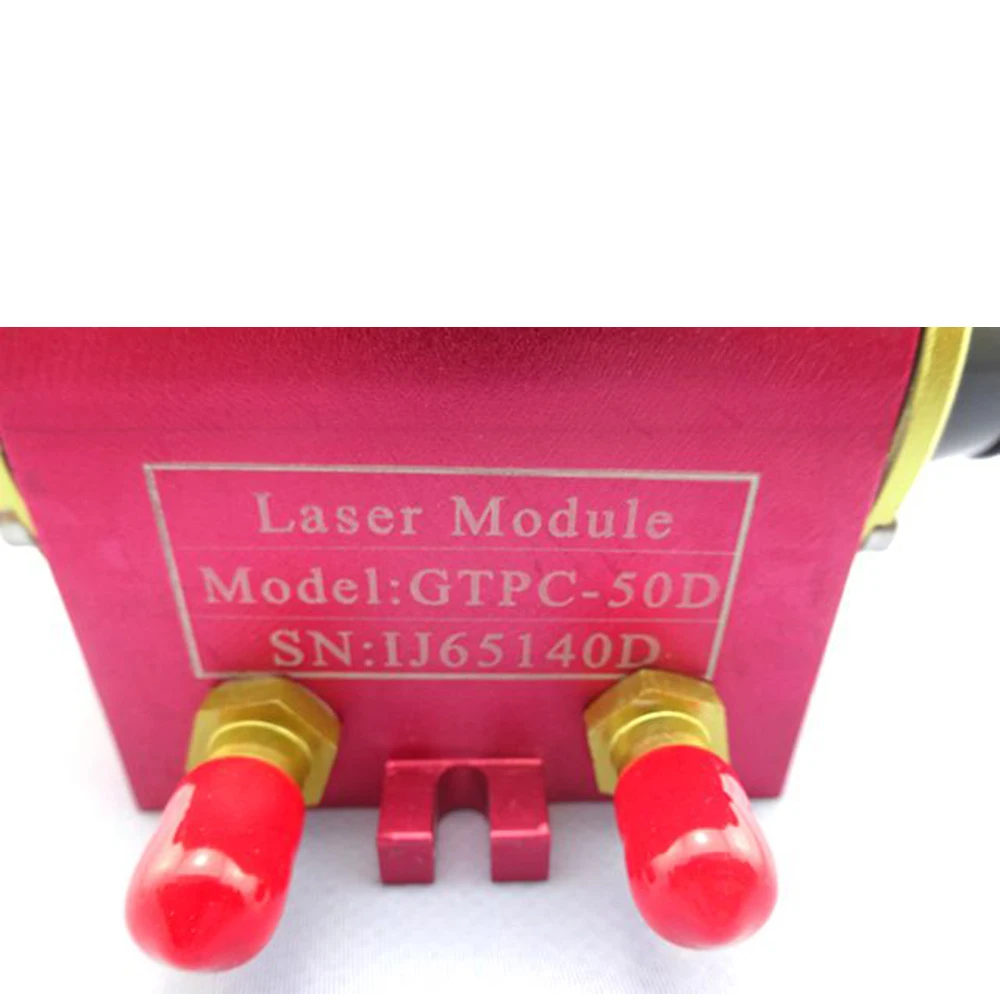

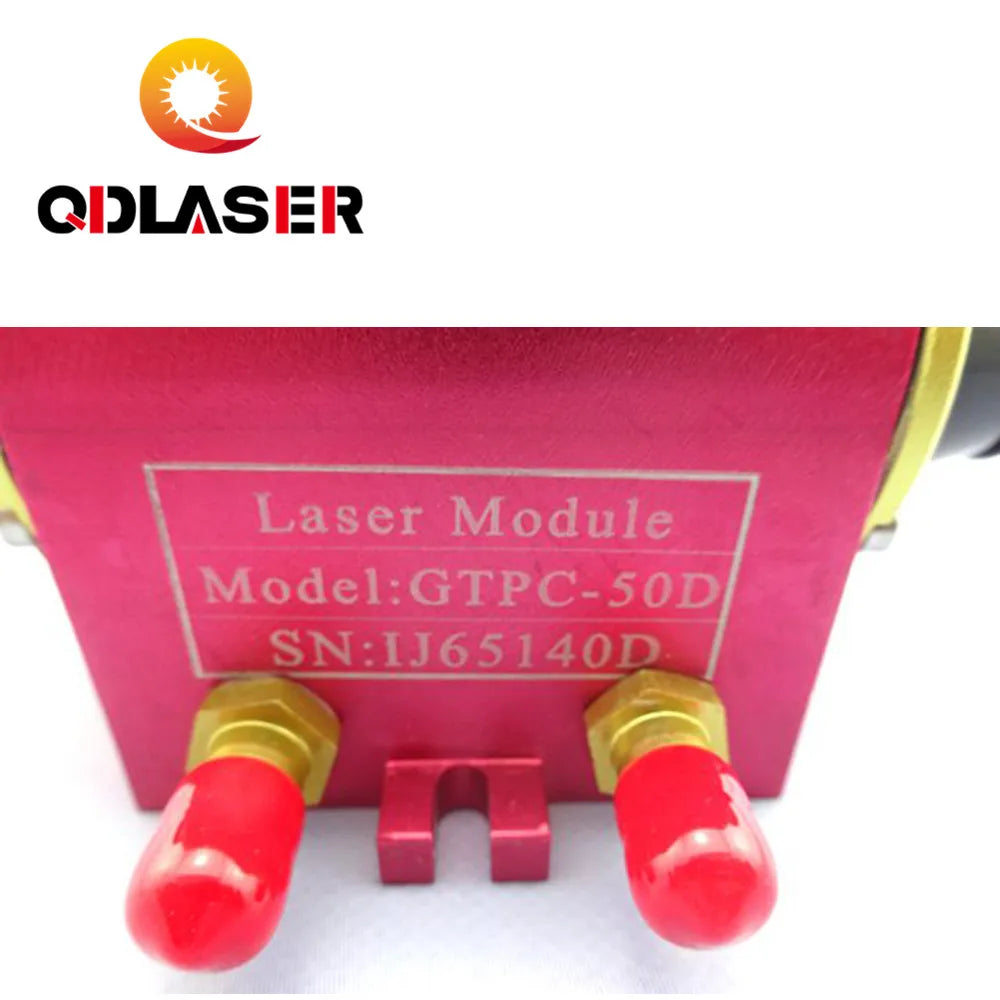

QDLASER GTPC-50D YAG Laser Diode Pumped Module 50W for Laser Marking Machine
QDLASER GTPC-50D YAG Laser Diode Pumped Module 50W for Laser Marking Machine
Regular price
$710.00 USD
Regular price
$710.00 USD
Sale price
$710.00 USD
Unit price
per
Couldn't load pickup availability

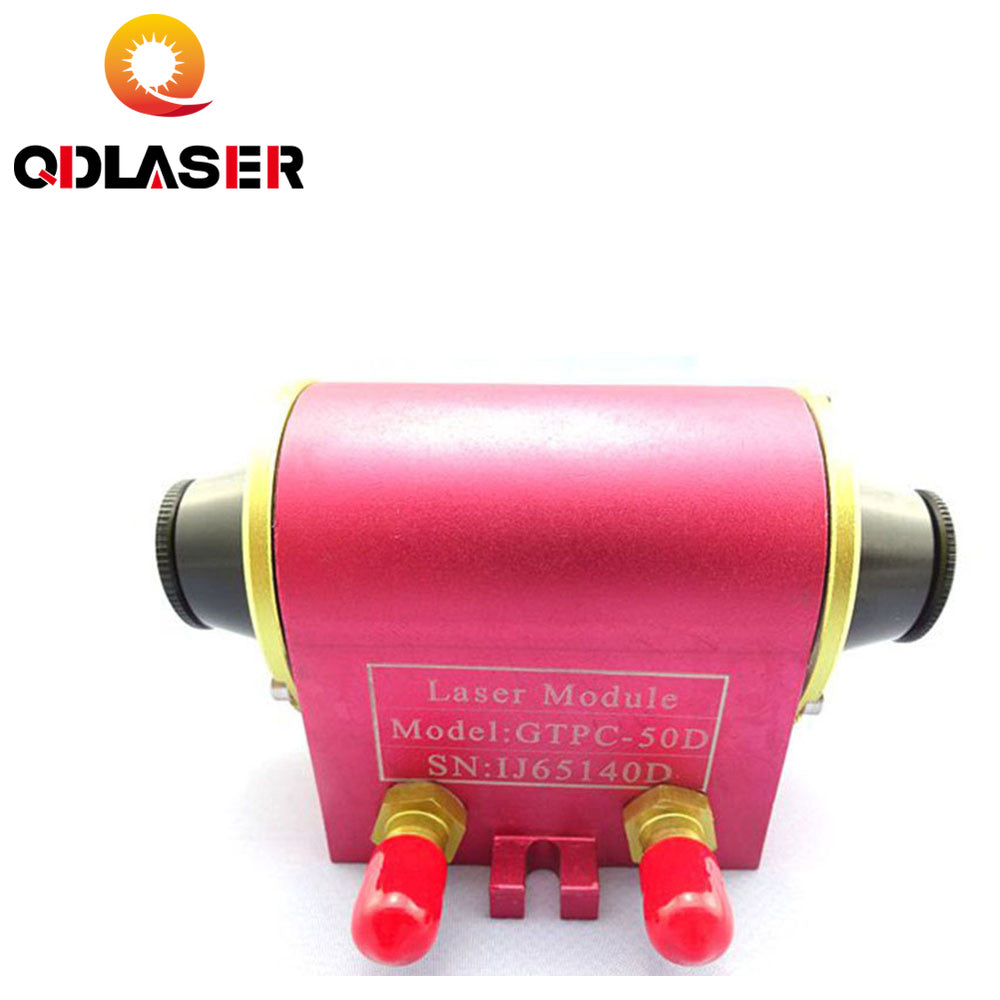

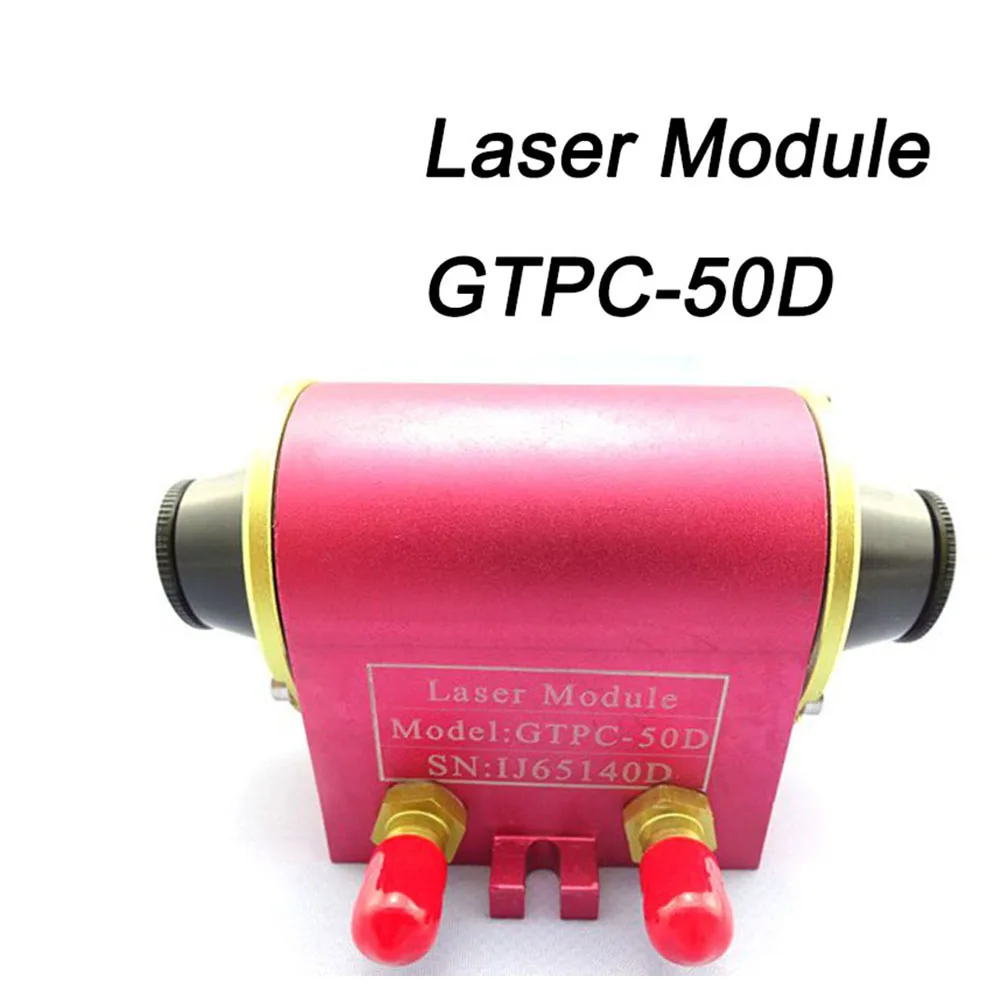

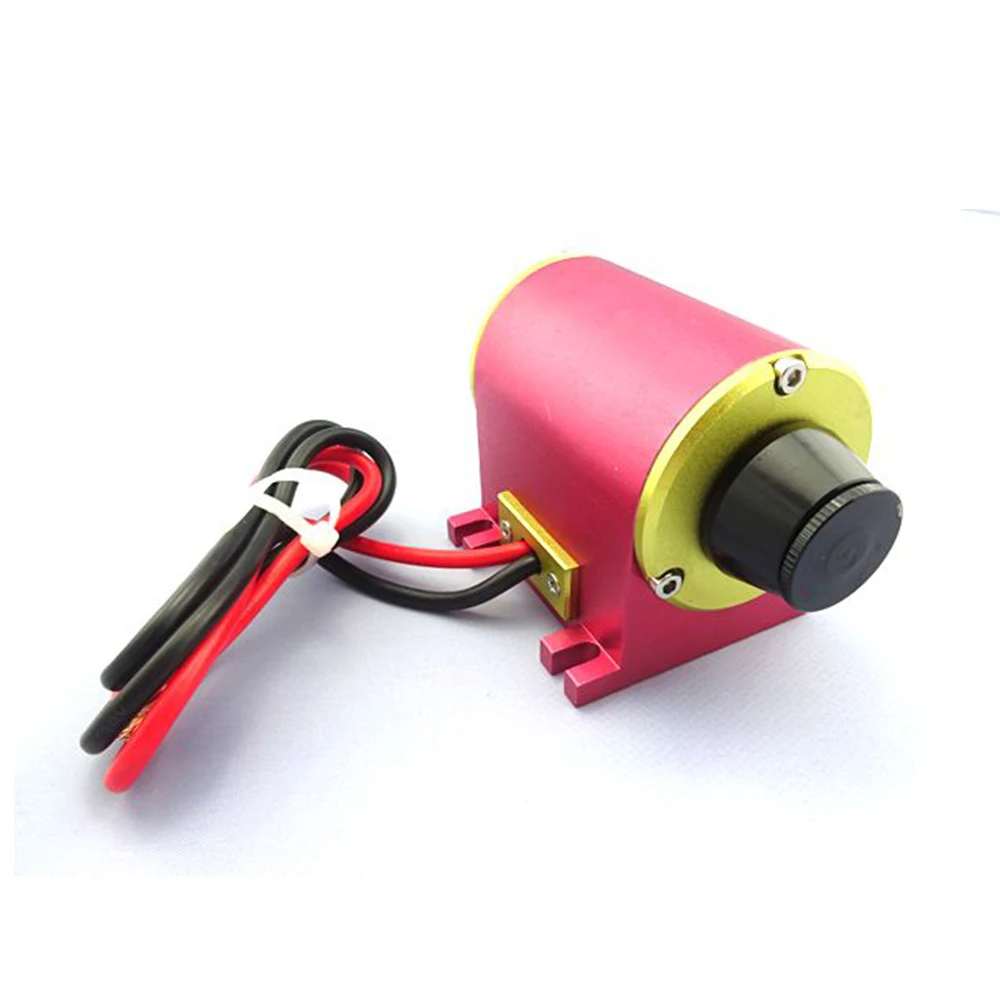

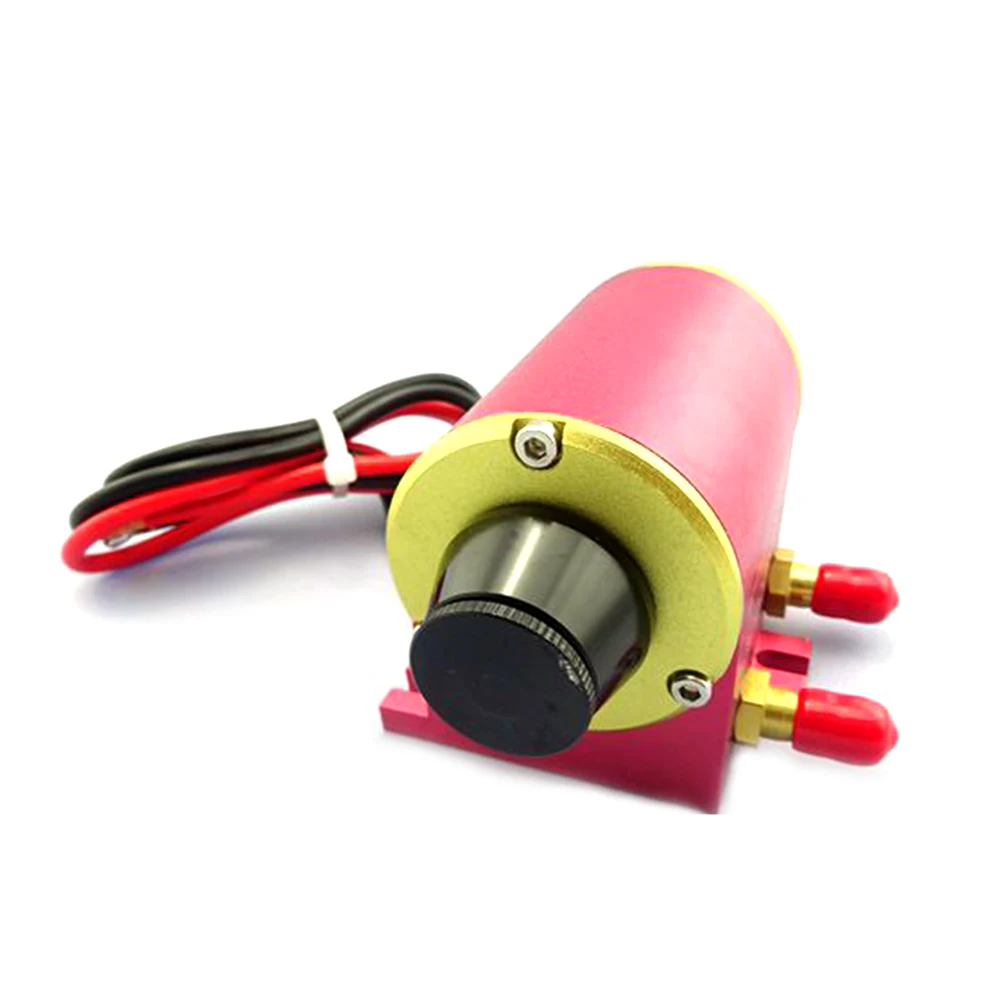

QDLASER GTPC-50D YAG Laser Diode Pumped Module 50W for Laser Marking Machine
Products Description
1. Specification
CW Output Power: 50W
Threshold Current: ~6A
Operating Current: ~18A
Forward Voltage: ≤18V
Center Wavelength: 1064nm
The length of the YAG rod: 65mm
The Diameter of the YAG rod:3 mm
YAG Terminal: Flat/AR at 1064nm/YAG doped 1%
The cooling water flux: 4-5L/min
Cooling power: >100W
Optimum temperature: 20°C
Temperature Range (Storage): -20°C~ 70°C
Threshold Current: ~6A
Operating Current: ~18A
Forward Voltage: ≤18V
Center Wavelength: 1064nm
The length of the YAG rod: 65mm
The Diameter of the YAG rod:3 mm
YAG Terminal: Flat/AR at 1064nm/YAG doped 1%
The cooling water flux: 4-5L/min
Cooling power: >100W
Optimum temperature: 20°C
Temperature Range (Storage): -20°C~ 70°C
