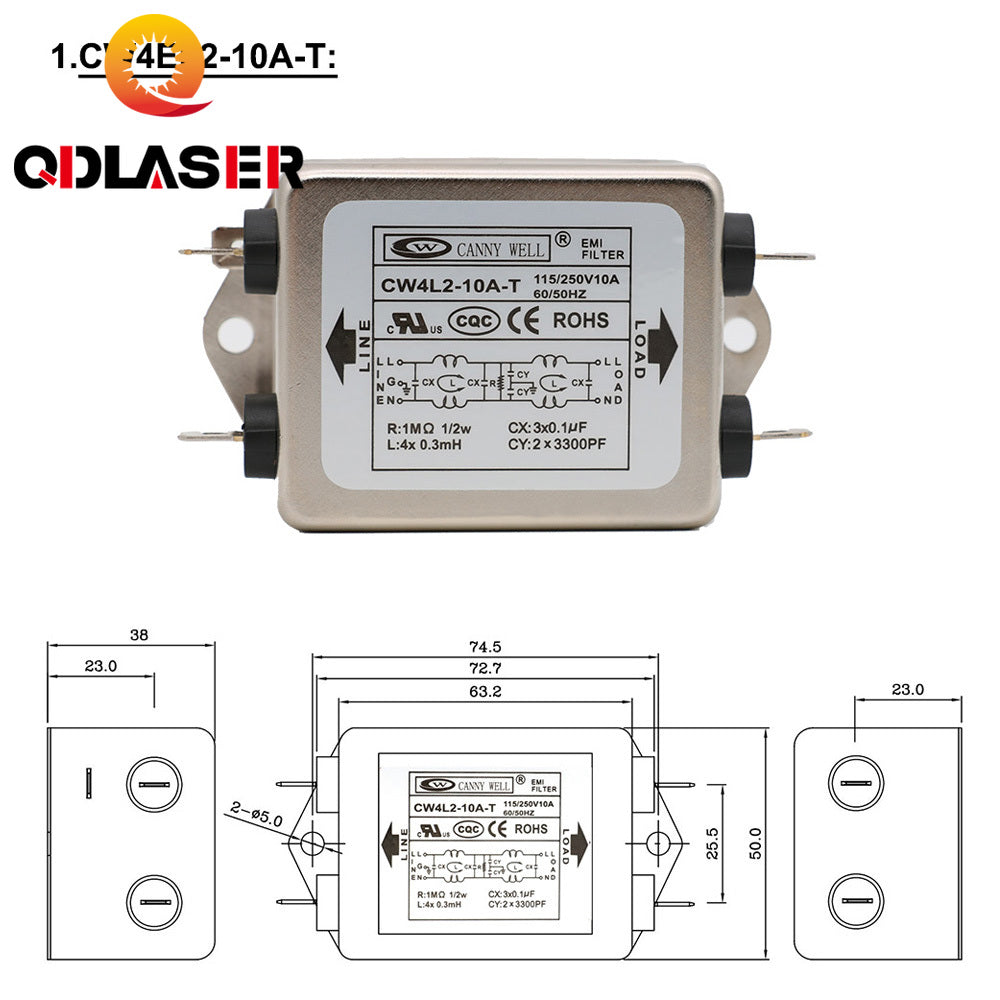

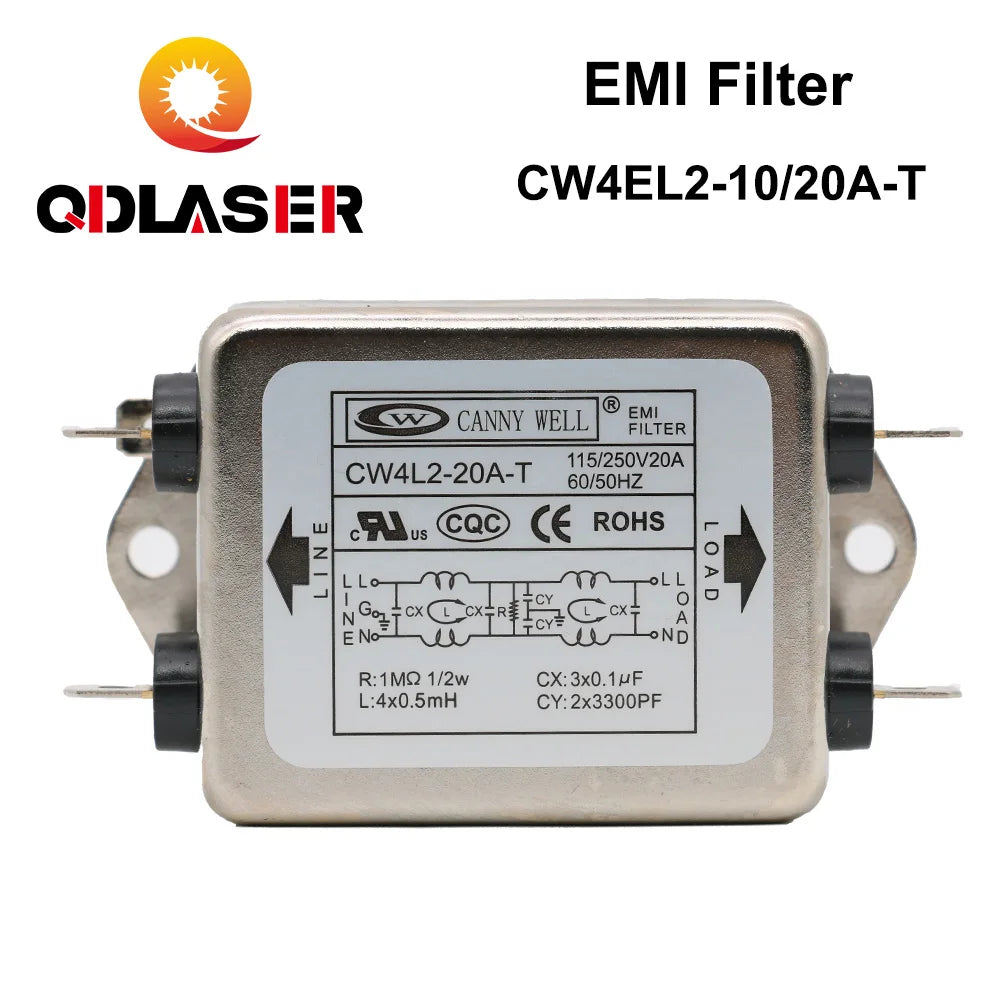

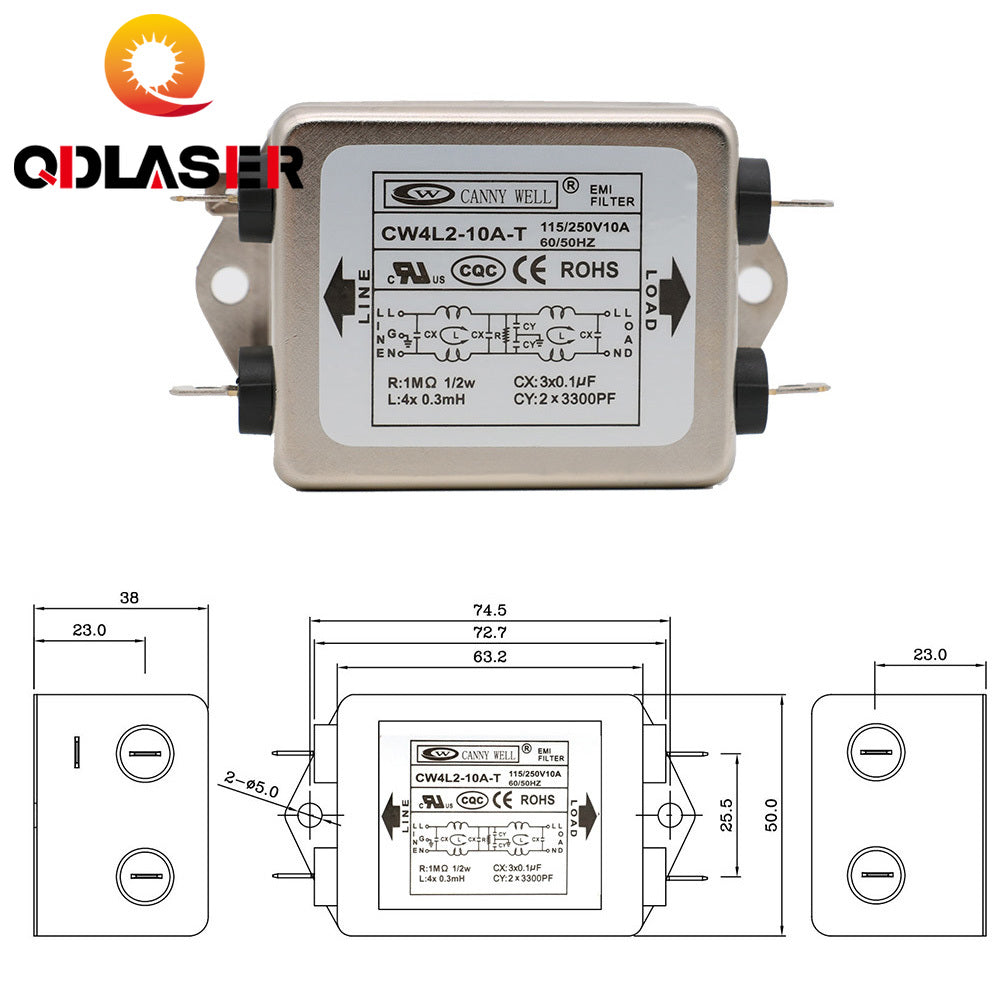

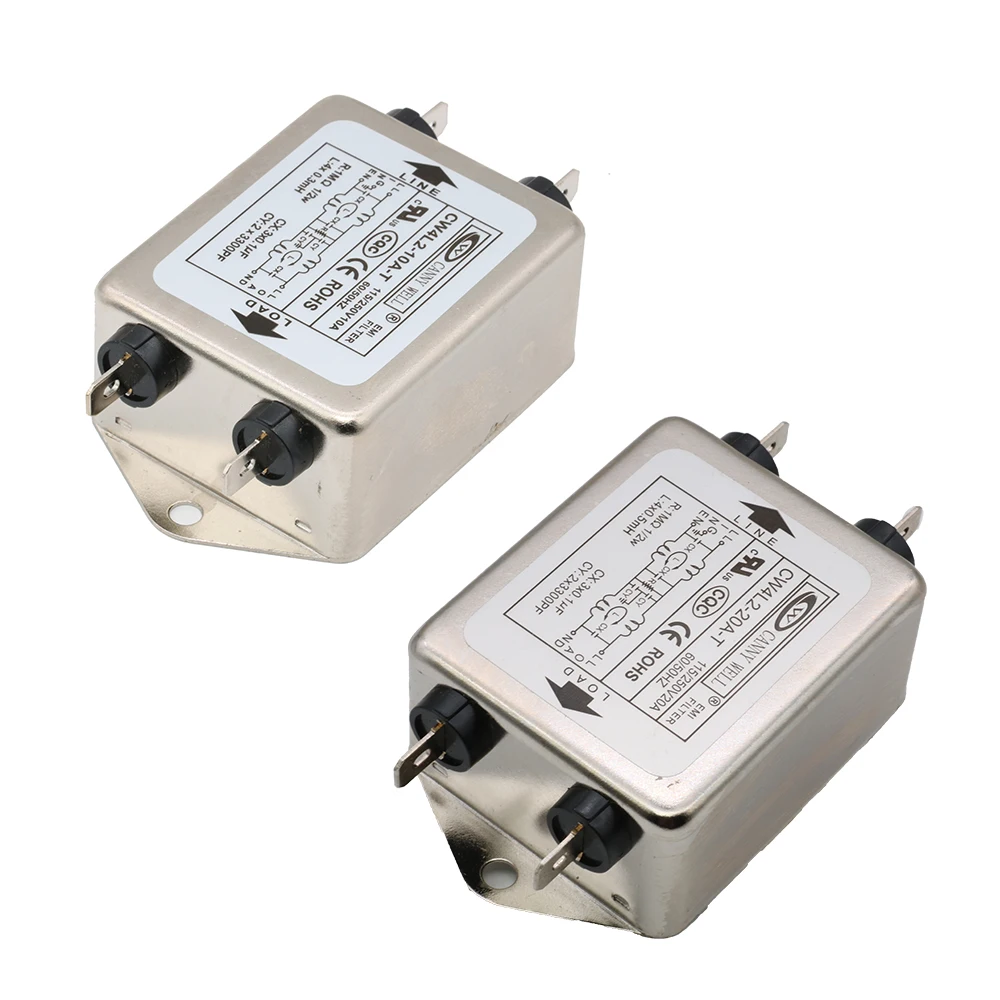

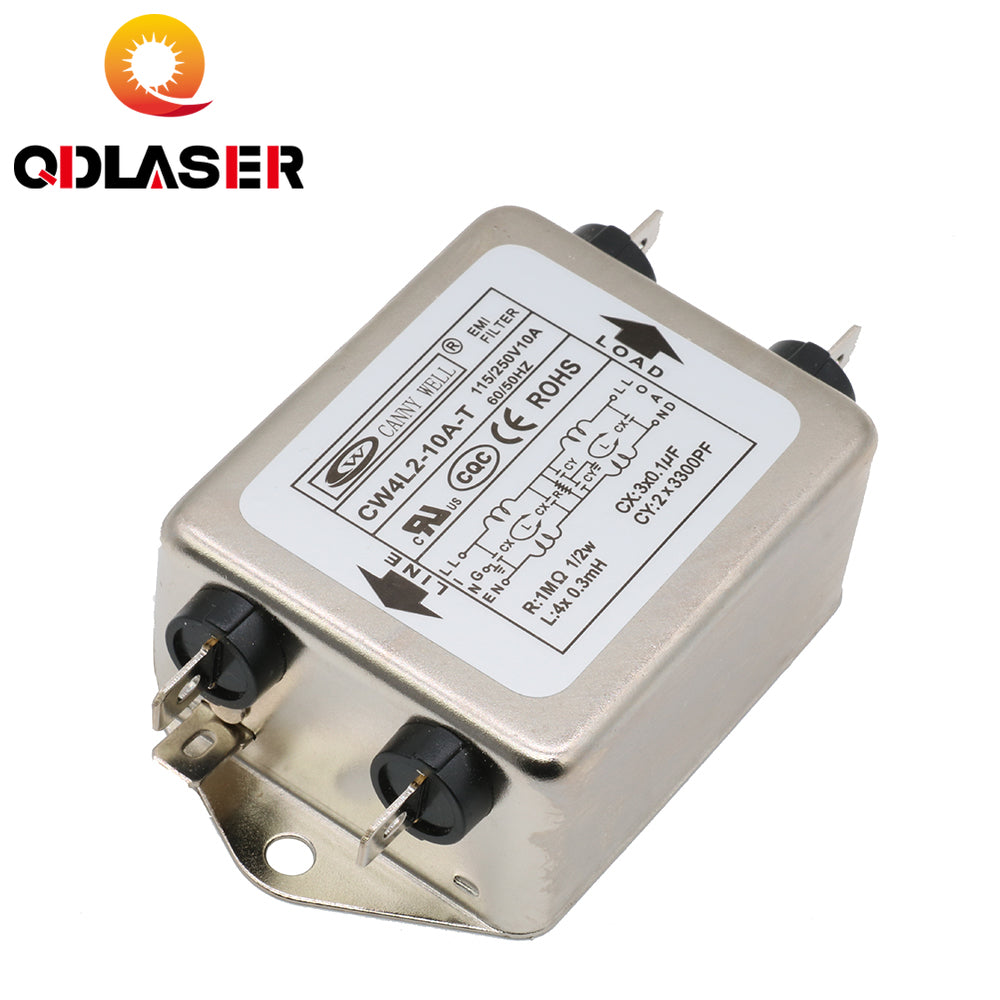

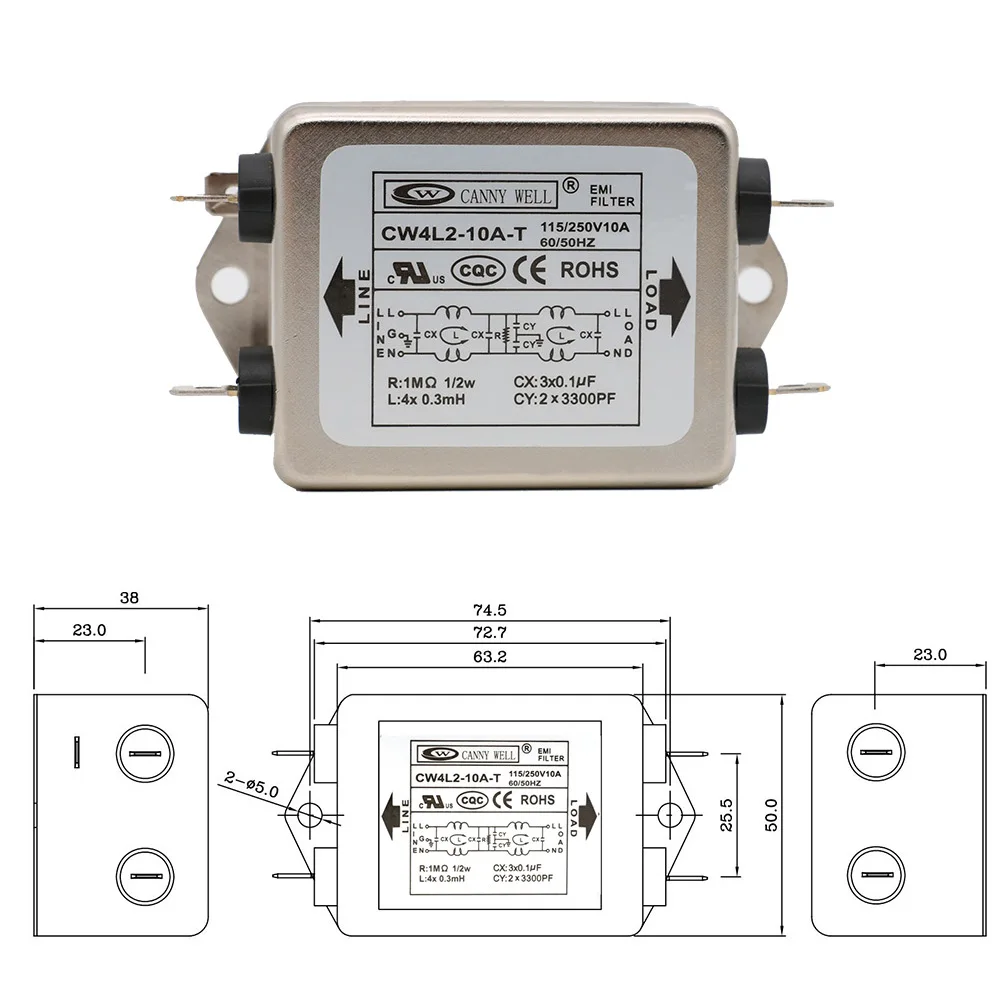

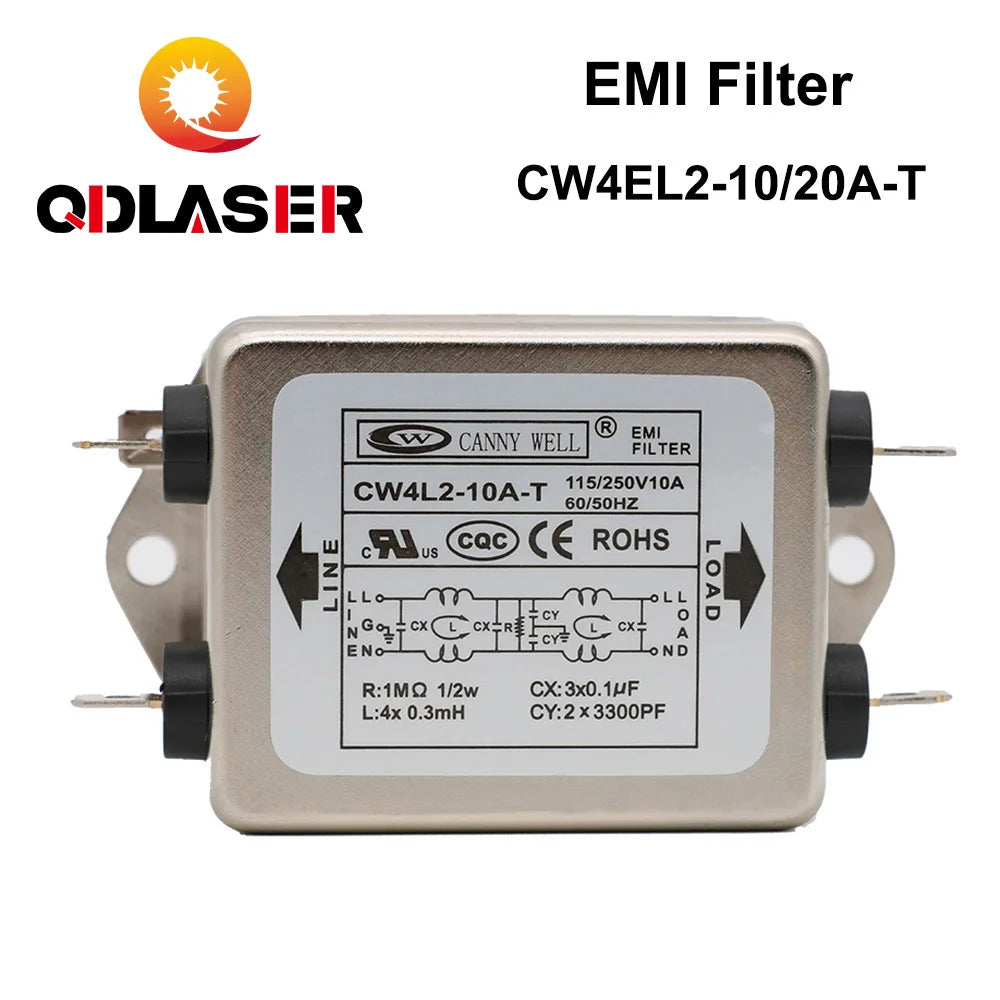

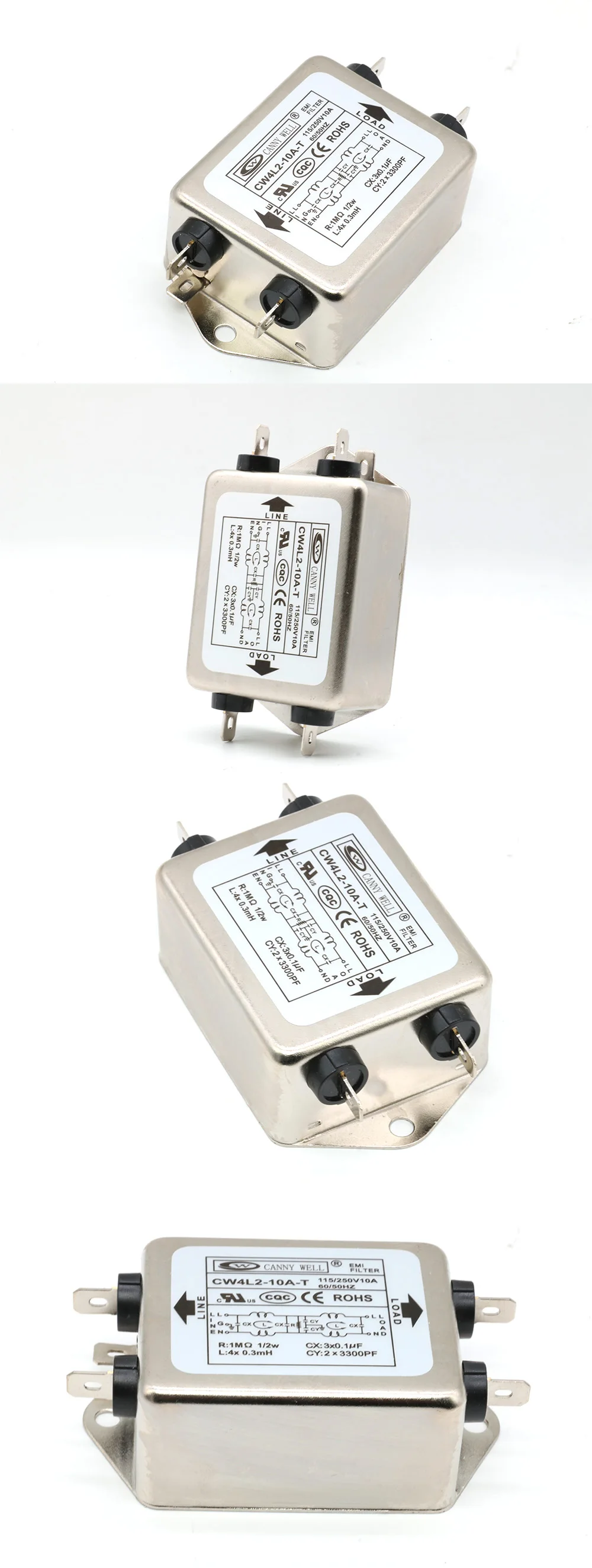

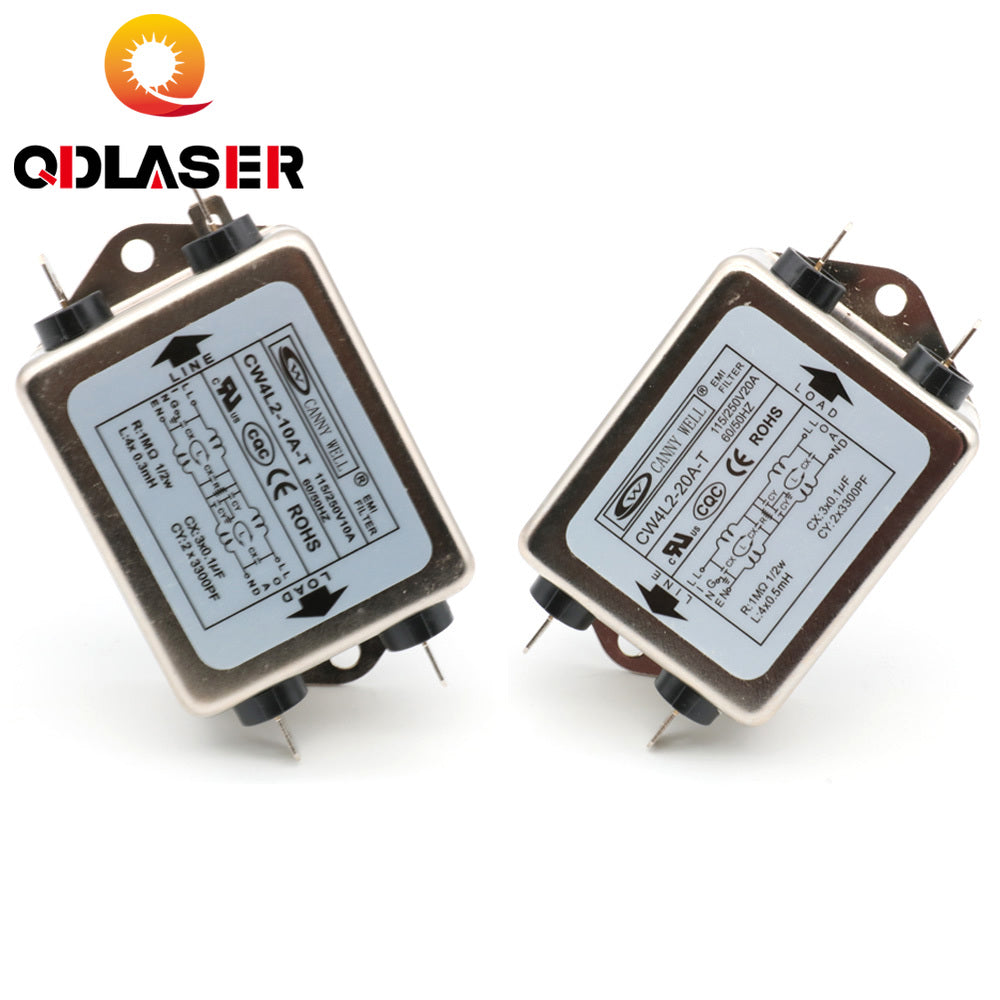

QDLASER EMI Filter for CO2 Laser Machine CW4L2-10A-T /CW4L2-20A-T

QDLASER EMI Filter for CO2 Laser Machine CW4L2-10A-T /CW4L2-20A-T

$16.30 USD
$16.30 USD $16.30 USD
Sale Sold out
model number
Products Description




QDLASER EMI Filter For CO2 Laser Machine CW4L2-10A-T /CW4L2-20A-T

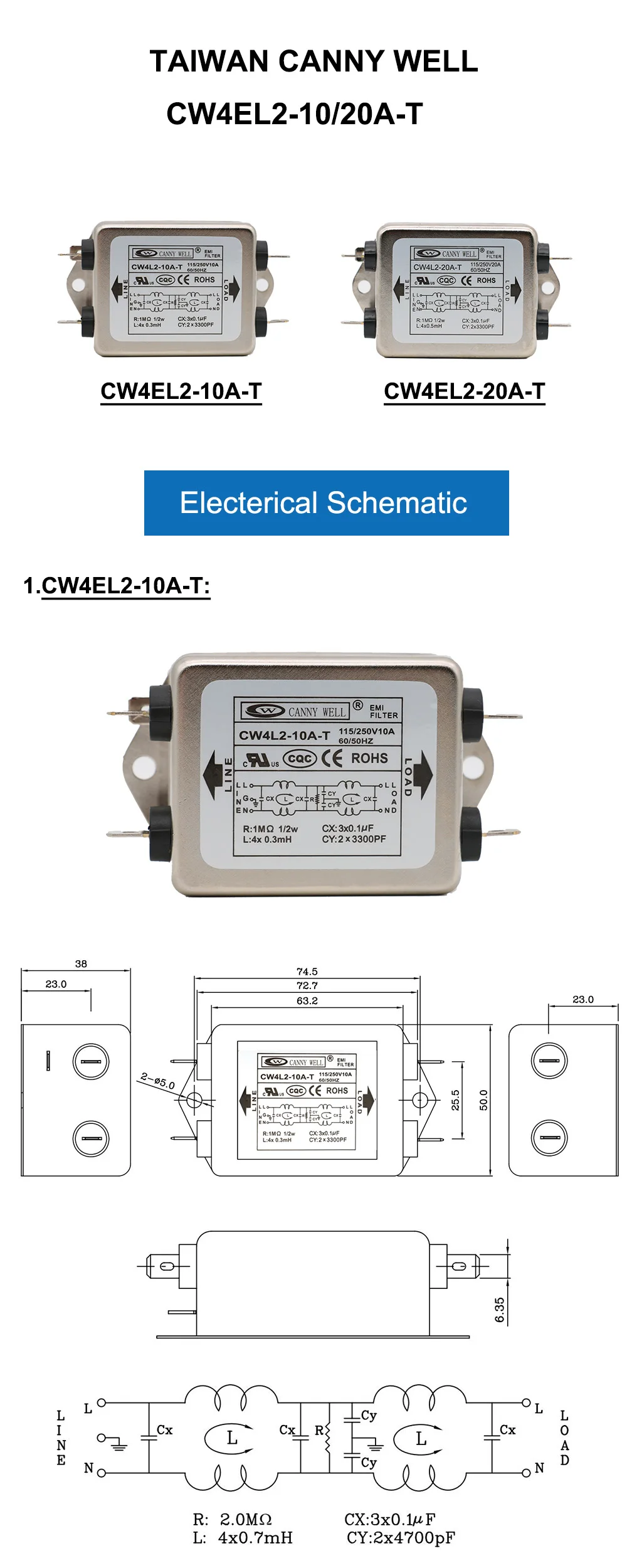

Main Specifications *CANNY WELL CW4EL2-10A-T 1.RATED VOLAGE----115/250V AC. 2.RATED CURRENT------10A. 3.OPERATING FREQUENCY------50/60 HZ. 4.LEAK CURRENT:EACH LINE TO GROUND 115V AC(50 HZ)------0.45mA MAX. 250V AC(60 HZ)------0.8mA MAX. 5.HIPOT TESTING:(AT ONE MINUTE) LINE TO LINE------1450V DC. LINE TO GROUND------2250V DC. 6.INSULATION RESISTANCE--100MQ MIN 250V DC 7.DIRECT CURRENT RESISTANCE--0.5Q MAX. 8.OPERATING TEMPERATURE---25C锝�+85鈩�. 9.APPROVALS:UL VDE CE *CANNY WELL CW4EL2-20A-T 1.RATED VOLAGE----115/250V AC 2.RATED CURRENT-----20A. 3.OPERATING FREQUENCY------50/60 HZ. 4.LEAK CURRENT:EACH LINE TO GROUND 115V AC(50 HZ)------0.45mA MAX. 250V AC(60 HZ)------0.8mA MAX. 5.HIPOT TESTING:(AT ONE MINUTE) LINE TO LINE------1450V DC. LINE TO GROUND----2250V DC. 6.INSULATION RESISTANCE--100MQ MIN 250V DC 7.DIRECT CURRENT RESISTANCE--0.5Q MAX. 8.OPERATING TEMPERATURE---25C锝�+85鈩�. 9.APPROVALS:UL VDE CE
