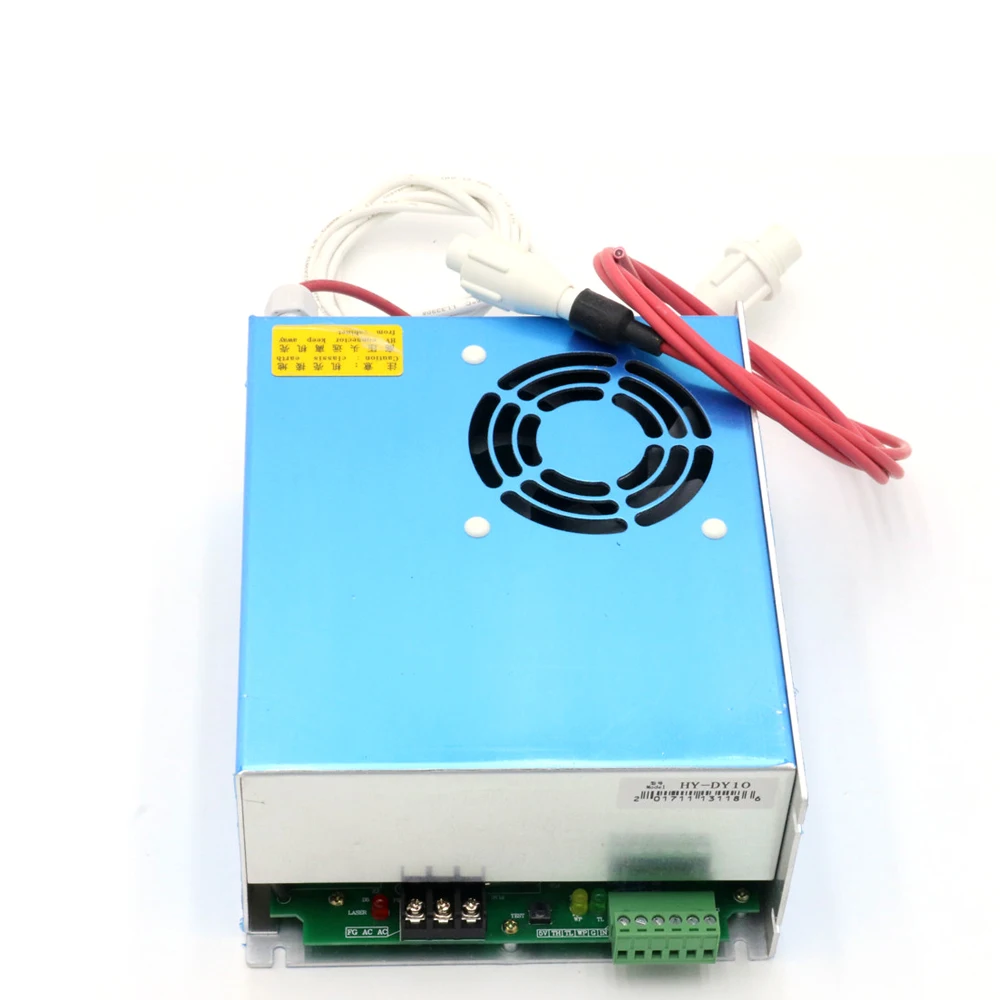

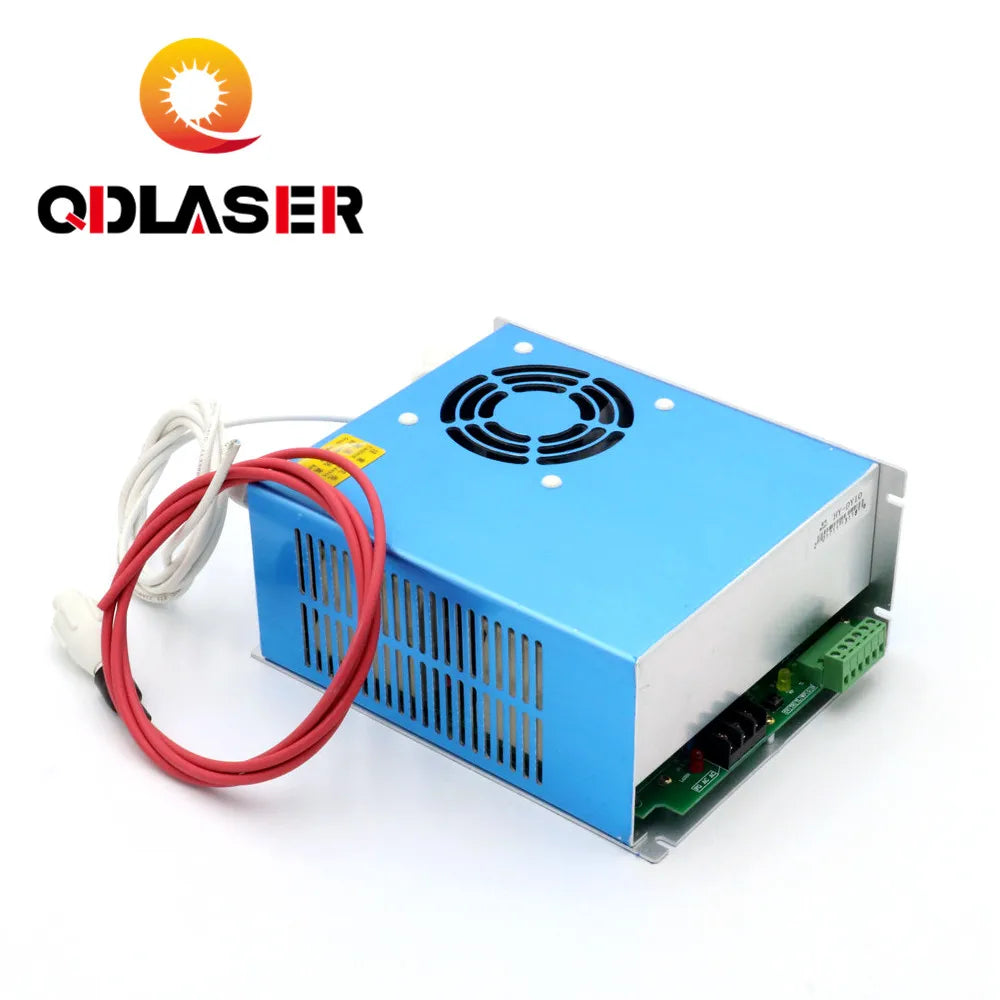

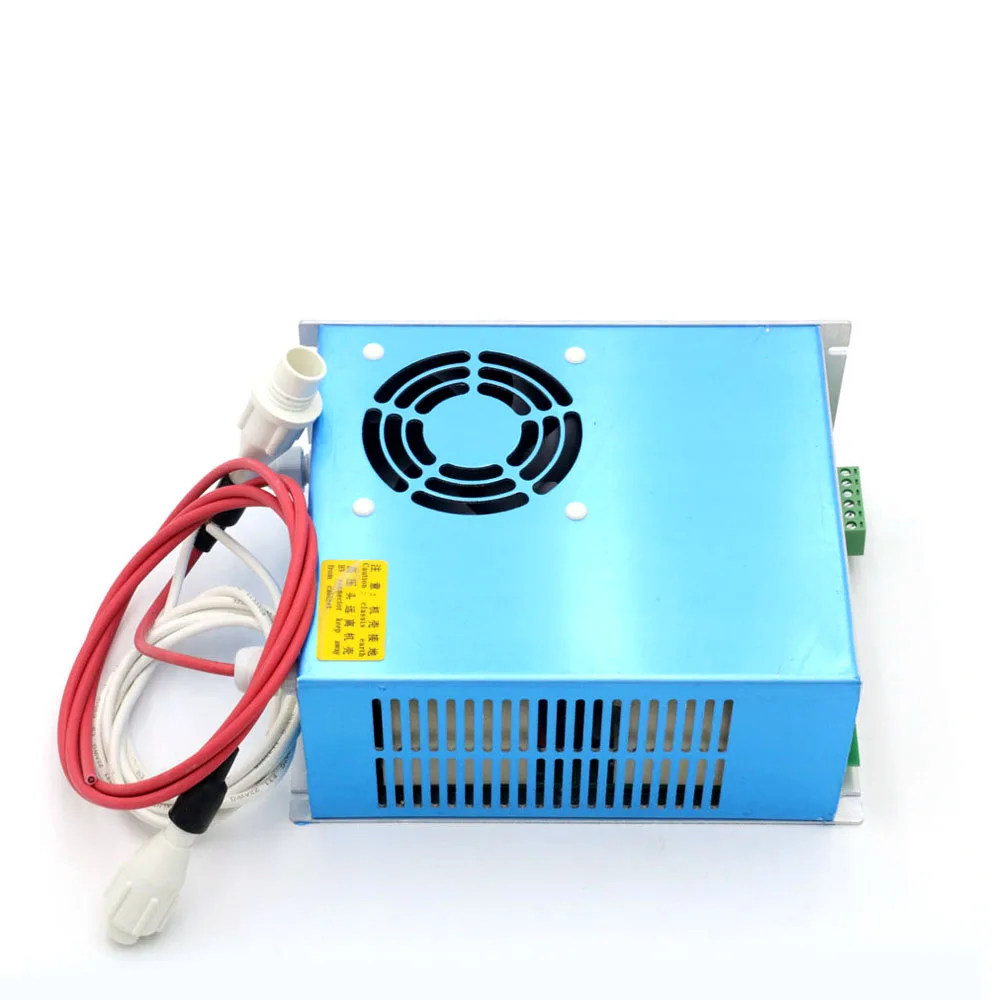

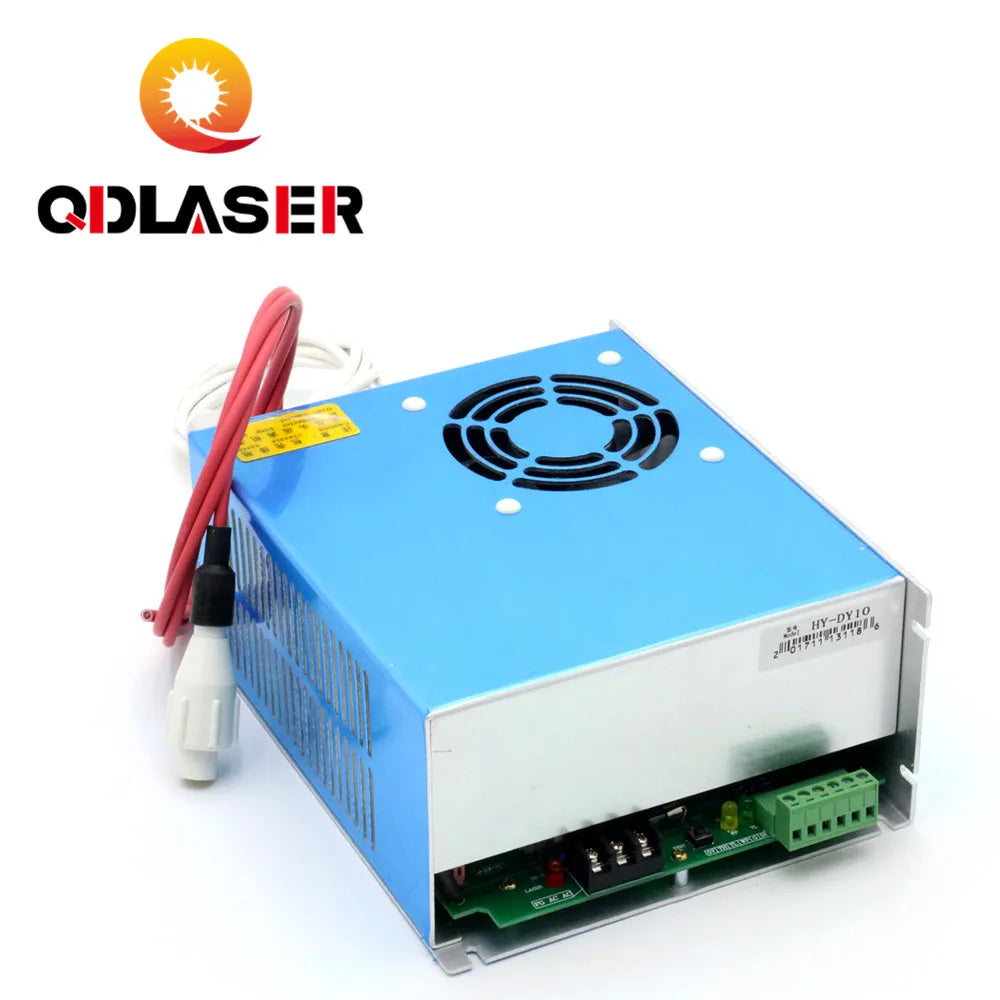

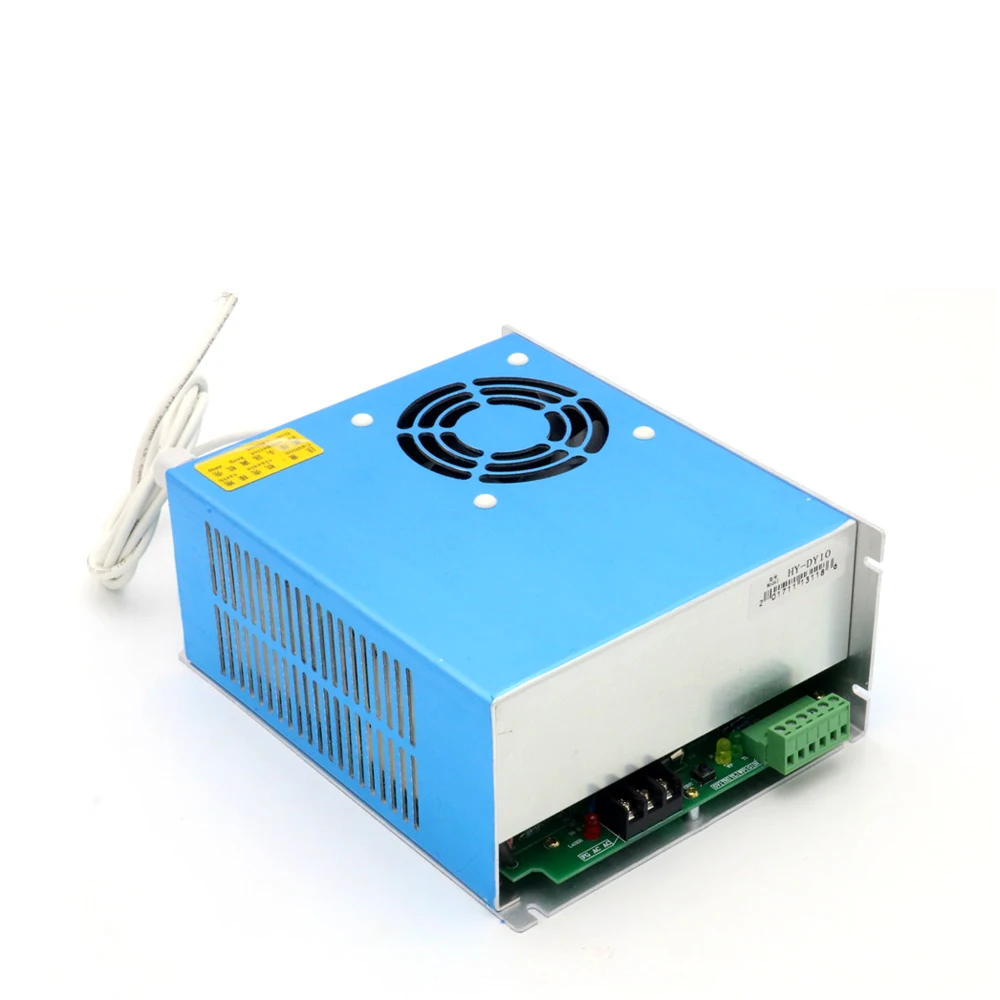

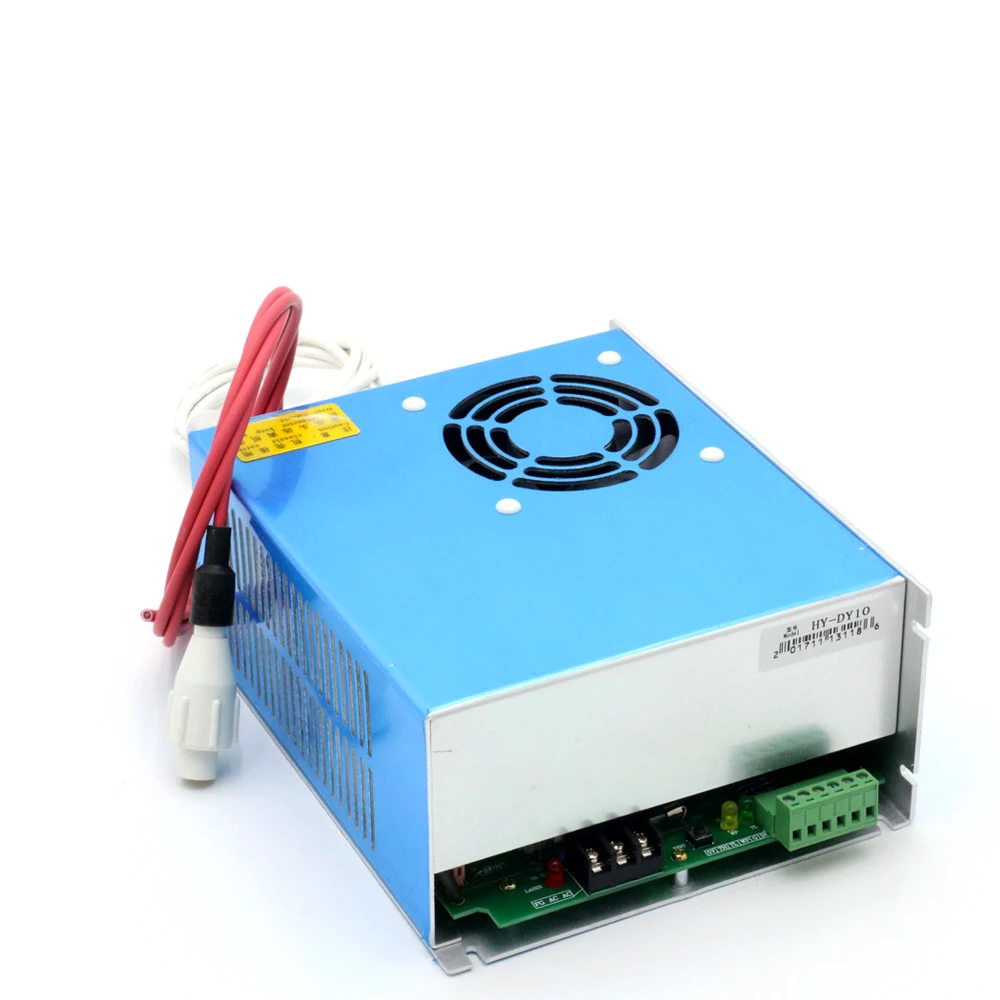

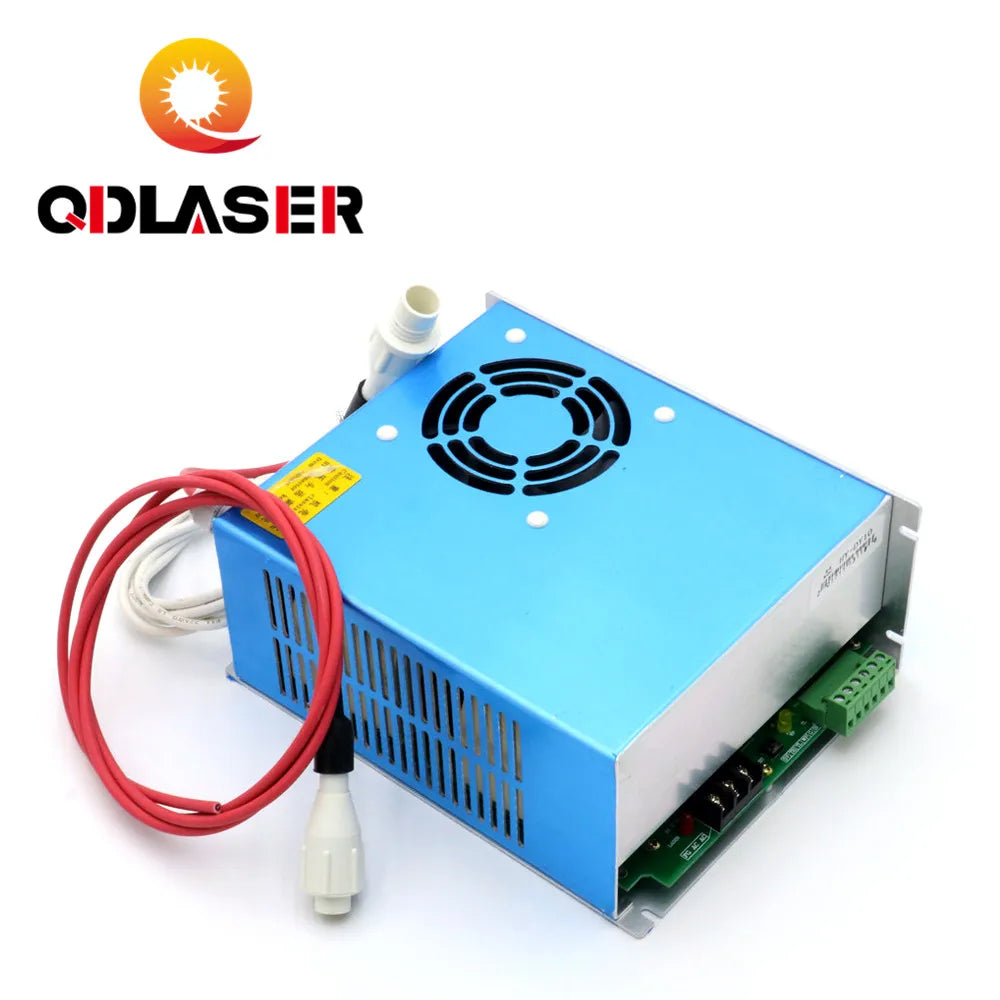

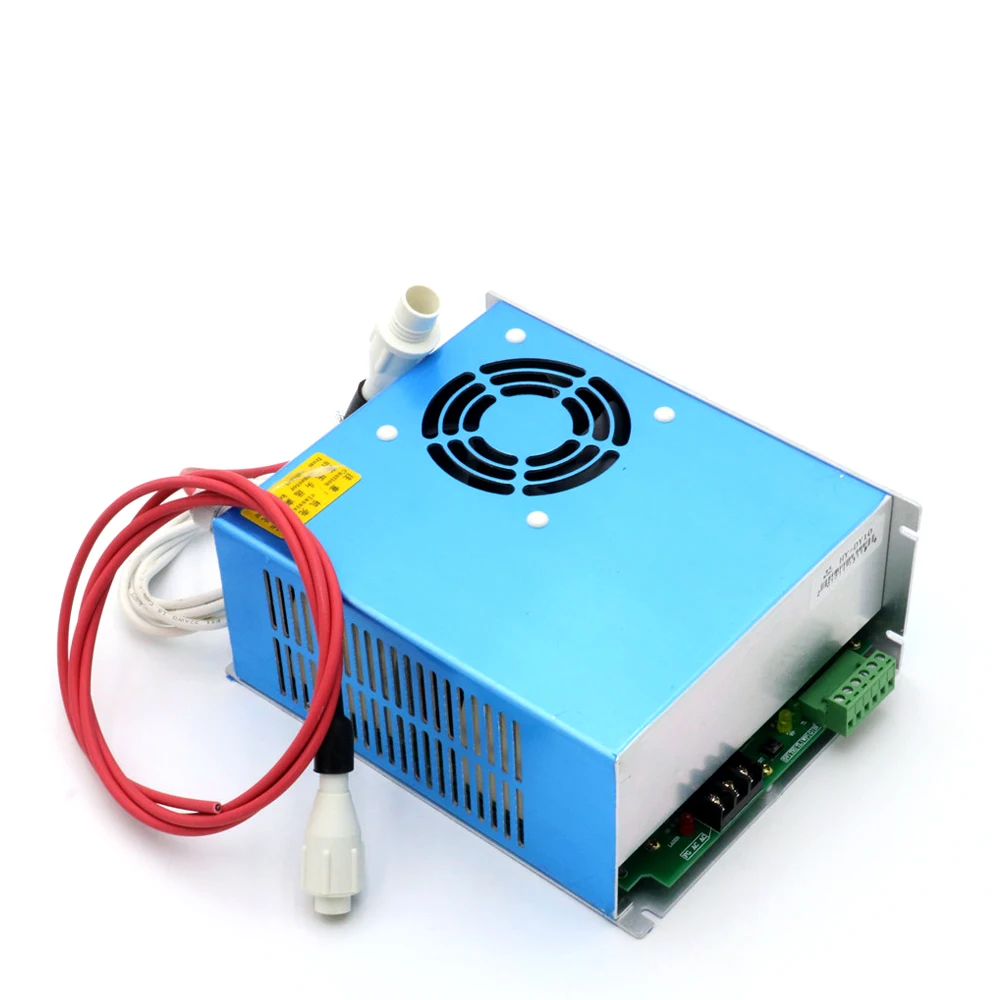

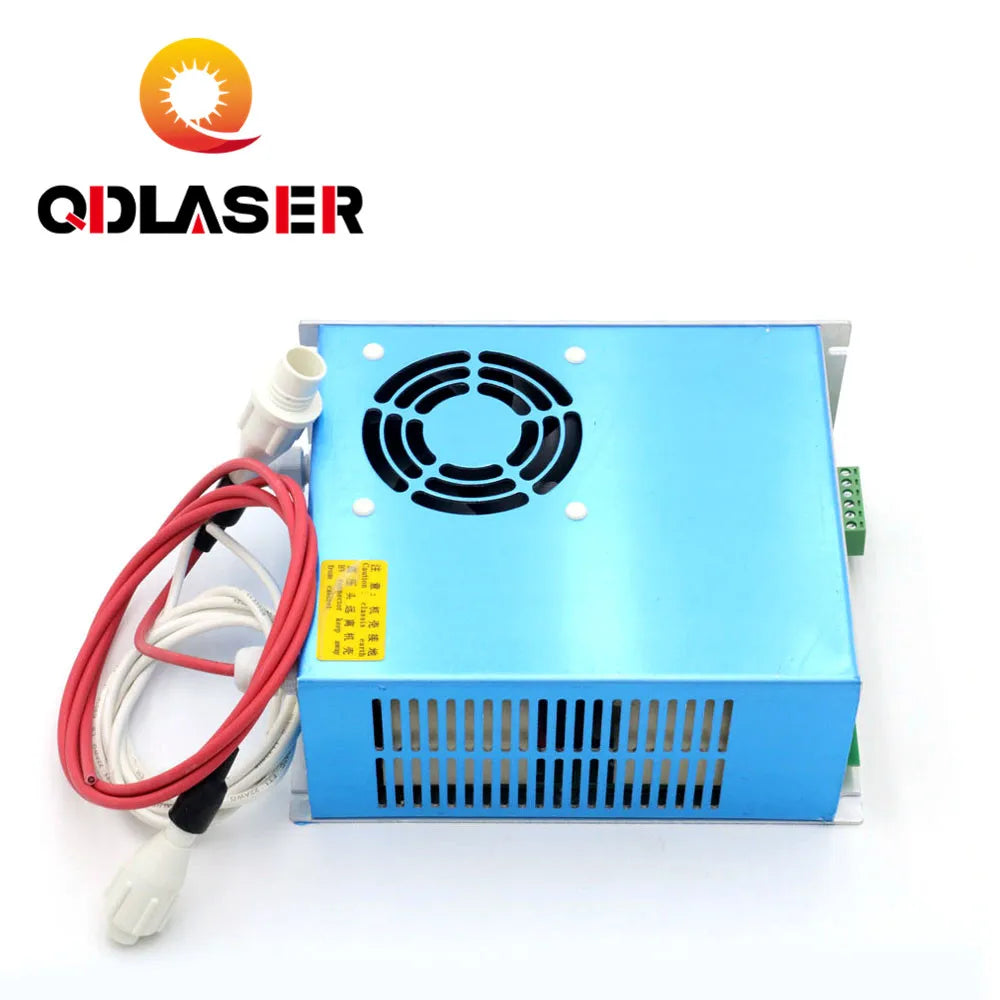

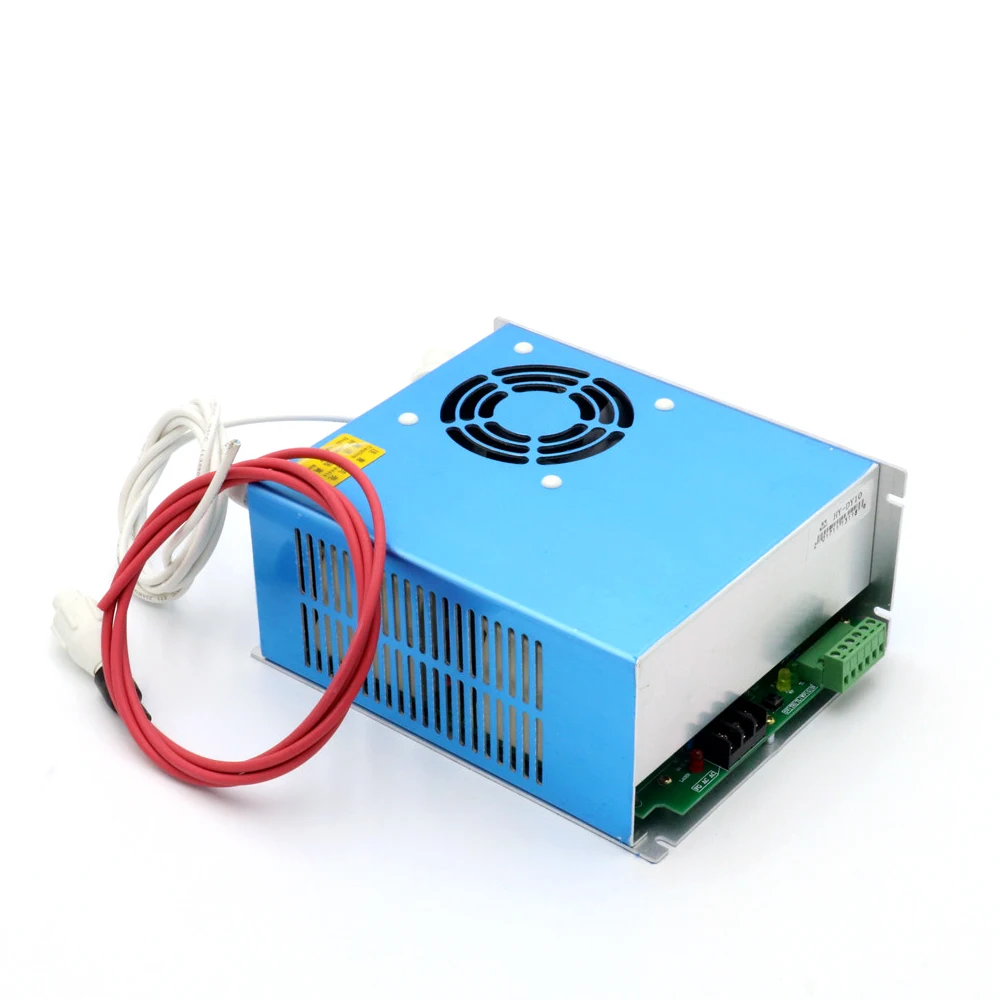

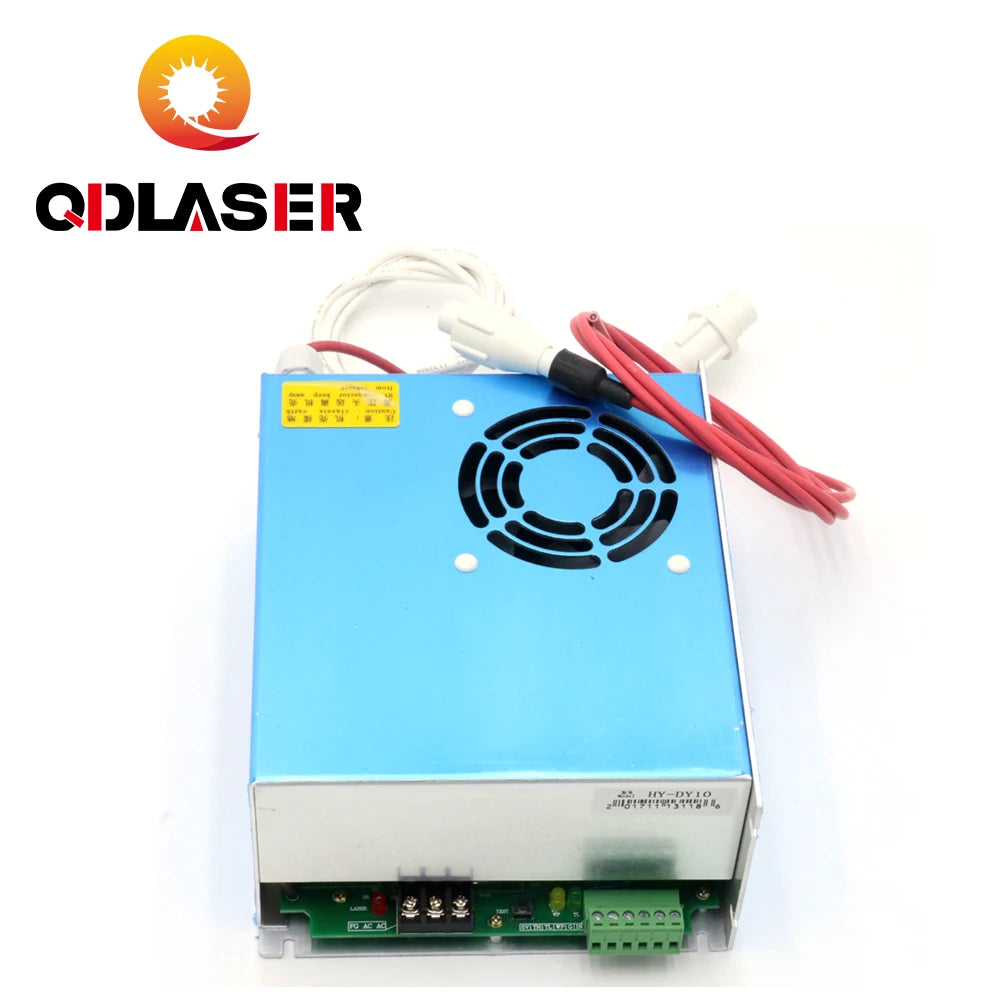

QDLASER DY10 CO2 Reci Laser Power Supply For Co2 Laser Engraving and Cutting Machine
Products Description
1. Main Features
(1) This power supply is specially designed for special laser tube, the power supply makes laser tube output larger and more stable.
(2) Quick response speed and effect, high performance, large cutting power, it also can prolong laser tube service life.
(3) Easy control: The start and stop of laser can be easily controlled by TTL level.
(4) The power supply has output open circuit protection.
(5) The power supply has TTL signal indication, water through signal indication and laser output indication.
(6) This power supply has the Buttonto test output laser manually.
(7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber etc.
(1) This power supply is specially designed for special laser tube, the power supply makes laser tube output larger and more stable.
(2) Quick response speed and effect, high performance, large cutting power, it also can prolong laser tube service life.
(3) Easy control: The start and stop of laser can be easily controlled by TTL level.
(4) The power supply has output open circuit protection.
(5) The power supply has TTL signal indication, water through signal indication and laser output indication.
(6) This power supply has the Buttonto test output laser manually.
(7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber etc.

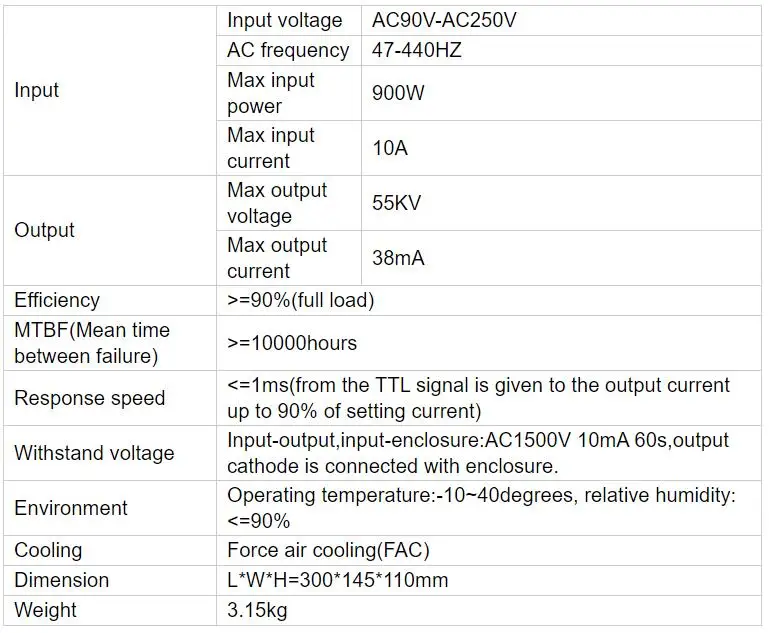

2. Specification
3. Operation Instruction:
(1) Laser Tube connection: (Referring to Power supply and laser device's connection diagram) High voltage terminal(HV+) of HY-DY10 power supply should be connected to the positive pole of CO2 laser device. Current circuit of the power supply shall be connected to negative pole(laser output terminal) of laser device, through an ampere meter or directly.
(2) Connection of control signal: The control signal shall be reliably connected to control terminal of the power supply HY-DY10, after connecting the DAC output signal and TTL signal of external computer with the power supply, the laser device shall work as expected. If the laser lamp can not work properly, should check the control signal is correct or not(include check the voltage specification and logic), if use PWM control as power control, make sure f≥20KHz,Amplitude (peak value)≤5V, check and make sure protection switch WP connection is correct at same time.
(3) Voltage of power input: HY-DY10 's power input of the power supply shall be 220VAC/50Hz. If 110VAC is needed, please specify when placing order.
(4) Others: A group of protection switches are also reserved for detection of water switch, fan switch, open-enclosure protection and so on.
(2) Connection of control signal: The control signal shall be reliably connected to control terminal of the power supply HY-DY10, after connecting the DAC output signal and TTL signal of external computer with the power supply, the laser device shall work as expected. If the laser lamp can not work properly, should check the control signal is correct or not(include check the voltage specification and logic), if use PWM control as power control, make sure f≥20KHz,Amplitude (peak value)≤5V, check and make sure protection switch WP connection is correct at same time.
(3) Voltage of power input: HY-DY10 's power input of the power supply shall be 220VAC/50Hz. If 110VAC is needed, please specify when placing order.
(4) Others: A group of protection switches are also reserved for detection of water switch, fan switch, open-enclosure protection and so on.
4. Caution:
(1) Water cooling system should be working properly when switching on laser device.
(2) Circuit of high voltage output should not be open!(High voltage output terminals (positive and negative poles) shall be properly connected to positive and negative poles of laser device, respectively).
(3) Attentions should be given to avoid any electric shock after the power supply being switched off(The Insulation safety requirements should be 35KV between the terminal of output and "G").
(4) Well-grounded three-pole receptacle should be used to supply power to HY-HVCO2/1.6 power supply. The enclosure should be well grounded to avoid electric shock.
(2) Circuit of high voltage output should not be open!(High voltage output terminals (positive and negative poles) shall be properly connected to positive and negative poles of laser device, respectively).
(3) Attentions should be given to avoid any electric shock after the power supply being switched off(The Insulation safety requirements should be 35KV between the terminal of output and "G").
(4) Well-grounded three-pole receptacle should be used to supply power to HY-HVCO2/1.6 power supply. The enclosure should be well grounded to avoid electric shock.
