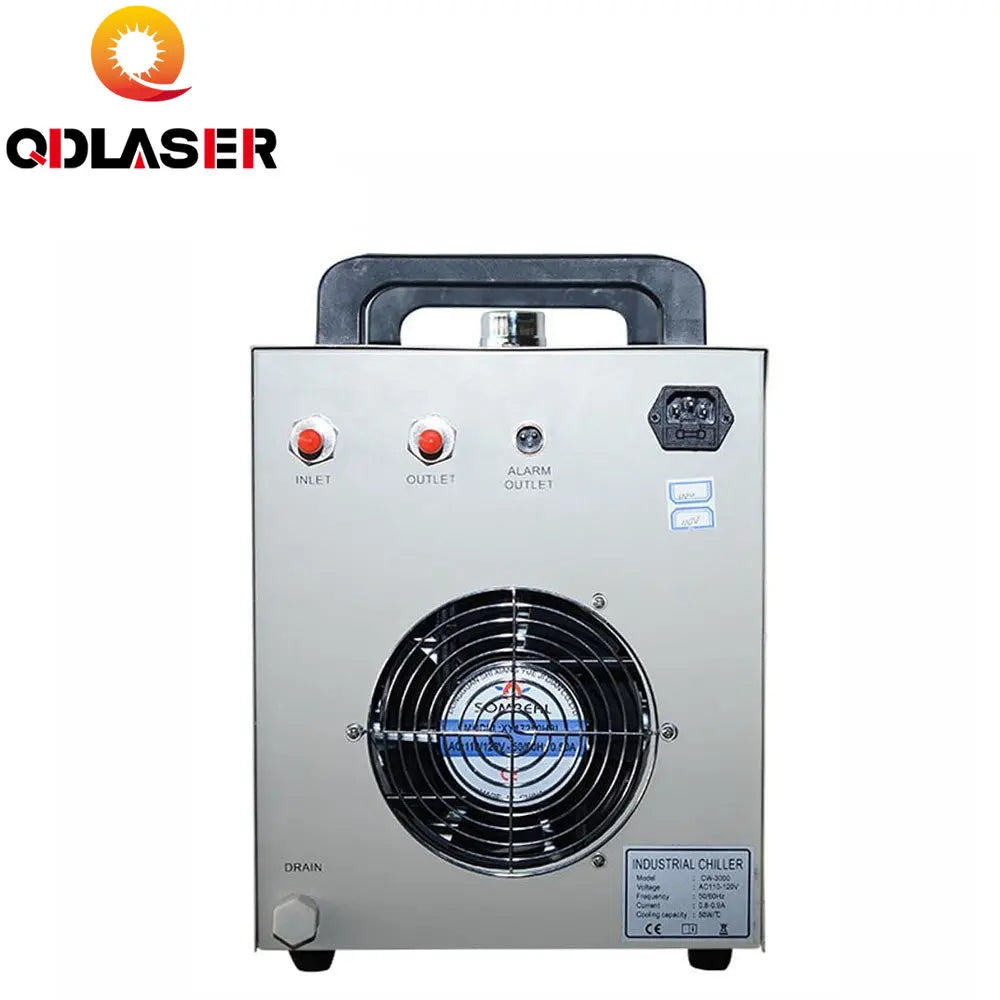

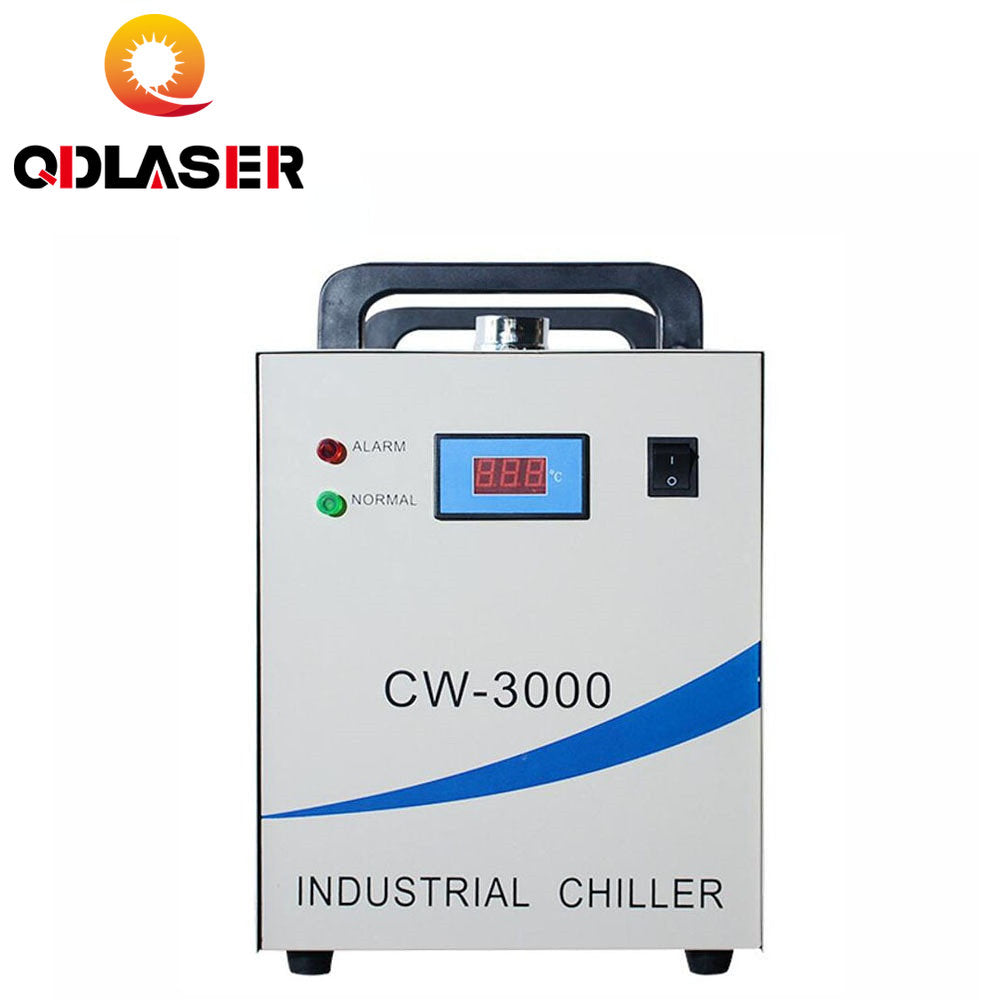

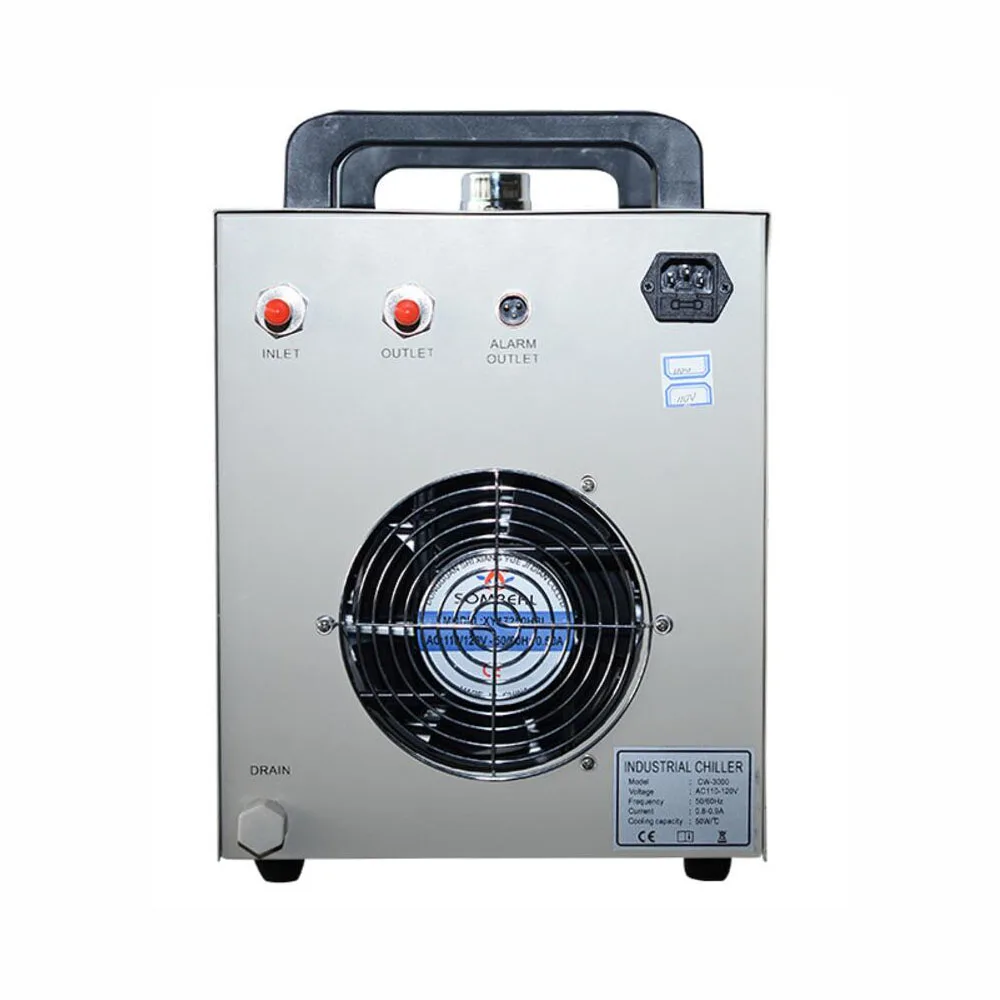

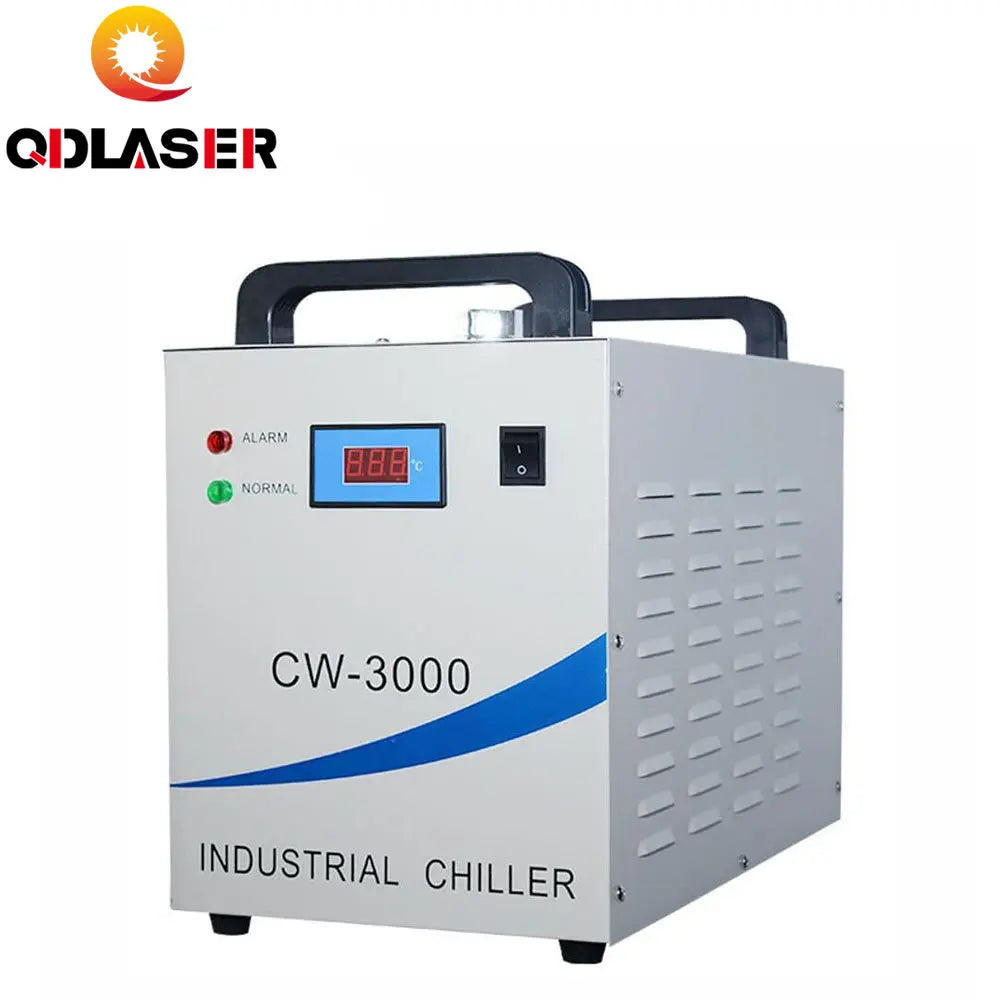

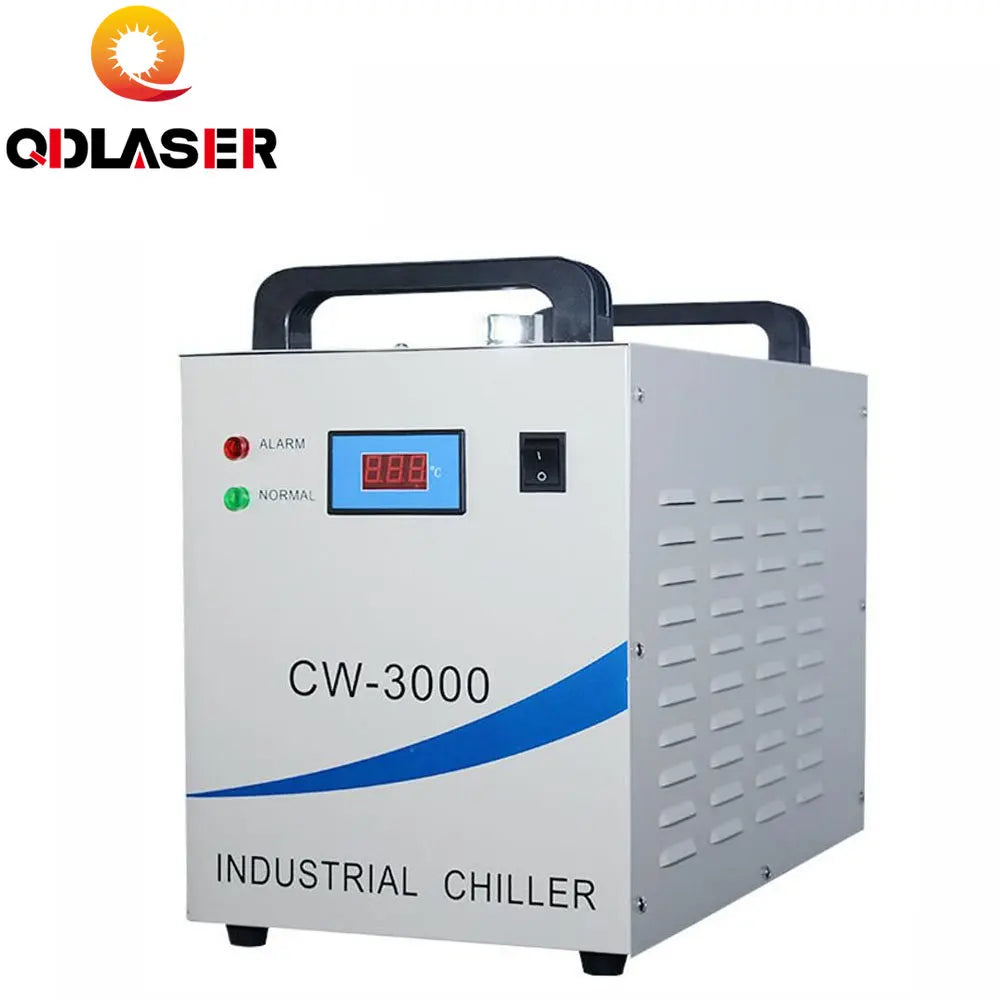

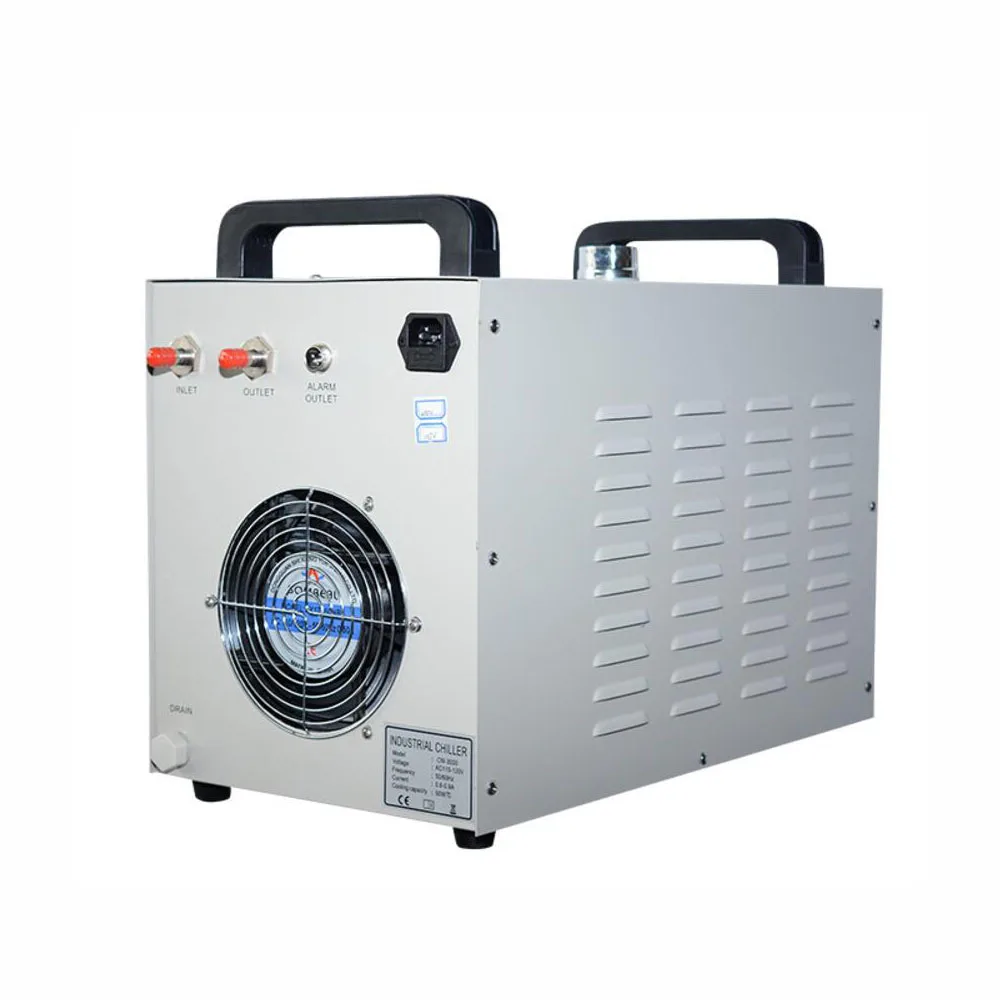

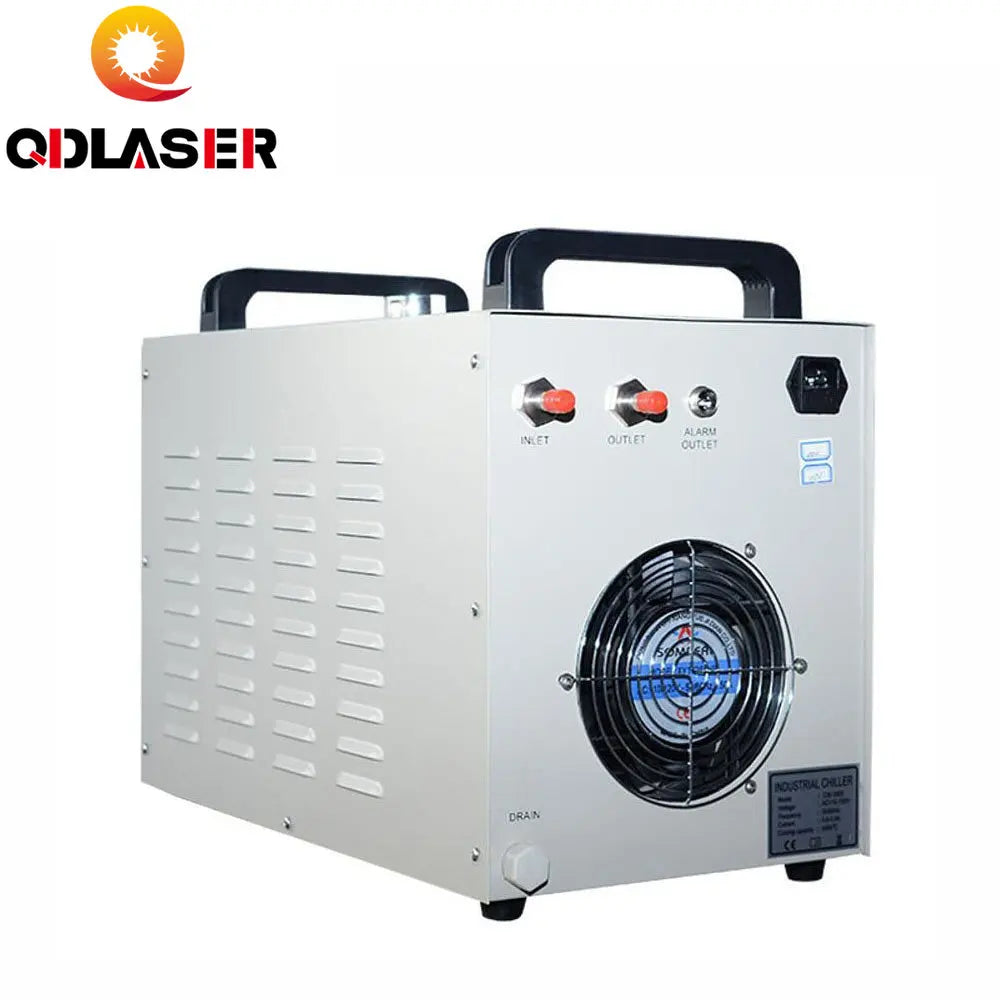

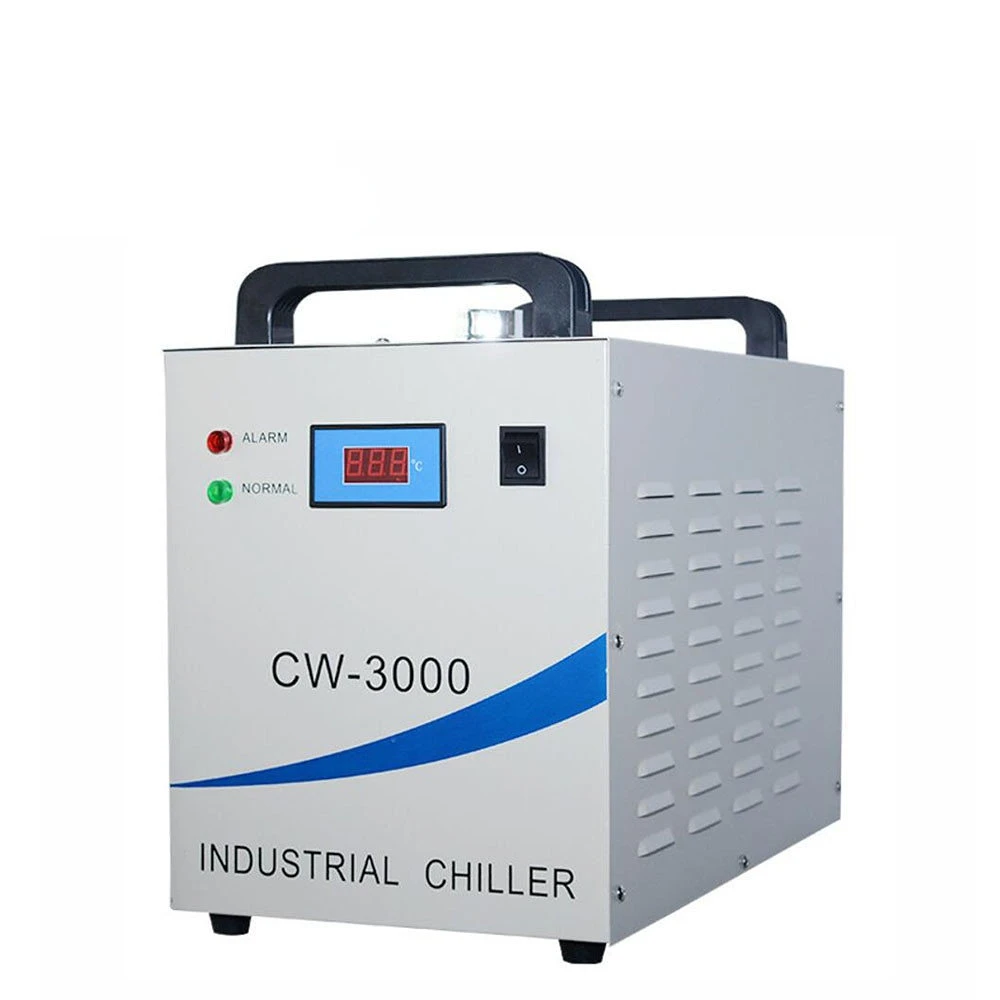

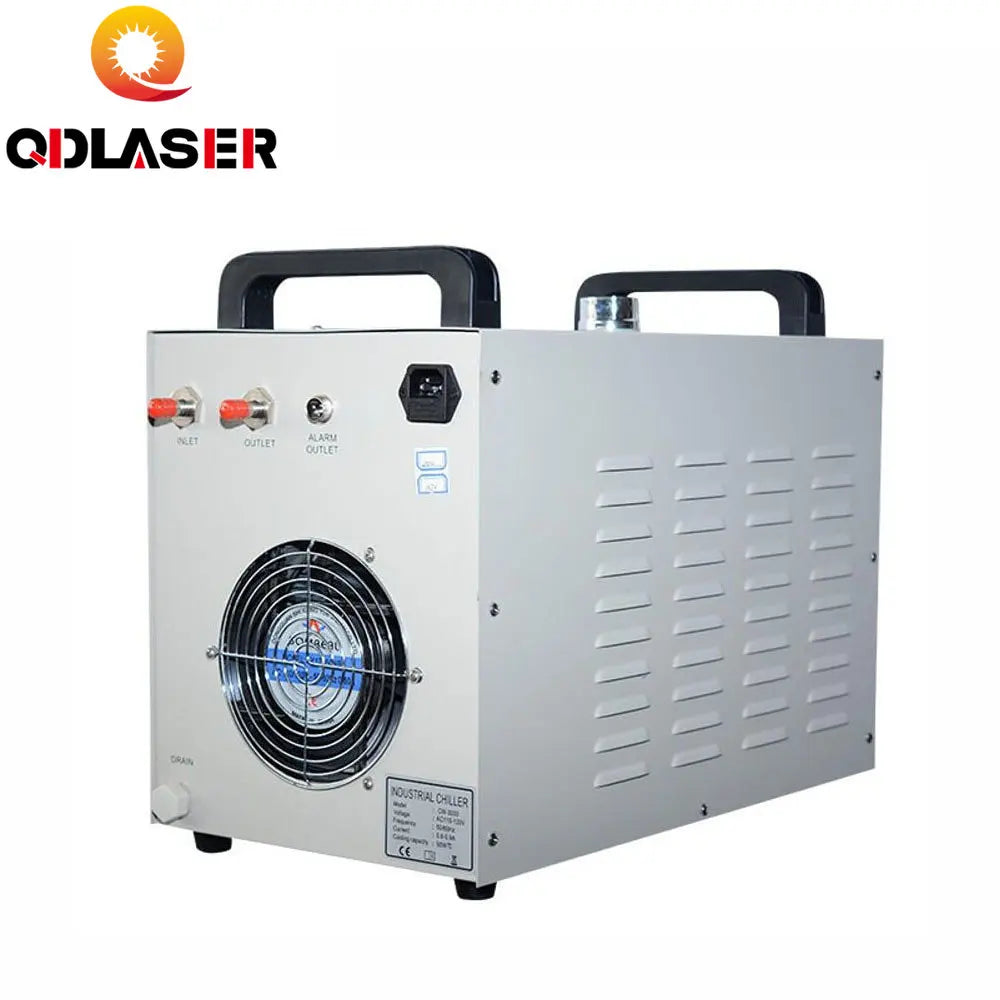

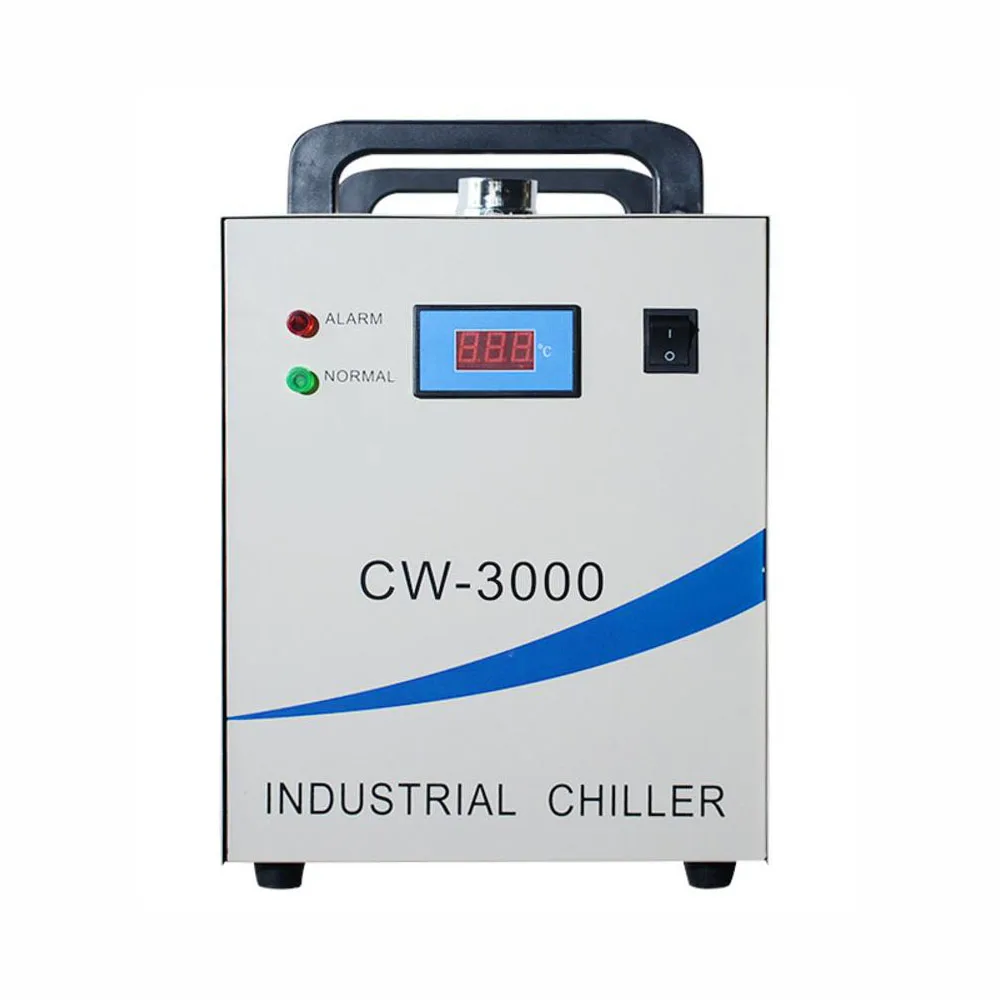

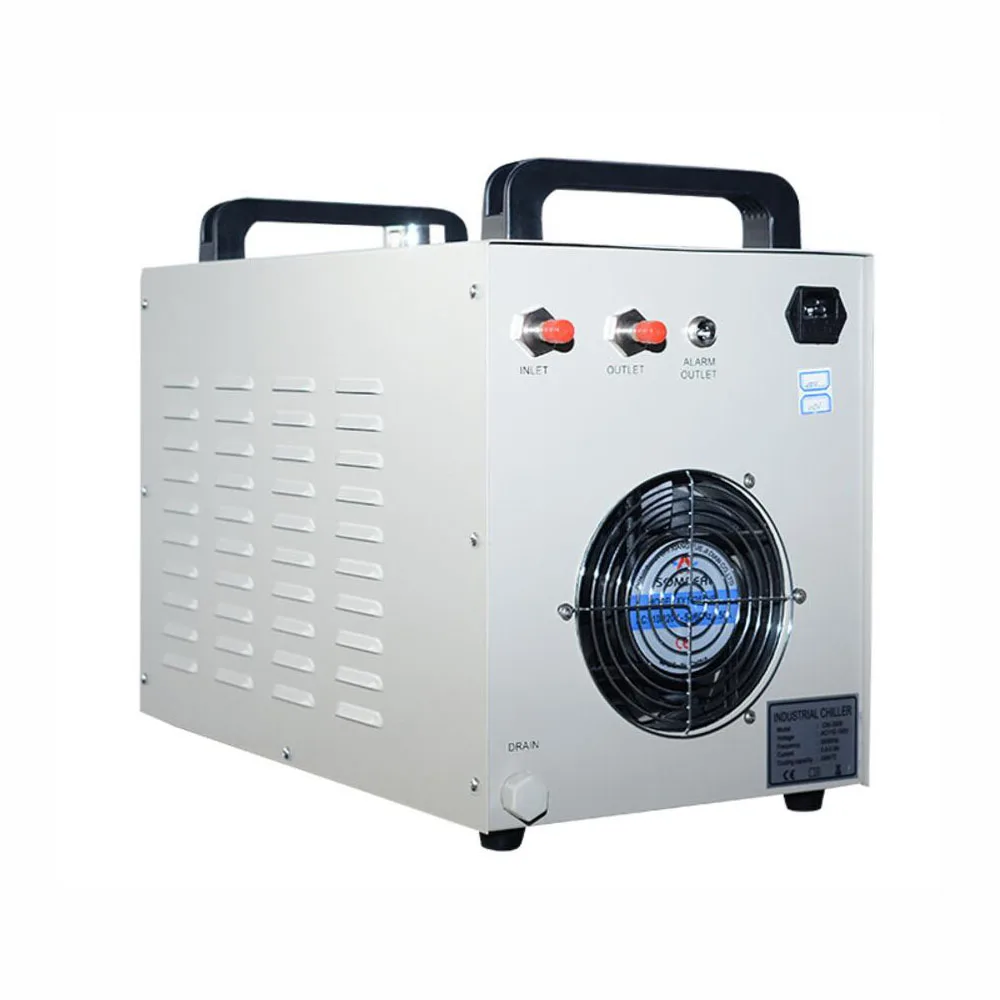

QDLASER CW-3000AG Co2 Laser Water Chiller for Cooling A Single 80W Laser Tube
Features of CW 3000 Industrial Chiller:
1. Radiating capacity of CW 3000 chiller: 50W/°C;
2. Small thermolysis water cooler, energy saving;
3. Long working life and simple operation;
4. With completed water flow and over high temperature alarm fuctions;
5. Multiple power specifications; CE approval.
Parameters:
Introduction of CW 3000:
2. Its main function is laser cooling to heat the air on the device for heat exchange with the environment.
3. CW 3000 chille r temperature is affected by ambient air temperature, so it's thermostat can not be artificially adjusted.
4. Water chiller price is competitive.
Features of CW 3000 Industrial Chiller:
2. Small thermolysis water cooler, energy saving;
3. Long working life and simple operation;
4. With completed water flow and over high temperature alarm fuctions;
5. Multiple power specifications; CE approval.
Specification of CW 3000 Laser Cooling Chiller:
CW-3000AG laser cooling chiller: applied to cool a single 80W CO2 laser tube (emitting rate lower than 60%
CW-3000AK laser cooling chiller: applied to cool four 1.5KW CNC spindles or welding equipment.
|
Model |
CW-3000AG |
CW-3000DG |
CW-3000AK |
CW-3000DK |
|
Voltage |
AC 1PH 220V |
AC 1PH 110V |
AC 1PH 220V |
AC 1PH 110V |
|
Frequency |
50/60Hz |
|||
|
Current |
0.45A |
0.9A |
0.5A |
1.0A |
|
Radiating capacity |
50W/鈩� |
|||
|
Tank capacity |
9L |
|||
|
Inlet and outlet |
External Φ10mm brass connector |
Φ8mm speedy connector |
||
|
Max. lift |
10M |
|||
|
Max. flow |
10L/min |
|||
|
Protection |
Flow alarm |
|||
|
N.W |
10Kgs |
|||
|
G.W |
12Kgs |
|||
|
Dimension |
47 X 26 X 38cm (L X W X H) |
|||
|
Packing dimension |
59 X 39 X 48cm (L X W X H) |
|||
Best Water Chiller Price:
We are the professional of laser water chillers. It offers the attractive water chiller price. There are laser water chiller, fiber laser chiller, yag laser chiller, cnc router spindle chiller, etc.
