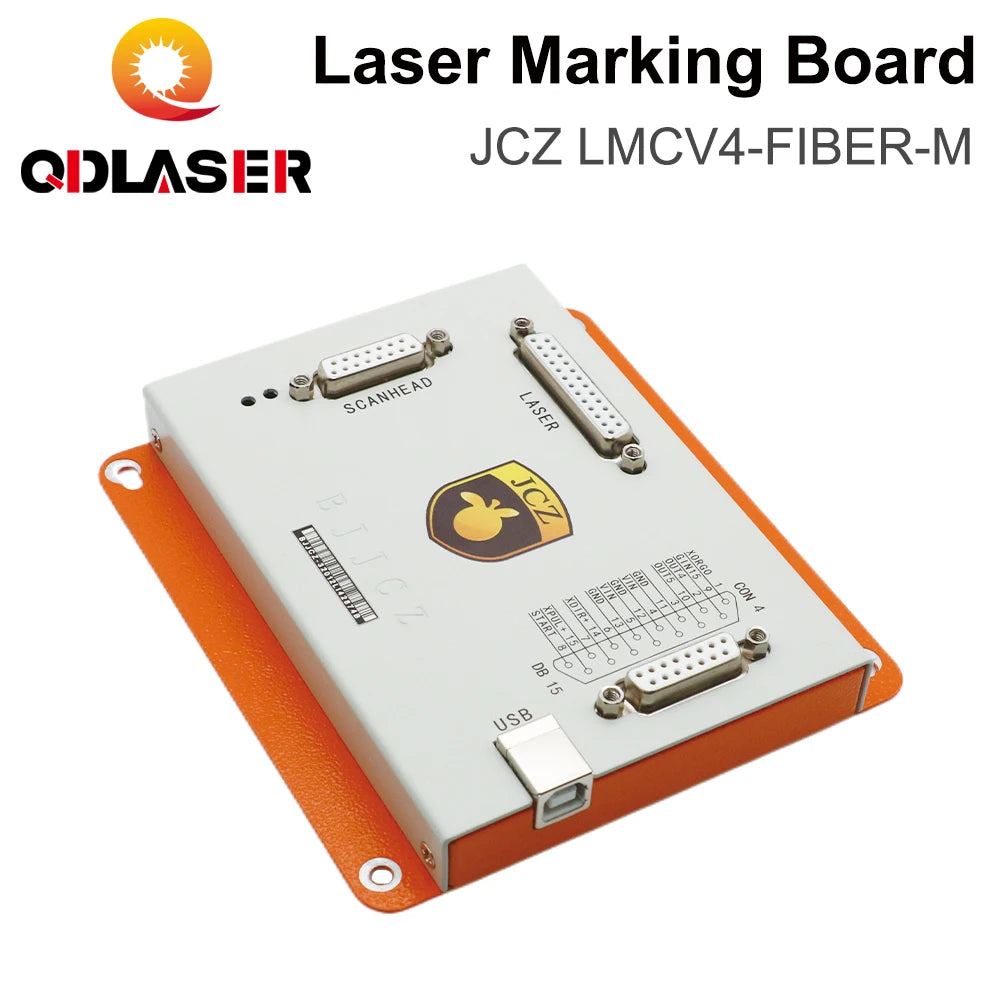

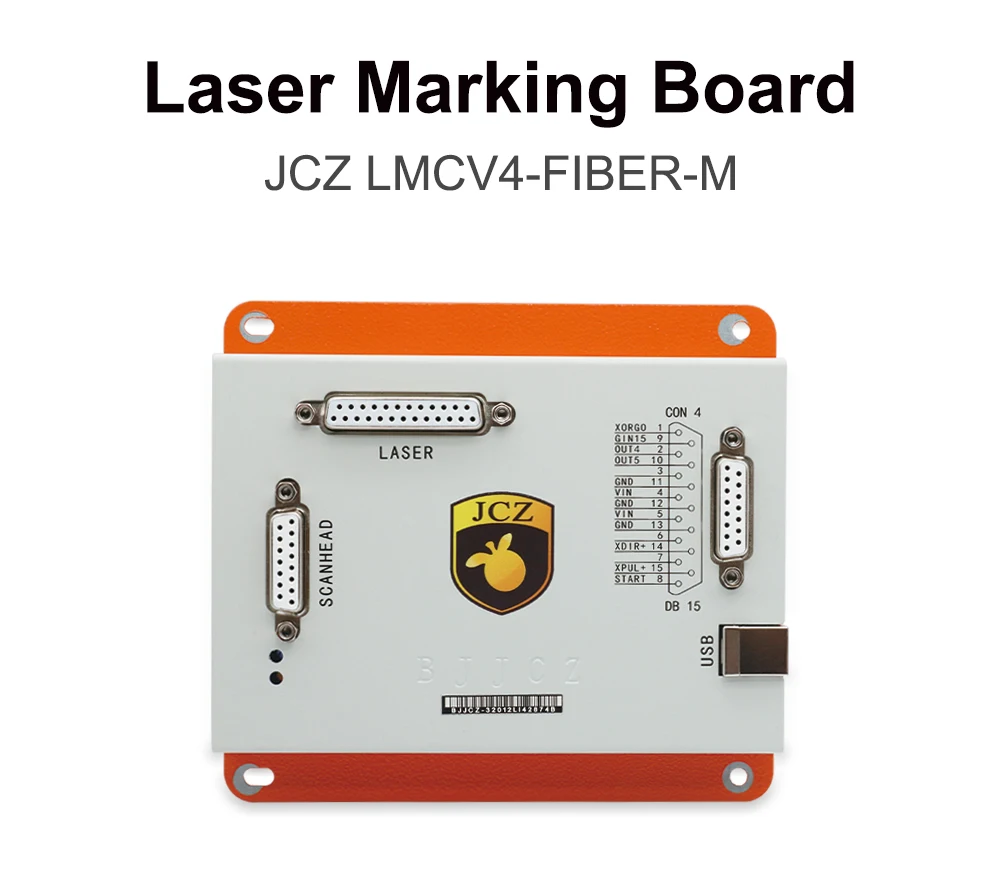

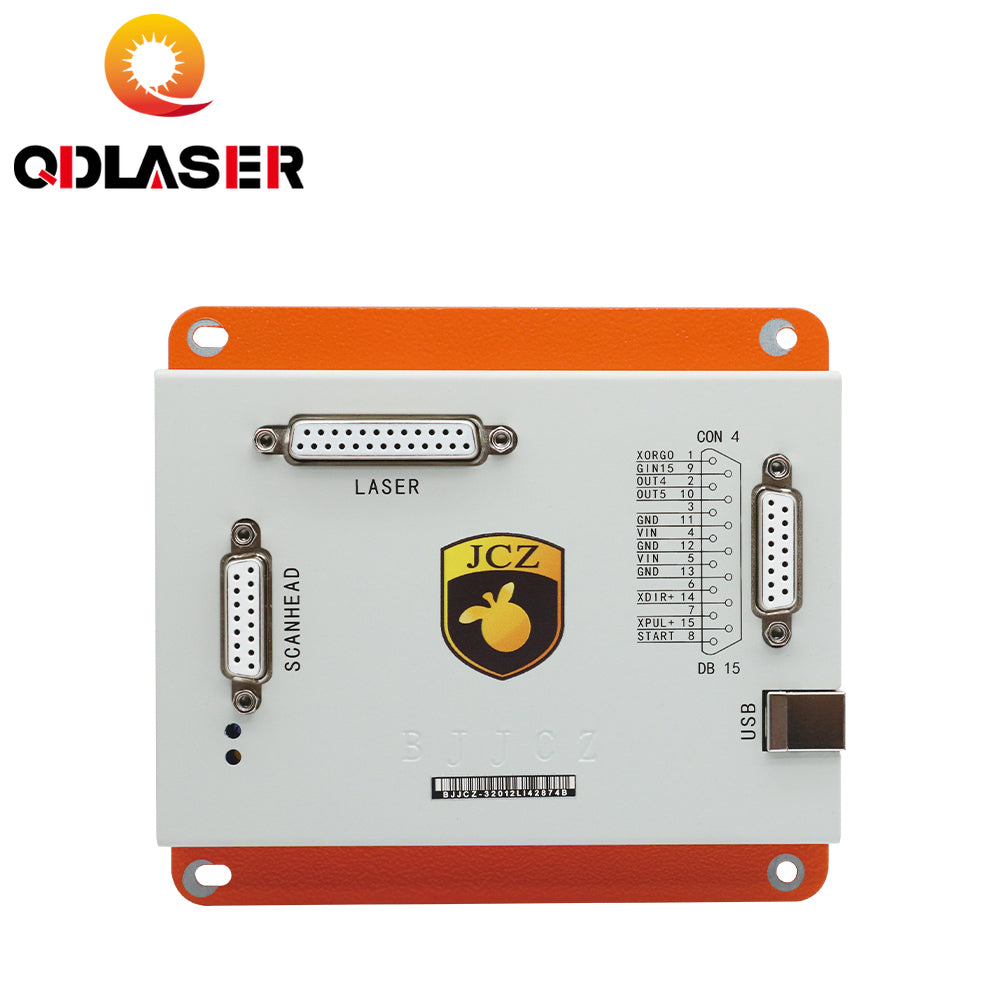

QDLASER BJJCZ LMCV4-FIBER-M Laser Marking Machine Controller Input Power DC5V 3A for 1064nm Fiber Marking Machine IPG Raycus MAX
QDLASER BJJCZ LMCV4-FIBER-M Laser Marking Machine Controller Input Power DC5V 3A for 1064nm Fiber Marking Machine IPG Raycus MAX
Regular price
$285.00 USD
Regular price
$285.00 USD
Sale price
$285.00 USD
Unit price
per
Couldn't load pickup availability
Products Description
QDLASER BJJCZ LMCV4-FIBER-M Laser Marking Machine Controller Input Power DC5V 3A for 1064nm Fiber Marking Machine IPG Raycus MAX

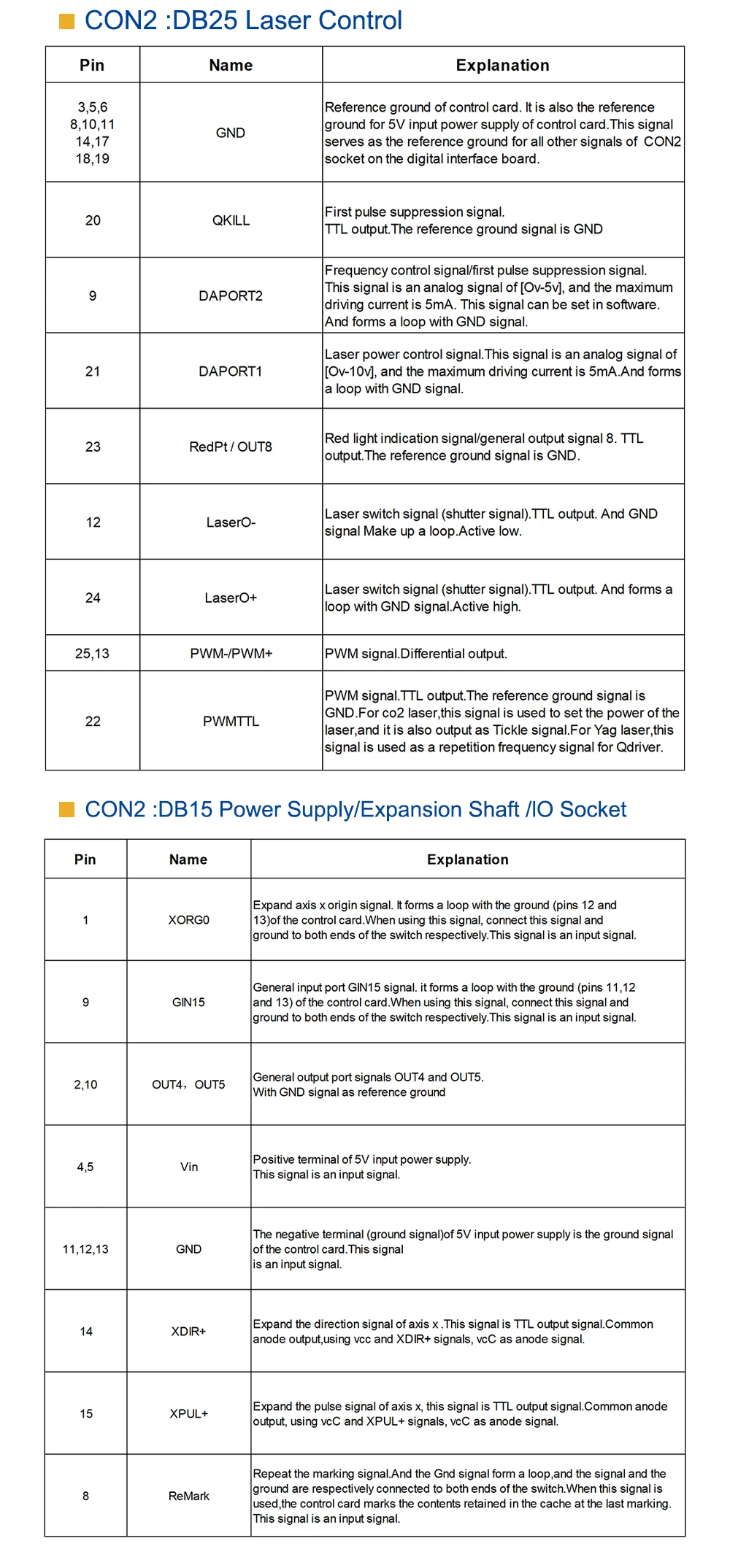

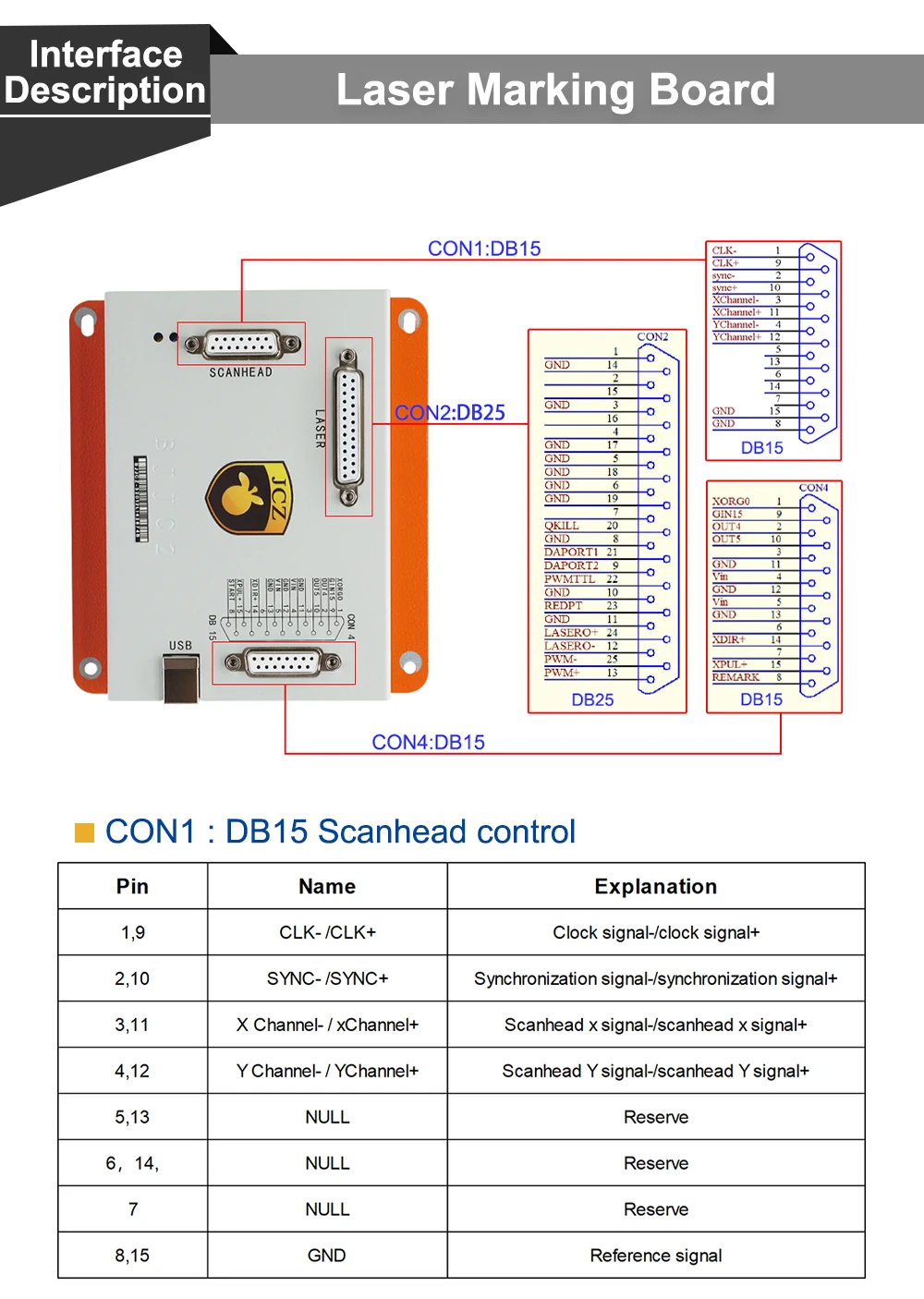

FEATURE:
16 general
input signals(TTL compatible):In0-In13,XORG0(IN14),YORG0(IN15).
8 general
output signals((TTL compatible):Out0-7 coming out of Con5.Out0-3 are
TTLoutputs.Out4-7 can be configured as OC outputs or TTL outputs.
Laser ERR
signal: this signal will be activated when there is an error occurs in the
laser, OC output.
Remark
function:this function is used to remark what ever is in the memory of the
board,especially convenient for high speed marking on same pattern.
Compatible
with USB2.0 specifications.
CARD PAPAMETER
16 general
input signals(TTL compatible)
8 general
input signals(TTL compatible
Using USB2.0
specifications

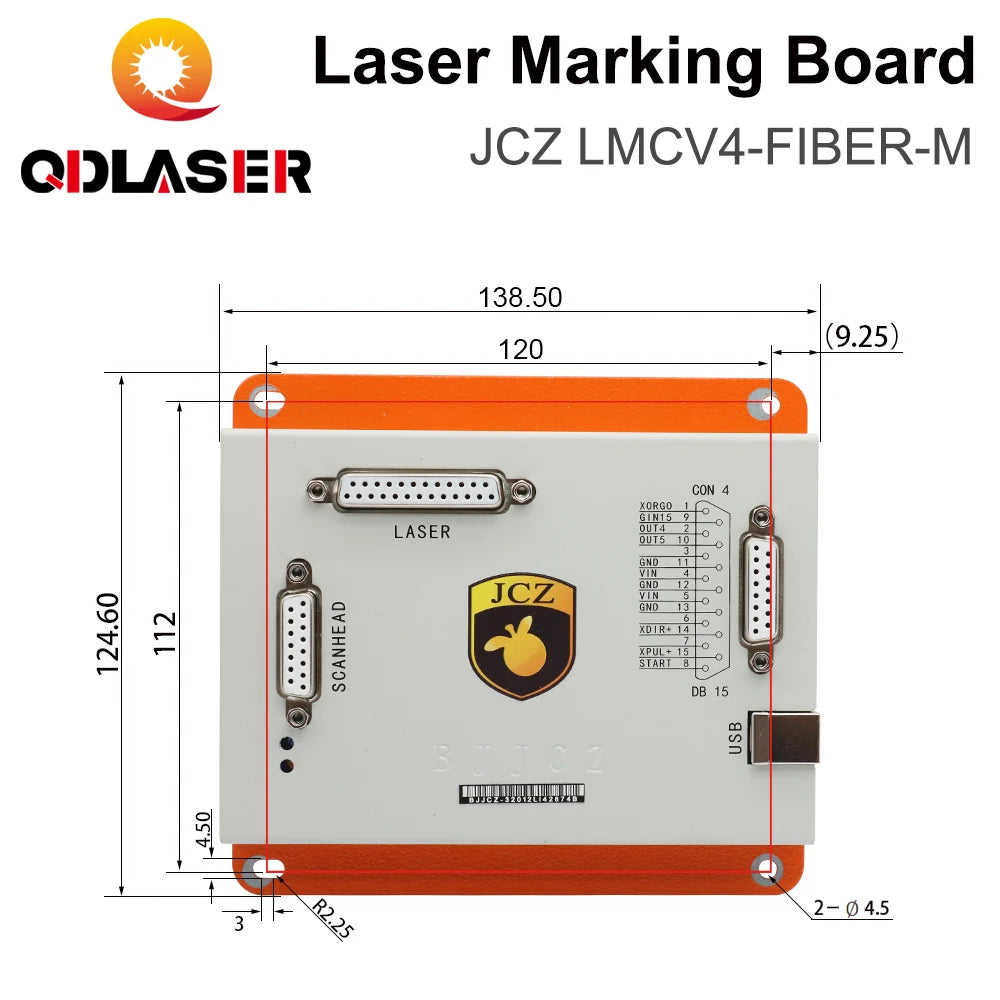

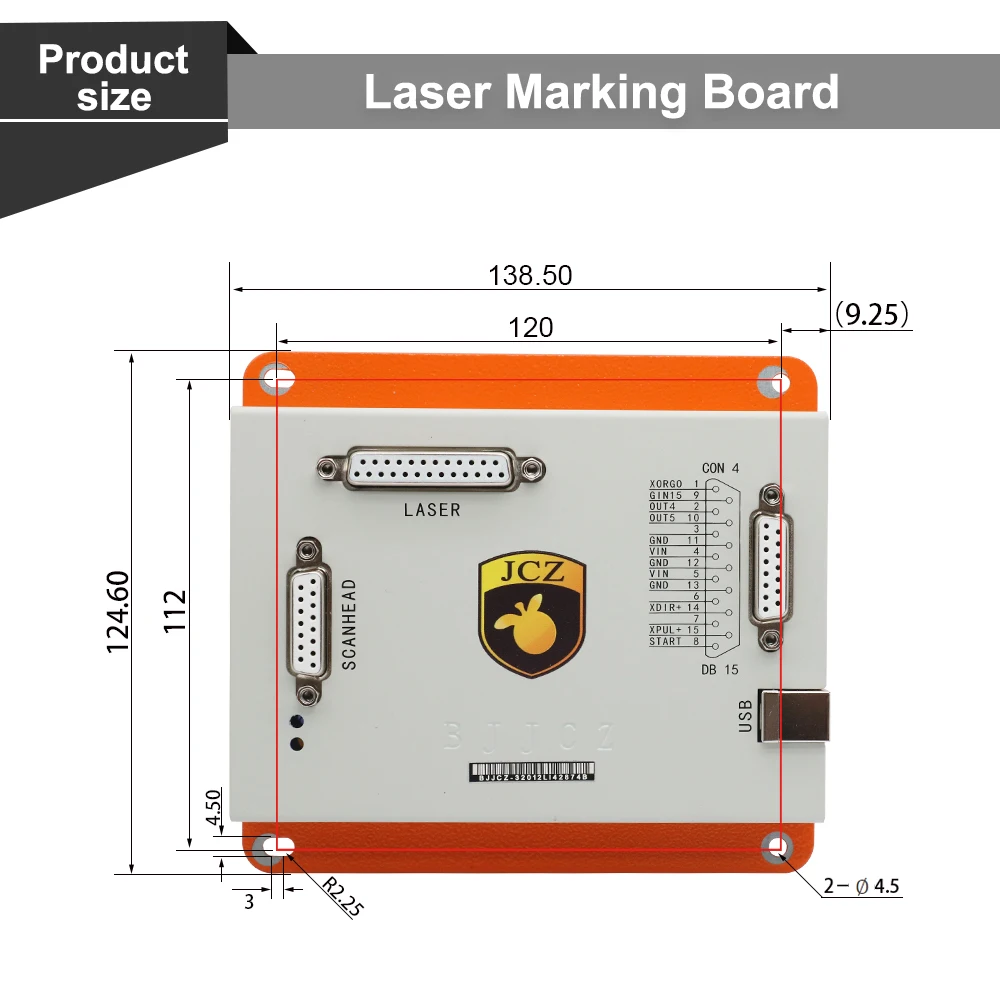

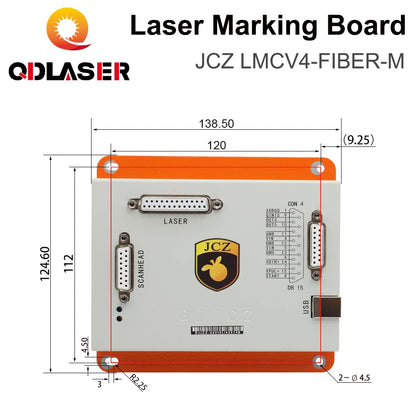

Size: 140*130*25mm
FEATURE:
16 general
input signals(TTL compatible):In0-In13,XORG0(IN14),YORG0(IN15).
8 general
output signals((TTL compatible):Out0-7 coming out of Con5.Out0-3 are
TTLoutputs.Out4-7 can be configured as OC outputs or TTL outputs.
Laser ERR
signal: this signal will be activated when there is an error occurs in the
laser, OC output.
Remark
function:this function is used to remark what ever is in the memory of the
board,especially convenient for high speed marking on same pattern.
Compatible
with USB2.0 specifications.
CARD PAPAMETER
16 general
input signals(TTL compatible)
8 general
input signals(TTL compatible
Using USB2.0
specifications
Size: 140*130*25mm
