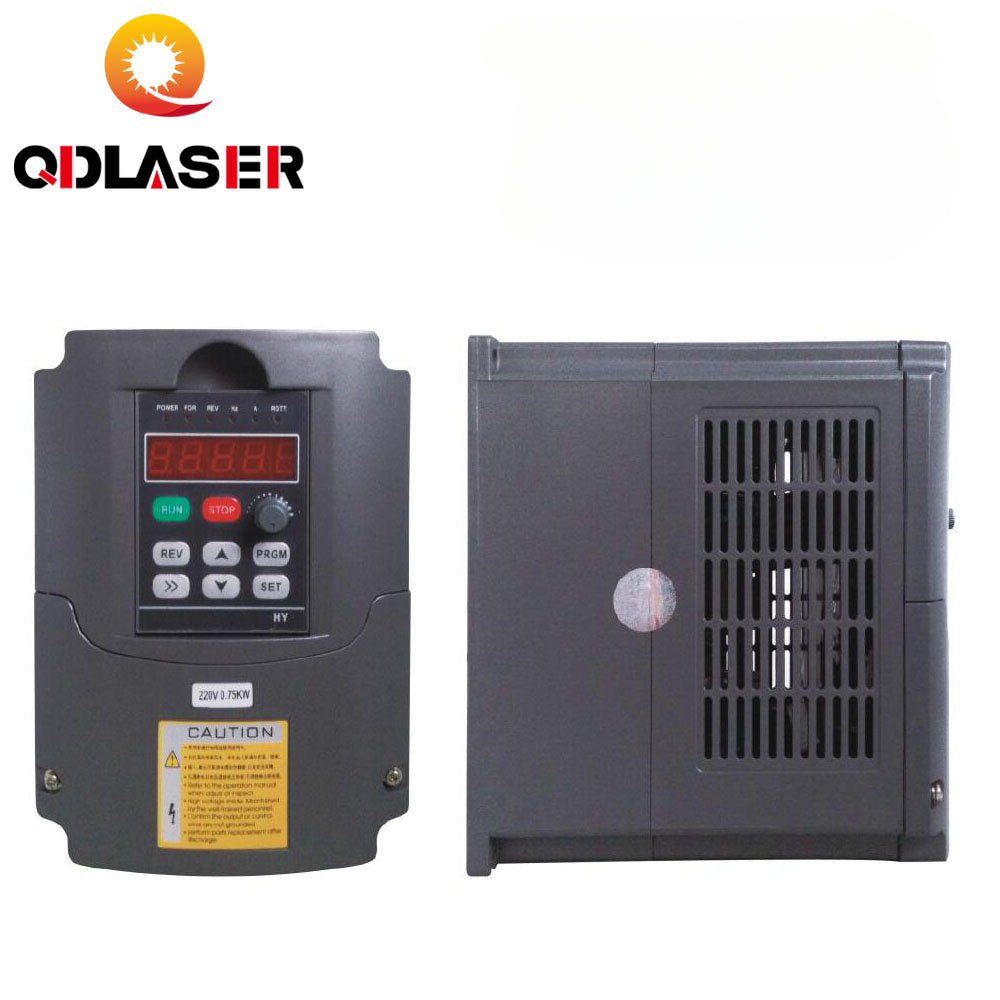

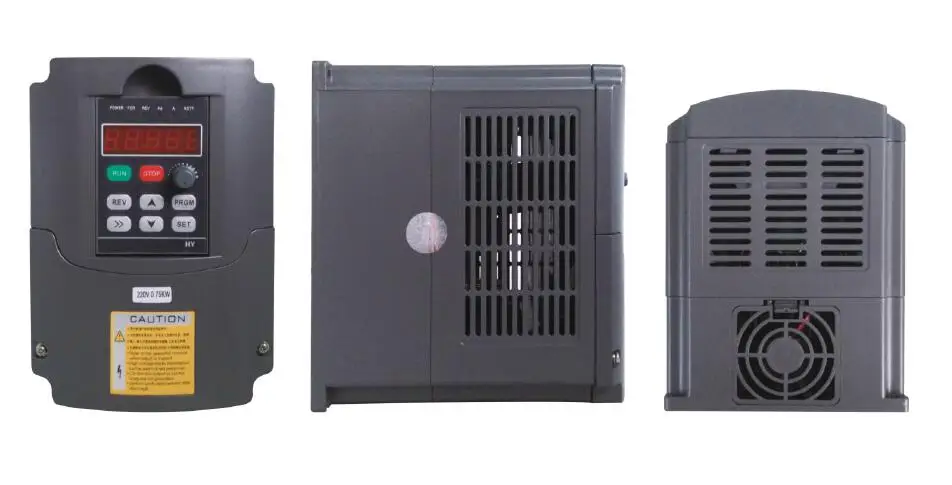

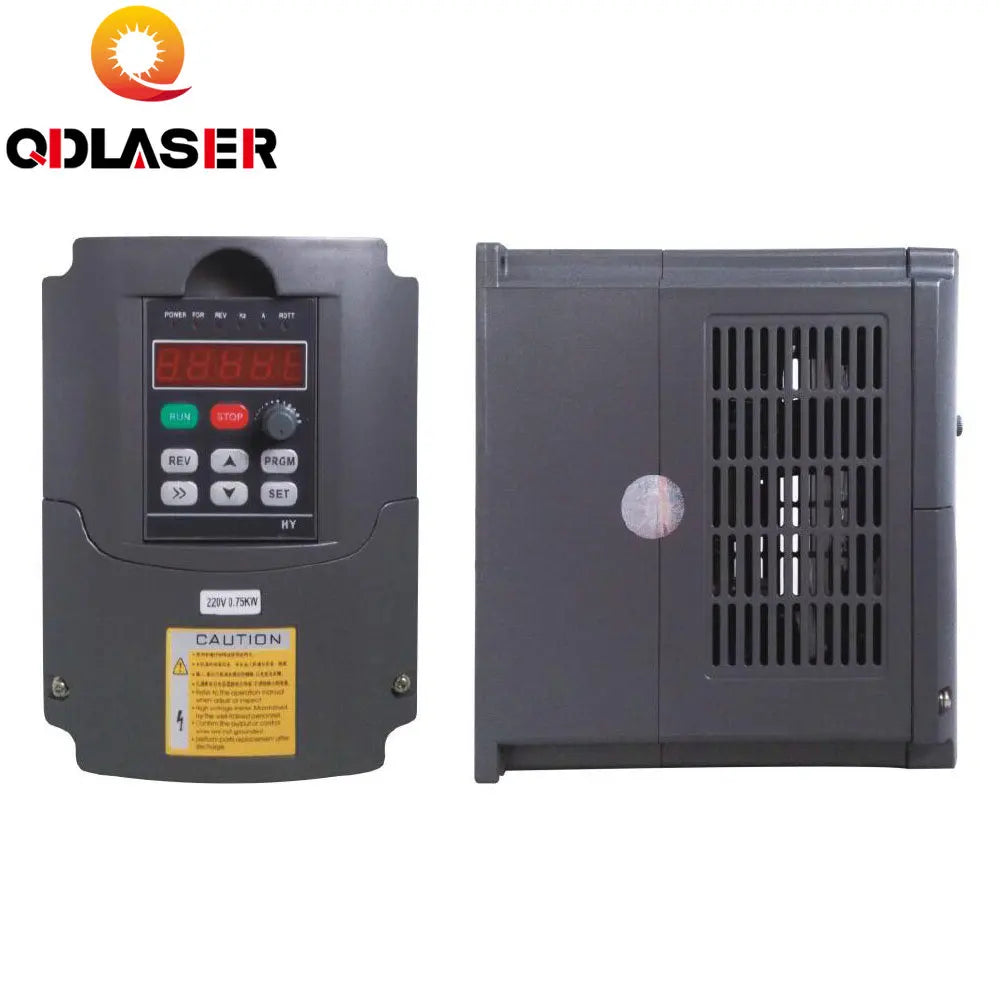

QDLASER 380v 5.5kw VFD Variable Inverter for CNC Spindle Driver Spindle Speed Control
QDLASER 380v 5.5kw VFD Variable Inverter for CNC Spindle Driver Spindle Speed Control
Regular price
$358.00 USD
Regular price
$358.00 USD
Sale price
$358.00 USD
Unit price
per
Couldn't load pickup availability
Products Description
QDLASER 380v 5.5kw VFD Variable Frequenc Inverter for CNC spindle Driver spindle speed control
* Input Voltage: 380V(+/-15%)
* Output Voltage: 380VAC
* Input Frequency: 48-63 Hz
* Output Frequency: 0-400 Hz
* Input Phase: 1 or 3 phase
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased
A large scale motor control IC + IGBT ,reliability unit ,strong software function ,the demand-control is widely used in many
industry
PID control; advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;
Easy PLC function can realize 16 legs of speed and inverter control function;
RS485 communication port, adopting standard international MODBUS main circuit control;
With extremely strong anti-jamming capability
Low output ratting torque0.5HZ-150%, low speed running ability;
Carrier adjustable by 16KHZ, completely soundless working environment;
Broad voltage working area, normal running in 304V-456V;
Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing
brakes;
With perfect error protection and short circuit starting protection capability;
