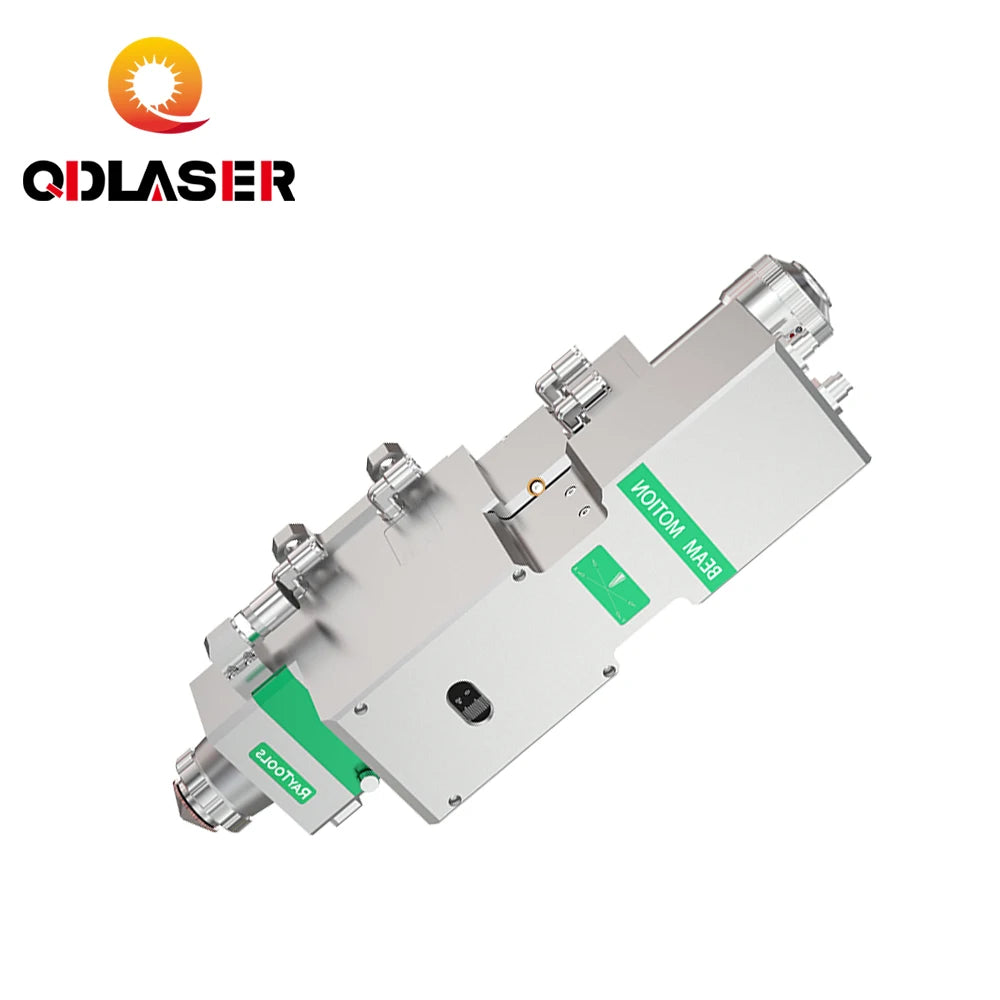

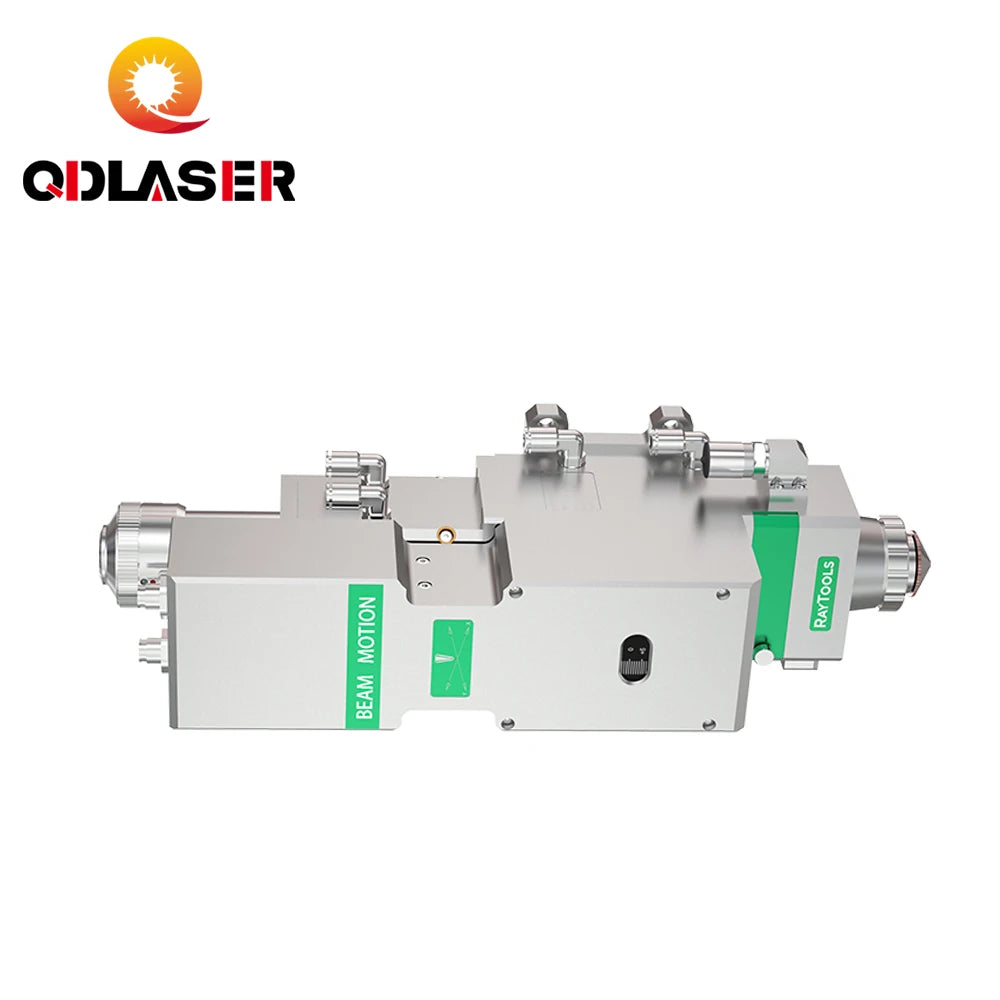

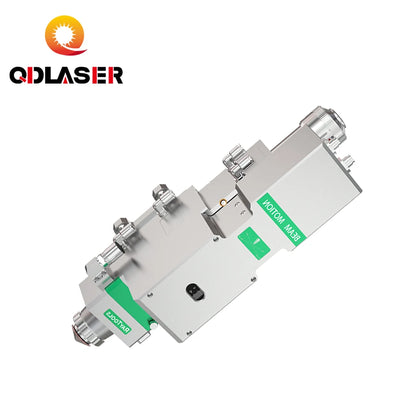

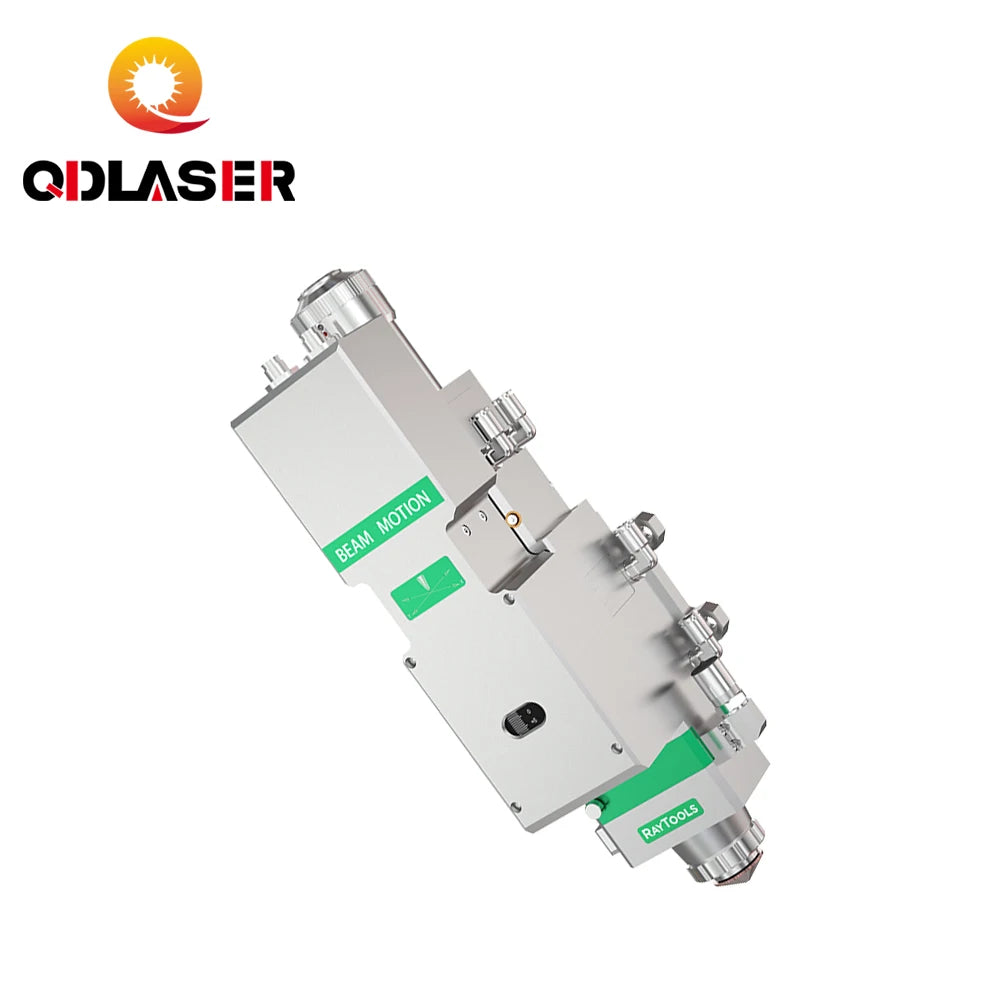

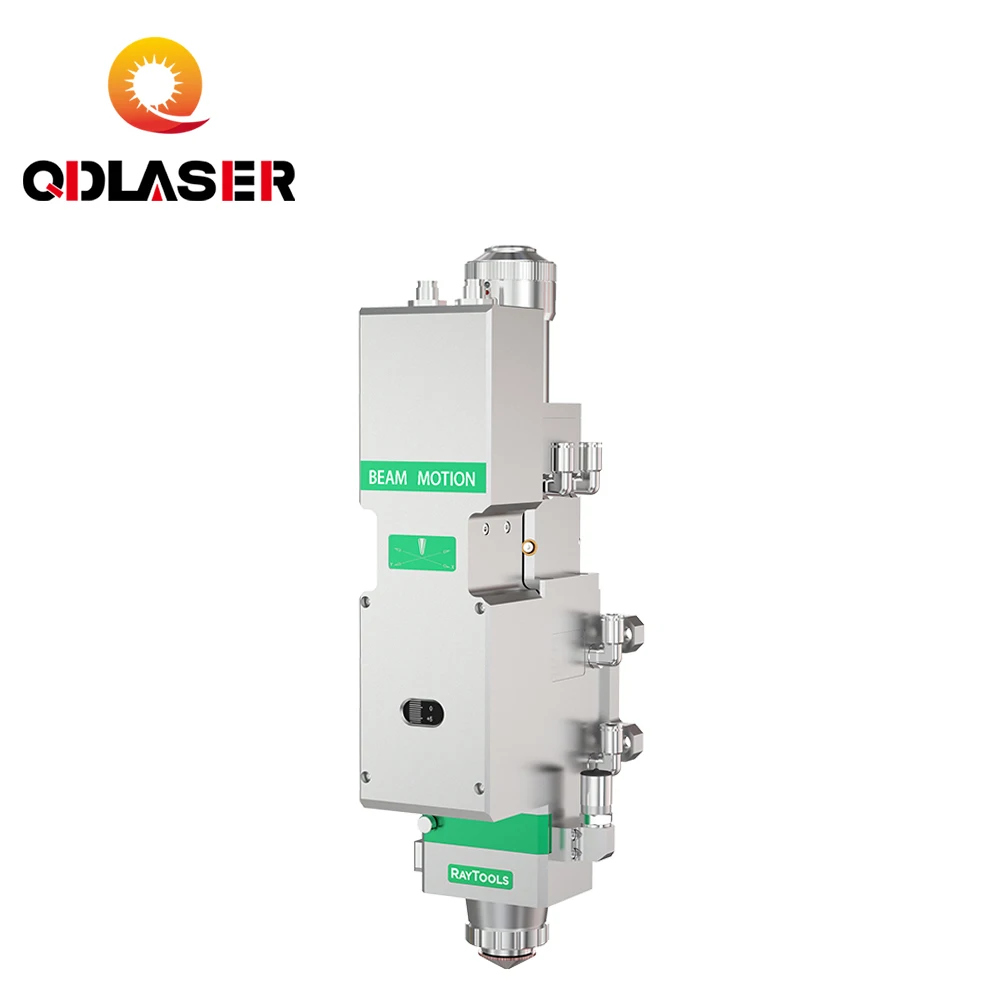

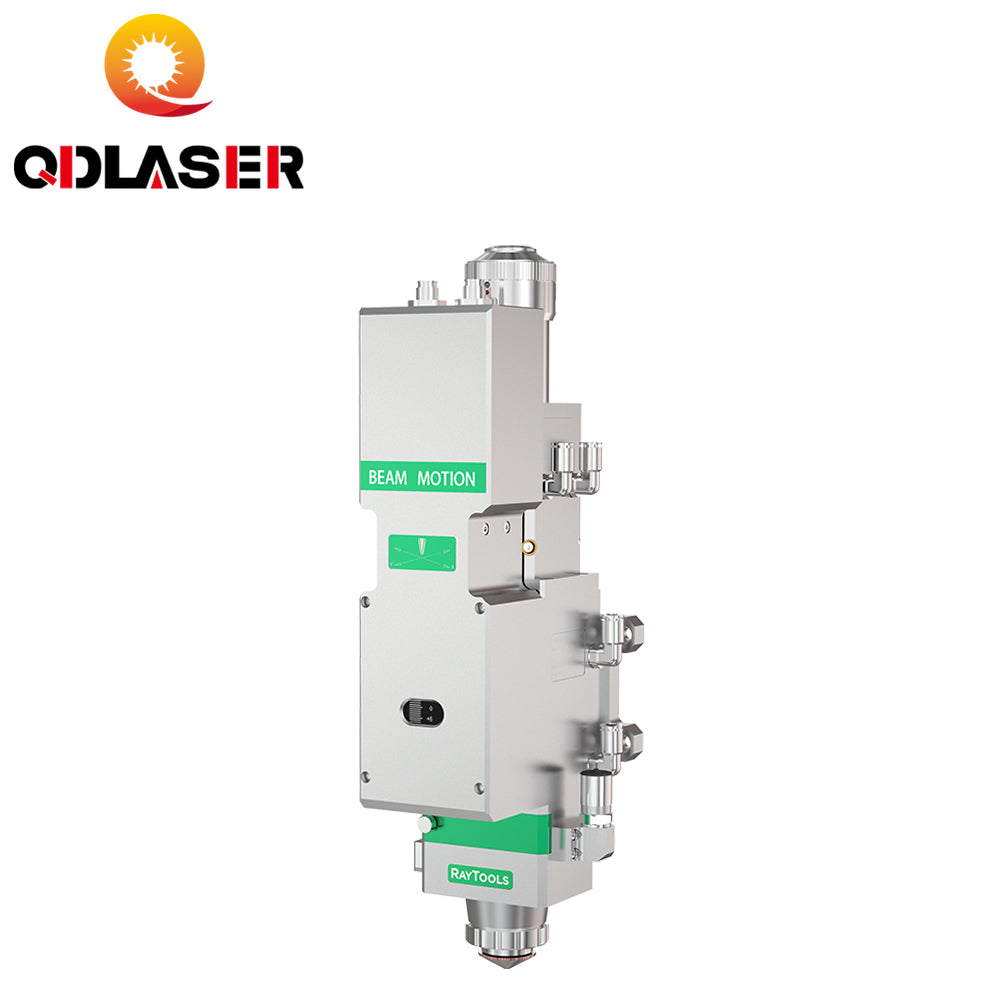

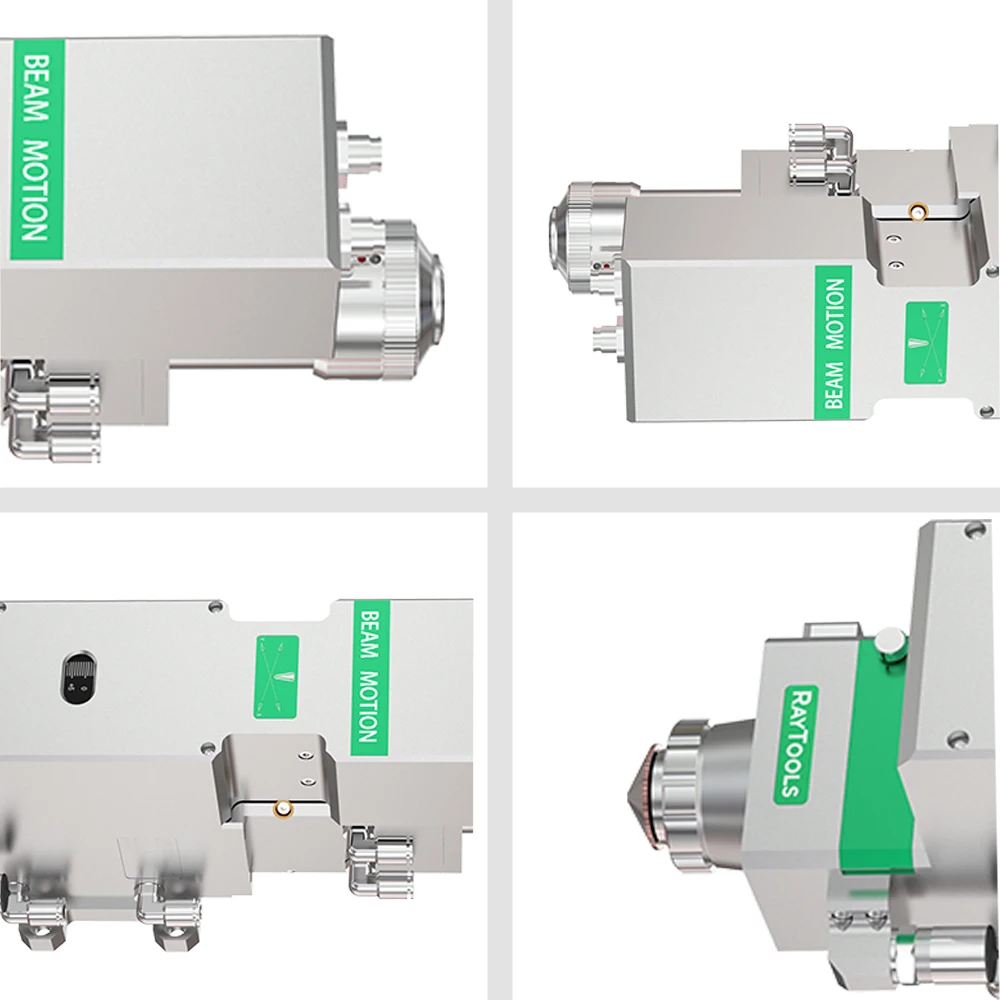

QDLASER 3.3kw BM111 Fiber Laser Head for Raytools Auto Focus Cutting Head Fiber Laser Cutting Machine
QDLASER 3.3kw BM111 Fiber Laser Head for Raytools Auto Focus Cutting Head Fiber Laser Cutting Machine
Regular price
$2,400.00 USD
Regular price
$2,400.00 USD
Sale price
$2,400.00 USD
Unit price
per
Couldn't load pickup availability
Product Description

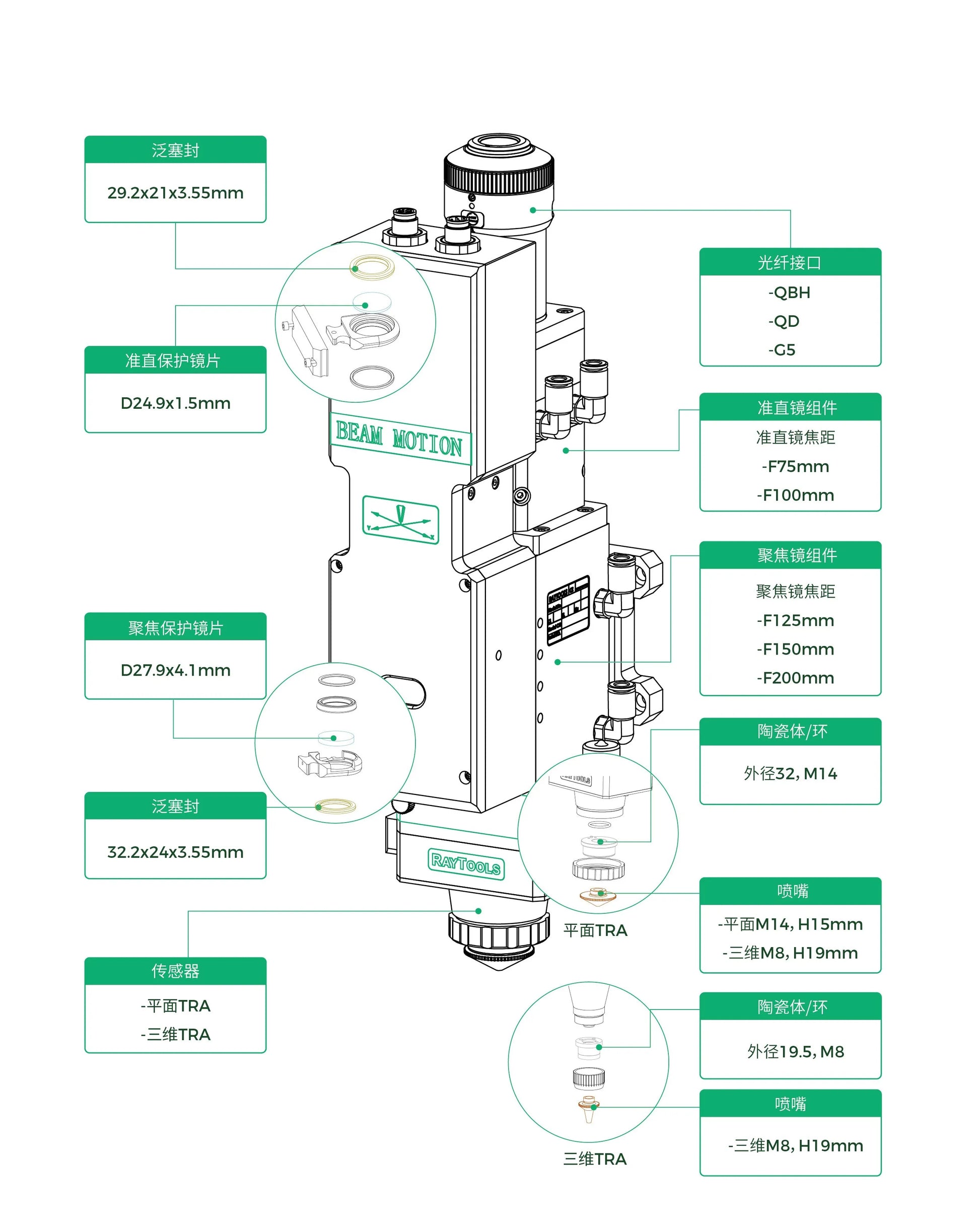

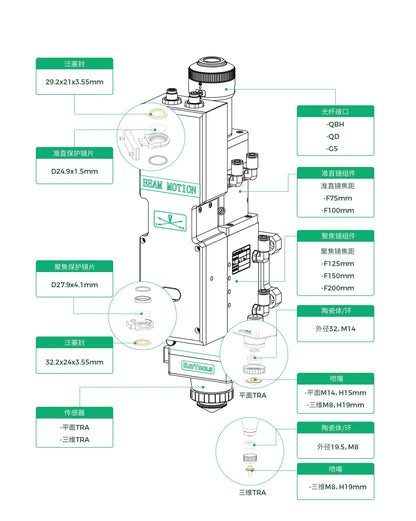

Multiple protective lenses:
3 protective lenses, efficient protection of the collimating focusing lens
Autofocus:
Automatic focusing, reducing human intervention, focusing speed 170mm/s, adjustment accuracy 0.05mm
High degree of dust protection:
IP65 dustproof, patent protection mirror base cover, dustproof without dead angle
High-speed cutting:
12mm thick SUS304 cutting speed 0.7m/min@3000W, 12mm thick Q235 cutting speed 1.2m/min@3000W
Specification
|
Product name
|
Fiber laser cutting head
|
|
Focus Range
|
-12mm~+10mm
|
|
Focus Speed
|
≤170mm/s
|
|
Fiber Interface
|
QBH , QD锛孏5
|
|
Auto Focus Accuracy
|
0.05mm
|
|
Auto Focus Acceleration
|
≤10m/s²
|
|
Clear aperture
|
28mm
|
|
Nozzle specifications
|
single layer, double layer, non-standard
|
|
Nozzle hole diameter
|
0.8mm,1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
|
|
Auxiliary gas pressure
|
≤30bar
|
|
Weight (KG)
|
6KG
|
