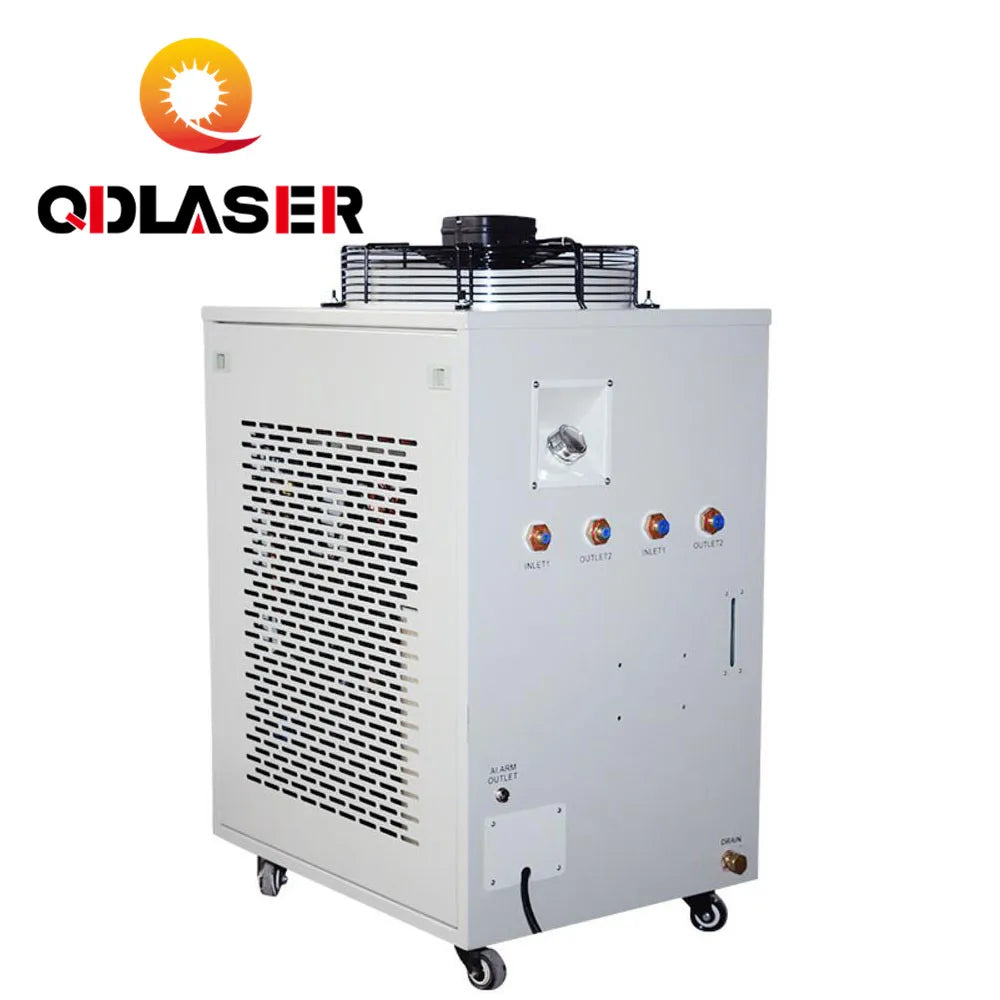

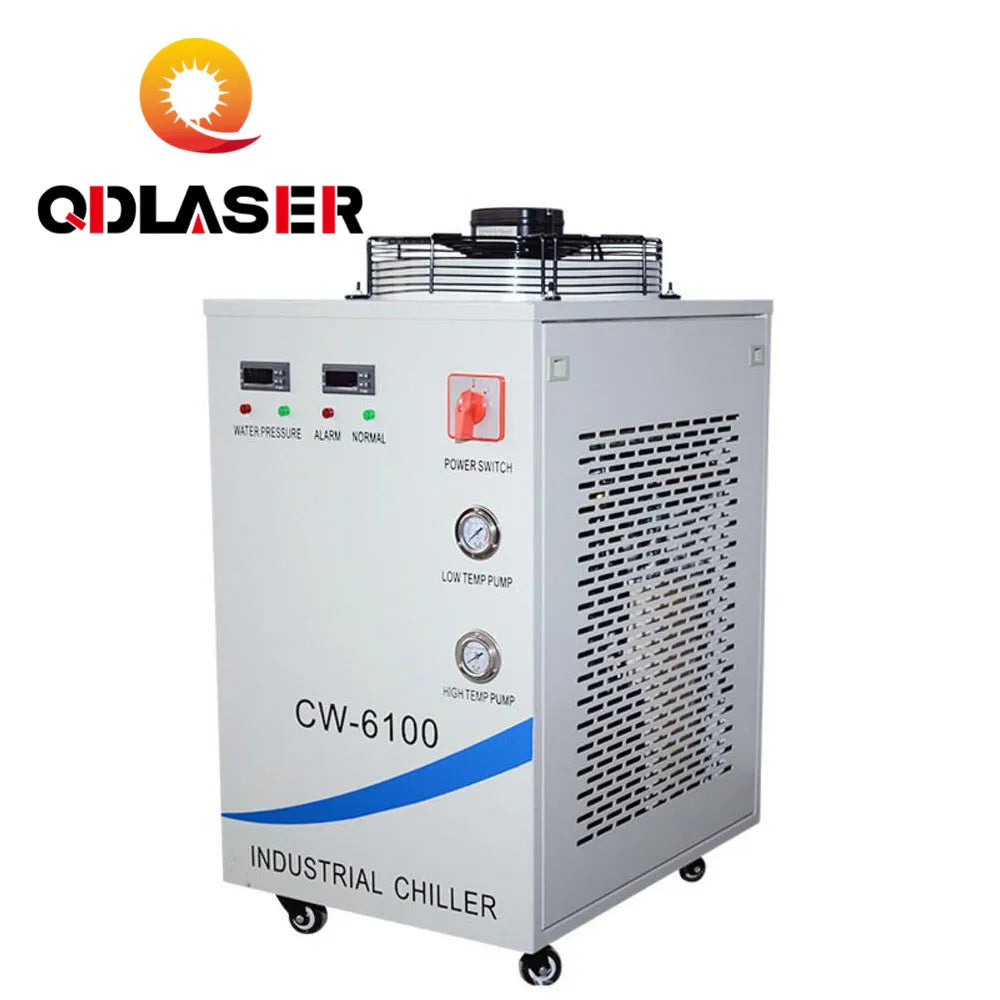

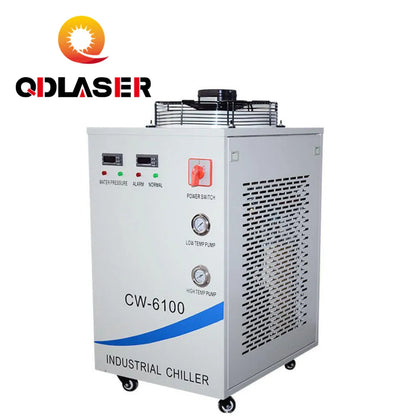

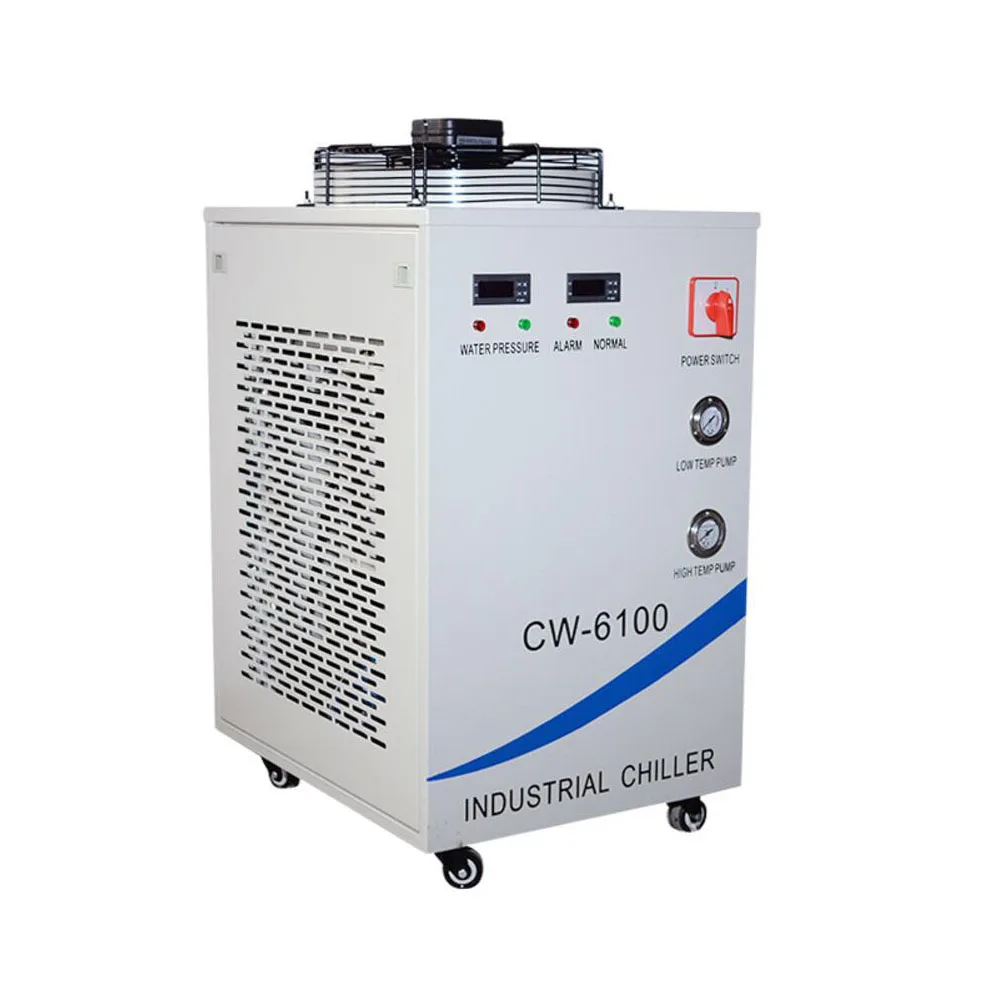

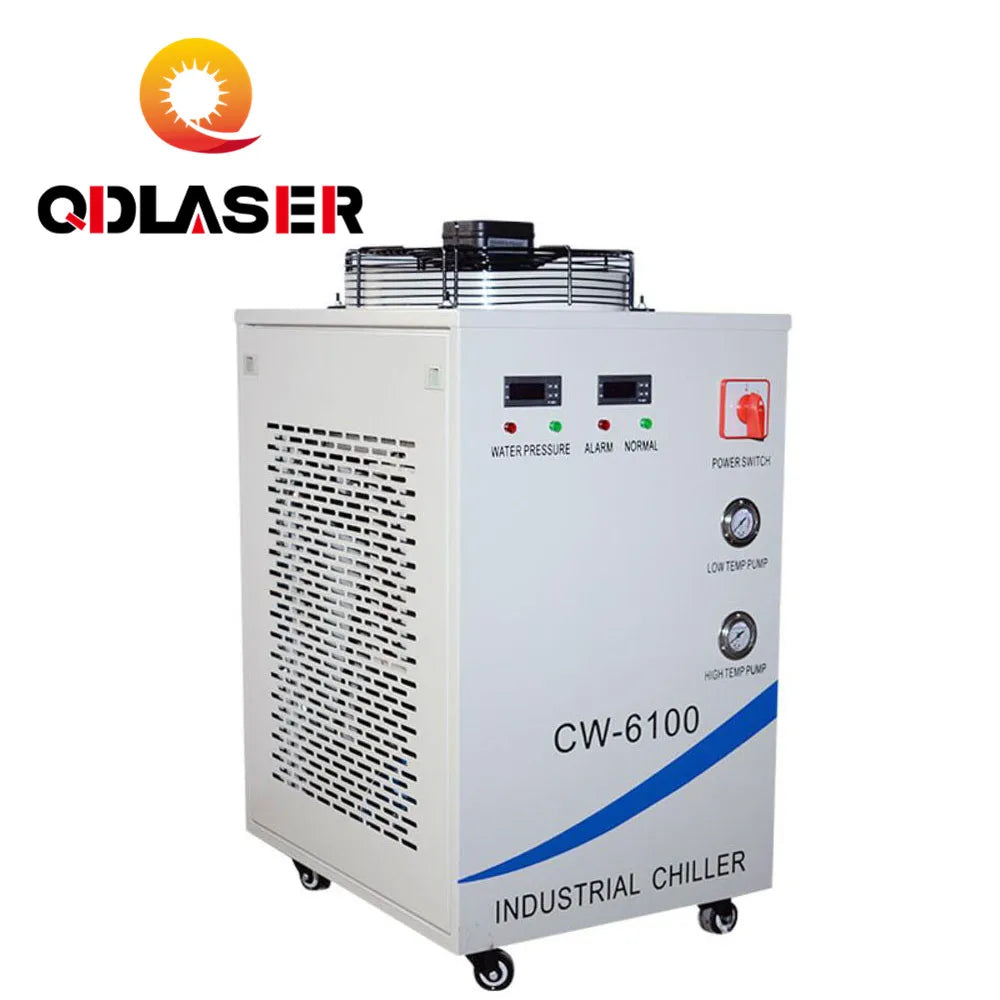

QDLASER 220V CW-6100AH CNC Spindle Water Chiller for Cooling Dual 200W or Single 400w CO2 Laser Tubes

Name: QDLASER 220V CW-6100AH CNC Spindle Water Chiller for Cooling Dual 200W or Single 400w CO2 Laser Tubes
Brand: QDLASER
Price: 1411.2 USD
Availability: InStock

$1,411.20 USD

~~$1,411.20 USD~~ $1,411.20 USD

Sale Sold out

model number 220V CW-6100AH

Product variants

Quantity

QDLASER 220V CW-6100AH CNC Spindle Water Chiller For Cooling Dual 200W or Single 400w CO2 Laser Tubes

4200W Laser Machine Used Chillers For Sale Features:

1. 4200W cooling capacity used chillers for sale; optional environmental refrigerant;

2. +/- 0.5鈩� precisely temperature control;

3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high/low temperature alarm.

5. CE certification.

6. Long working life and simple operation.

7. Optional heater and water filter.

Introduction of Packaged Chiller:

Industrial packaged chiller is popular for its 2 temperature chiller design control modes as constant temperature and intelligent temperature control. Under intelligent mode in chiller refrigeration cycle, the water temperature is adjusted according to the ambient temperature. With that 1 key solution, customers do not need to worry about the water temperature adjustment of seasonal changes.

CW 6100 Chiller Cooler Application:

One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.

CW-6100AI chiller cooler : applied to cool dual 200W CO2 glass laser tubes, or a single 400W CO2 laser tube;

CW-6100AN chiller cooler: applied to cool a single 150W CO2 RF laser tube, a single 150W laser diode, a single 150W solid-state laser, a single 300W-600W fiber laser or a single 36KW CNC spindle.

Chiller Industrial CW 6100 Specification:

Model	CW-6100AH	CW-6100BH	CW-6100AI	CW-6100BI	CW-6100AN	CW-6100BN
Voltage Frequency	220V
	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz
Current	1~6.5A		1.5~7A		2~7.5A
Compressor power	1.38KW	1.29KW	1.38KW	1.29KW	1.38KW	1.29KW
Compressor power	1.93HP	1.72HP	1.84HP	1.72HP	1.84HP	1.72HP
Refrigeration capacity	14483Btu/h	14092Btu/h	14483Btu/h	14092Btu/h	14483Btu/h	14092Btu/h
	4.24KW	4.13KW	3.38KW	4.24KW	4.13KW	3.38KW
	3650Kcal/h	3551Kcal/h	3650Kcal/h	3551Kcal/h	3650Kcal/h	3551Kcal/h
Refrigerant	R-22/R-410a
Refrigerant charge	1100g	1100g	1100g	1100g	1100g	1100g
Precision	±0.5鈩�
Reducer	Capillary
Protection	Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power	0.05KW		0.1KW		0.37~0.75KW
Tank capacity	15L
Inlet and outlet	Rp1/2"
Max. lift	15M		25M		28~53M
Max. flow	24L/min		16L/min		70L/min
N.W	65Kgs				77Kgs
G.W	75Kgs				87Kgs
Dimension	60 × 52 × 80cm (L × W × H)
Package dimension	68 × 60 × 98 cm (L × W × H)

Note: the specification of water pump is selected according to different application; other electric sources can be customized; heating and higher temperature control precision functions are optional.
