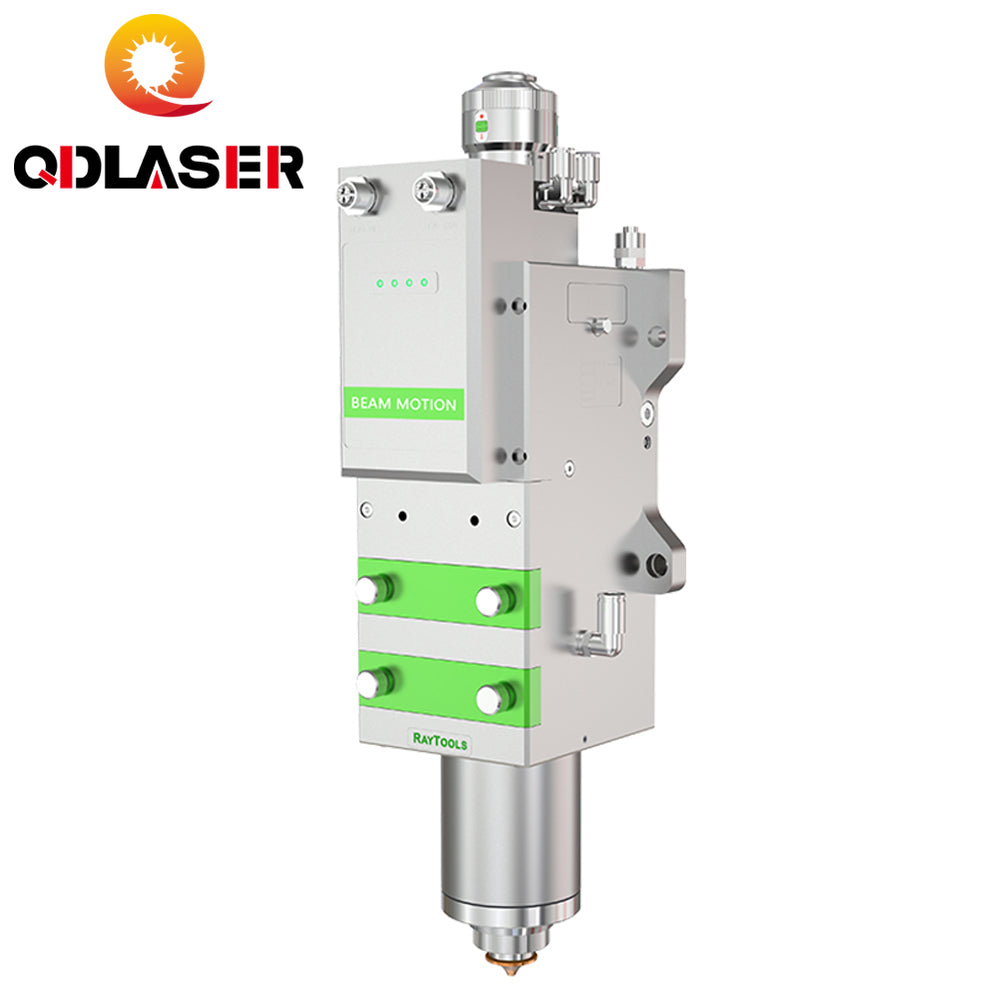

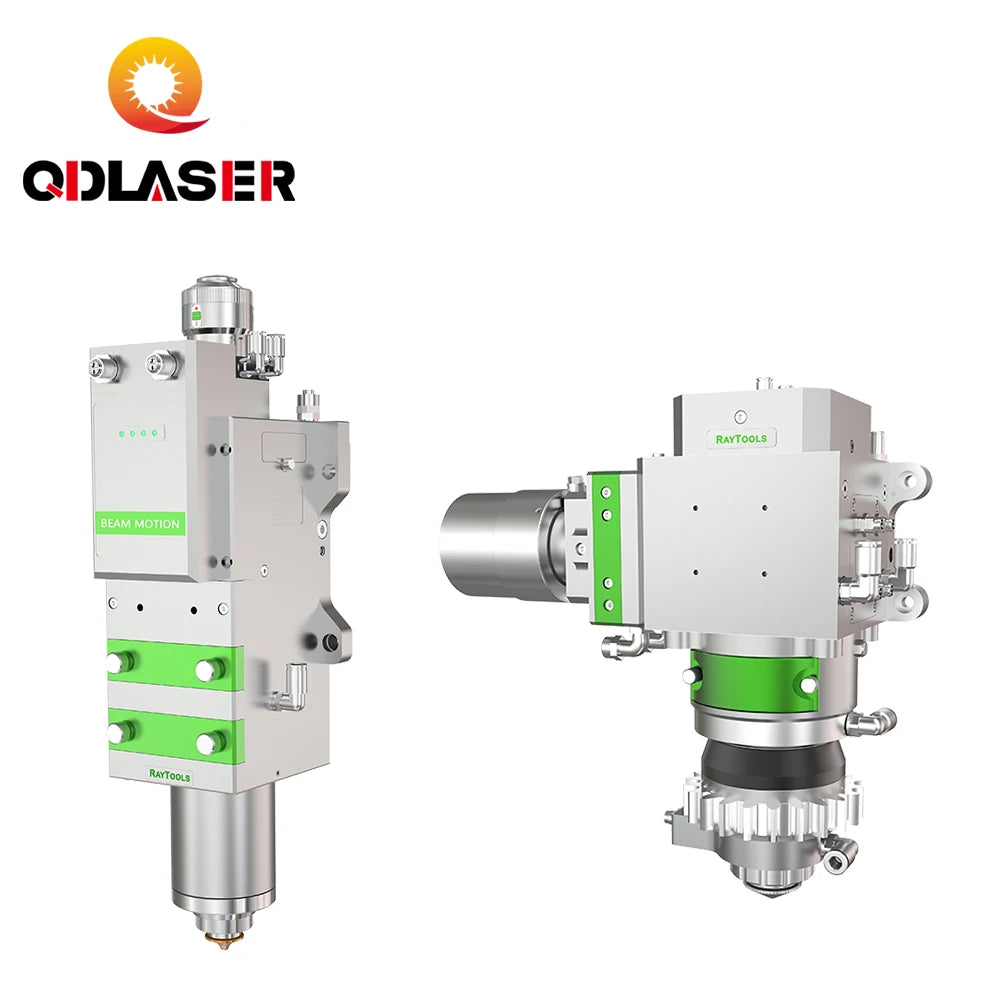

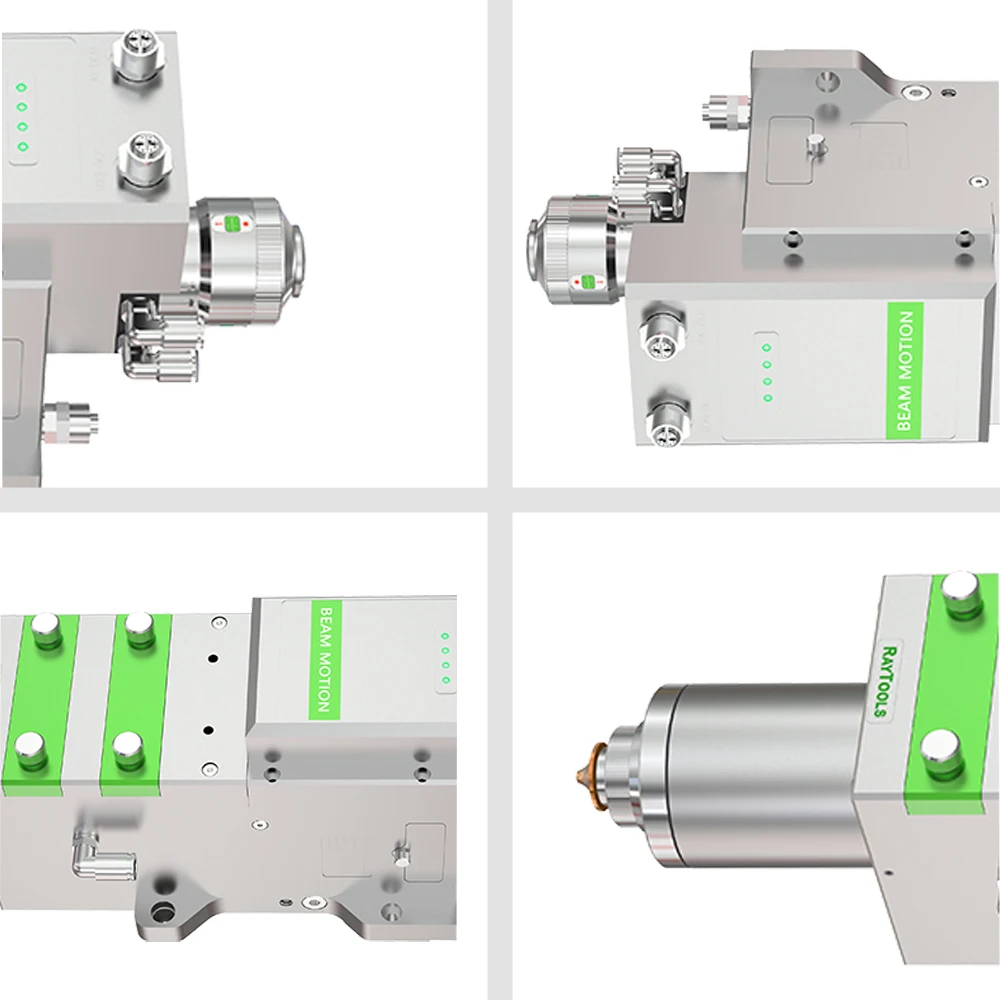

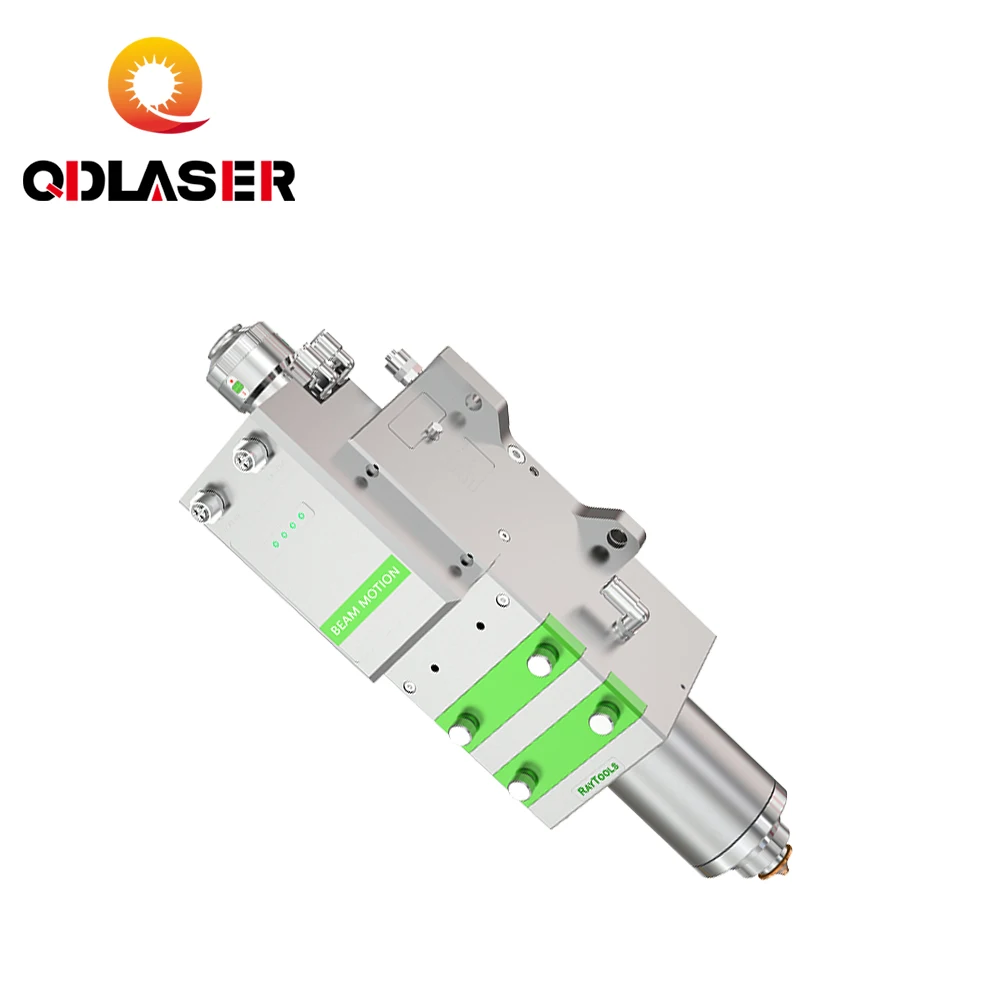

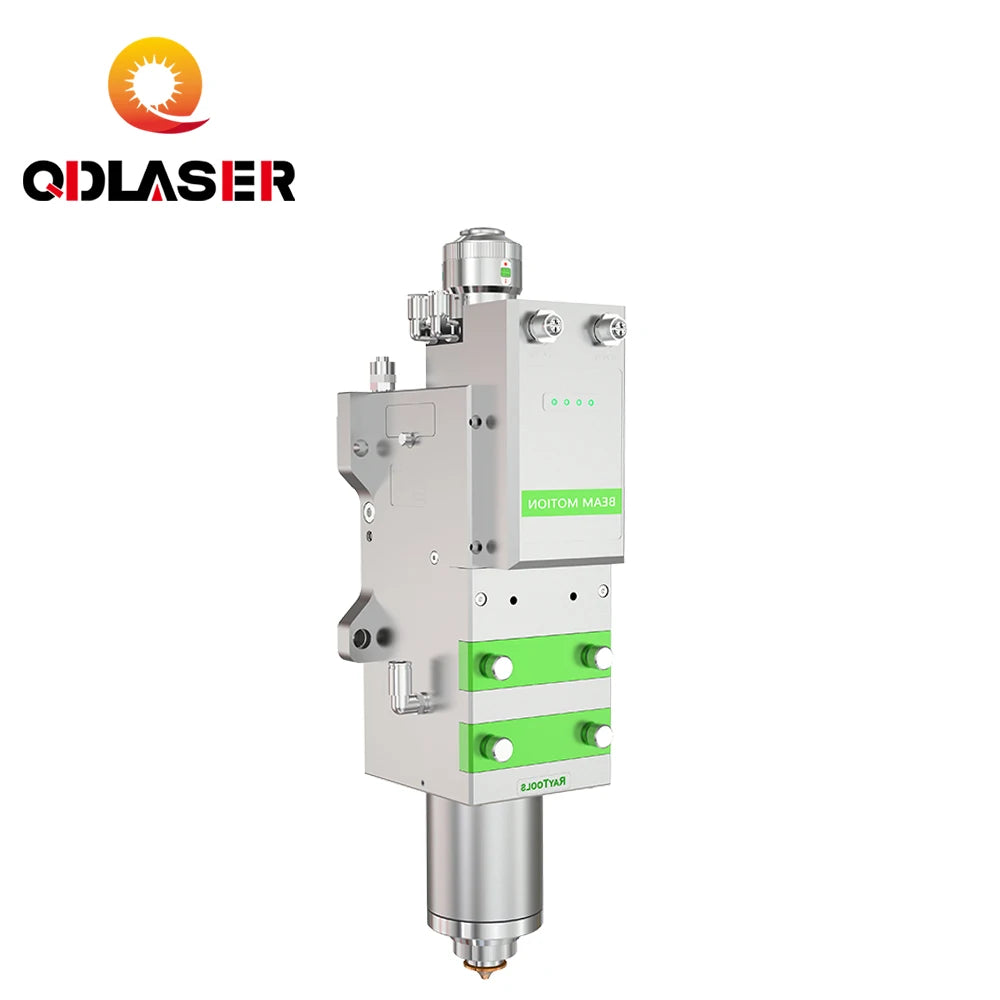

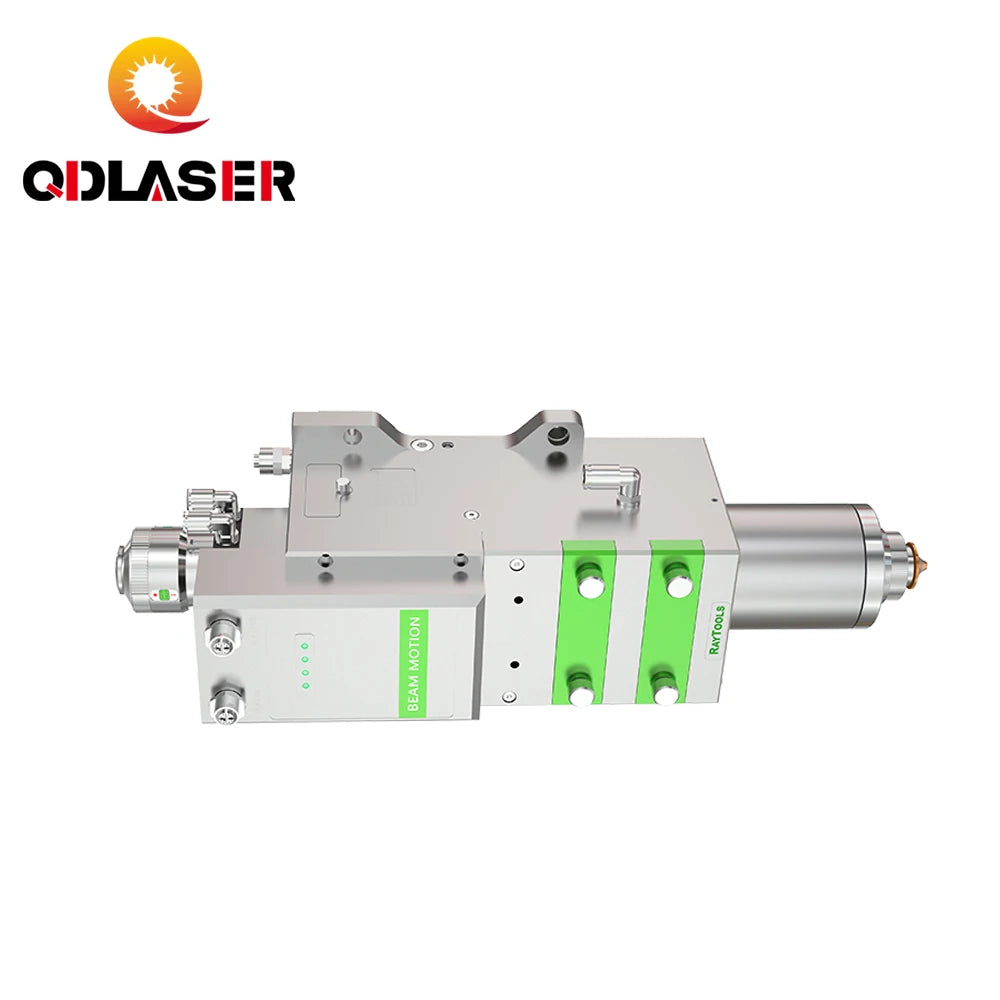

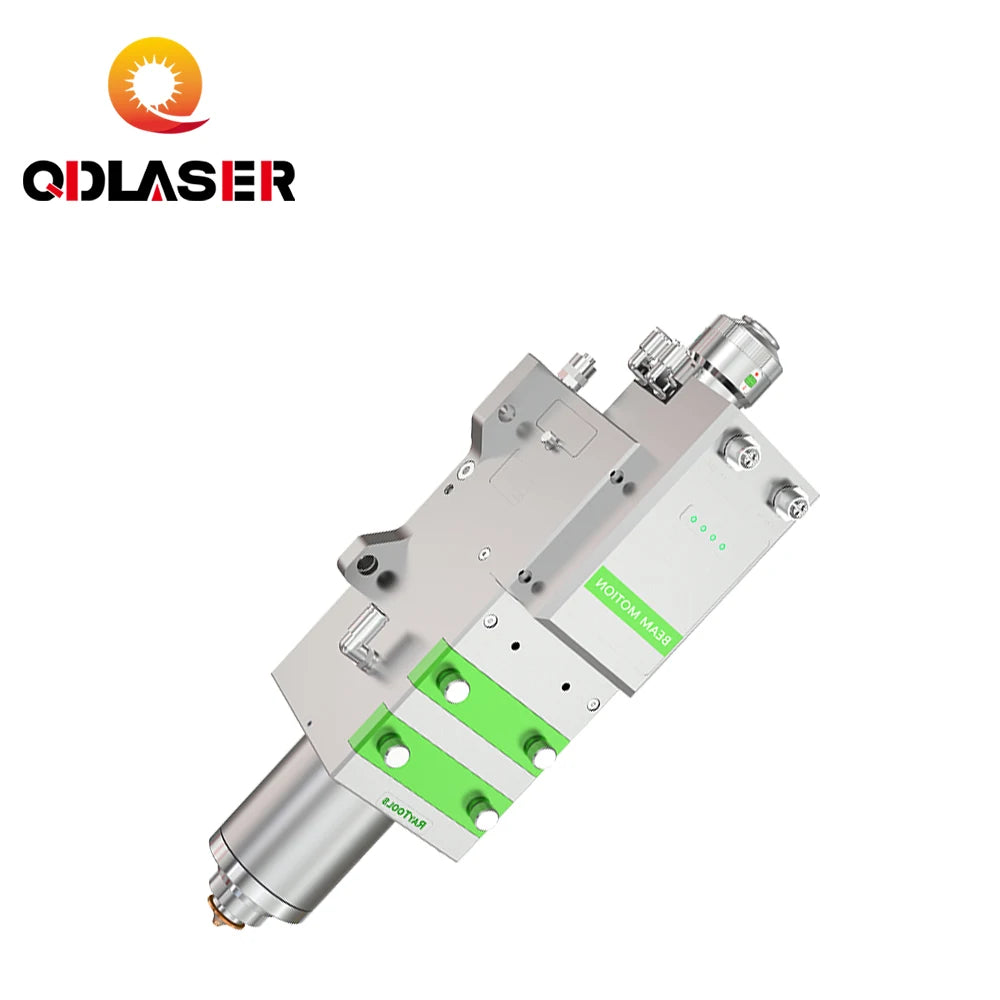

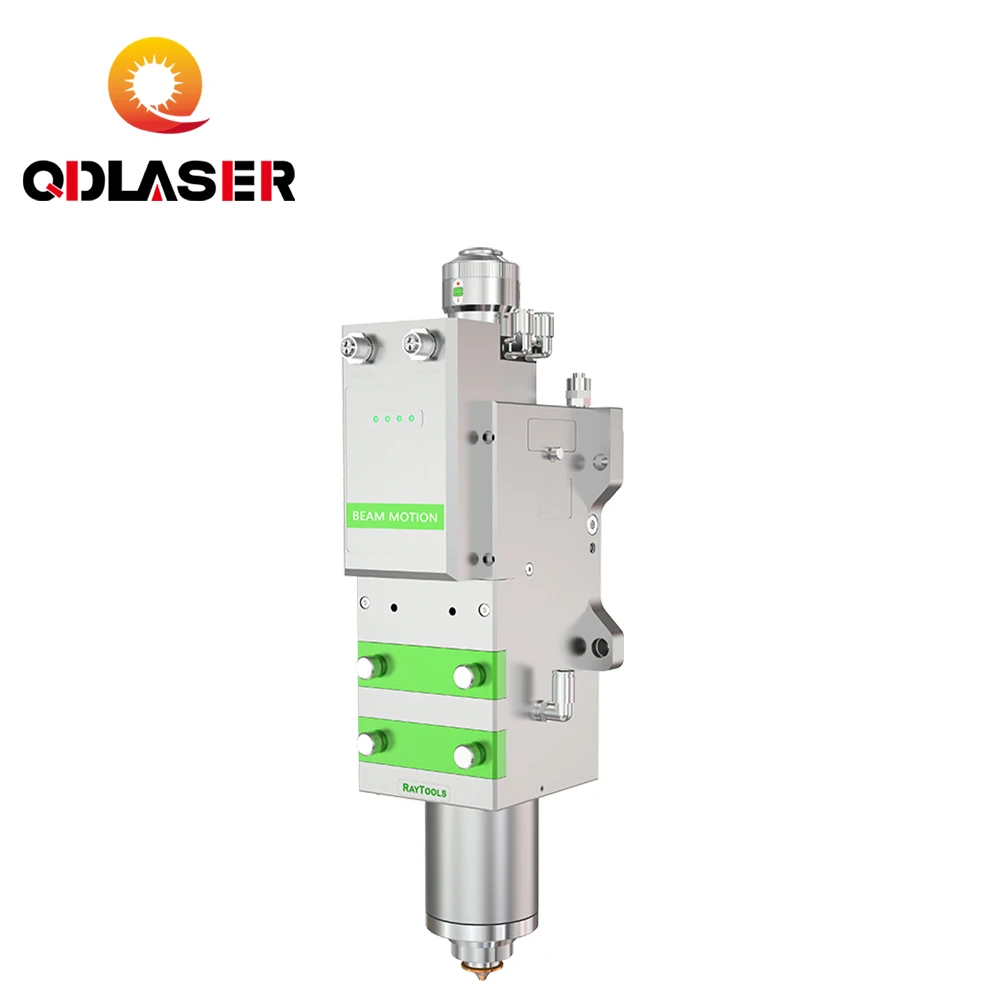

QDLASER 20kw BS20K ECAT Version High Power Intelligent Cutting Head for Raytools Fiber Laser Cutting Machine
QDLASER 20kw BS20K ECAT Version High Power Intelligent Cutting Head for Raytools Fiber Laser Cutting Machine
Regular price
$2,400.00 USD
Regular price
$2,400.00 USD
Sale price
$2,400.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
Excellent design
Lightweight design and fast acceleration;
At the same time, it has optimized optical configuration and smooth and efficient airflow design, which significantly improves cutting quality and efficiency;
Bus Control:
EtherCAT bus communication and bus control focusing unit, users can achieve continuous and fast focusing through programming
High adaptability:
With Q+, QD, LOE and other optical fiber interfaces, it can be adapted to various mainstream lasers
APP real-time monitoring:
Through the wireless network, the monitoring data can be read on the mobile terminal and CNC system;
Parameter real-time feedback:
Various built-in sensors can provide real-time feedback of parameters in the processing process such as the temperature of the protective lens inside the cutting head, the temperature of the focusing lens, the temperature and humidity of the cavity, the air pressure in the cavity, and the air pressure of the cutting gas.
Specification
|
Product name
|
Fiber laser cutting head
|
|
Focus Range
|
-35mm~+25mm
|
|
Focus Speed
|
≤200mm/s
|
|
Fiber Interface
|
Q+锛孮D锛孡OE
|
|
Auto Focus Accuracy
|
0.01mm
|
|
Auto Focus Acceleration
|
≤10m/s²
|
|
Numerical Aperture
|
0.16
|
|
Nozzle specifications
|
single layer, double layer, non-standard
|
|
Nozzle hole diameter
|
1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
|
|
Auxiliary gas pressure
|
≤30bar
|
|
Weight (KG)
|
10KG
|
