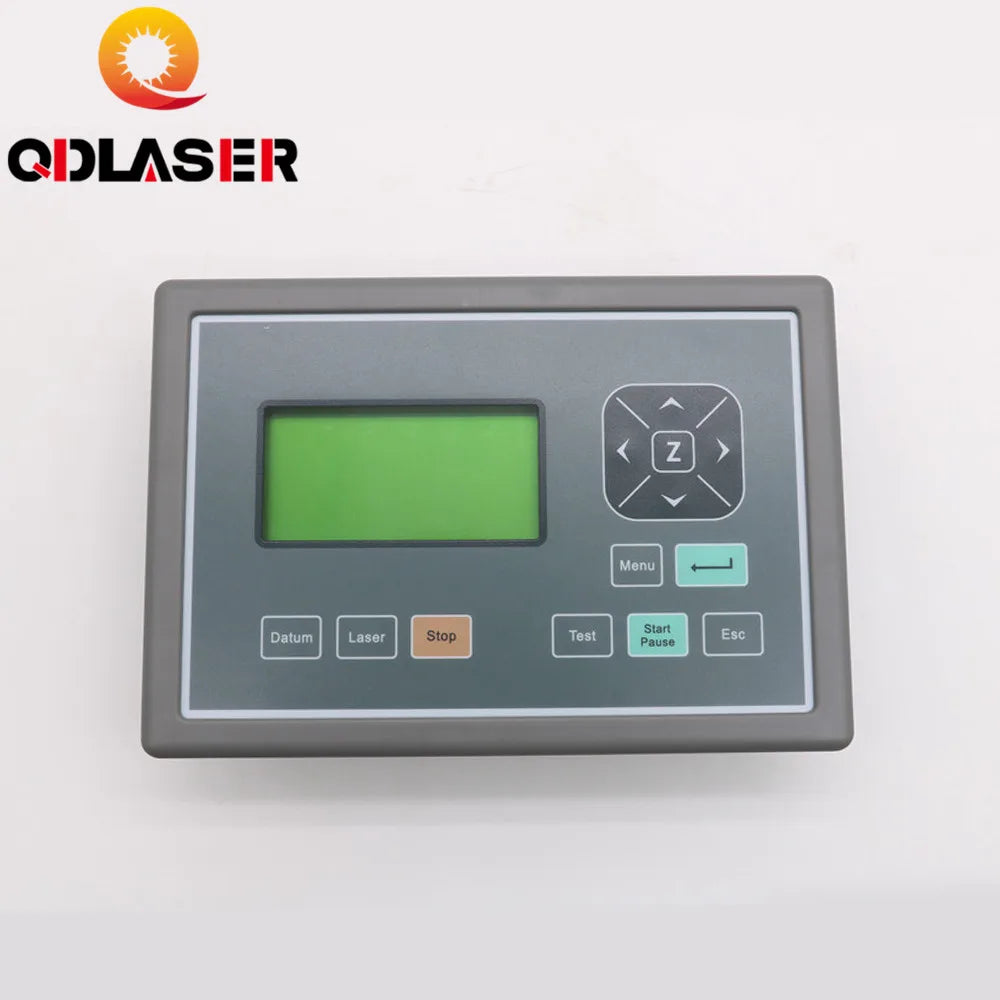

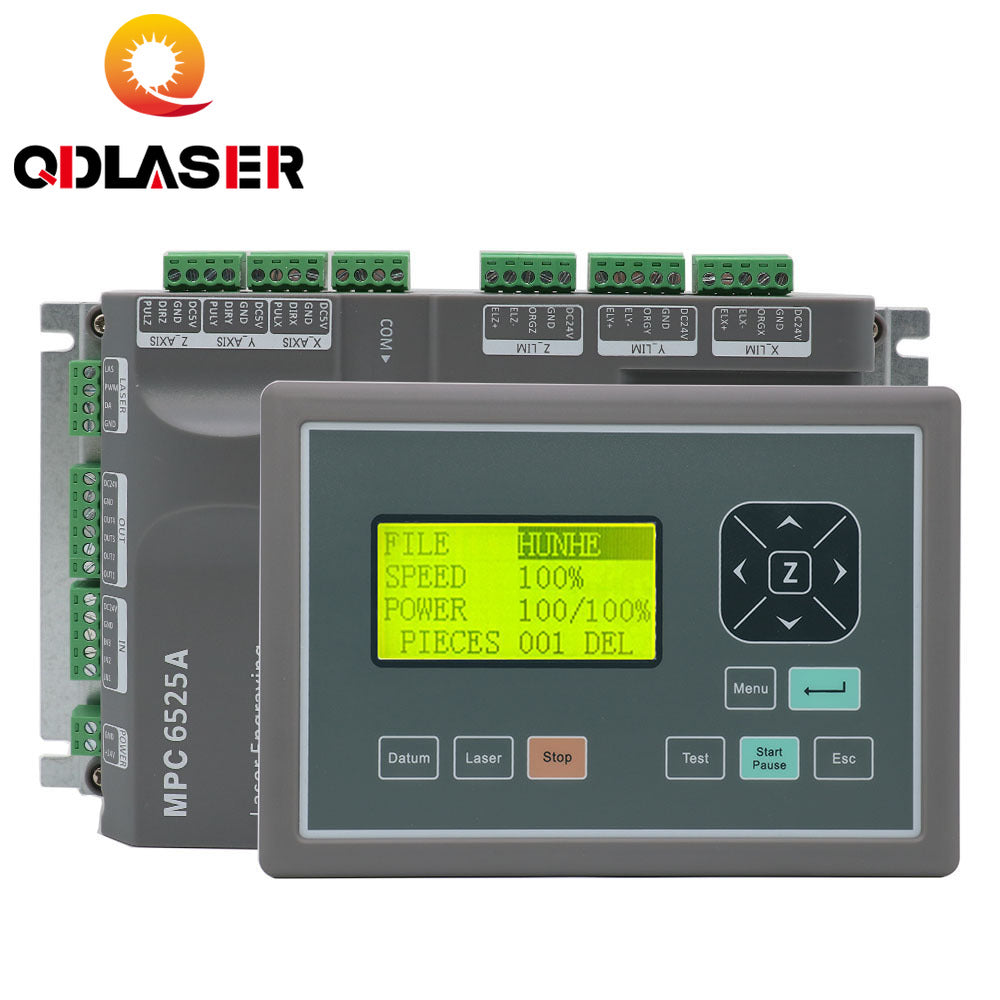

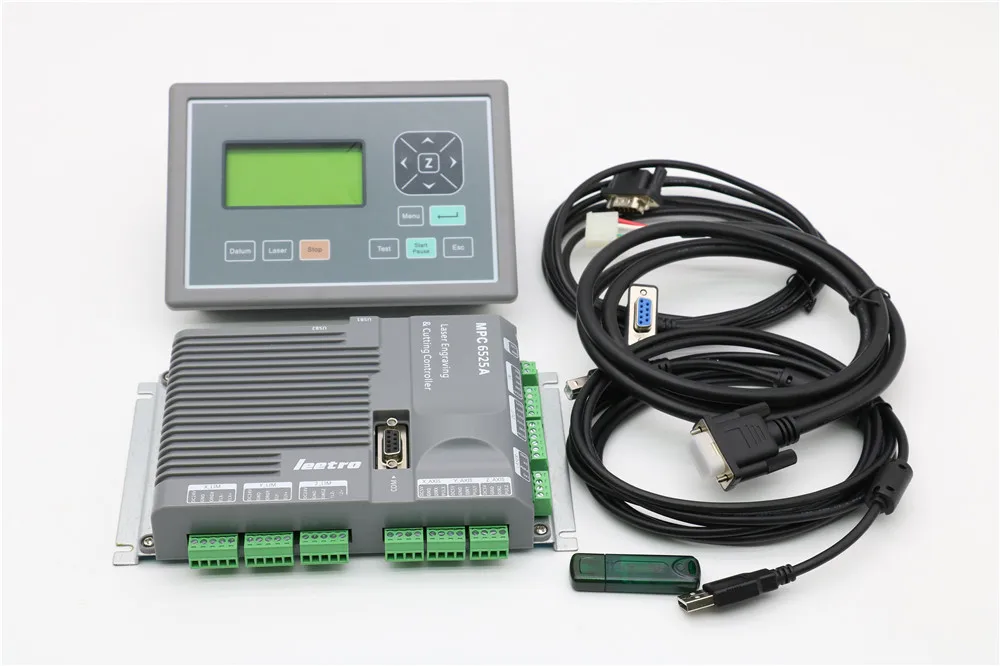

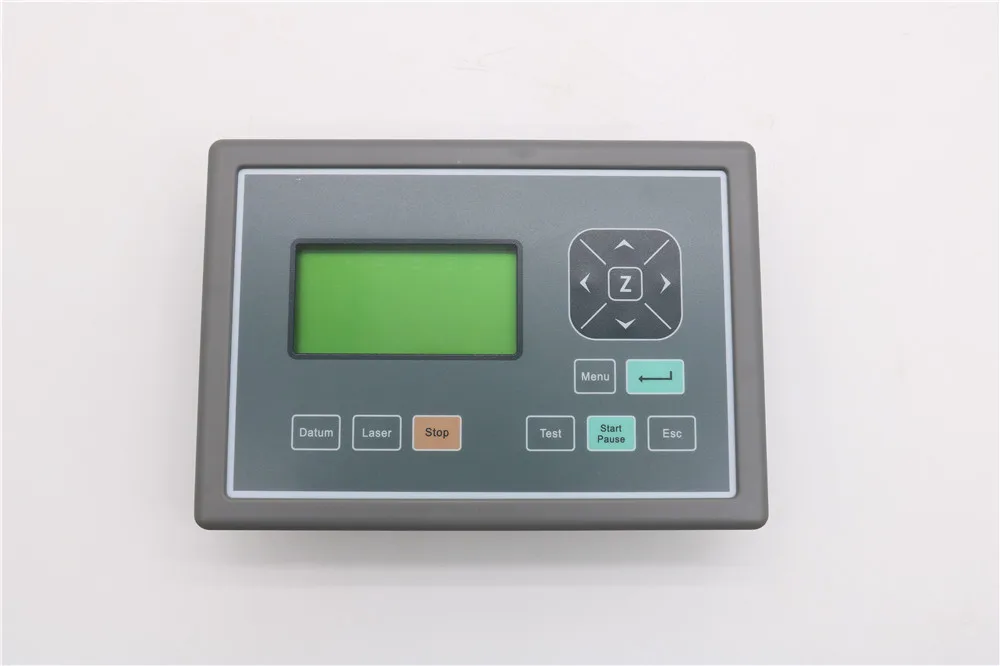

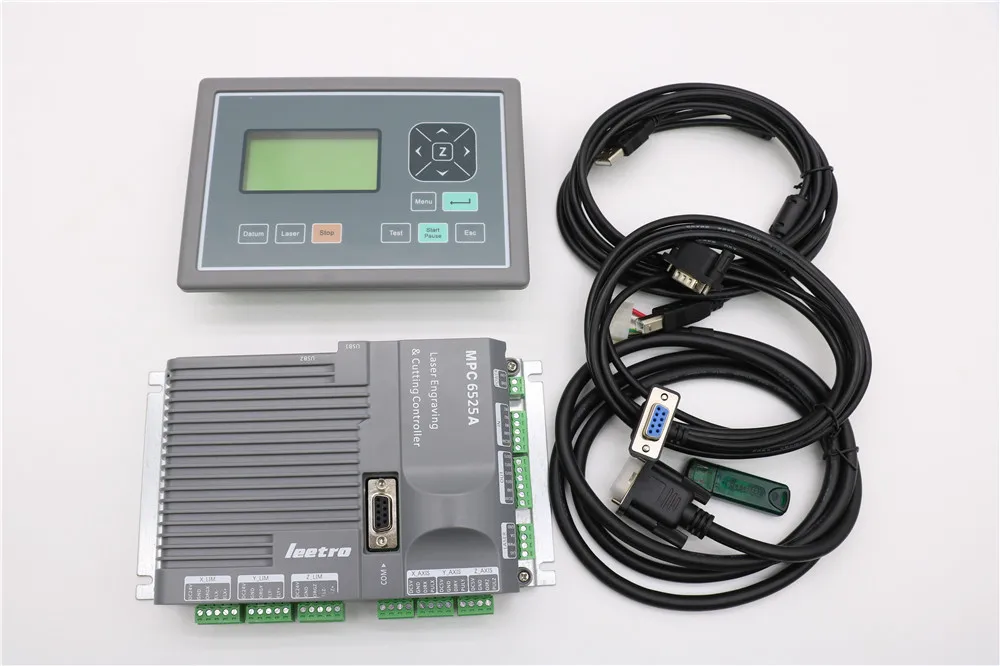

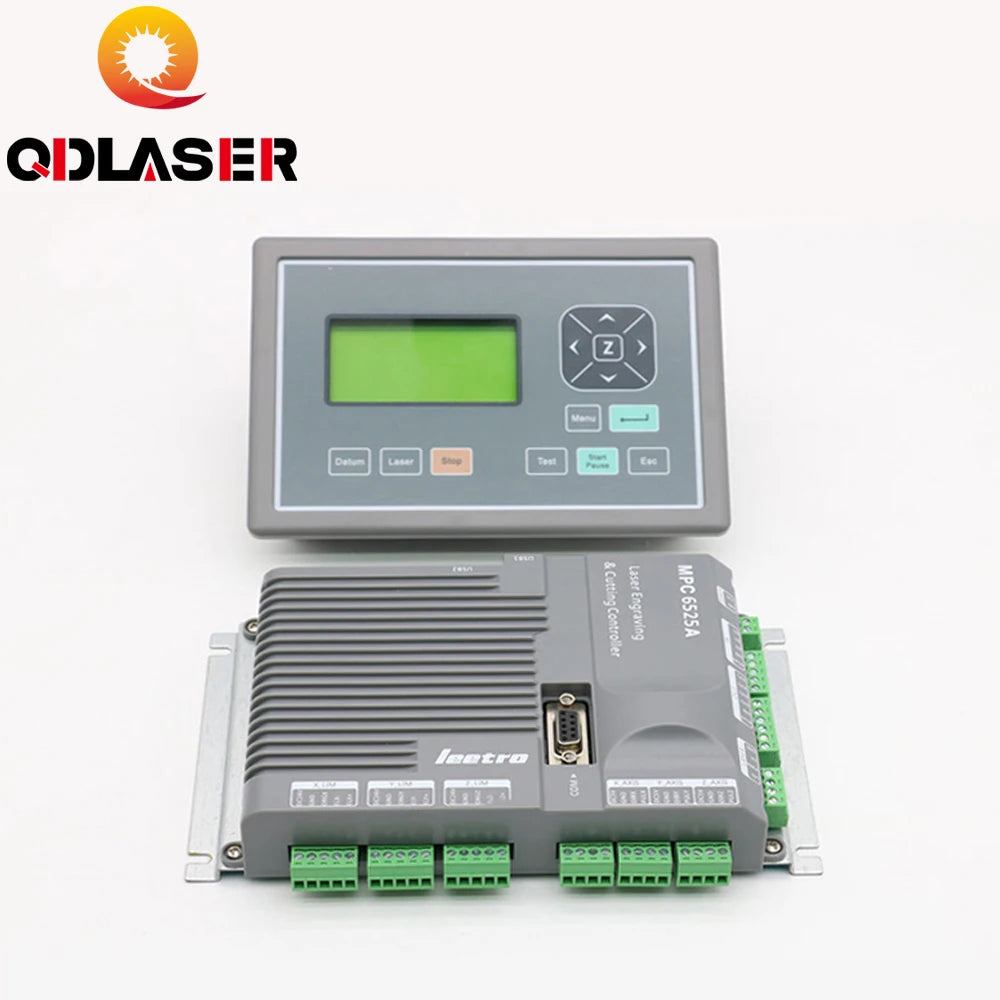

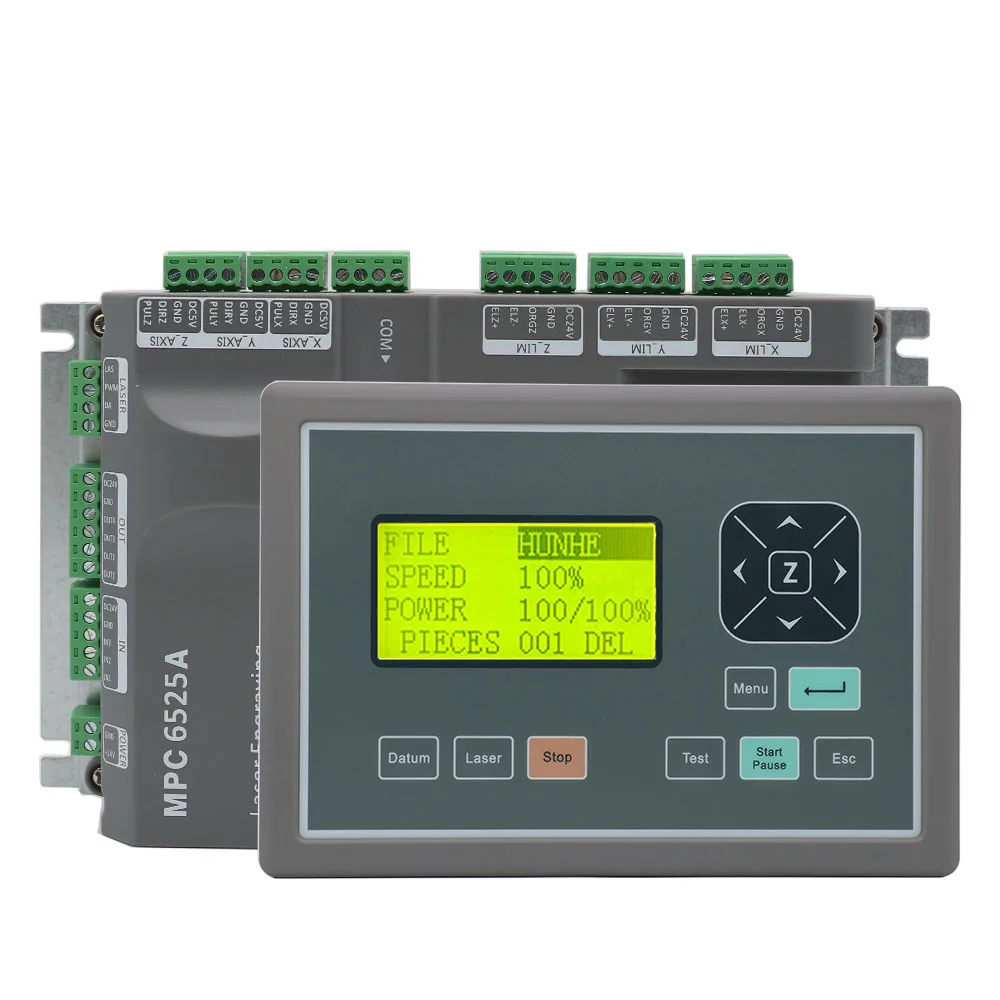

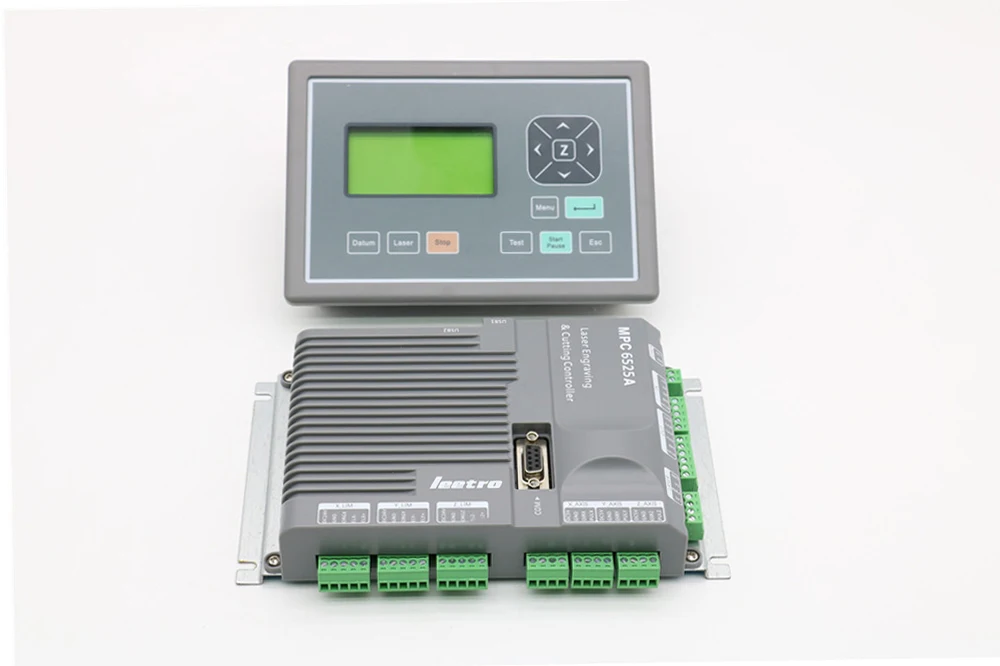

Leetro MPC6525A with PAD04 Panel Laser Cutting Controller for Co2 Laser Machine
Leetro MPC6525A with PAD04 Panel Laser Cutting Controller for Co2 Laser Machine
Regular price
$270.00 USD
Regular price
$270.00 USD
Sale price
$270.00 USD
Unit price
per
Couldn't load pickup availability

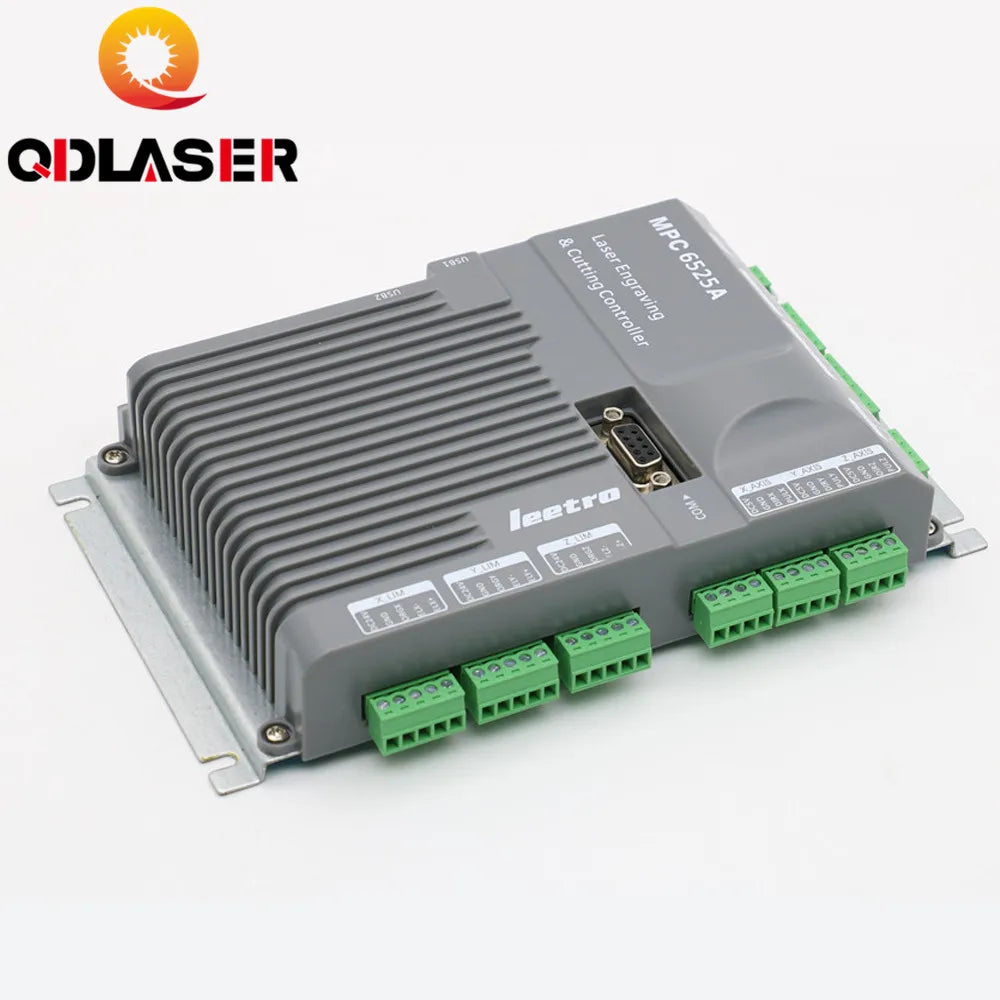

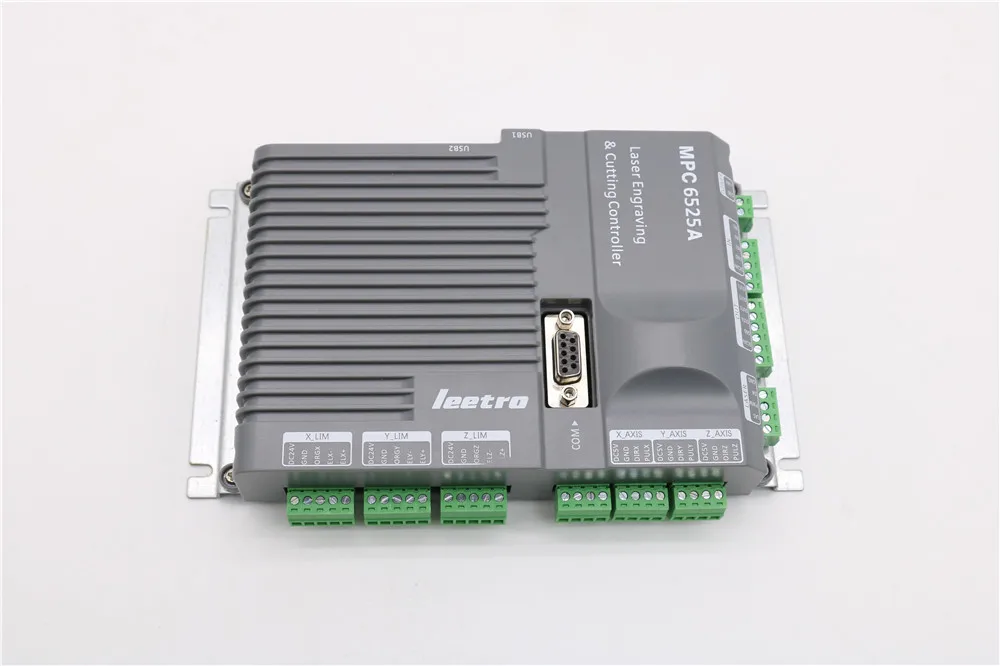

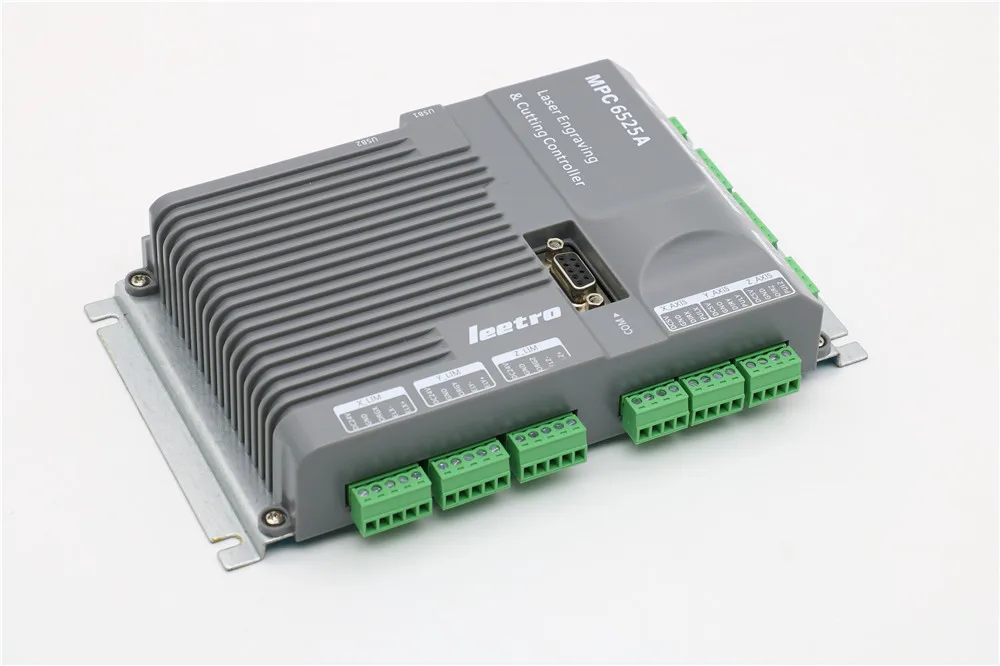

Leetro MPC6525A Co2 Laser Controller For Co2 Laser Engraving and Cutting Machine
Product Description
MPC6525 is designde for the open-loop motion control system which is in the laser machine only.based on DSP and FPGA
technology,the advanced velocity look-ahead and trajectory blending algorithm ensure the velocity invariableness and transition
smoothness between any two-trajectory segments during the high speed X-Y continuous trajectory motion.And therefore the perfect
smoothness and precision of the machining can be easily achieved.
Applications:
Co2 or RF tube compatible laser machine exclisively,open-loop motion control system.
Features:
1.Stand-alone
2.2-3 axes linear interpolation and 2-axis circular interpolation
3.High speed multi-ahead and trajectory blending
4.Position comparison and trygger output
5.Laser control is synchronized with laser head motion.
6.advanced PWM laser power control
7.Flying-optics compensation
8.Individual laser power control for dual-head system
9.Master/slave USB interface
10.Embedded 128MB memory
11.Advamced PID algorthm to minimize cutting inaccurcy
12.Easy interface to any AC or DC motors with analogue command input
13.All digital inputs and outputs are 2500Vrms isolated.
Laser Control Functionality
Motion Control:
* High precision interpolation,circular interpolation resolution under 0.5 pulse.
* Engraving control recolution is in ONE pulse on the frequency of less than 2MHz.
For Co2 tube:
* Laser ON,TTL compatible
* Laser power control: PWM frequency or analog voltage(user select)
Power:
24VDC,2A
For EF tube:
* Laser ON,TTL compatible
* Q pulse signal.programmable duty and frenquency
Software Environment:
* Windows 2000/XP/VISTA/7,32-bit(X86) and 64-bit (AMD 64)Windows
* Bundled with LaserCut application software
Working Environment:
* Temperature:0-60鈩�
* Hunmidity:5-90%,non condensing
