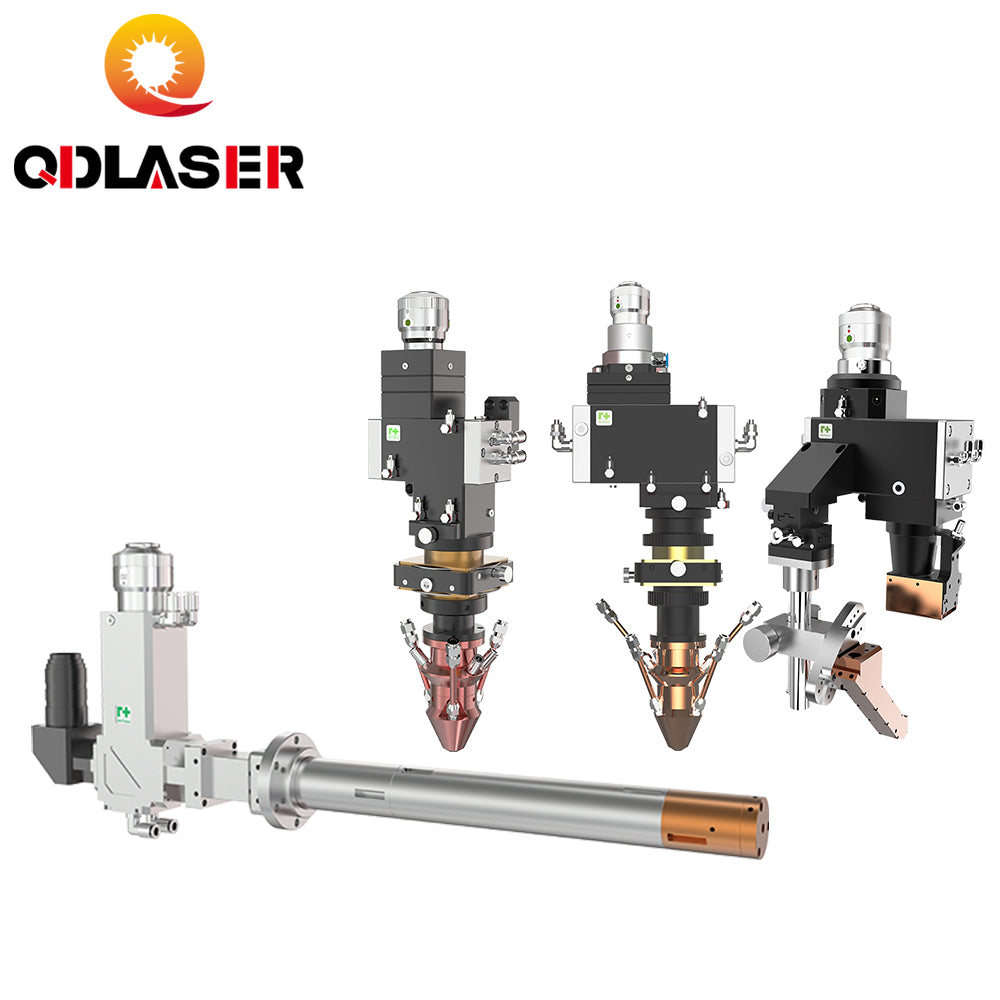

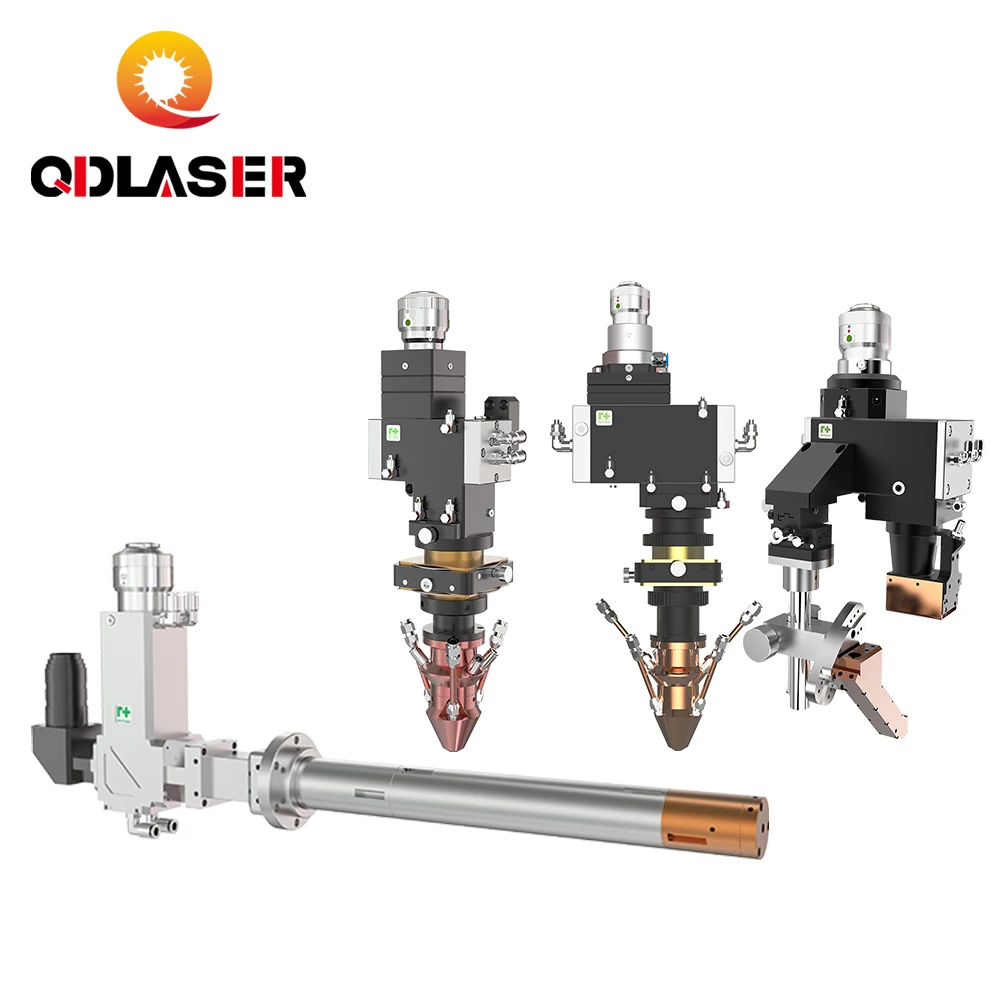

IC104 AK190 AK390 Cladding 4KW 6KW 20KW for Raytools Used to Laser Processing Head

IC104 AK190 AK390 Cladding 4KW 6KW 20KW for Raytools Used to Laser Processing Head

$6,000.00 USD
$6,000.00 USD $6,000.00 USD
Sale Sold out
model number
Product Description

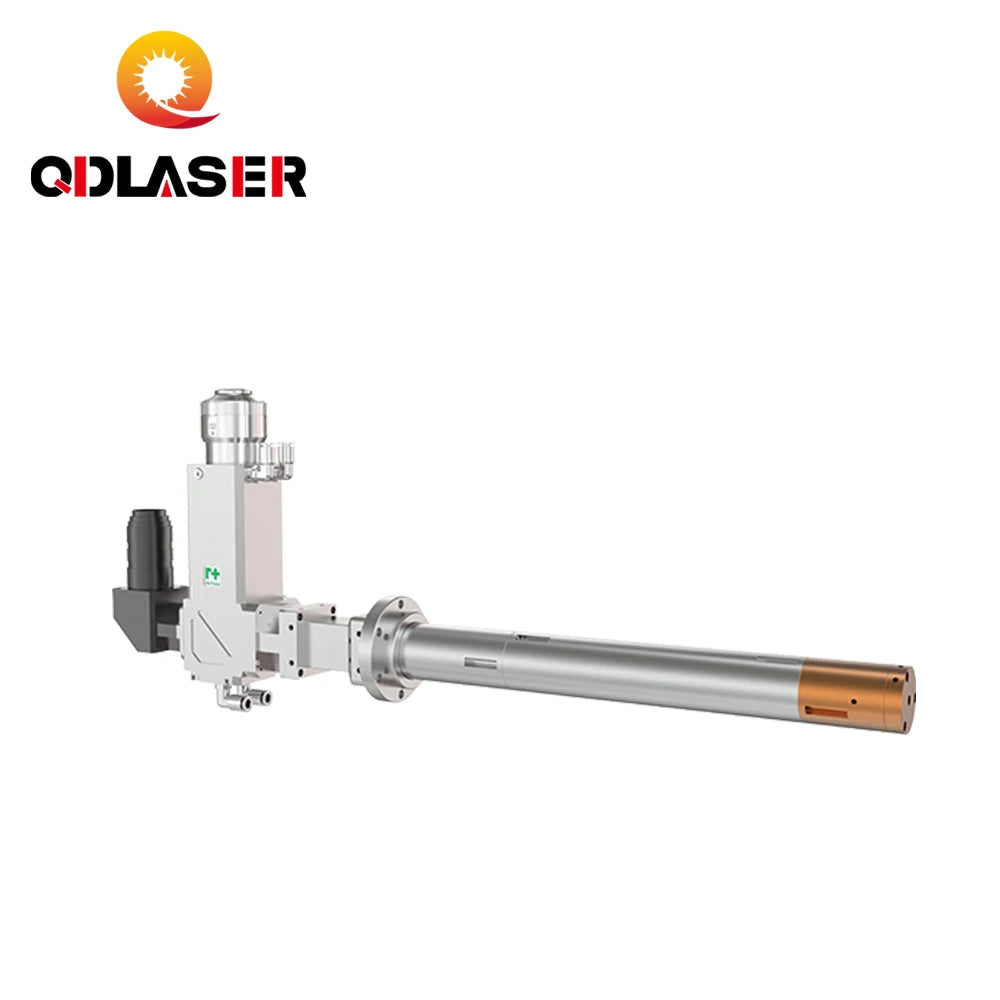

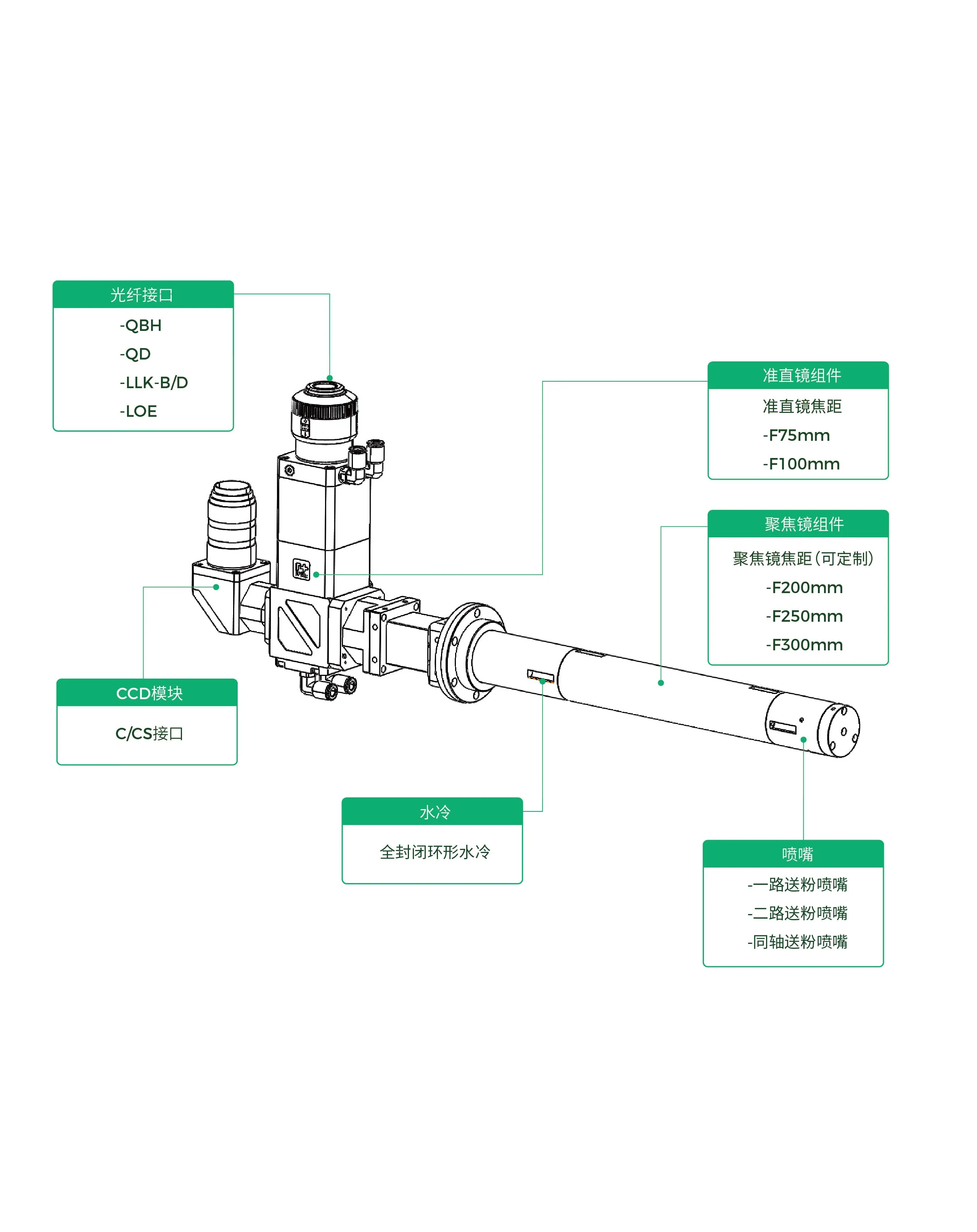

IC104
Product features
Efficient cooling: All water, light, gas and powder paths are integrated inside the cladding head, with excellent cooling performance Multifunctional Design: Can be adapted to a variety of nozzles such as lateral and coaxial powder feeding to meet multi-scenario applications Closed Design: Fully enclosed dust-proof design to avoid dust contamination of the optical part Focus size adjustable: Change the spot size of the processing position by adjusting the collimating lens Modular Design: Optional CCD imaging, temperature monitoring and protection lens temperature monitoring and other functions
Product parameters
Power level: 4000W Transmission wavelength: 1060-10800nm Applicable light source: fiber laser Powder gathering size: 1-3mm optional Focusing range: 0-20mm Minimum machining hole diameter: 70mm Maximum processing depth: 1.5m (one side) Optional: CCD components, protective lens temperature monitoring unit, powder distributor, closed-loop temperature control unit, etc.

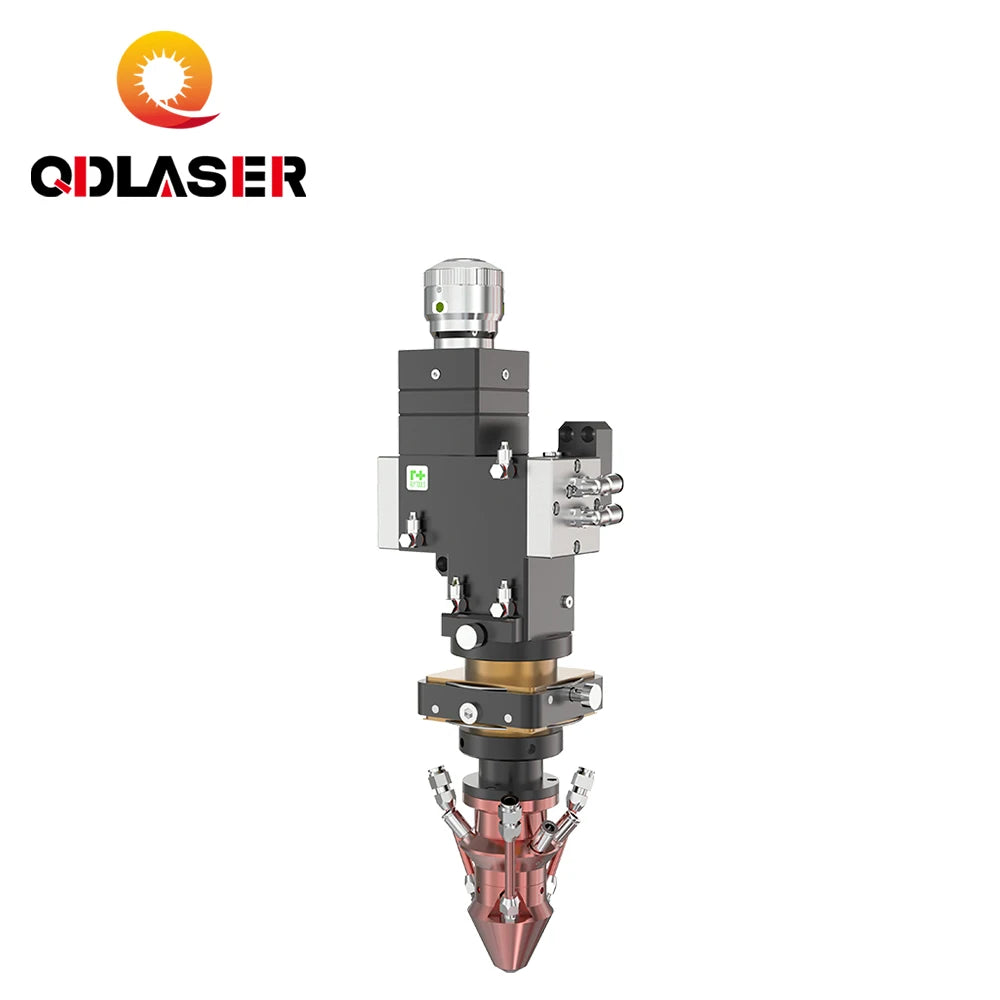

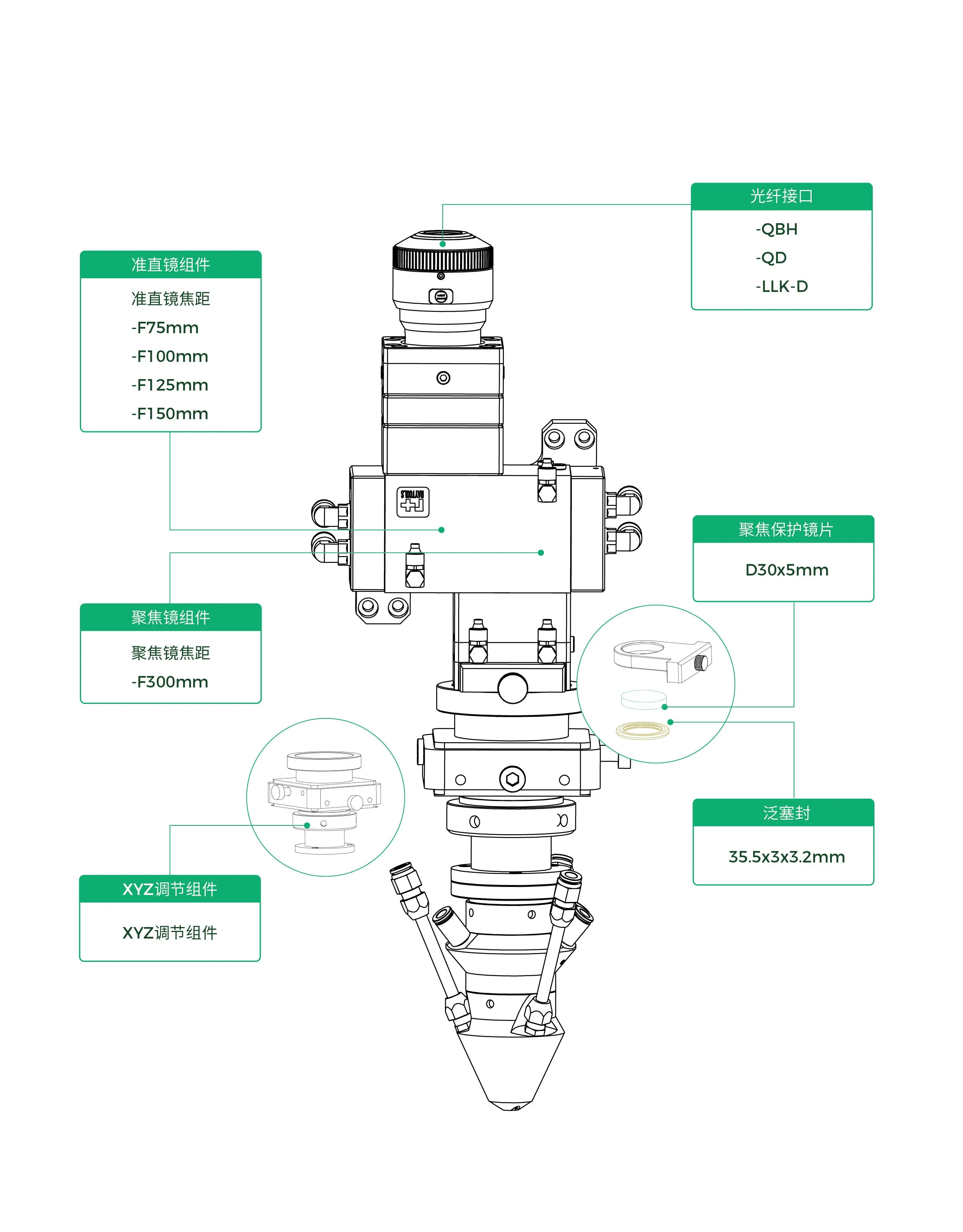

AK190-TC
High withstand power: Using direct water-cooled copper mirror, the lens has a long service life, and the maximum power can reach 6KW Efficient water cooling: Double water-cooling structure design, the lens holder of the protective mirror and the laser head body are equipped with water-cooling interface, which prolongs the continuous working time Highly Compatible: With a variety of optical fiber interfaces, it can be adapted to various lasers Focal length customization: Rich collimation and focus configurations, which can be customized to meet different customer needs
Power level: 6000W Auxiliary gas pressure: ≤5bar Internal boost pressure: ≤2bar Clear aperture: 32mm Weight: ~5.0kg

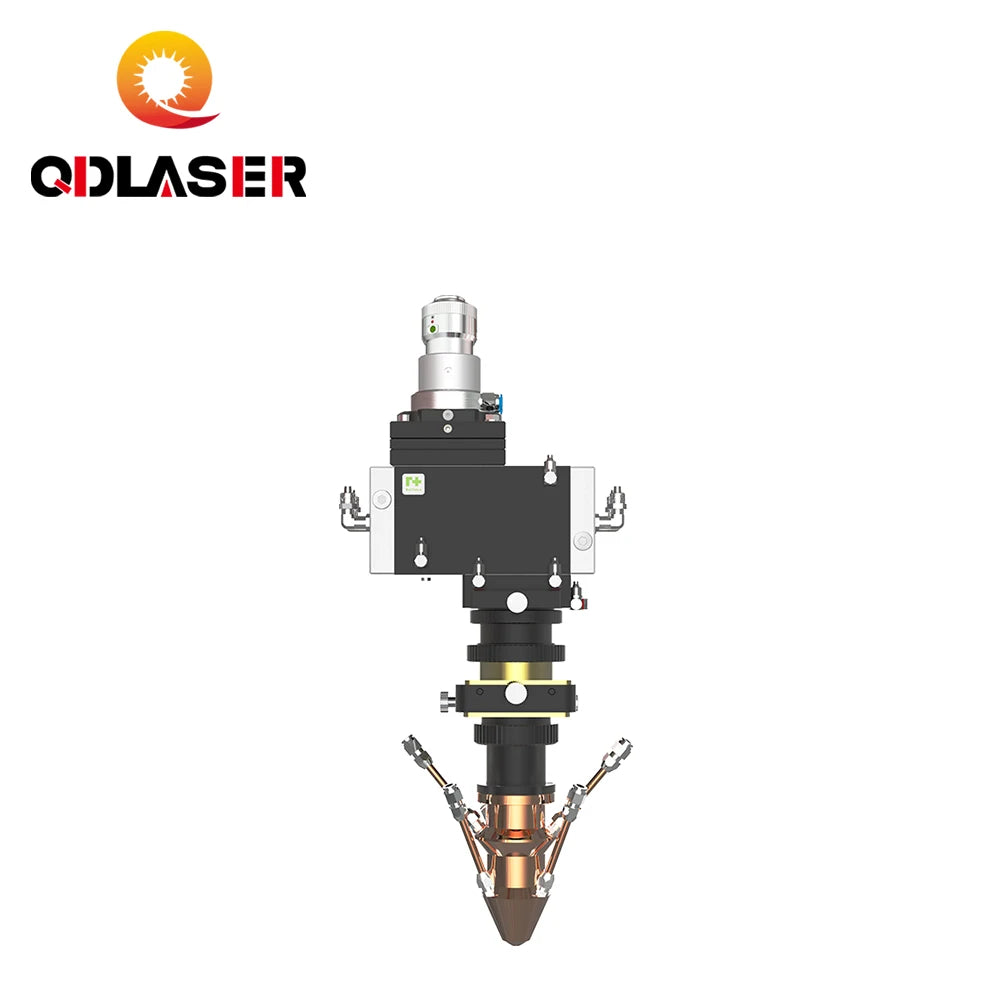

AK390-TC
High withstand power: Using direct water-cooled copper mirror, the lens has a long service life, and the maximum power can reach 20KW Three-way cladding: The powder feeding nozzle can achieve high powder utilization rate and large working range of processing technology through optimized design. Abundant powder delivery forms: The configuration of different end components can realize high-power laser three-way powder feeding cladding, ring powder feeding cladding and other functions Efficient water cooling: Double water-cooling structure design, the lens holder of the protective mirror and the laser head body are equipped with water-cooling interface, which prolongs the continuous working time
Power level: 20000W Clear aperture: 48mm Auxiliary gas pressure: 2-3bar Weight: ~7.5kg

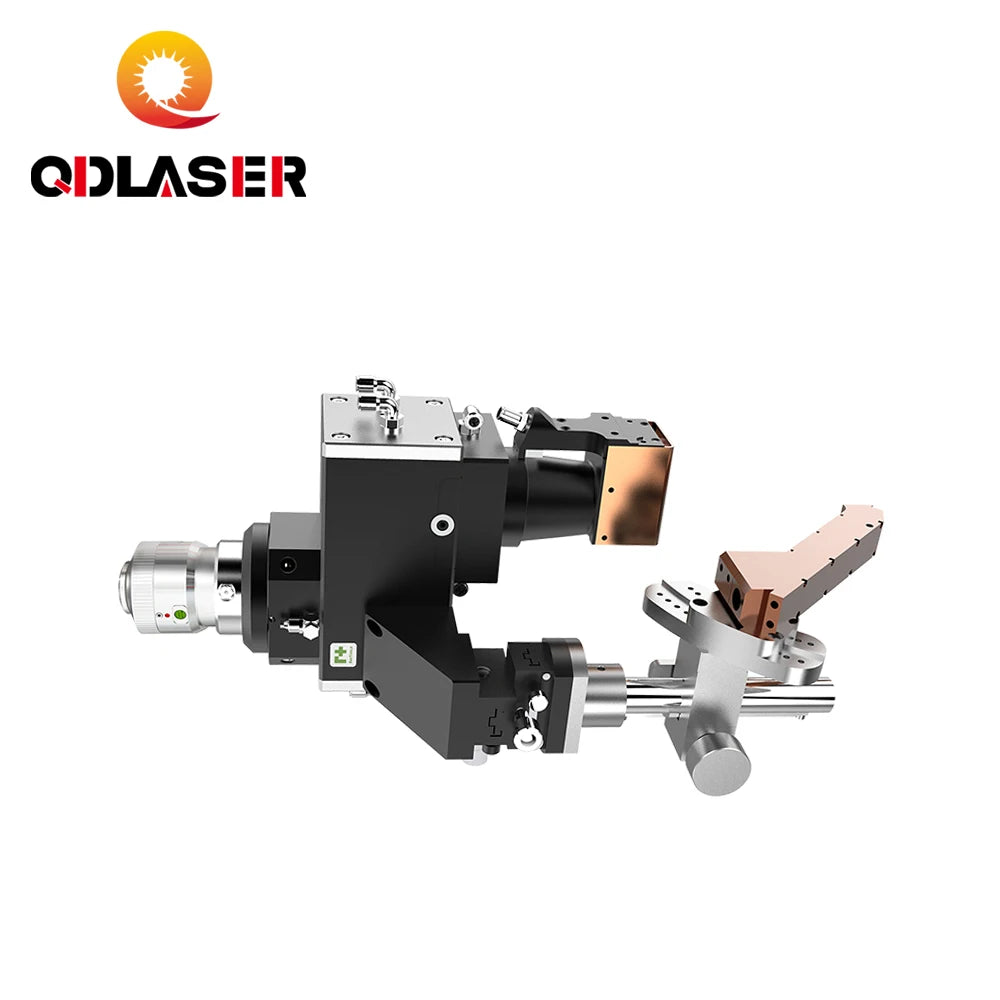

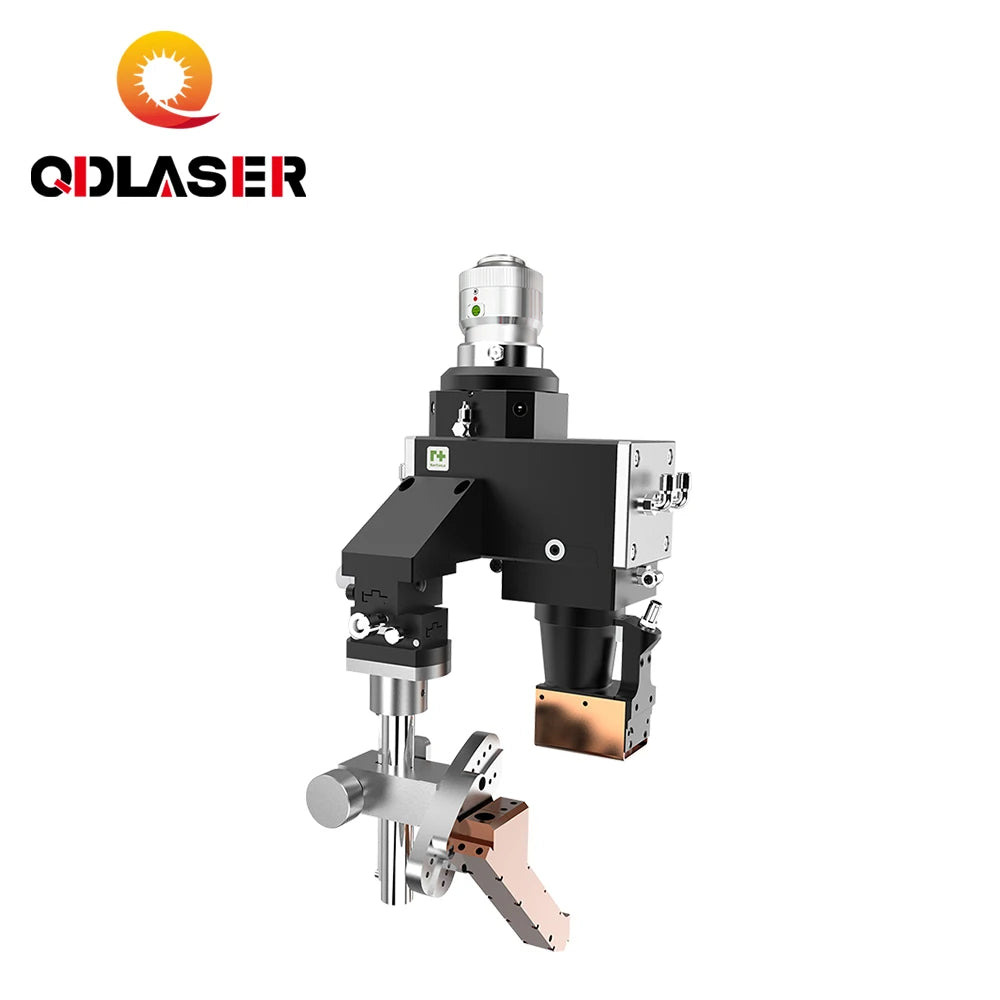

AK390-PC
High withstand power: Using direct water-cooled copper mirror, the lens has a long service life, and the maximum power can reach 20KW High cladding efficiency: The powder feeding nozzle is protected by two-way gas, and the powder is fed by gravity, and the powder utilization rate can reach 90%, realizing high-efficiency laser cladding Efficient water cooling: Double water-cooling structure design, the lens holder of the protective mirror and the laser head body are equipped with water-cooling interface, which prolongs the continuous working time

Power level: 20000W Clear aperture: 48mm Angle adjustment range: 3°*10 Integral mirror spot size: 10*2mm, 15*2mm, 20*2mm, 20*4mm customizable Shaft fine-tuning range X direction: ±15mm, Y direction: ±15mm, Z direction: ±30mm Auxiliary gas pressure: ≤5bar Weight: ~7.0kg
