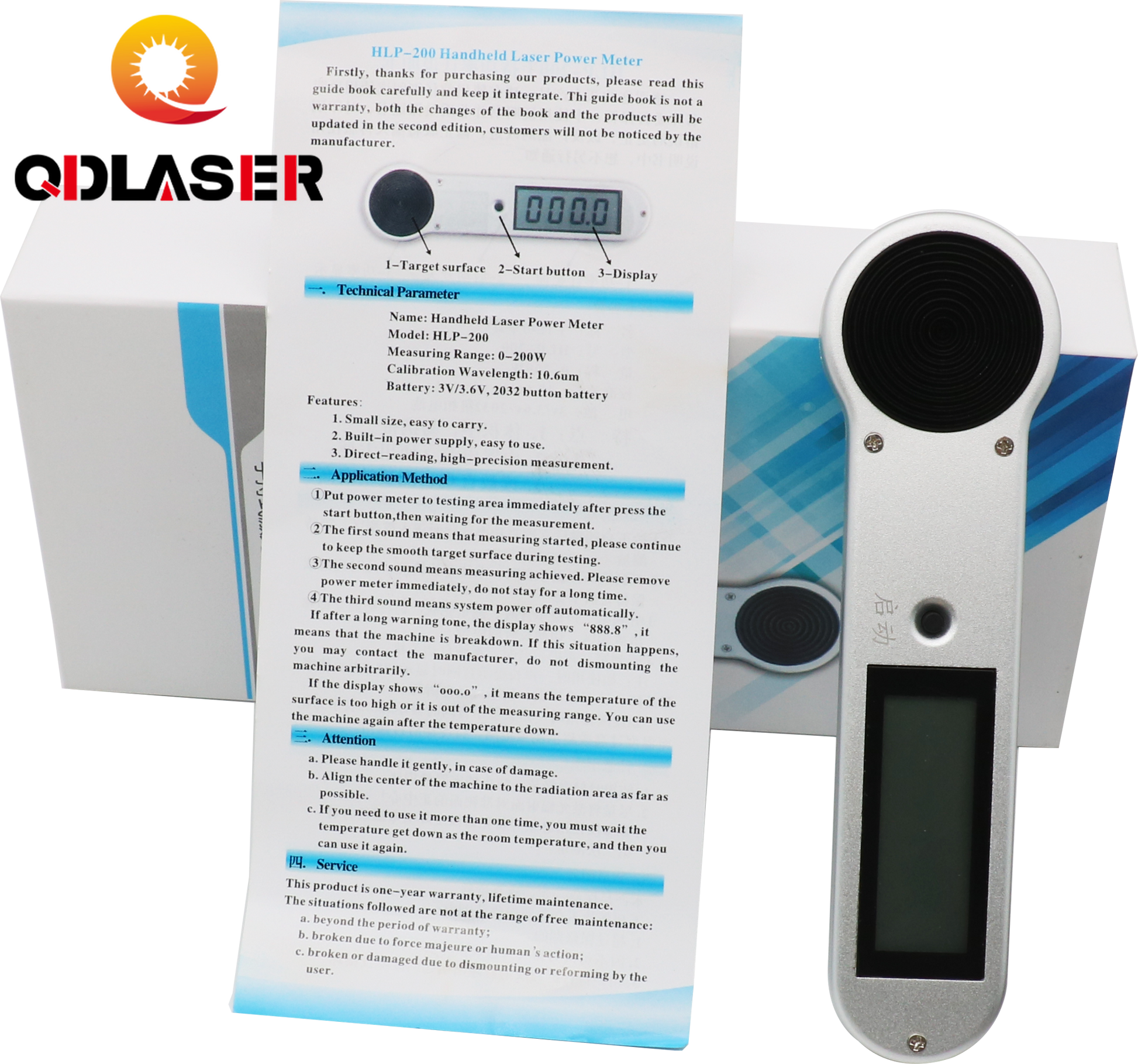

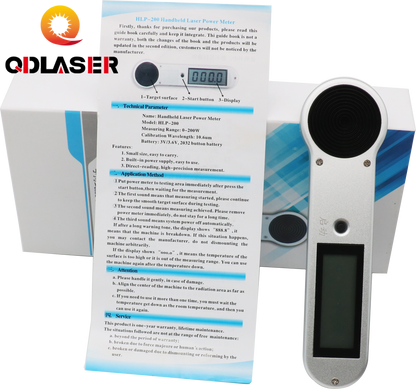

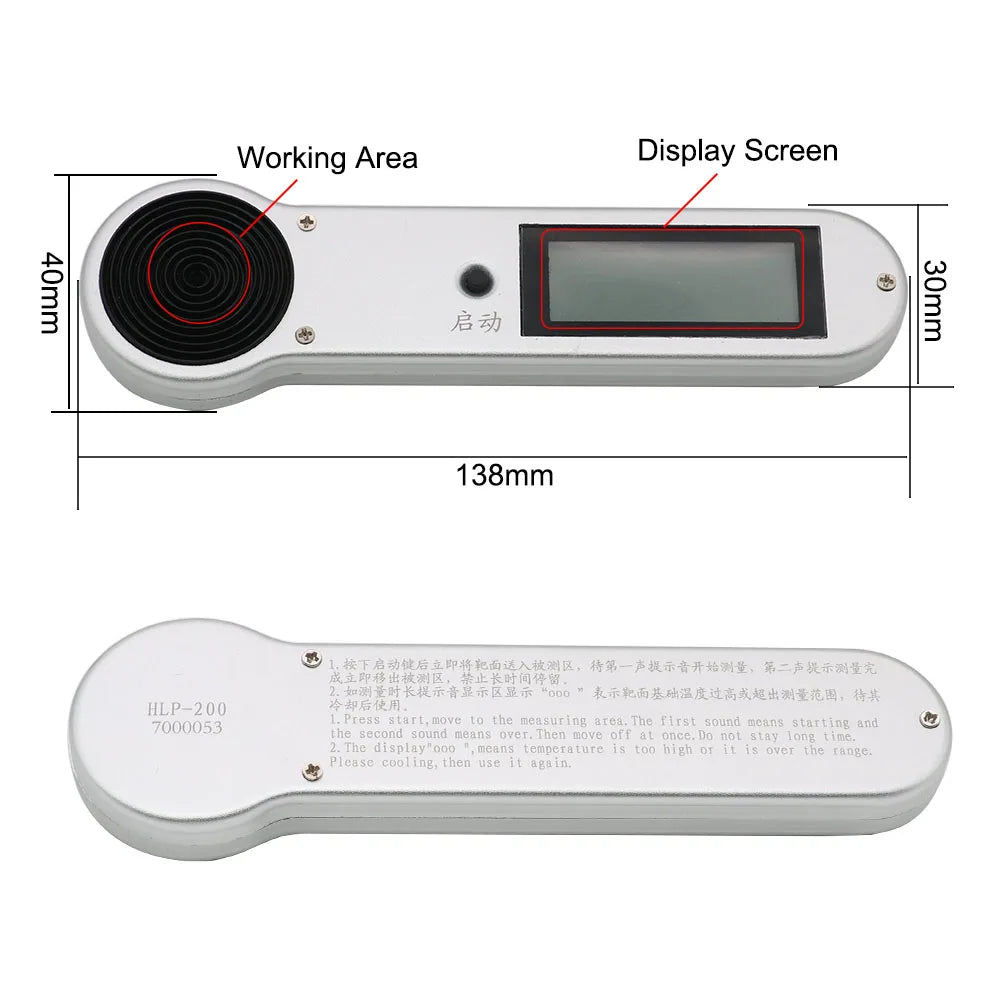

Press START button, instantly move the target surface into the area to be measured, and wait for measurement.
When you hear the first sound of beep, it starts measuring and please keep the target surface steadily.
When you hear the second sound of beep, the measurement is completed. Please remove the target surface from the area. Do not keep
it there for a long time.
When you hear the third sound of beep, the system powers off automatically.
NOTE: If the beep is very long and it shows 888.8, the sensor is faulty. Please contact us, and do not disassembly it without
permission. If the beep is very long and it shows 000.0 when it is used continuously, it means that the temperature is too high or
the power is beyond the measurement range. Please wait until it cools down.

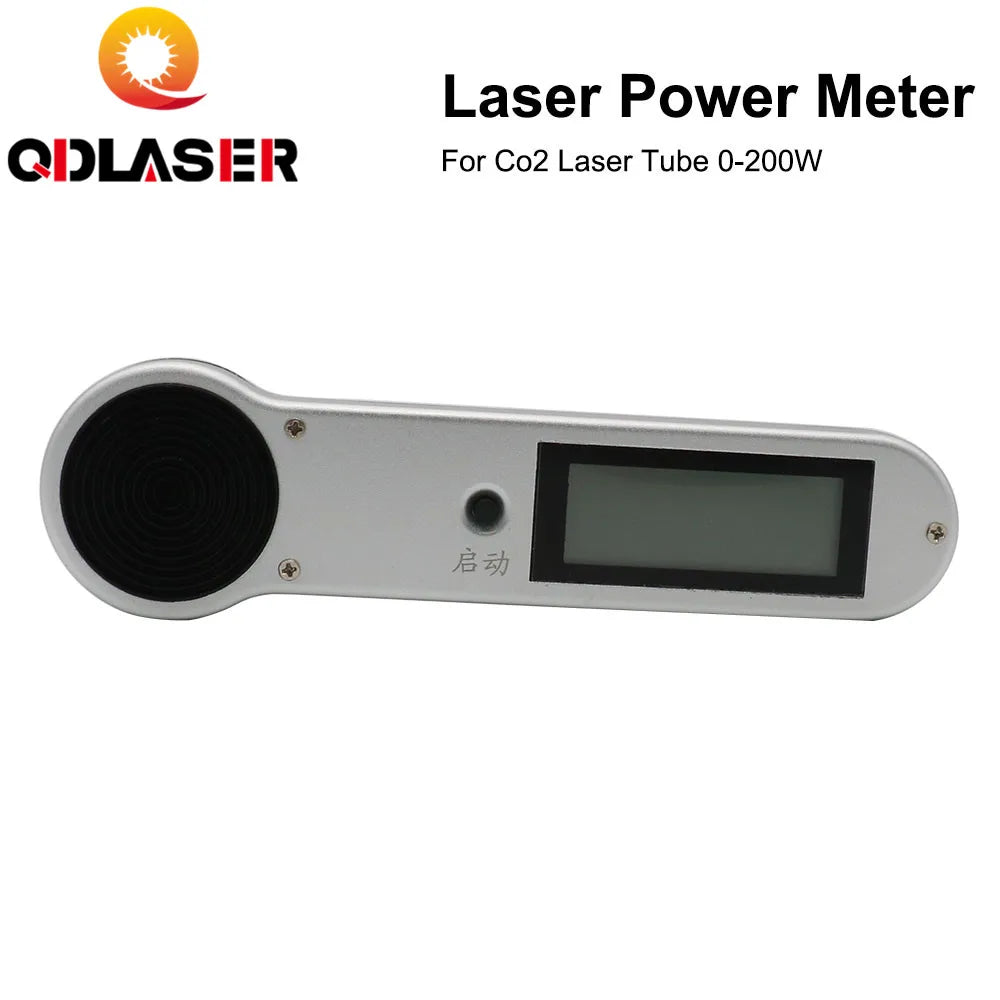

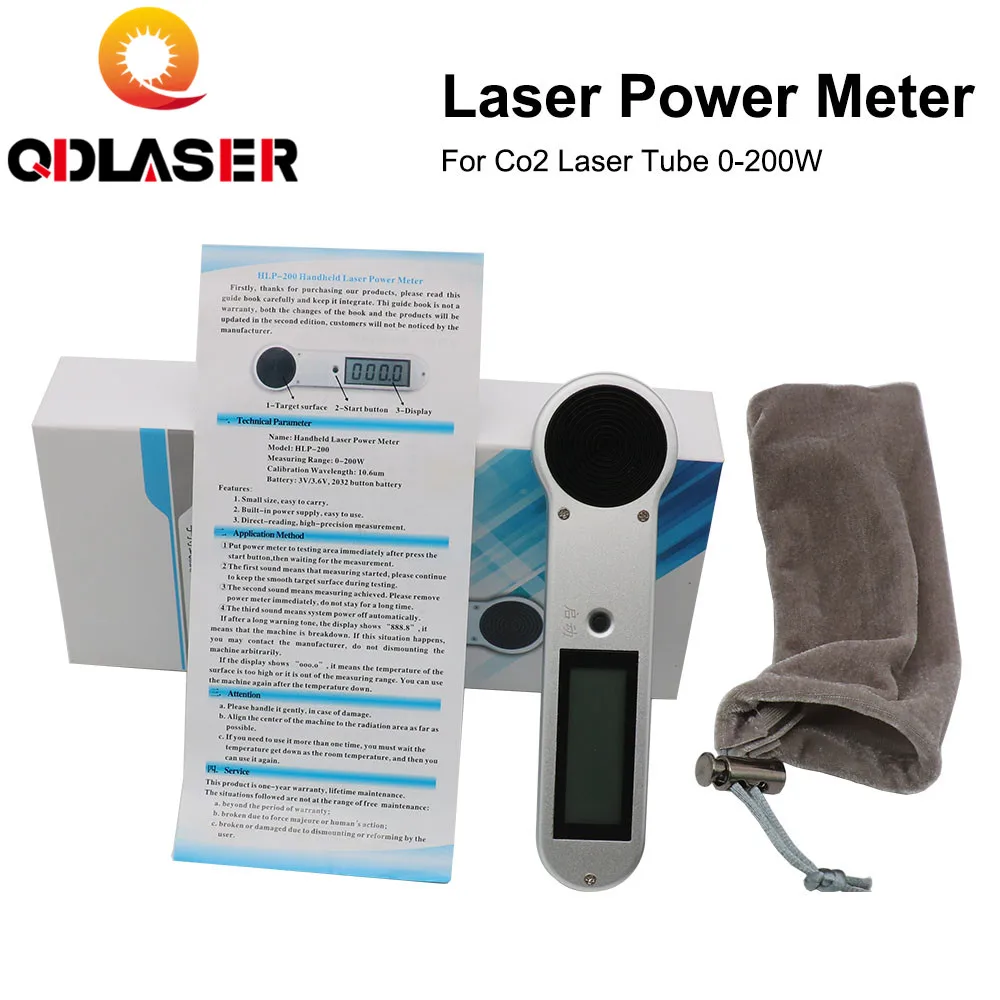

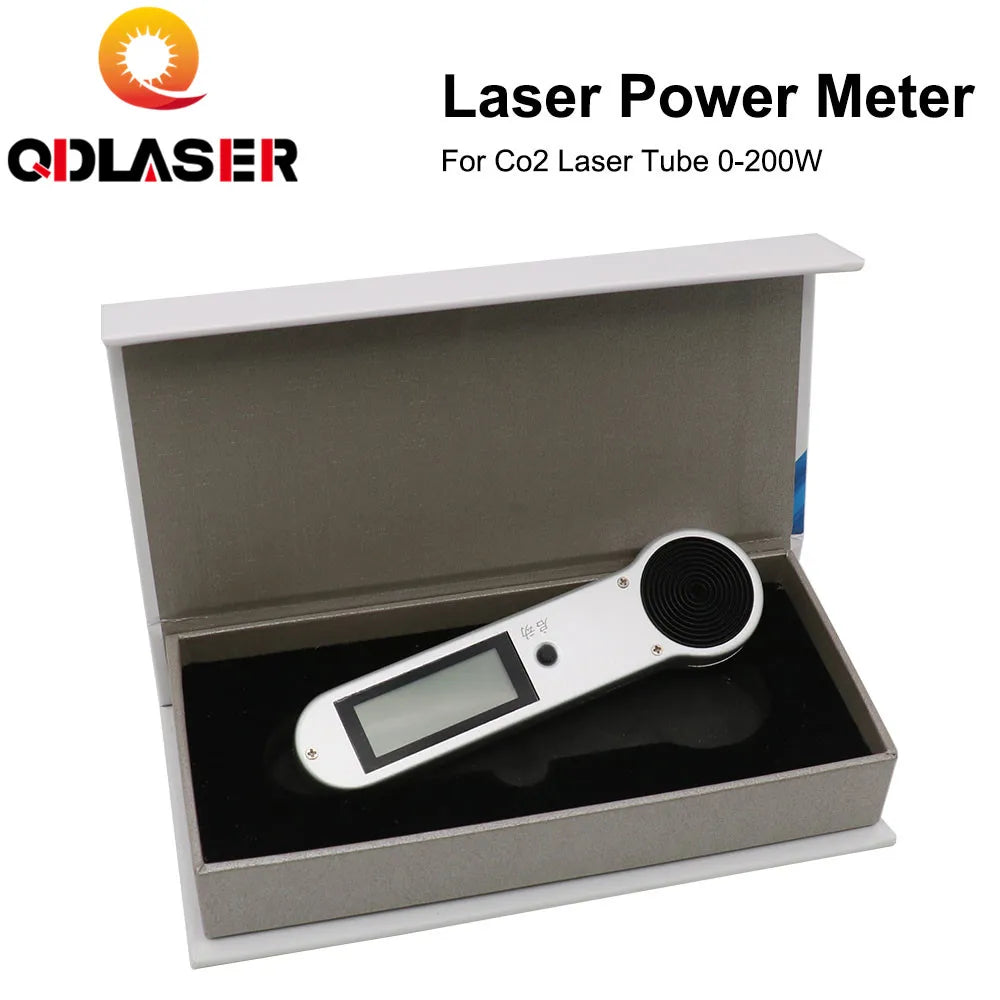

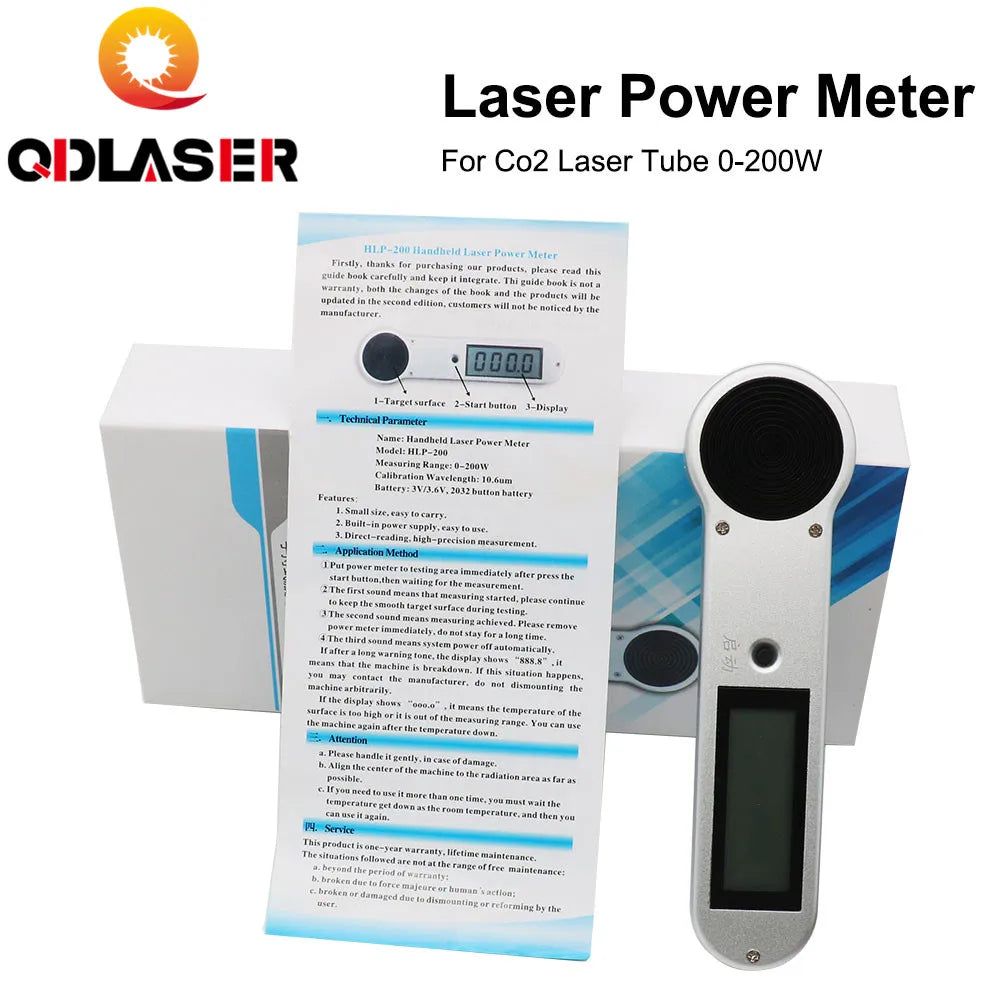

Handheld Laser Power Meter HLP-200 CO2 Laser Tube Power Meter 0-200W for Laser Equipment Marking Engraving Cutting Machine
Handheld Laser Power Meter HLP-200 CO2 Laser Tube Power Meter 0-200W for Laser Equipment Marking Engraving Cutting Machine
Regular price
$200.00 USD
Regular price
$200.00 USD
Sale price
$200.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
Usage
Precautions
* Handle it gently to avoid damaging this precise instrument.
* Try to target the laser beam at the center of the target surface.
* In case of multiple uses, please wait until it cools down to room temperature before next measurement.
* Try to target the laser beam at the center of the target surface.
* In case of multiple uses, please wait until it cools down to room temperature before next measurement.

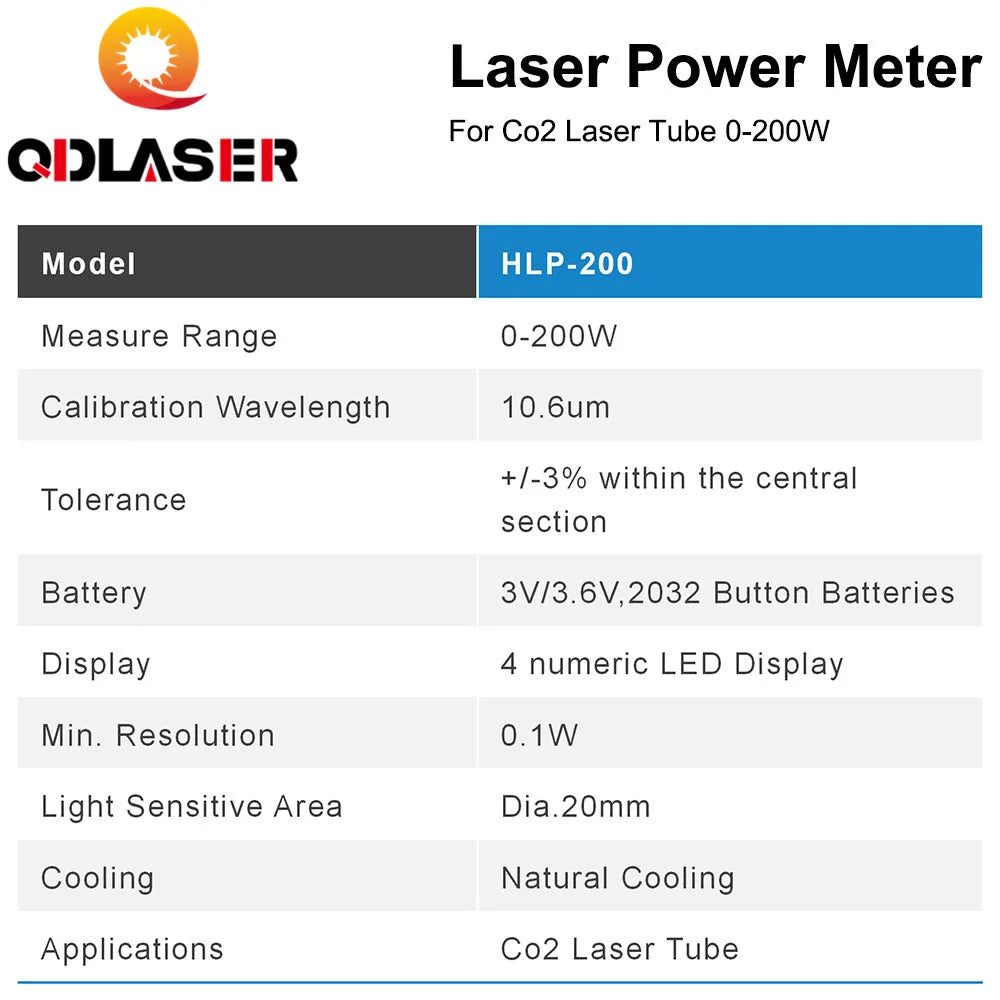

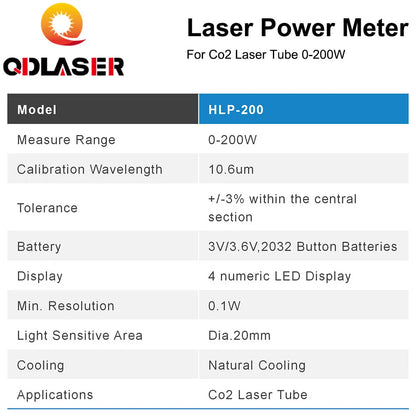

Specification
|
Application
|
Co2 Laser Engraving/cutting Machines
|
|
Laser type
|
Sealed CO2 Laser Tube
|
|
Function
|
Sheet Metals Cutting
|
|
Measure Range
|
0-200W
|
|
Display
|
4 numeric LED display
|
|
Tolerance
|
+/- 3% within the central section
|
|
Battery
|
3V/3.6V, 2032 button batteries
|
|
Calibration Wavelength:
|
10.6um
|
|
Weight (KG)
|
0.8KG
|
