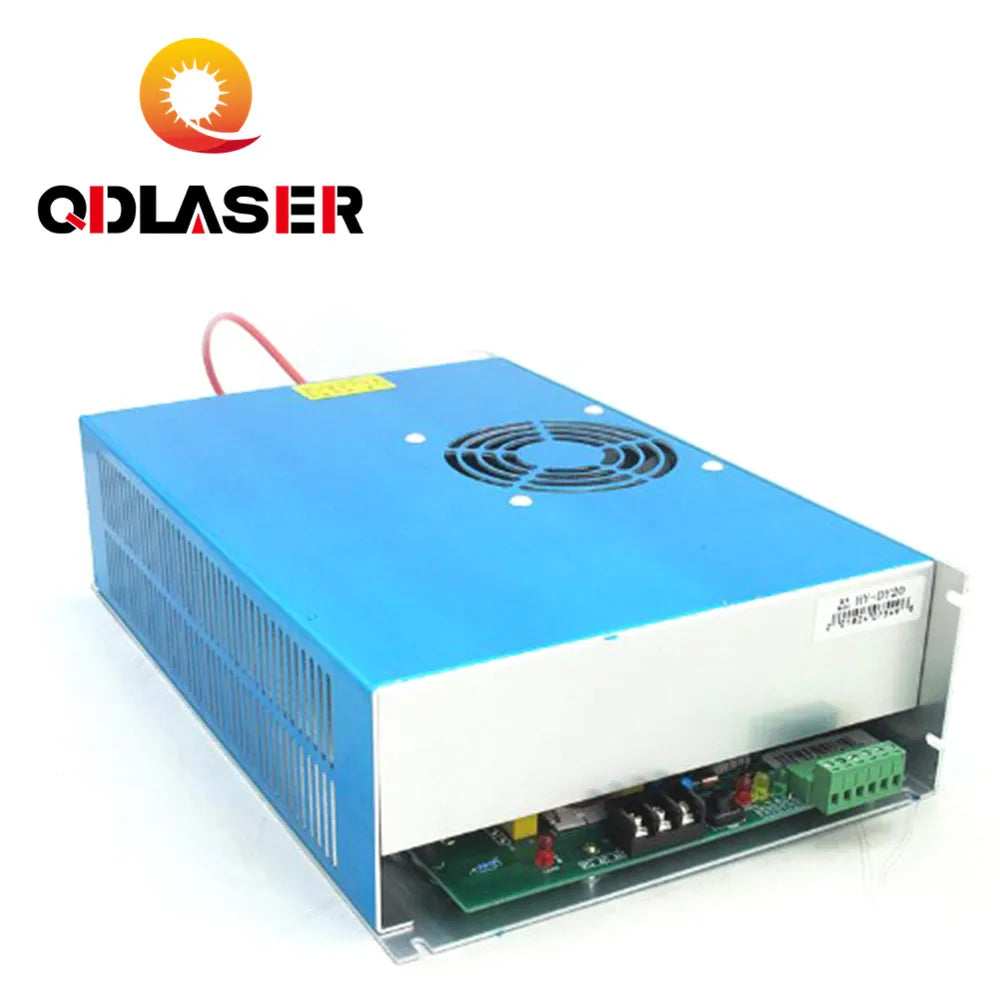

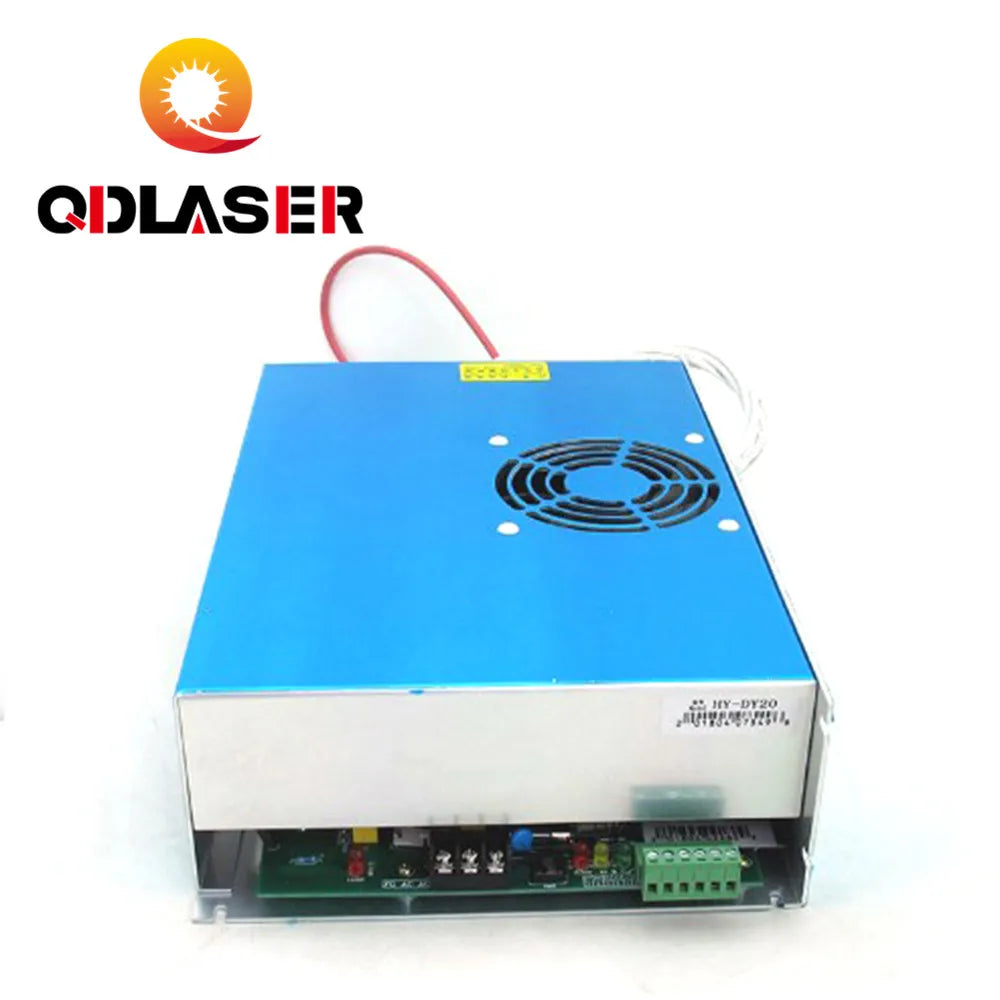

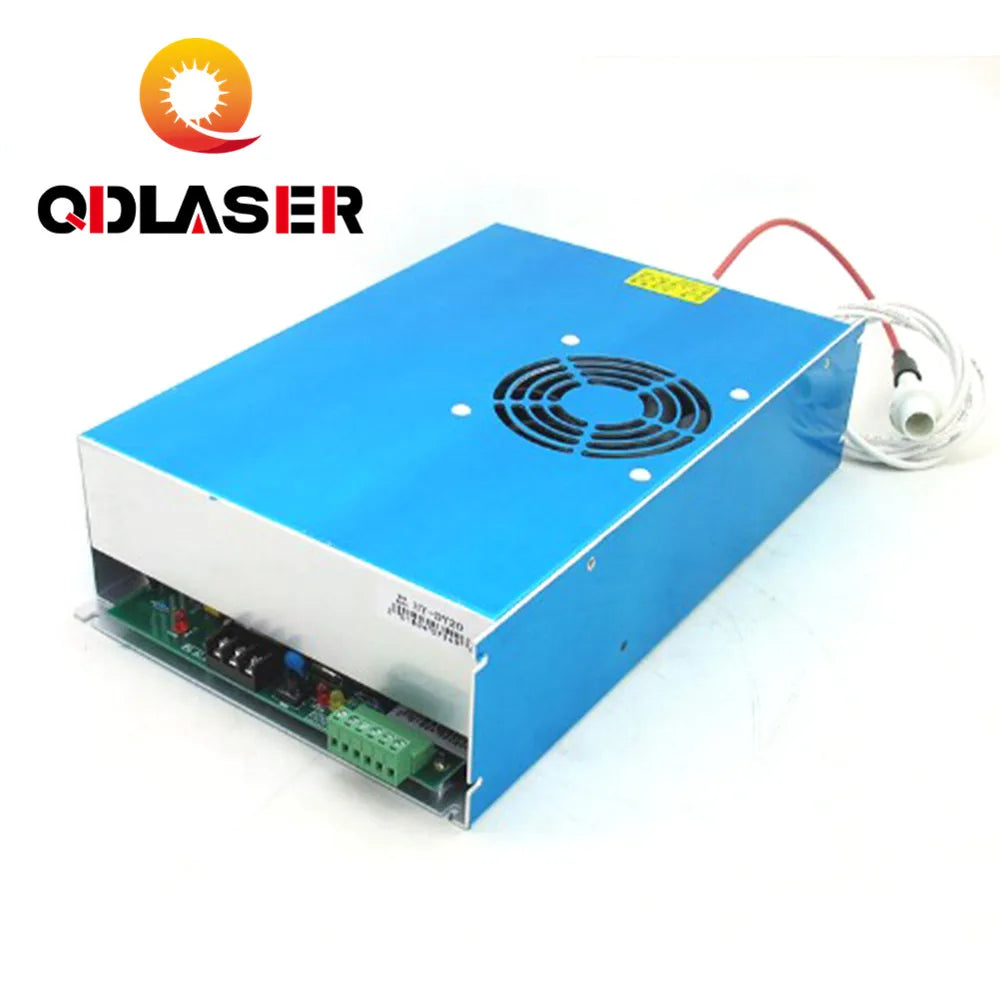

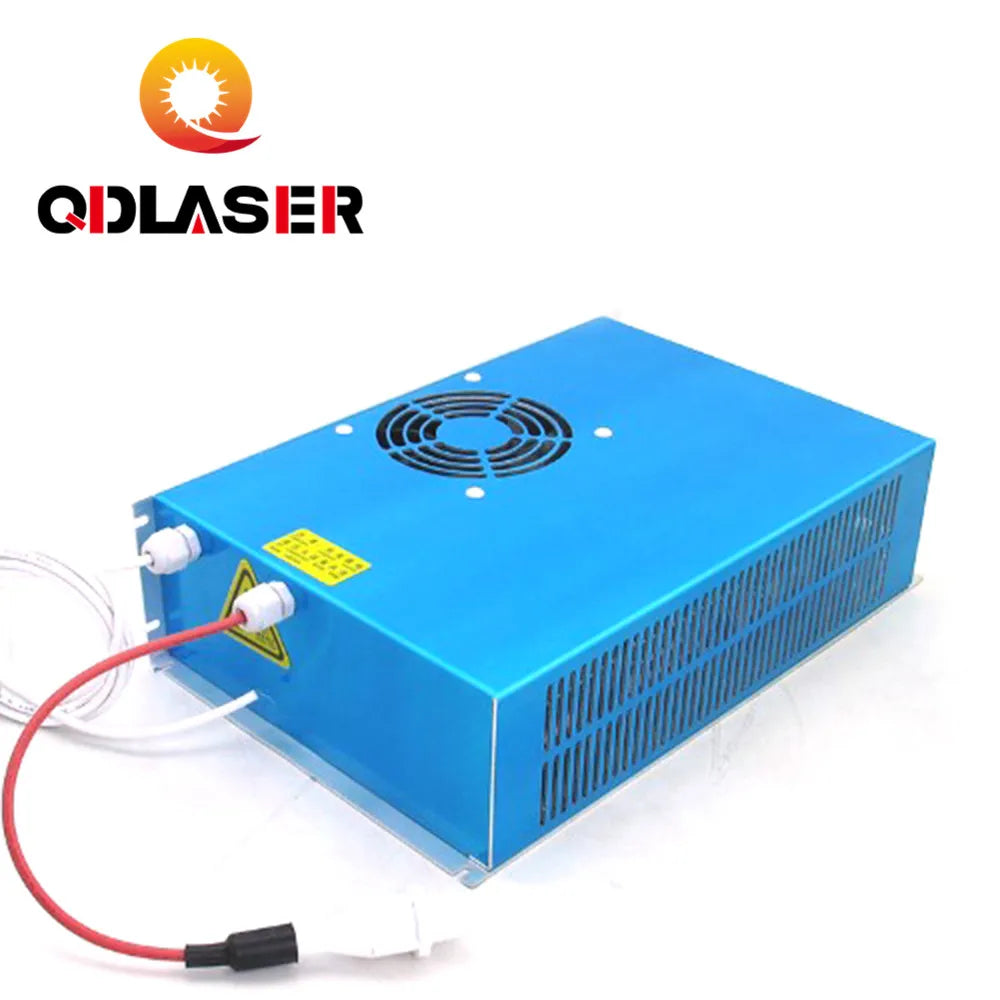

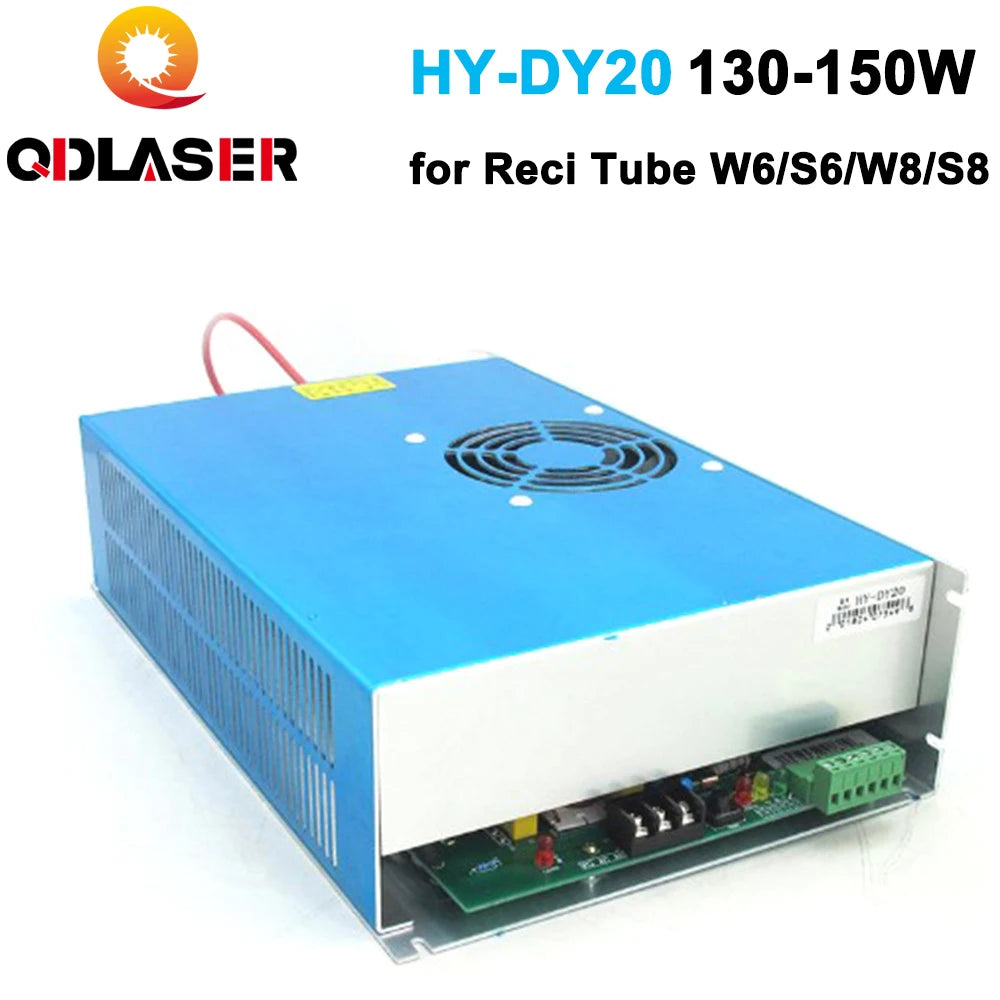

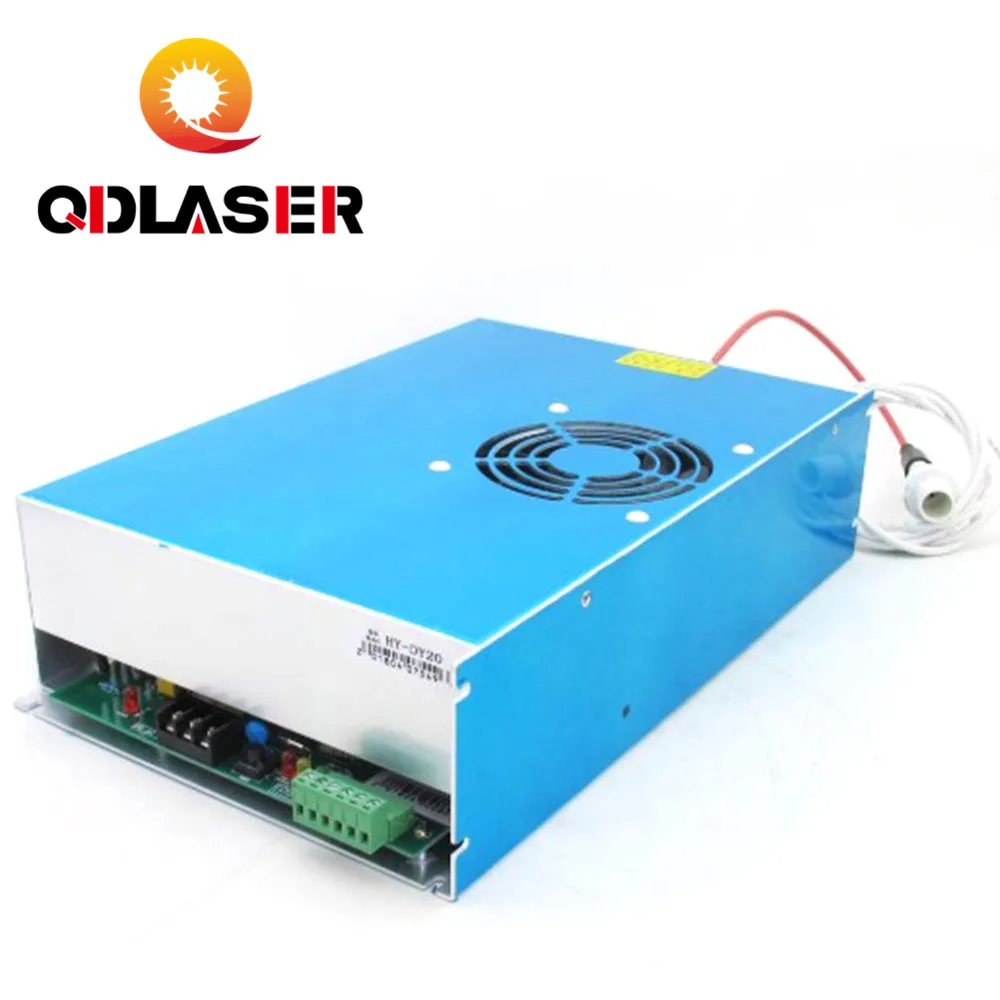

DY20 CO2 Reci Laser Power Supply 110V/220V W6/W8 for CO2 Laser Machine
DY20 CO2 Reci Laser Power Supply 110V/220V W6/W8 for CO2 Laser Machine
Regular price
$160.00 USD
Regular price
$160.00 USD
Sale price
$160.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
|
Item
|
DY10
|
DY13
|
DY20
|
||
|
Input Voltage
|
AC220V( 110 v can be customized )
|
|
|
||
|
Frequency
|
47---440Hz
|
|
|
||
|
Max Input Power
|
500W
|
600W
|
750W
|
||
|
Max Input Current
|
2.3A
|
2.7A
|
3.5A
|
||
|
Max Output Voltage
|
35KV
|
40KV
|
50KV
|
||
|
Max Output Current
|
25mA
|
32mA
|
38mA
|
||
|
Effenciency
|
≥90%锛團ull Load锛�
|
|
|
||
|
MTBF
|
≥10000 hours
|
|
|
||
|
Response time
|
≤1mS锛圱he time from the switch signal given to the output current rising to 90% of the set current锛�
|
|
|
||
|
Withstand Voltage
|
Input-Output ,Input-Shell:AC1500V 10mA 60s锛汿he output negative electrode is connected to the Shell.
|
|
|
||
|
Control Interface
|
TTL level switch control, effective level can be selected high or low锛坉etails refer to control interface description锛�
|
|
|
||
|
Operation Enviroment
|
Working Temperature锛�-10~40锛夆剝 锛宺elative humidity锛�≤90%
|
|
|
||
|
Cooling Method
|
Forced Air Cooling
|
|
|
||
|
Matched Laser Tube Power
|
50-80W
|
90-100W
|
100-150W
|
||
|
Overall Dimension L*W*H(mm)
|
198*159*85
|
270*163*85
|
313*200*85
|
||
|
Weight锛圞G锛�
|
1.75kg
|
5kg
|
5.2kg
|
||
|
Shell Color
|
Blue
|
|
|
||
This power supply is specially designed for special laser tube, the power supply makes laser tube output larger and more stable.
Quick response speed and effect,high performance,large cutting power, it also can prolong laser tube service life.
