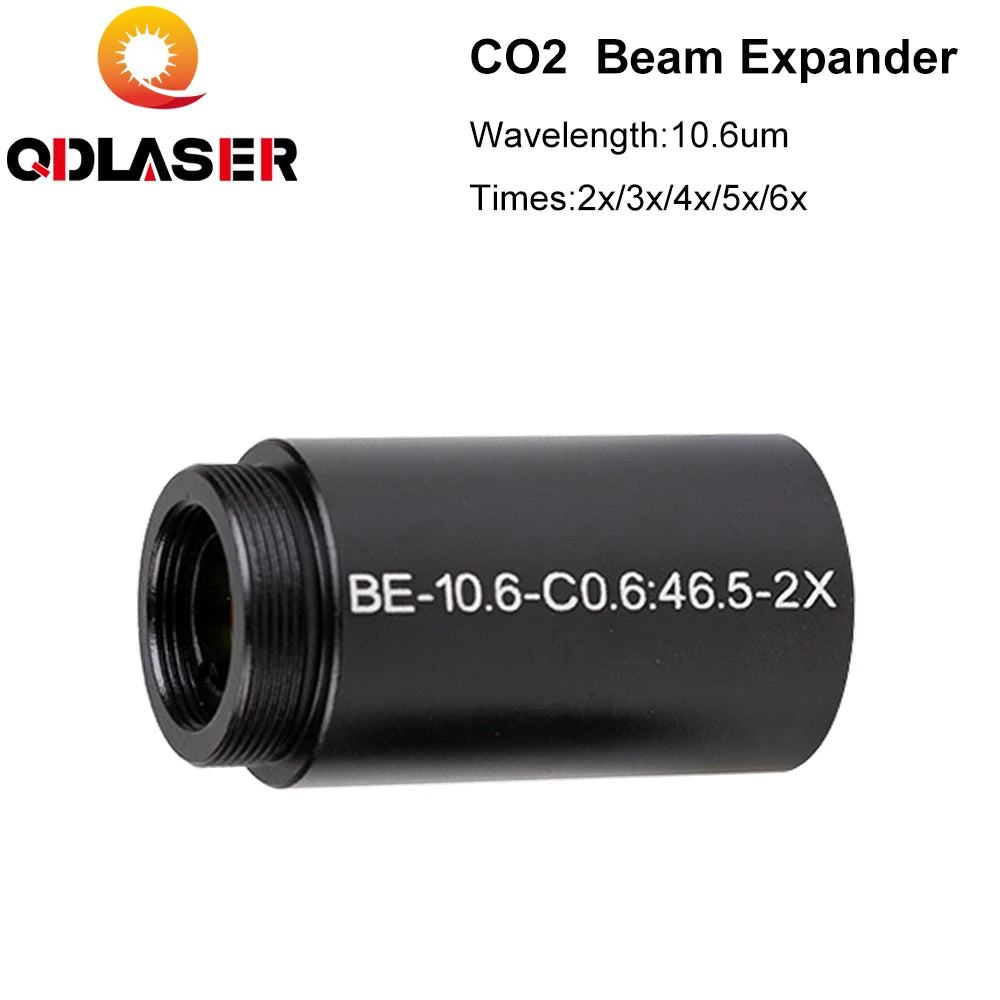

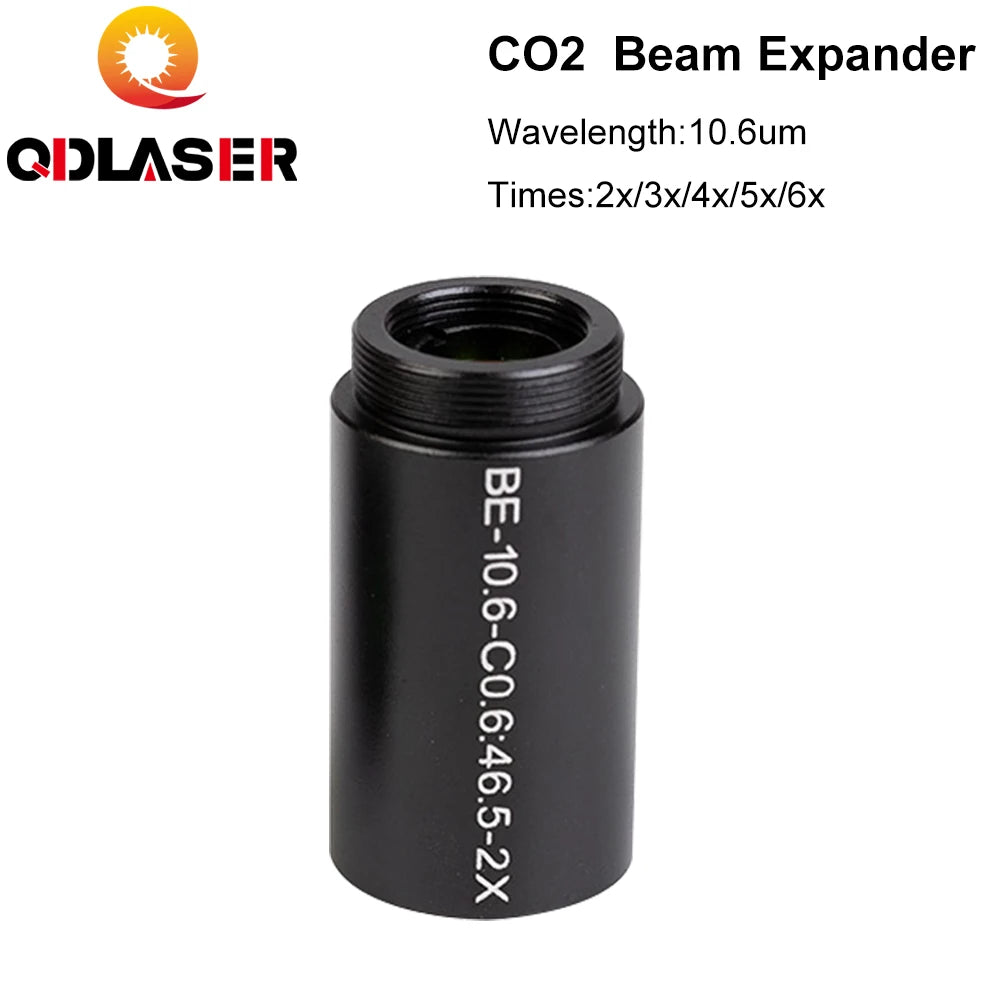

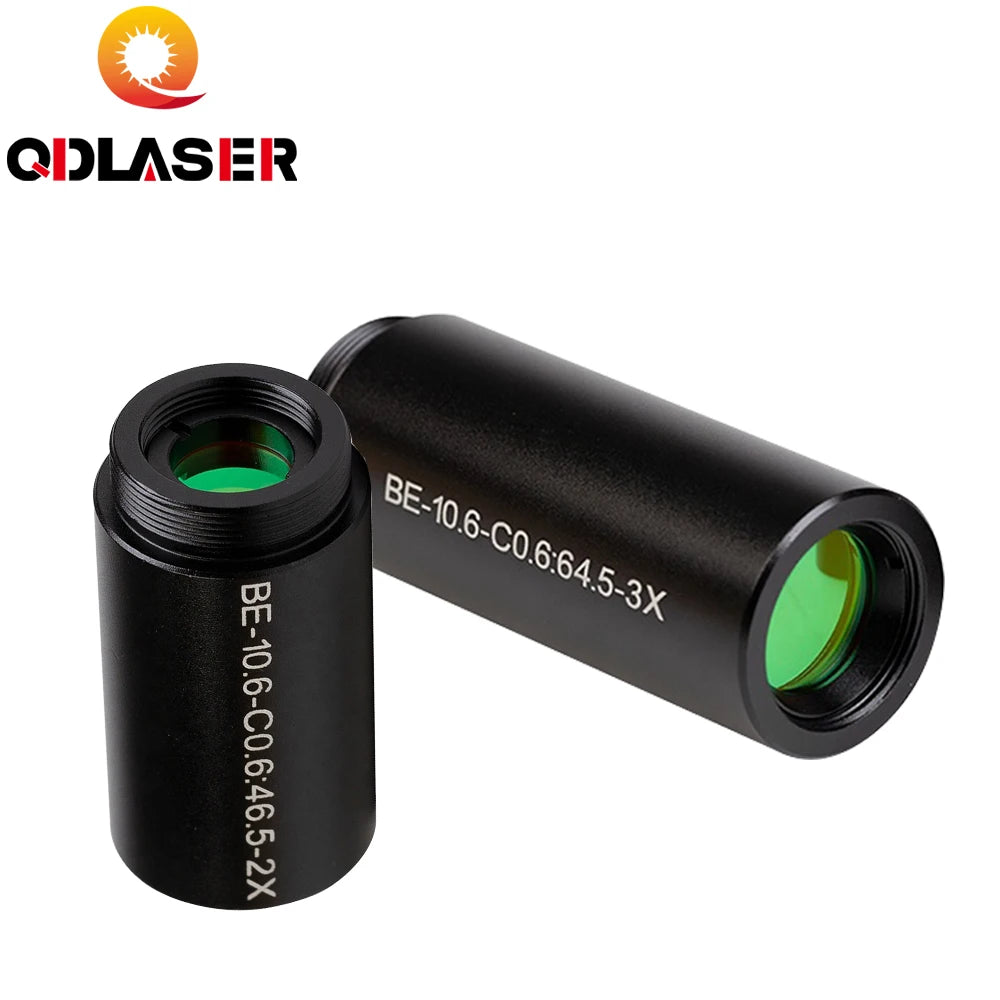

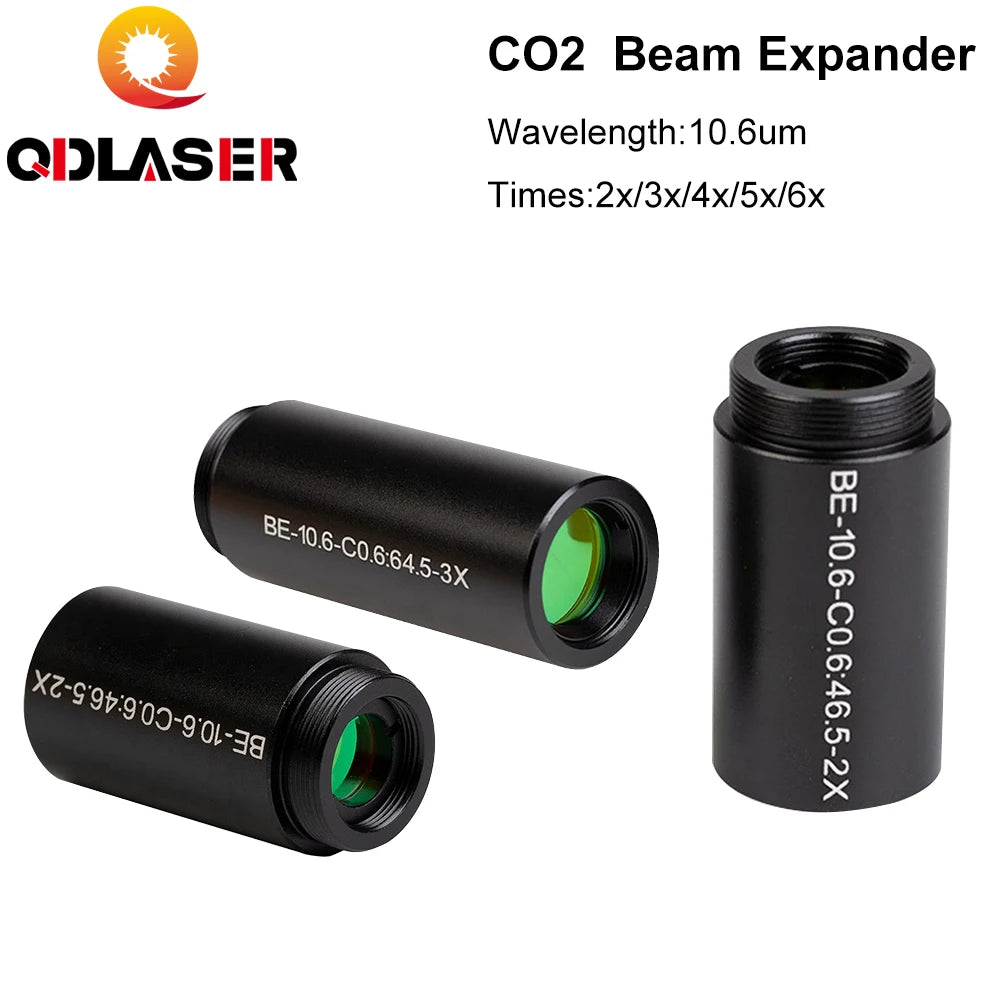

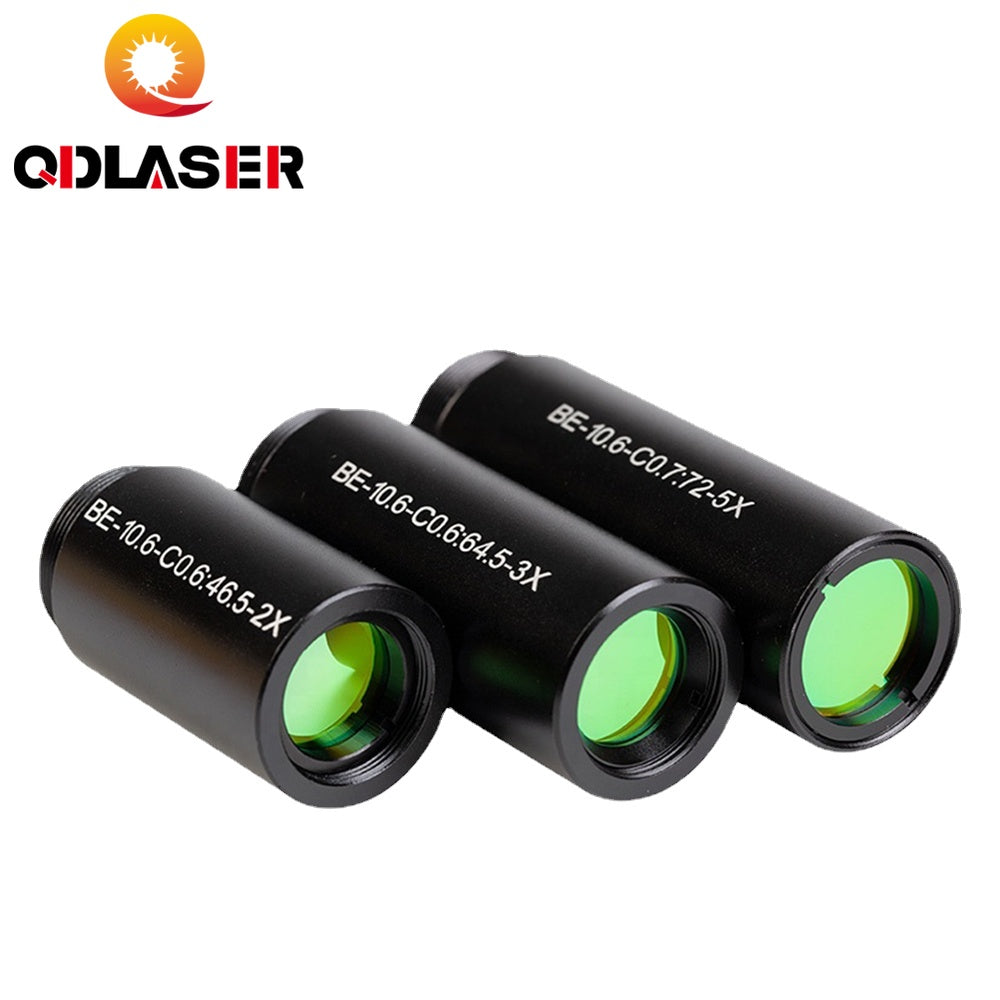

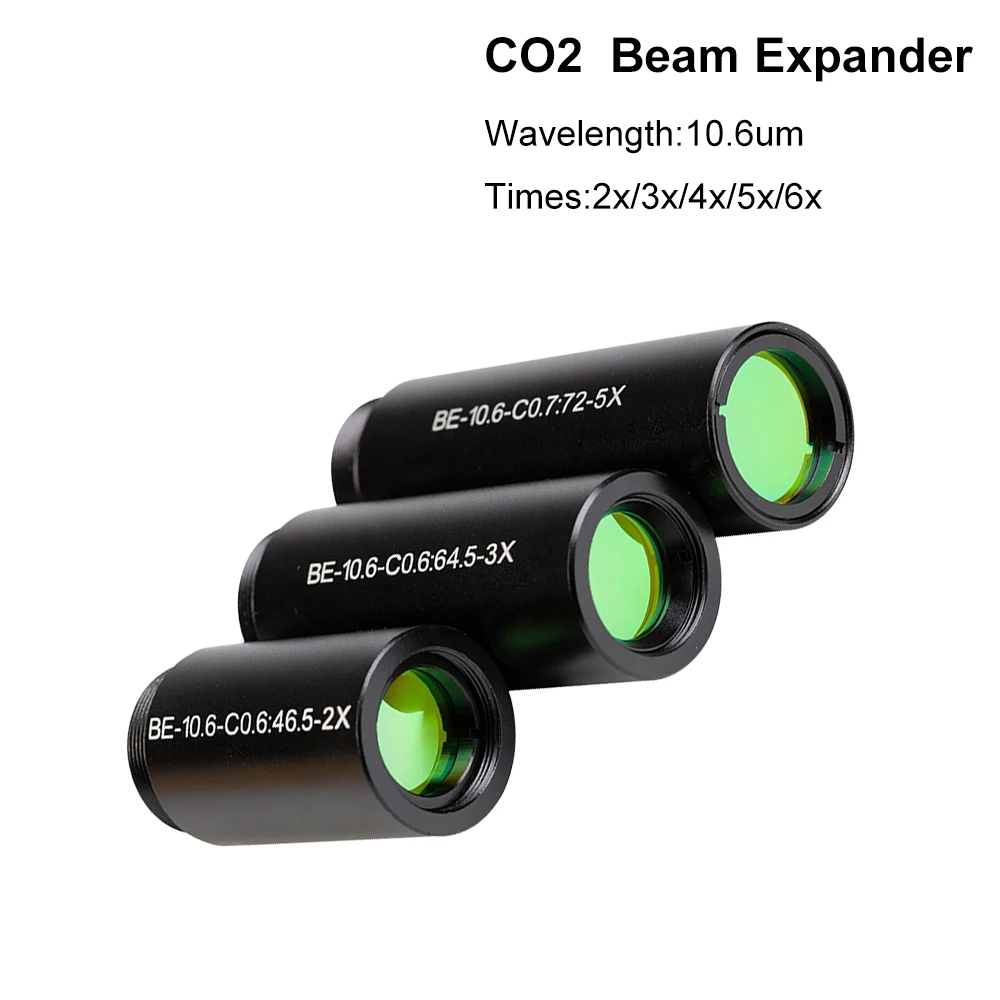

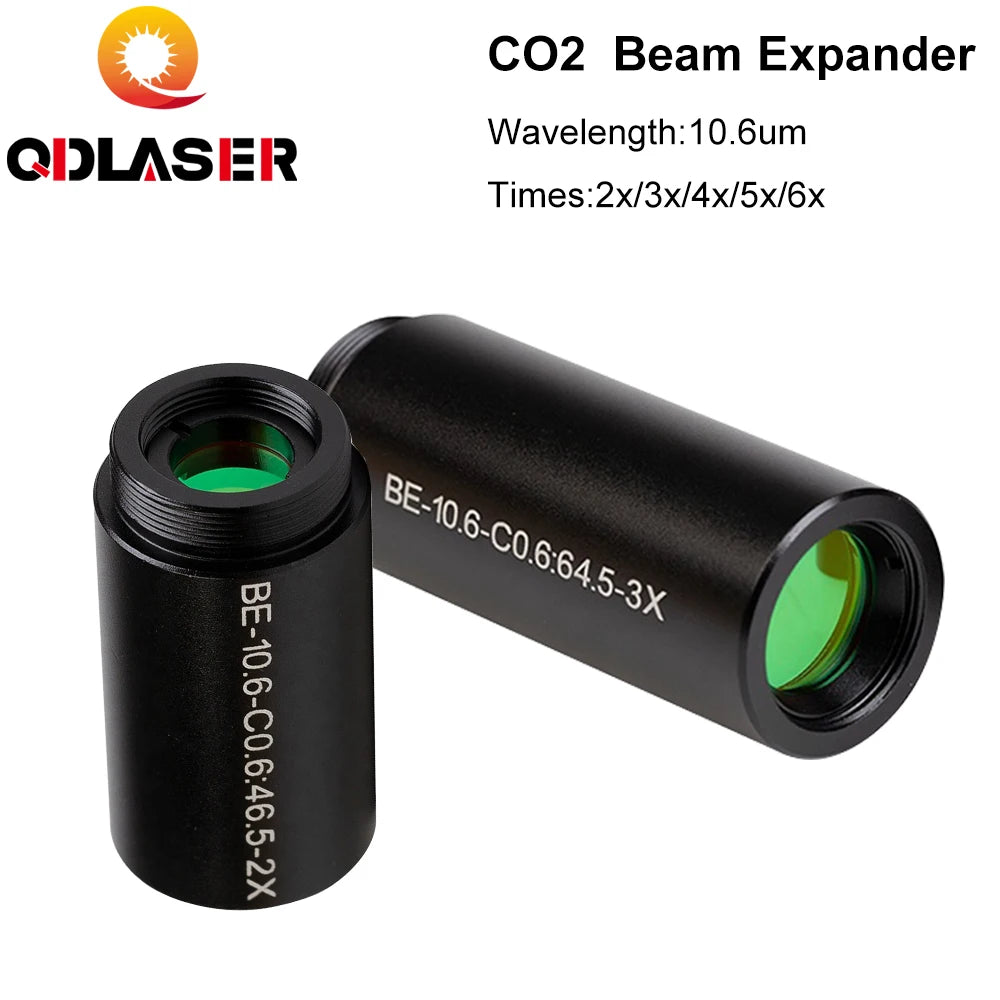

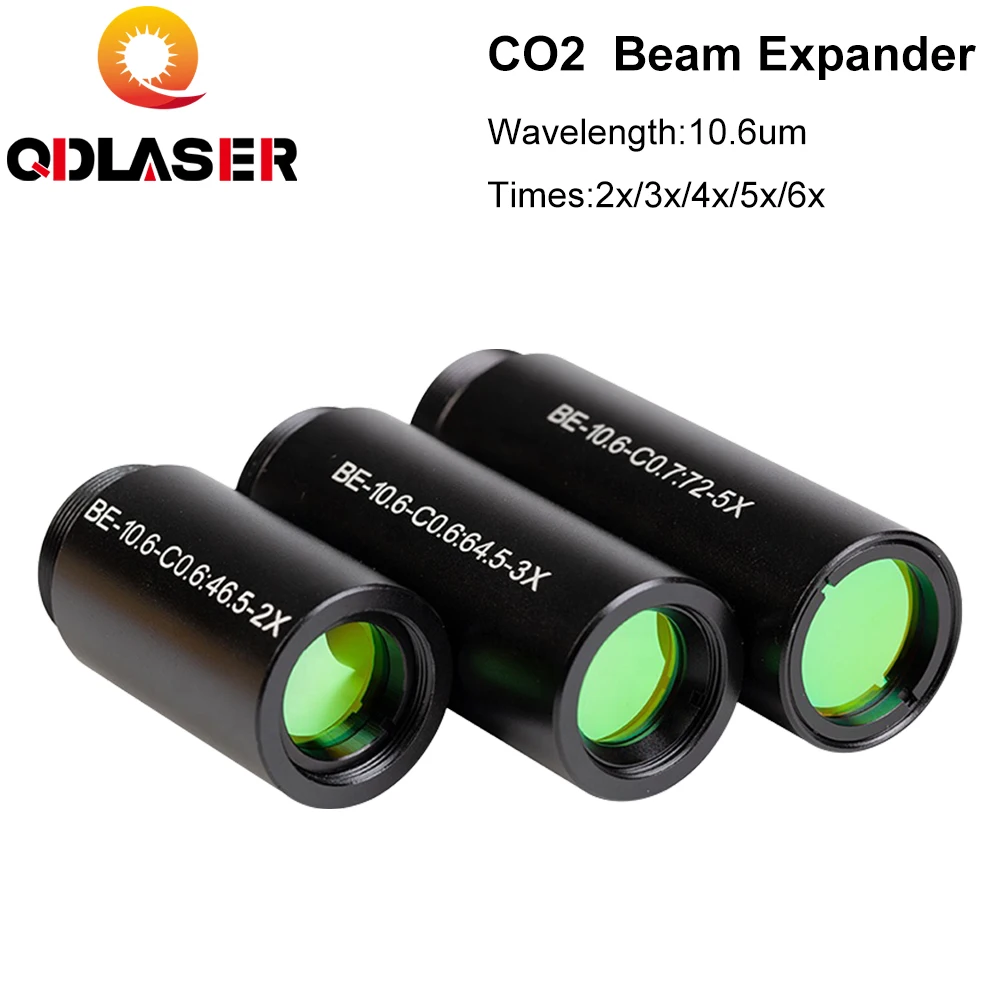

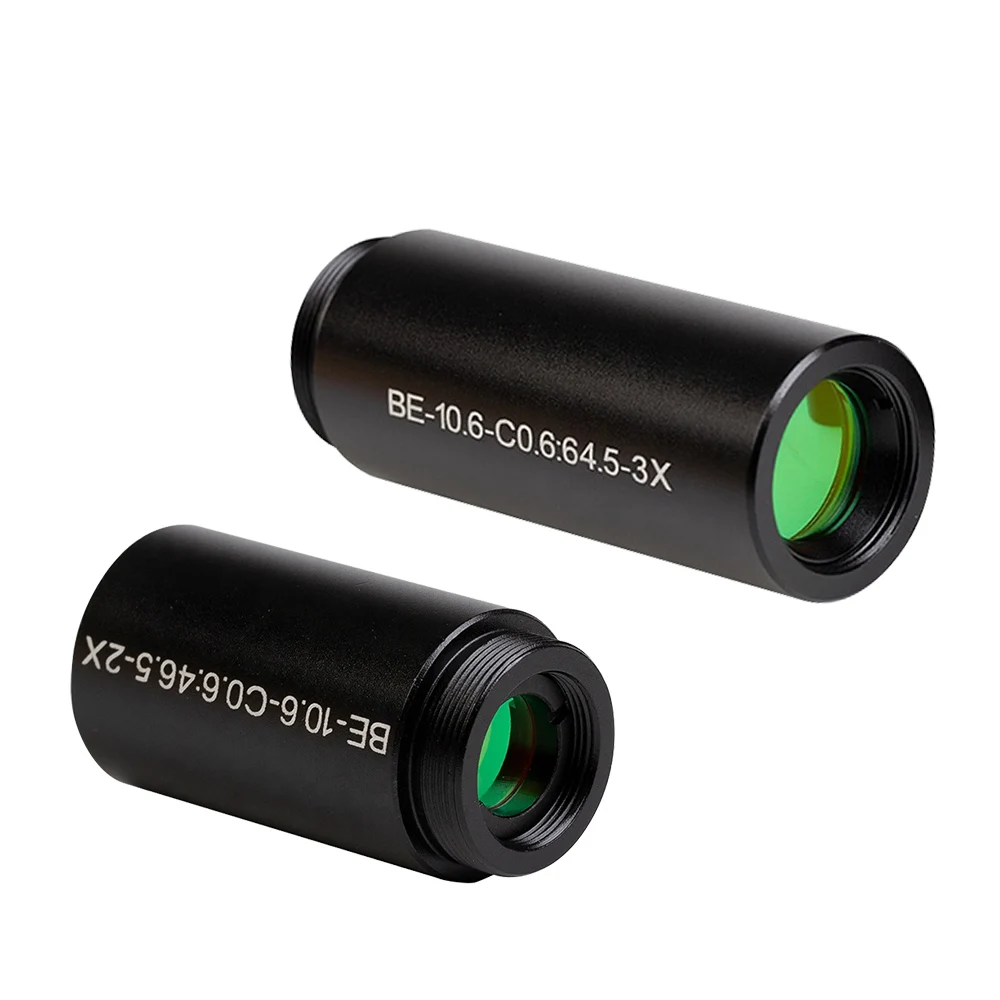

CO2 Laser Beam Expander 2X 2.5X 3X 4X 5X 6X 8X Wavelength 10.6um Fixed Series
CO2 Laser Beam Expander 2X 2.5X 3X 4X 5X 6X 8X Wavelength 10.6um Fixed Series
Regular price
$70.16 USD
Regular price
$70.16 USD
Sale price
$70.16 USD
Unit price
per
Couldn't load pickup availability
Product Description
Specification
|
Product name
|
CO2 Laser Beam Expander
|
|
Model
|
2X 2.5X 3X 4X 5X 6X
|
|
Laser type
|
CO2 10.6um
|
|
Wavelength
|
10.6um
|
|
Material
|
ZnSe
|
|
Power
|
5w-100w
|
|
Certificate
|
CE
|
|
Weight (KG
|
0.4 KG
|
|
Beam Expander
|
|
|
|
|
|
|
|
|||||||
|
Part Number
|
Material
|
magnification
|
Dia(mm)
|
Length (mm)
|
Input CA (mm)
|
Output CA (mm)
|
connect
|
|||||||
|
EX-2X-10.6
|
ZnSe
|
2
|
22
|
35
|
15
|
17
|
M22*0.75
|
|||||||
|
EX-2.5-10.6
|
ZnSe
|
2.5
|
37
|
60
|
13.5
|
30
|
M22*0.75
|
|||||||
|
EX-3X-10.6
|
ZnSe
|
3
|
22
|
62
|
10
|
15
|
M22*0.75
|
|||||||
|
EX-4X-10.6
|
ZnSe
|
4
|
27
|
70
|
10
|
20
|
M22*0.75
|
|||||||
|
EX-5X-10.6
|
ZnSe
|
5
|
30
|
72
|
10
|
23
|
M22*0.75
|
|||||||
|
EX-6X-10.6
|
ZnSe
|
6
|
36
|
75
|
10
|
30
|
M22*0.75
|
|||||||
|
EX-8X-10.6
|
ZnSe
|
8
|
36
|
73
|
10
|
30
|
M22*0.75
|
|||||||
|
special size
|
|
|
|
|
|
|
|
|||||||
|
EX-0.5X-10.6
|
ZnSe
|
0.5
|
25
|
36.35
|
10.8
|
10.8
|
M22*0.75
|
|||||||
|
EX-0.5X-10.6
|
ZnSe
|
1.2
|
25
|
30.69
|
13.1
|
13.1
|
M22*0.75
|
|||||||
|
EX-0.5X-10.6
|
ZnSe
|
3.5
|
40
|
53.26
|
13.6
|
33
|
M22*0.75
|
|||||||
