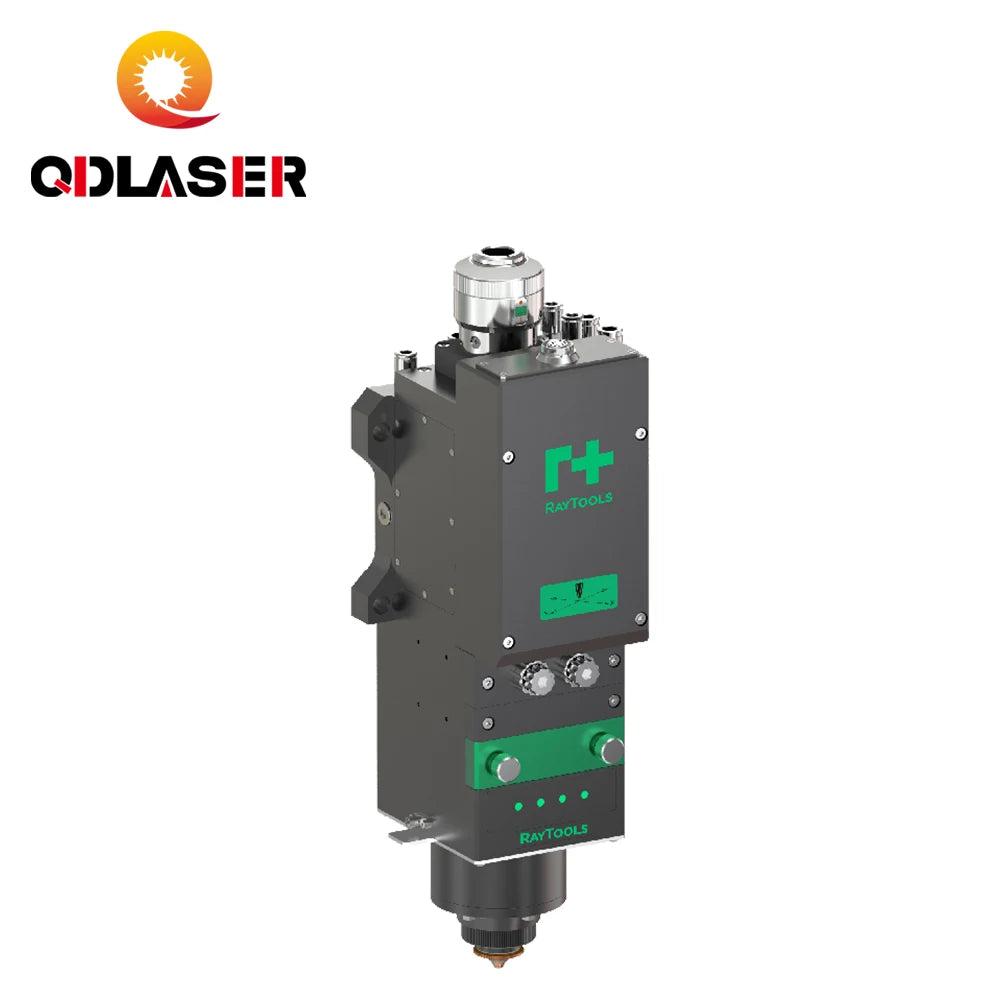

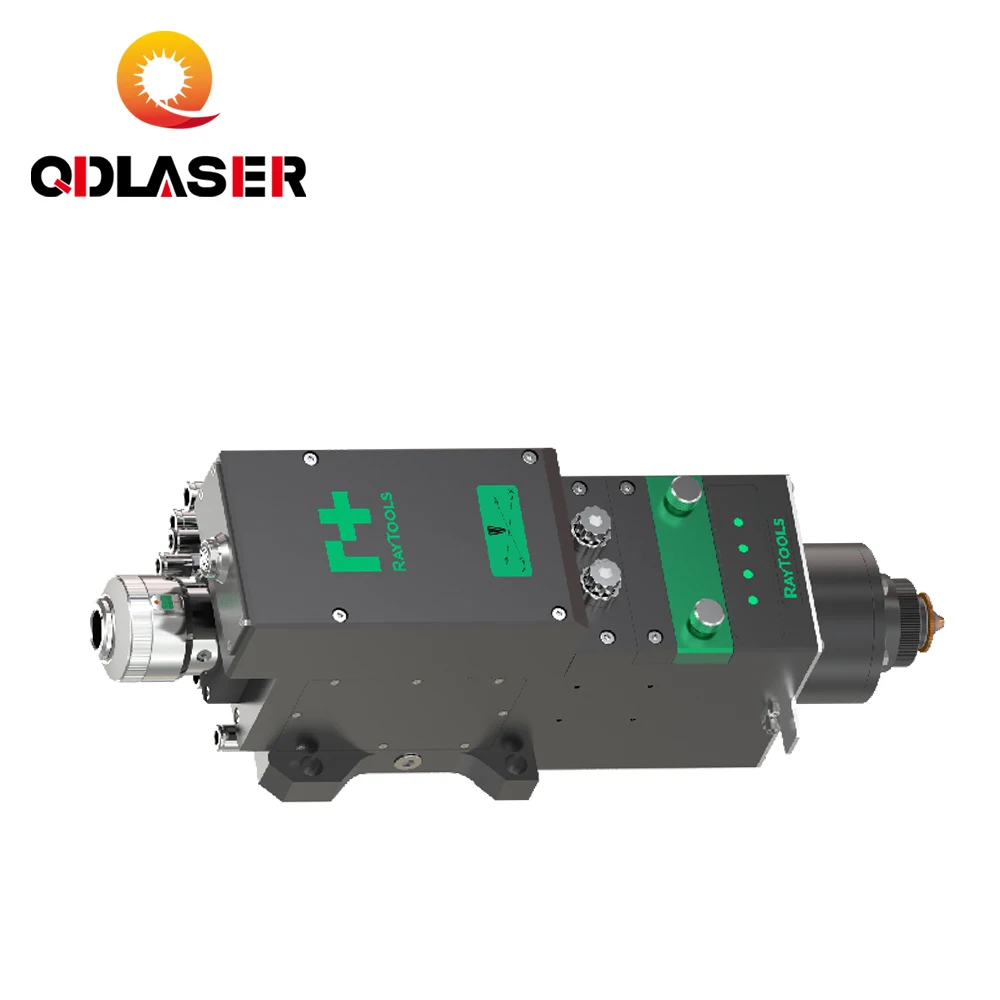

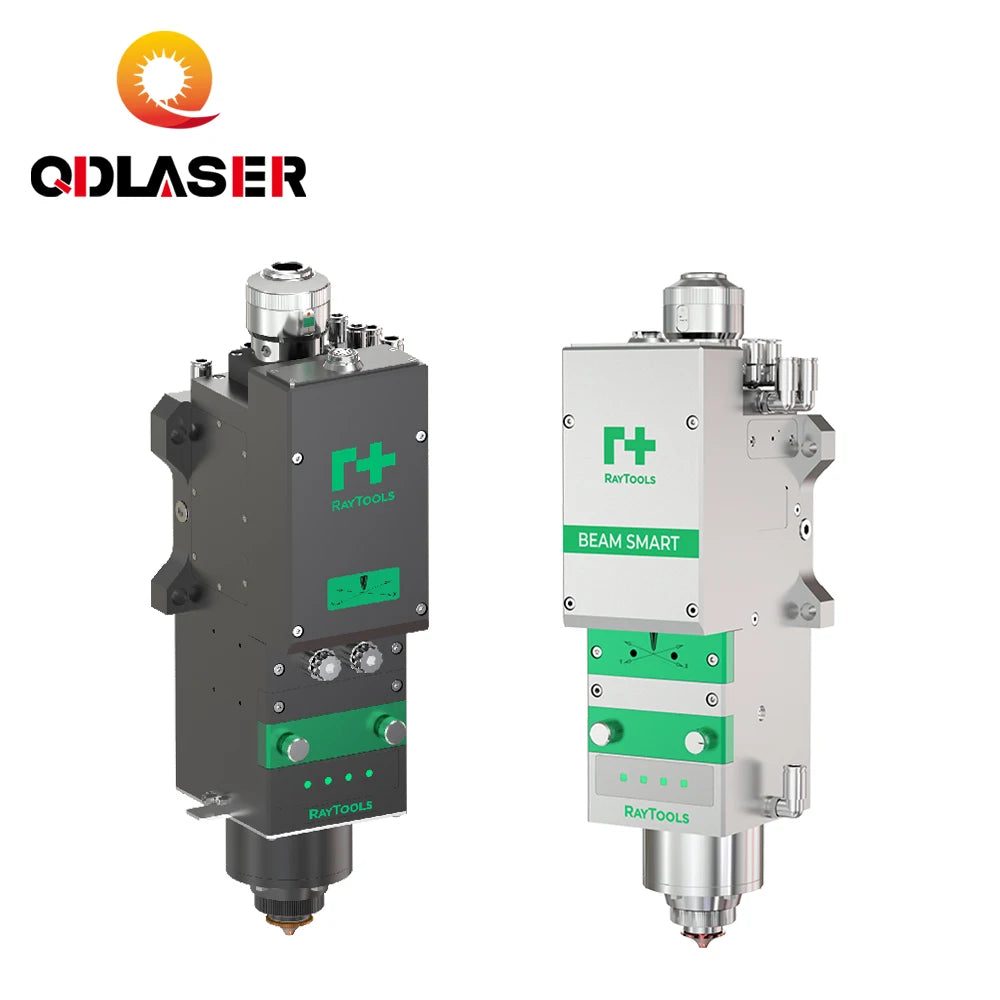

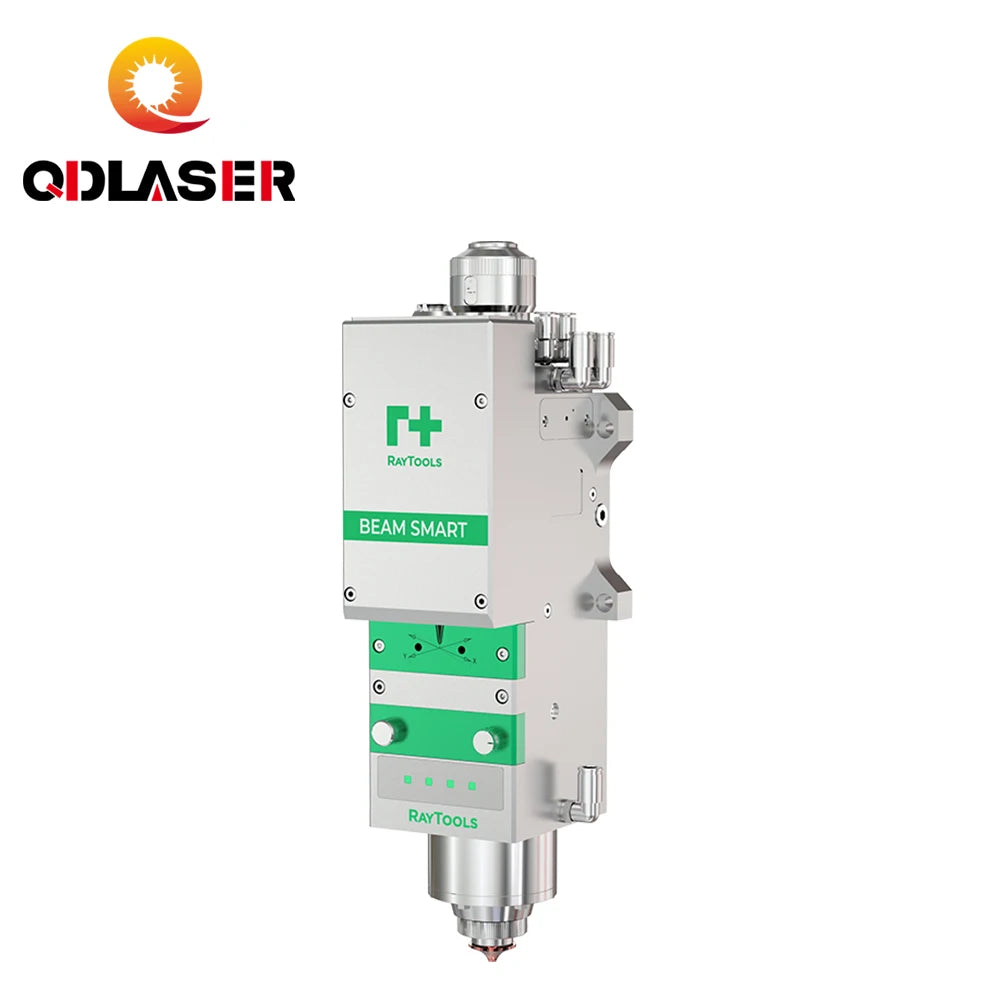

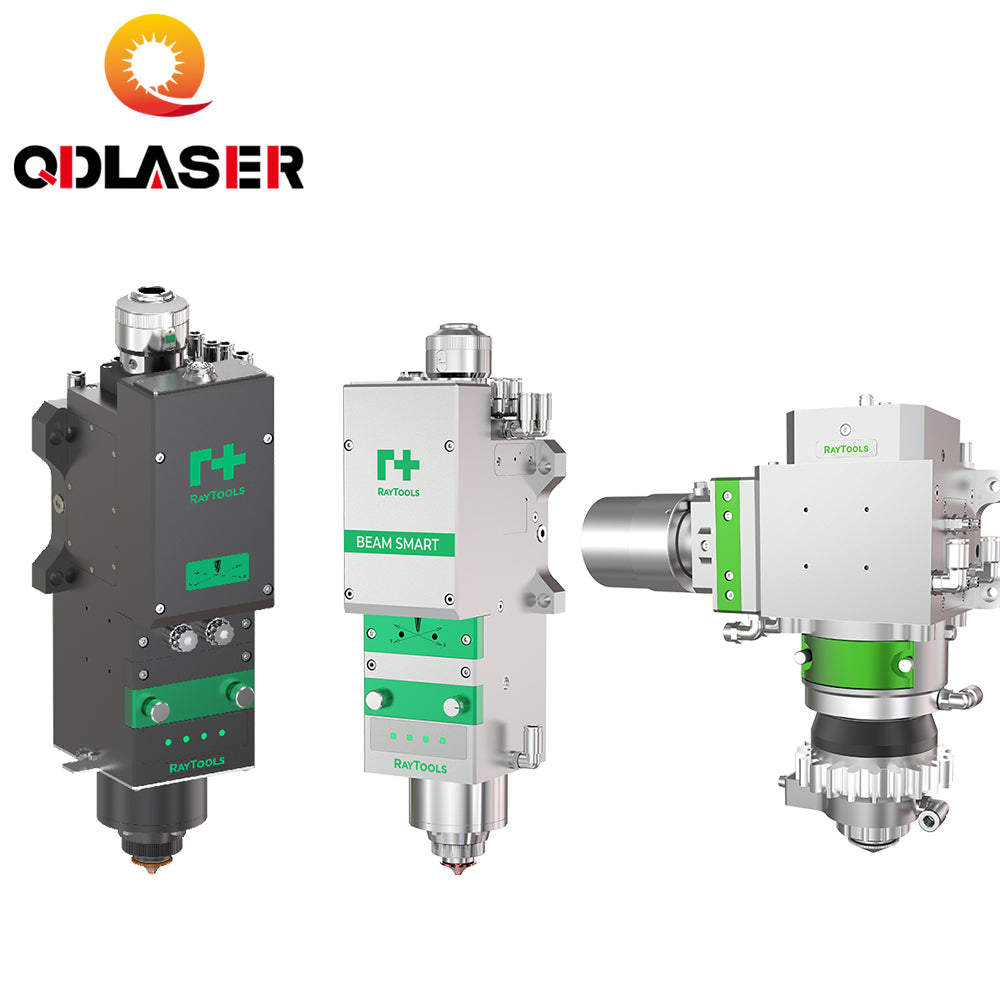

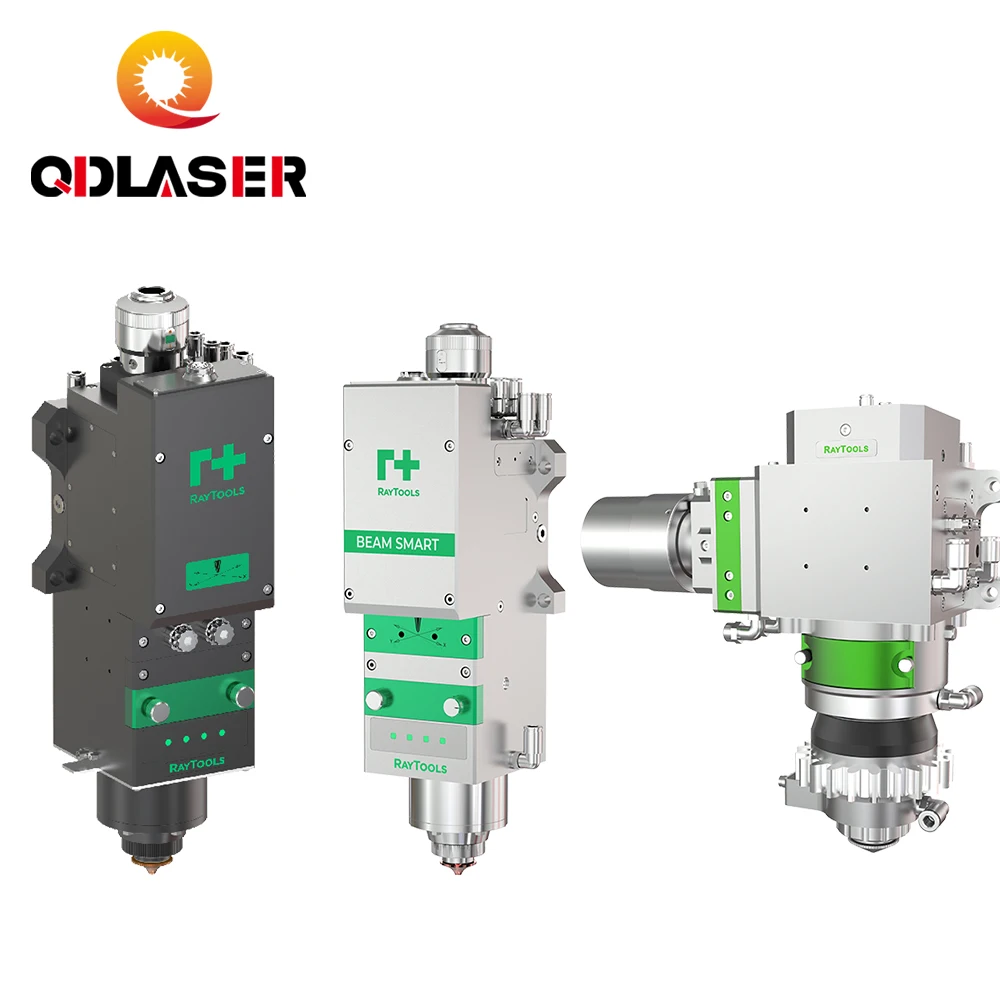

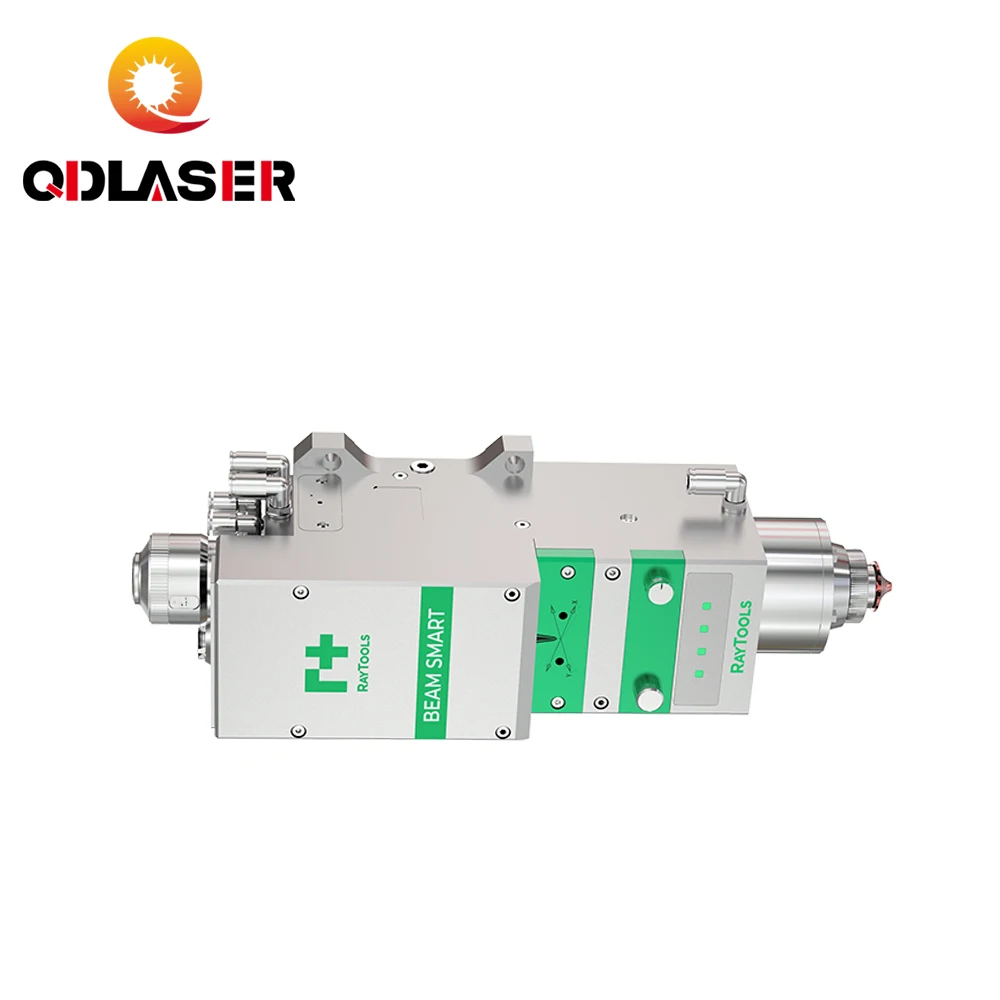

BS06K BS12K BS30K for Raytools High Power Automatic Focusing Intelligent Cutting Head

BS06K BS12K BS30K for Raytools High Power Automatic Focusing Intelligent Cutting Head

$3,000.00 USD
$3,000.00 USD $3,000.00 USD
Sale Sold out
model number
Product Description



Excellent design

Lightweight design and fast acceleration;At the same time, it has optimized optical configuration and smooth and efficient airflow design, which significantly improves cutting quality and efficiency;

BS06K
BS12K



High adaptability:
With QBH, QD, LOE and other optical fiber interfaces, it can be adapted to various mainstream lasers;



APP real-time monitoring:
Through the wireless network, the monitoring data can be read on the mobile terminal and CNC system;



Parameter real-time feedback:
Various built-in sensors can provide real-time feedback of parameters during processing such as the temperature of the protective lens inside the cutting head, the temperature of the focusing lens, the temperature and humidity of the cavity, the air pressure in the cavity, and the air pressure of the cutting gas.

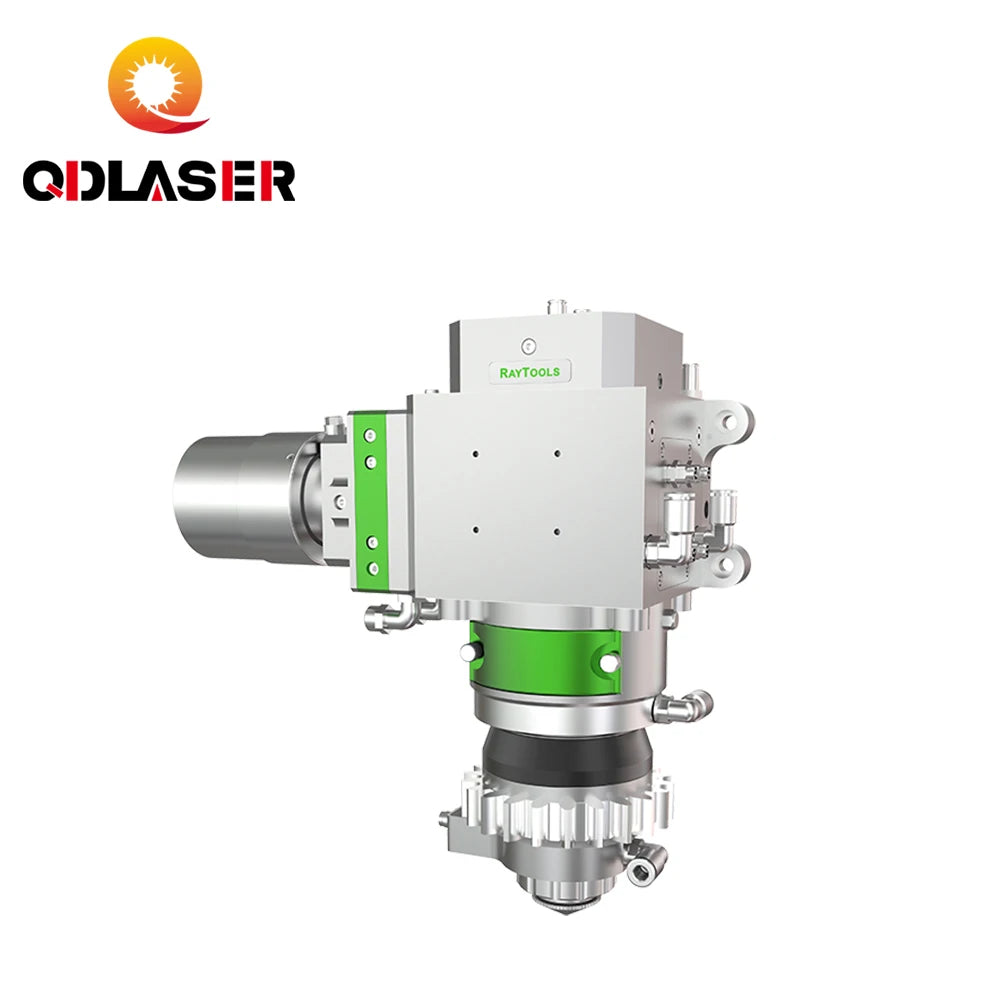

BS30K
Specification
Product name
Fiber laser cutting head


model number
BS06K
BS12K
BS30K
Auto focus Range
-35mm~+25mm


Speed
≤200mm/s


Acceleration
≤10m/s2


Accuracy
0.01mm


Numerical aperture
0.14

Clear aperture: 49.5mm
Manual focus Range


-30mm~+30mm
Manual focus Accuracy


0.05mm

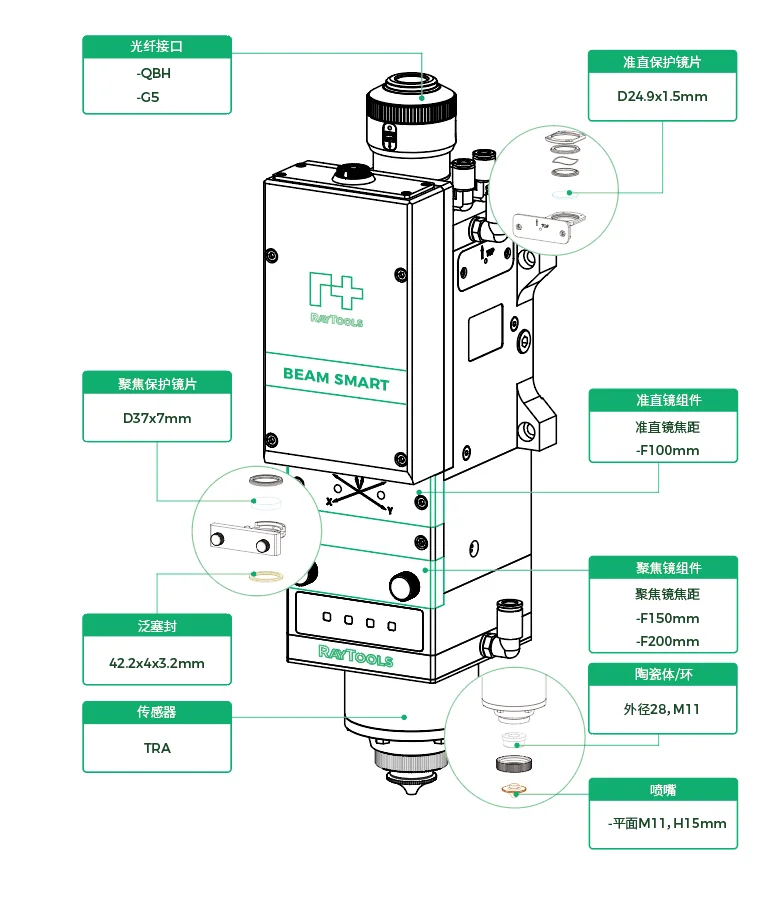

Fiber Interface
QBH ,  G5
QBH , QD , LOE
Q+锛孮D
protective lens Collimation protection


Φ38.1mm*1.6mm
Focus protection


Φ42mm*9mm
Bronze Mirror


D49.5-F125-F300
Nozzle specifications
single layer, double layer, non-standard

Double Layer
Nozzle hole diameter
1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
Auxiliary gas pressure
≤30bar


Weight (KG)
~7.5kg
~8.2kg
8KG
