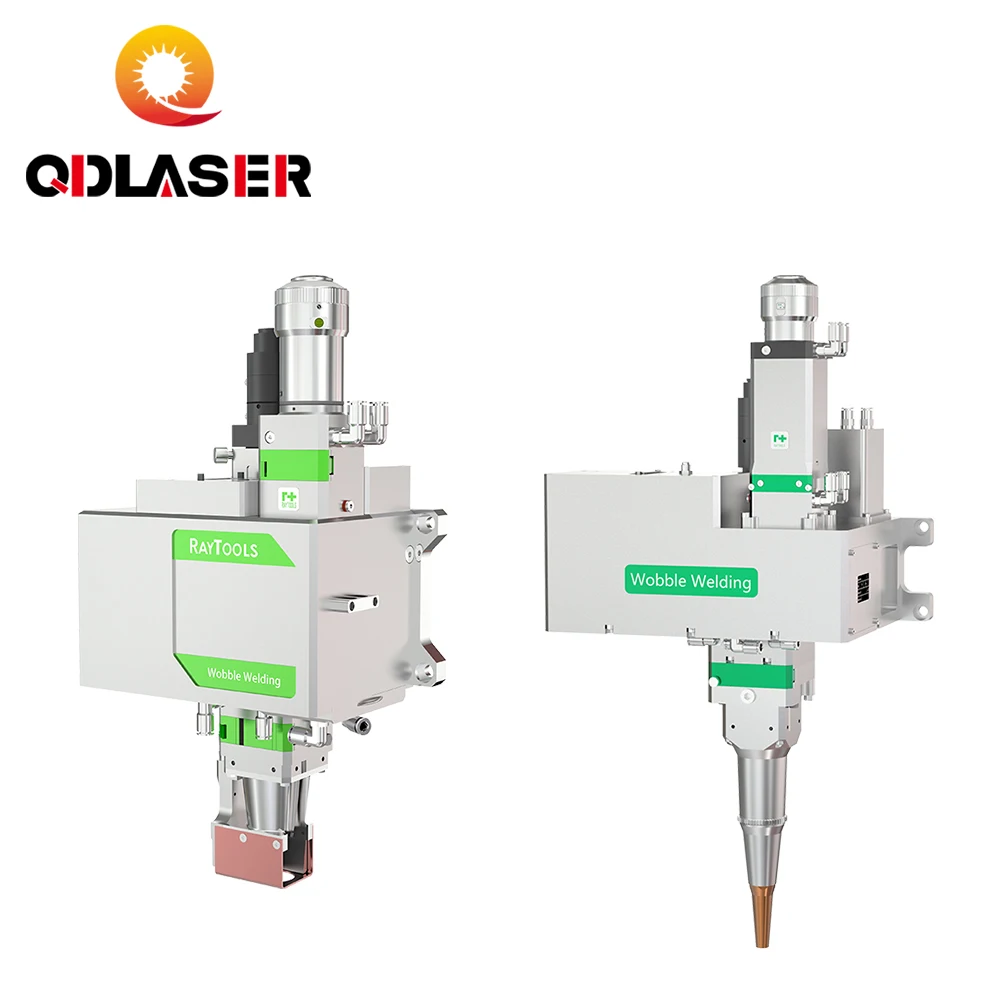

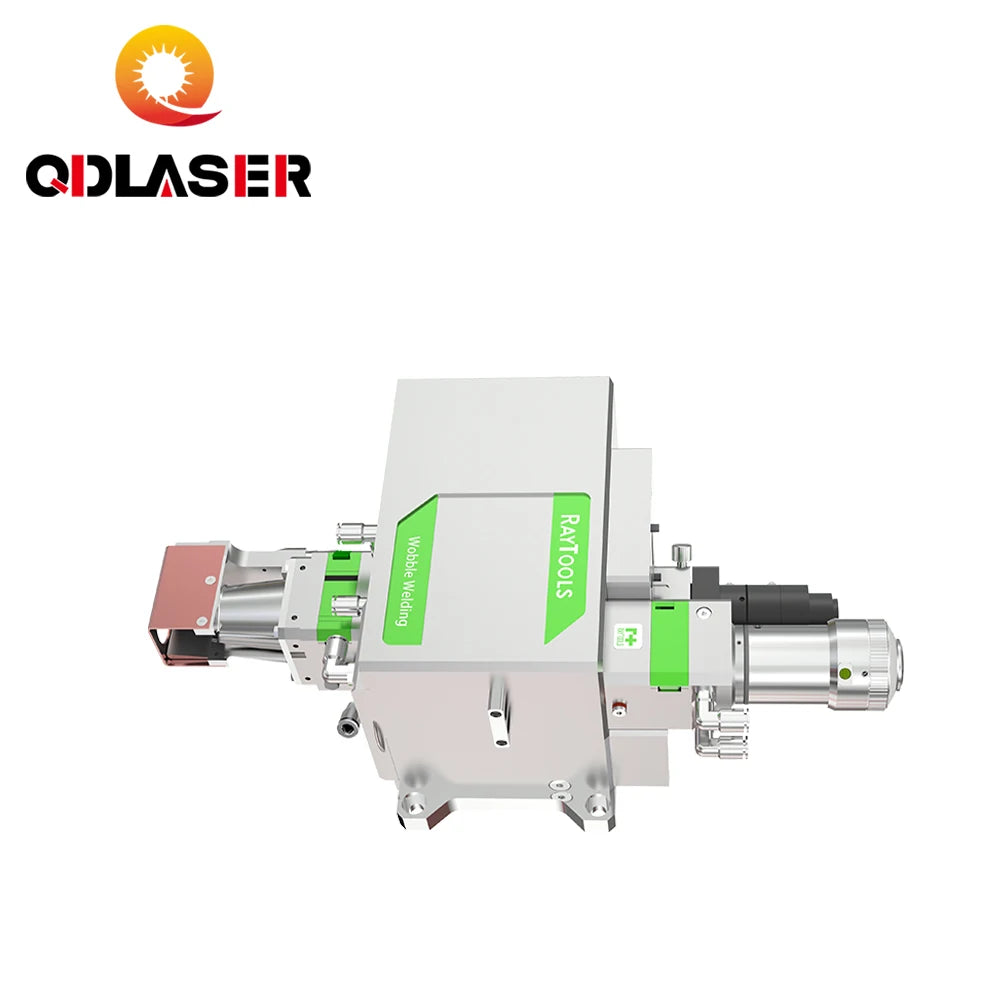

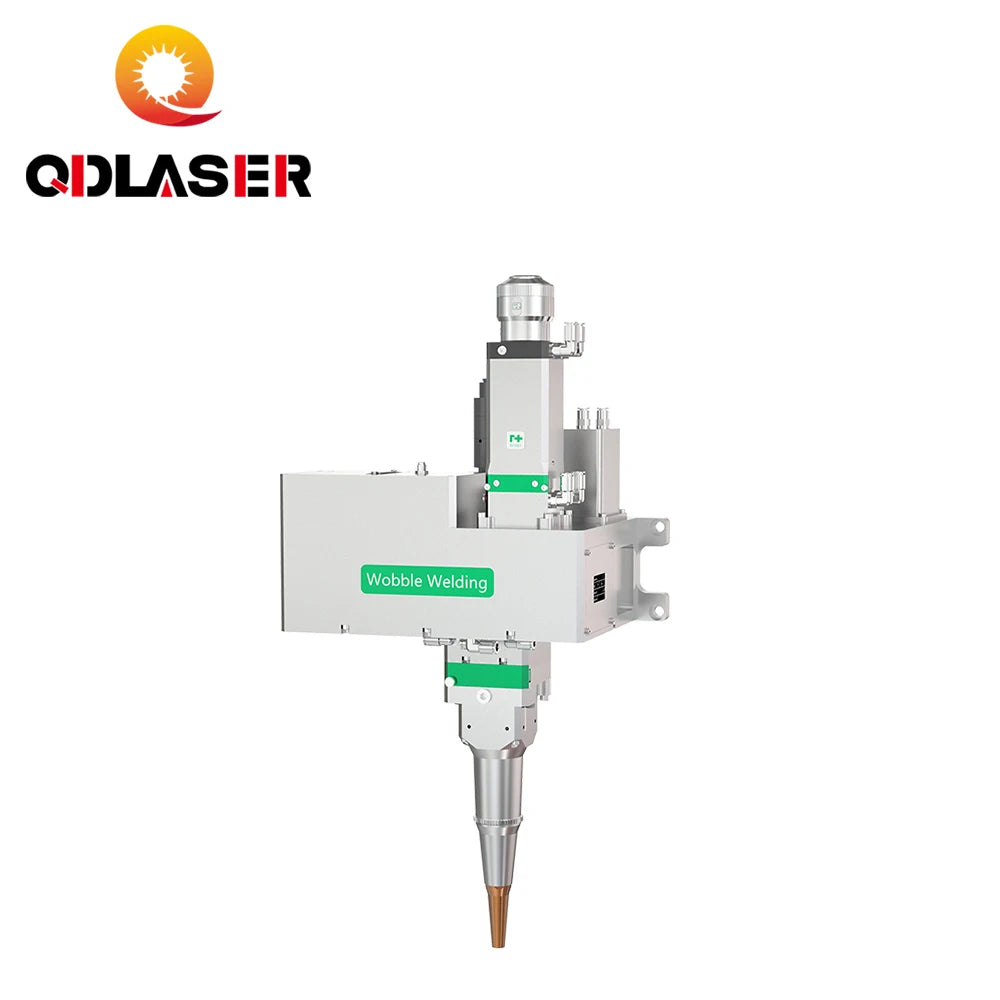

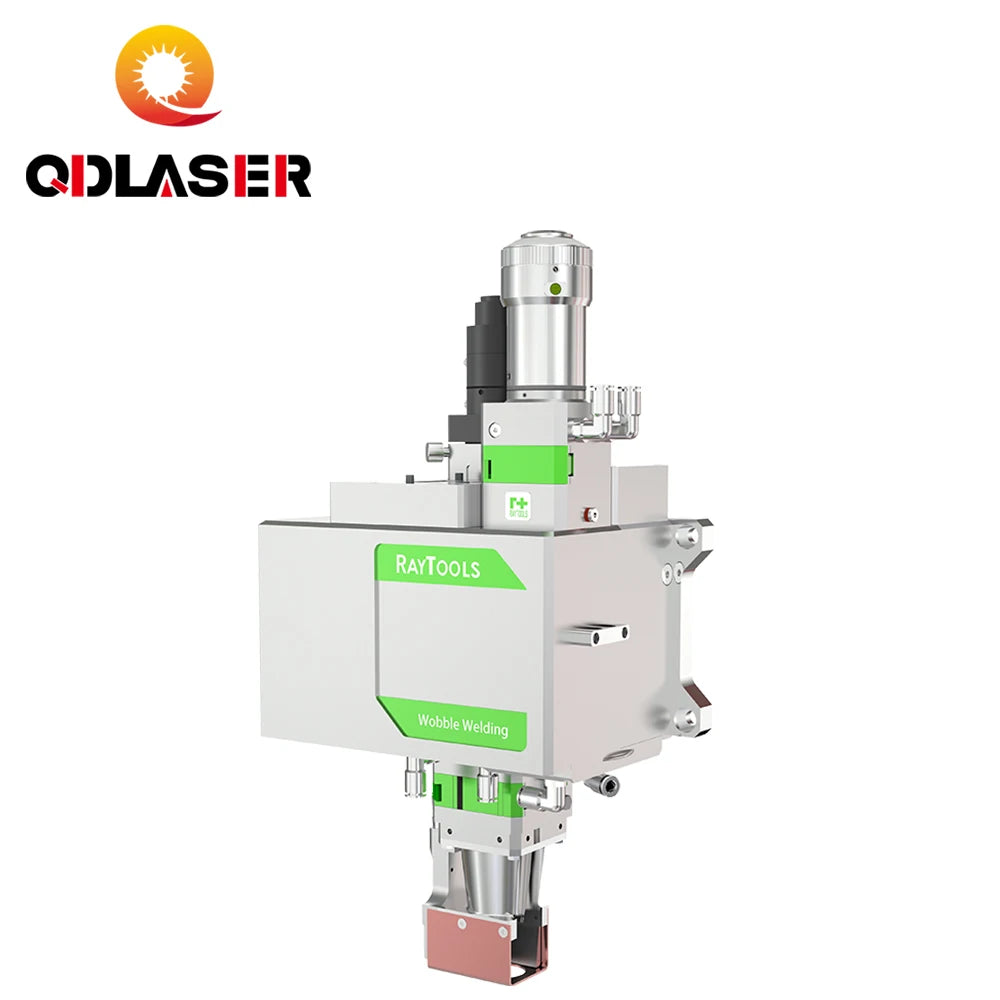

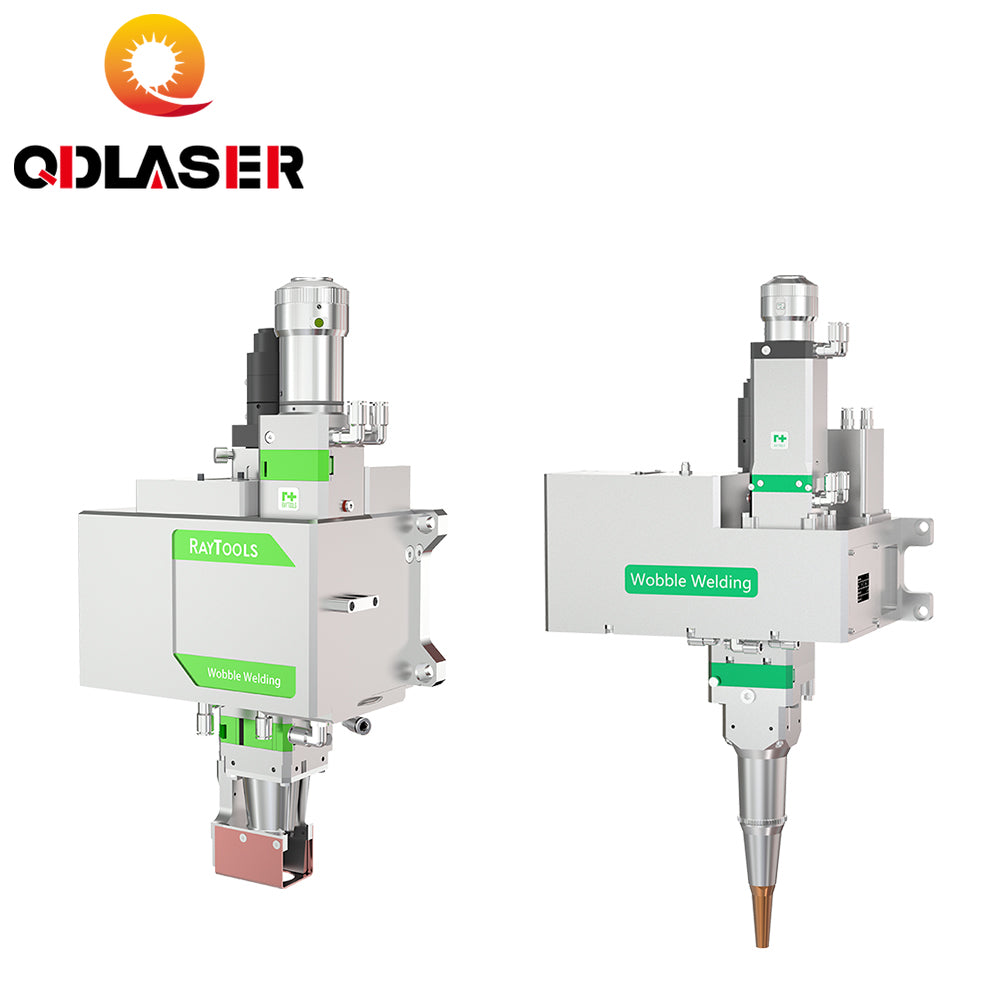

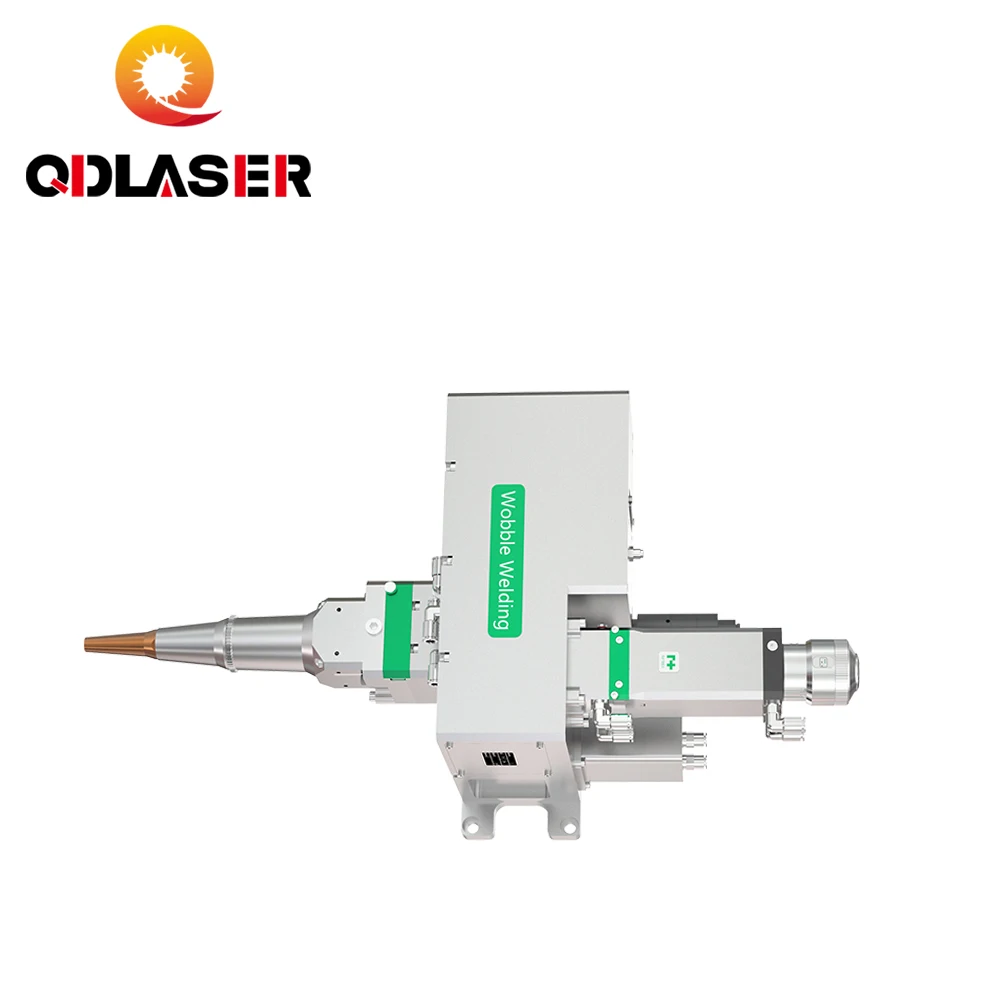

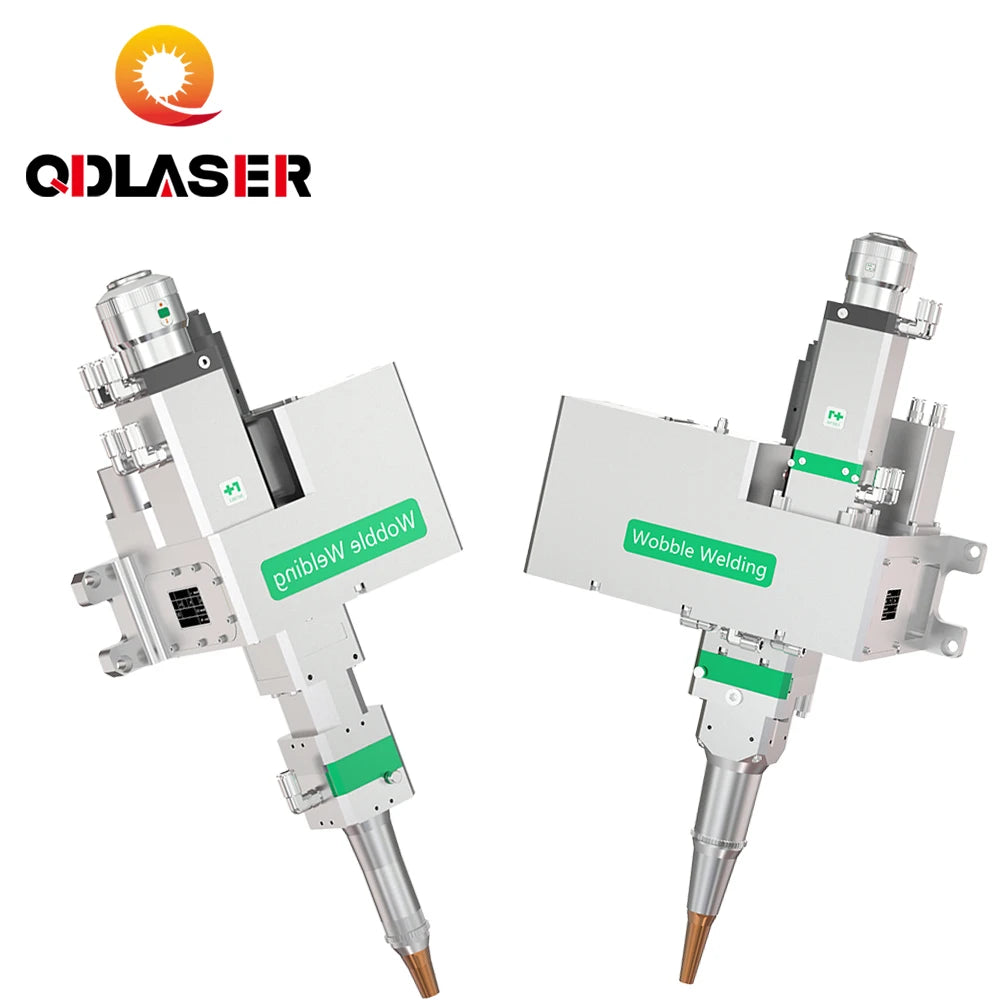

BF330-4F/BF330-6Fswing Welding Head for Raytools Fiber Laser Welding

BF330-4F/BF330-6Fswing Welding Head for Raytools Fiber Laser Welding

Regular price $4,800.00 USD
Regular price $4,800.00 USD Sale price $4,800.00 USD
Sale Sold out
model number

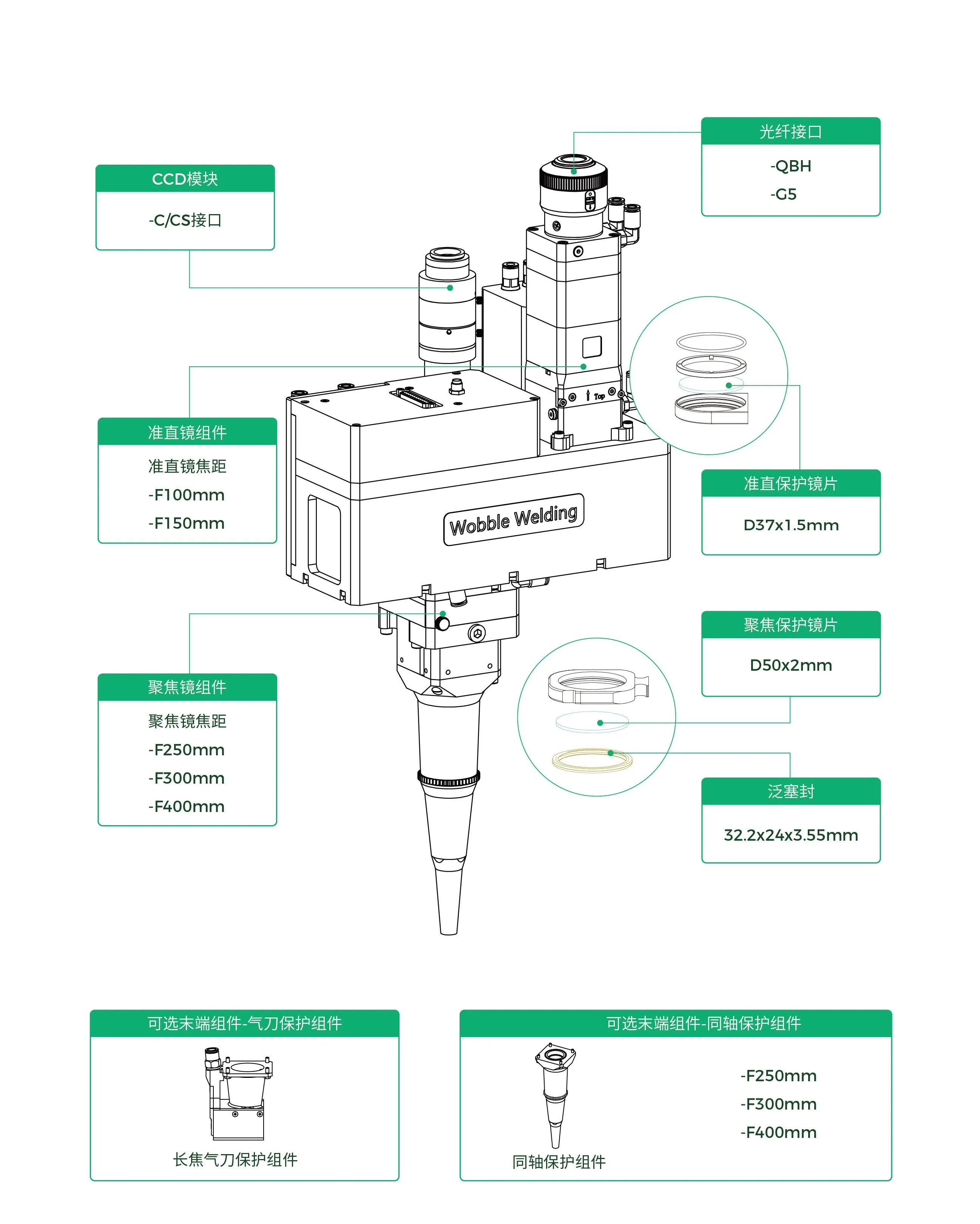

Product DescriptionBF330-4F/BF330-6Fswing Welding Head for Raytools Fiber Laser Welding







BF330-6F
High withstand power:
The maximum withstand power is up to 4kW, meeting the needs of the high-power welding market



Process advantages:
Increase melt width Increase clearance adaptability Reduce weld defects Excellent molding effect



Easy to automate:
Expandable seam tracking or positioning function, easy to realize robot automation integration
Premium airflow design:
Coaxial and side shaft protection nozzles and air knives are designed with smooth and efficient fluid structure, which can obtain high-quality molten pool protection effect and welding slag blowing effect



High scanning frequency and multiple motion paths:
Optimized optical structure and motion mechanism, different stirring paths and high stirring frequency to meet the needs of different high-speed stirring welding
BF330-4F
High power welding:
Can withstand up to 6KW high power swing welding



Excellent welding quality:
Low porosity, high mechanical properties, high quality weld surface



Rich scan graphics:
Continuous welding supports continuous circle, continuous straight line, continuous 8 type, continuous S type; spot welding supports spot welding circle, spot welding straight line, spot welding S type, spot welding C type, and spiral type
Expansion modules are rich:
Scalable temperature sensor, seam tracking or positioning and other functional modules, easy to achieve automated welding



Drawer mounts:
Quick and easy replacement of protective lenses



Efficient water cooling:
The overall circulating water cooling can work stably for a long time under high power



Efficient dustproof:
Reliable sealing design to improve service life
Specification
model number
BF330-4F
BF330-6F
Power level
4000W
6000W
Laser wavelength
1064nm
1064nm
Scanning size

Φ15mm
Scanning line speed

 ≤2800mm/s
Stirring frequency
≤1500Hz (depending on the stirring diameter)

Auxiliary gas pressure

6bar
Clear aperture
30mm
30mm
Weight
~9kg
~12kg
