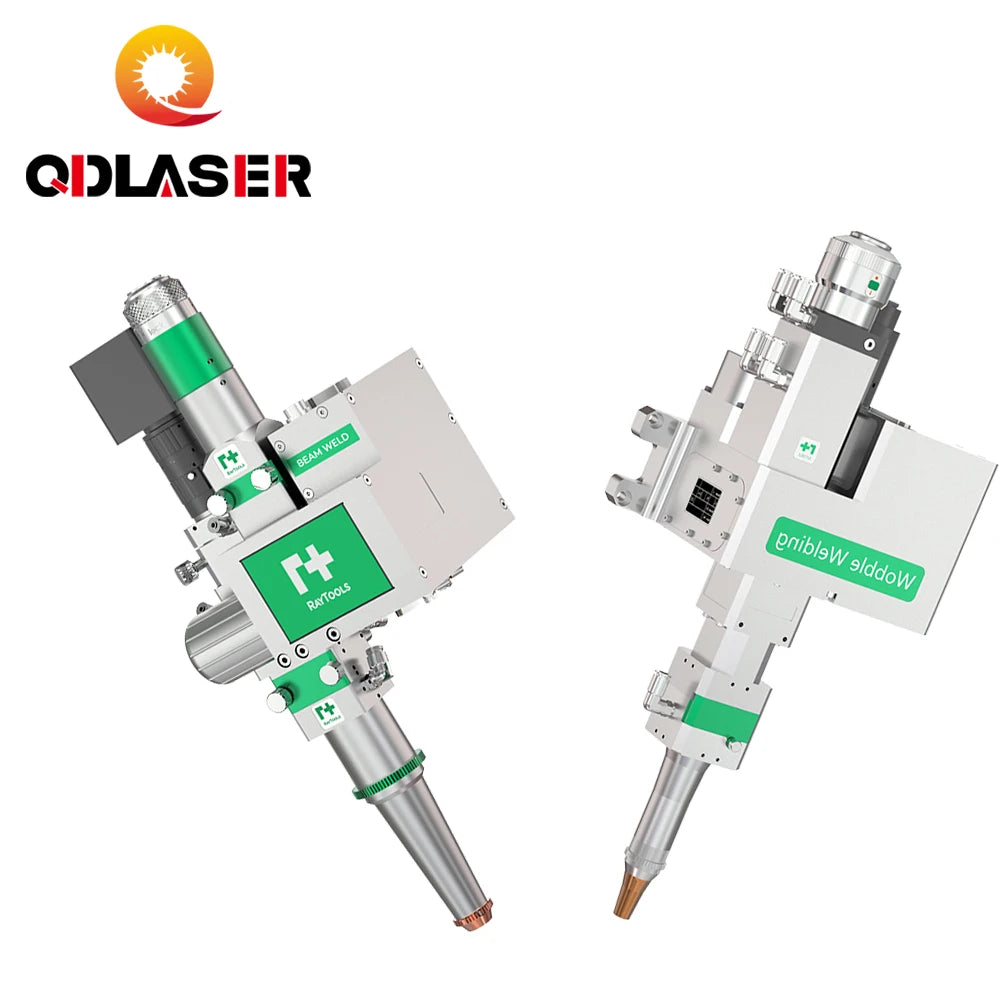

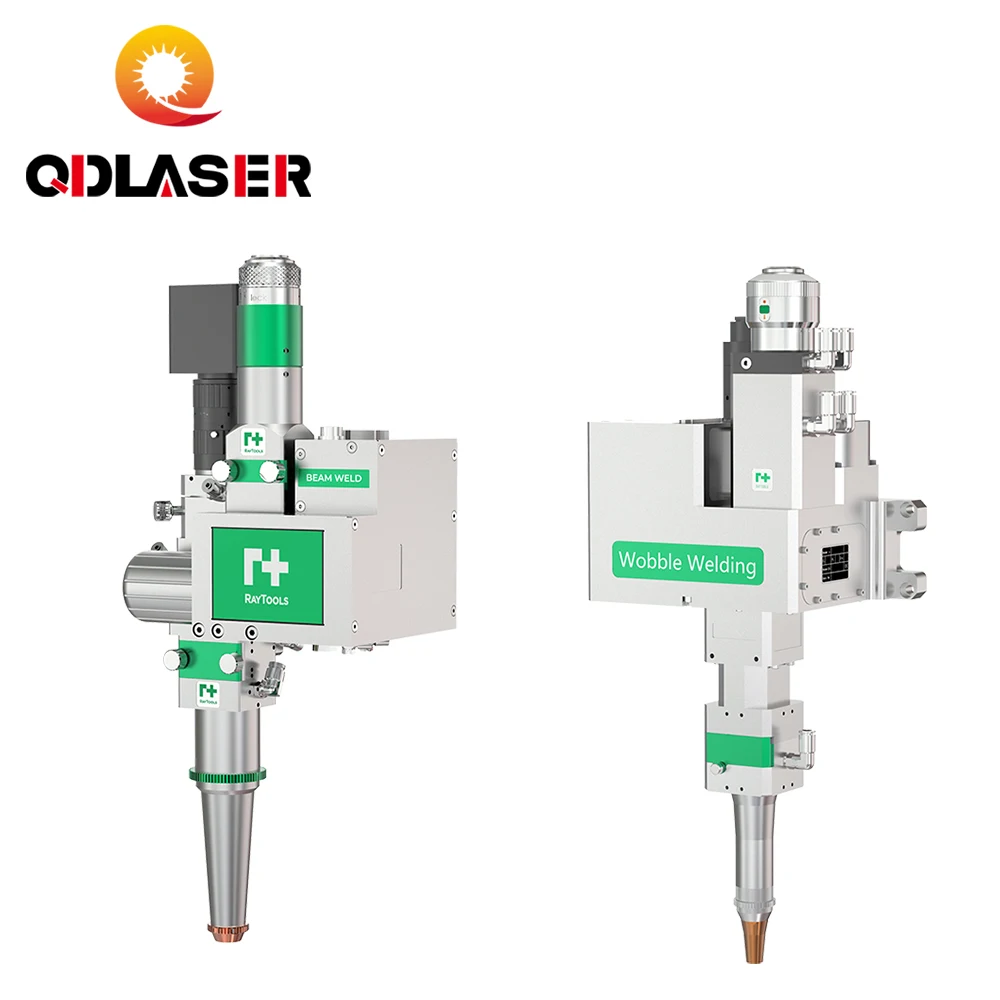

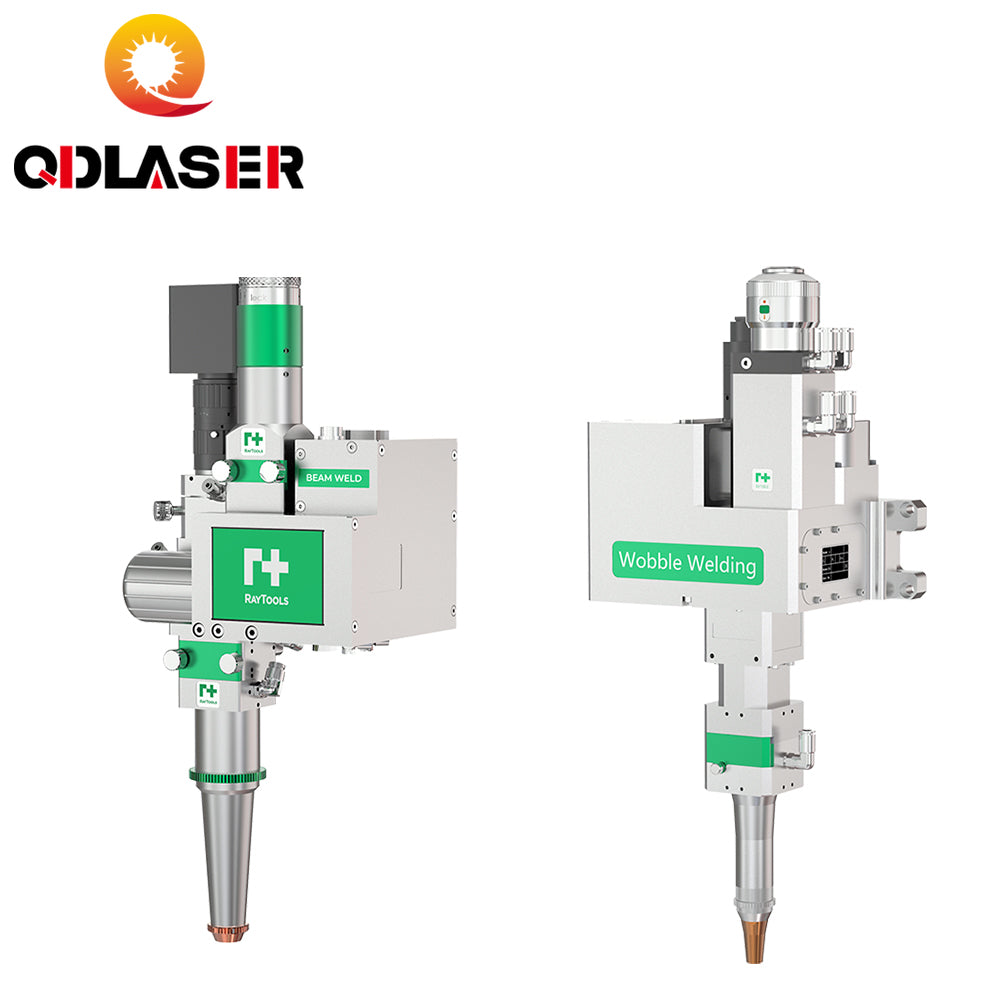

BF330-2S/ BF330-2F Swing Welding Head for Raytools Laser Welding

BF330-2S/ BF330-2F Swing Welding Head for Raytools Laser Welding

$4,000.00 USD
$4,000.00 USD $4,000.00 USD
Sale Sold out
model number
Product Description

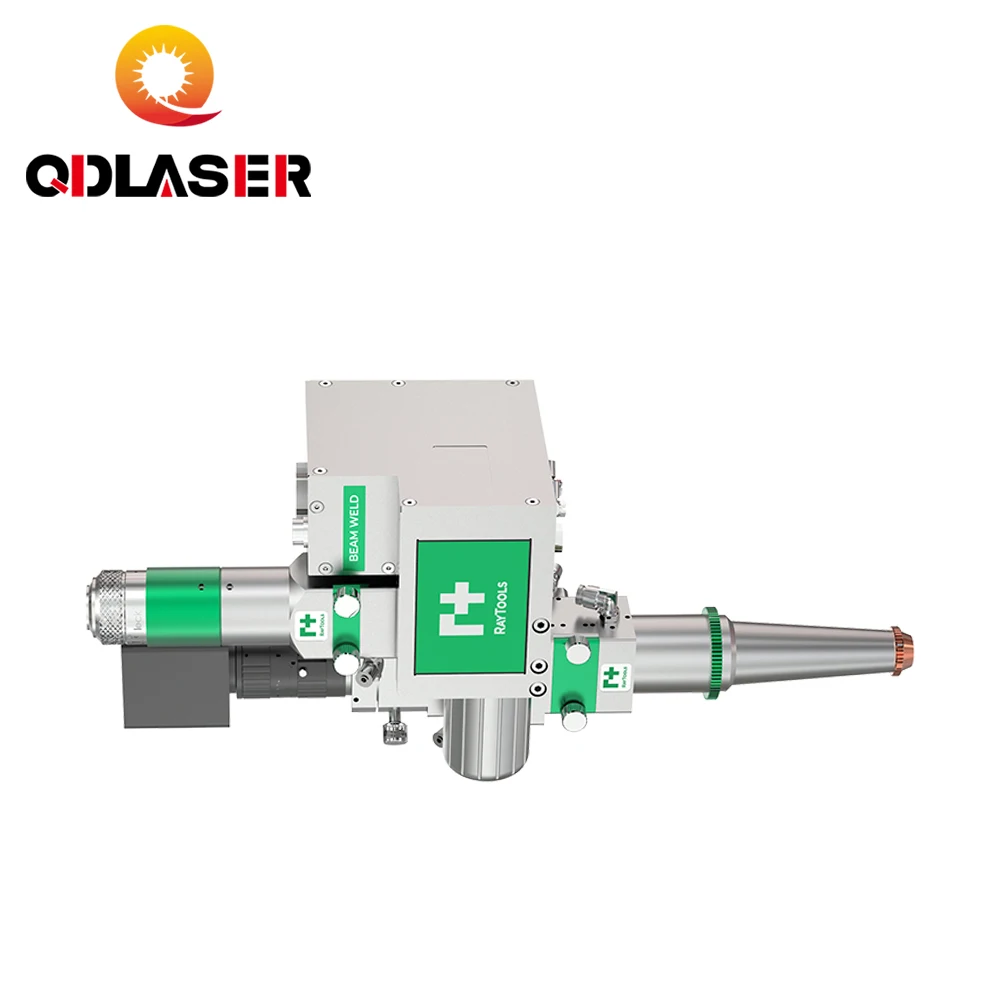

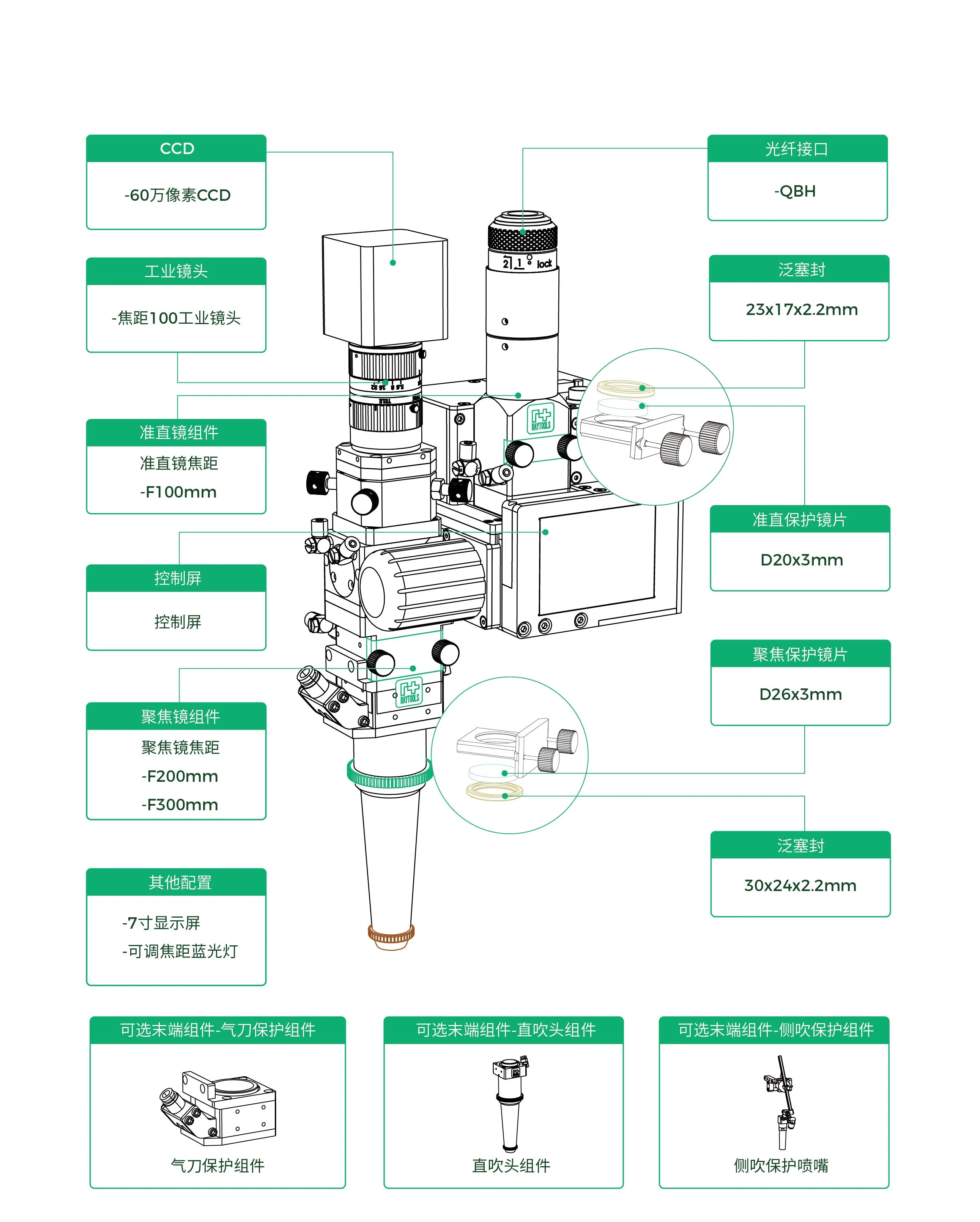

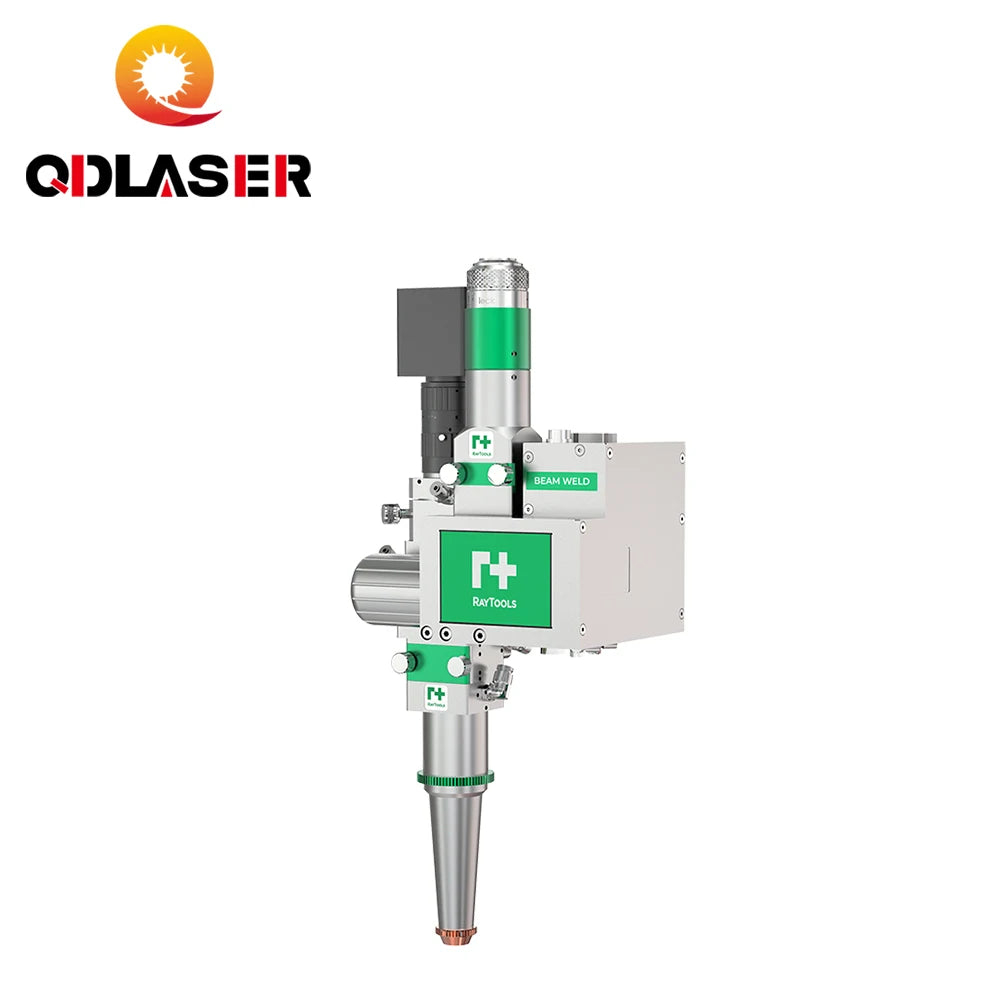

BF330-2S
Rich patterns:
Display control, compatible with offline, PC control and other working modes



Process features:
8 swing patterns for different process requirements



Design Optimization:
Double protection window design, dust-proof and slag-proof design, efficient water cooling, stable and reliable
Rich optional configuration:
Optional cameras, industrial lenses, monitors and blue light sources available



Premium Optical Solutions:
Optical concept optimized for monitoring, making the welding process clearly visible



Stable and convenient:
Integrated drive and control, strong anti-interference ability, simple external wiring

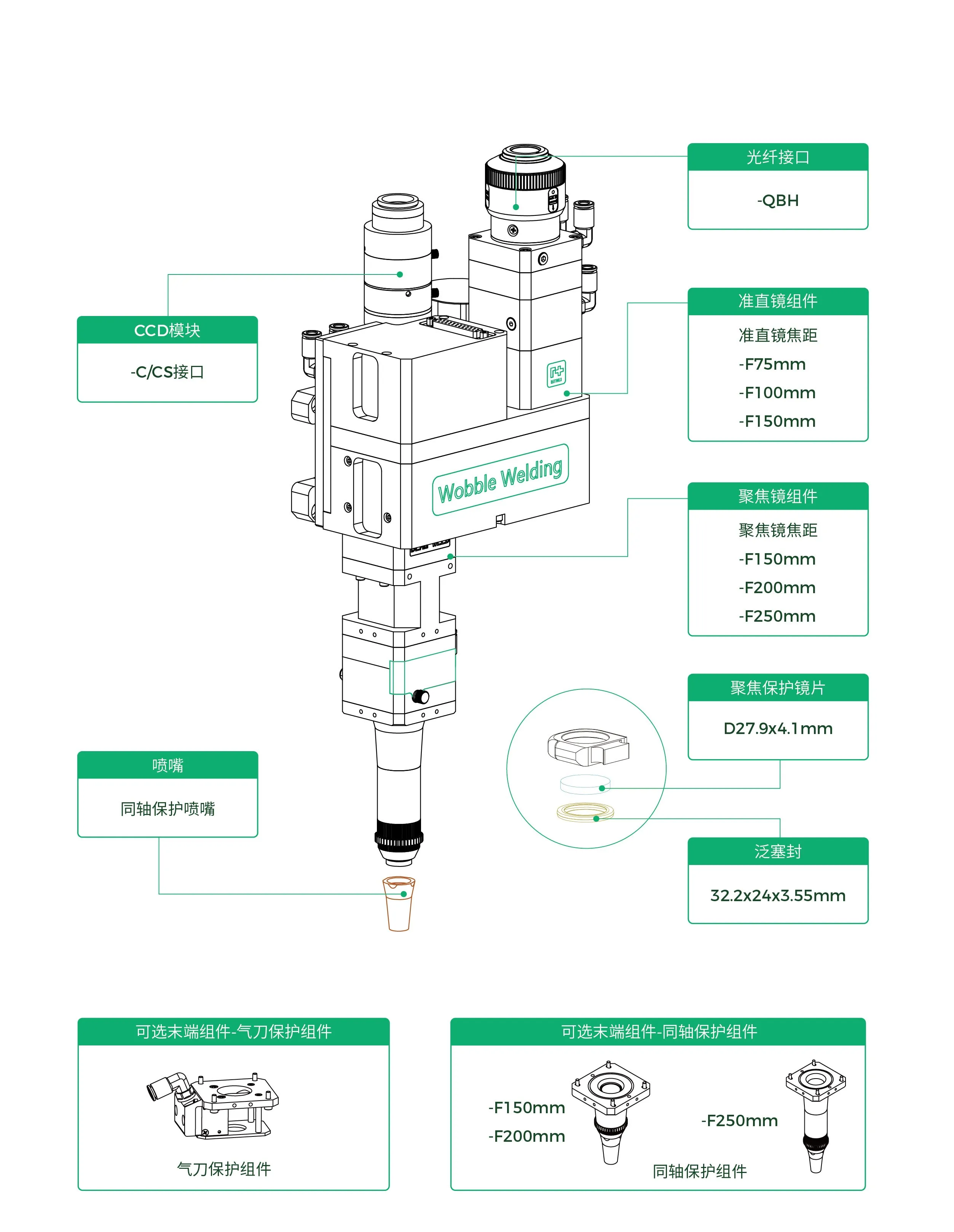

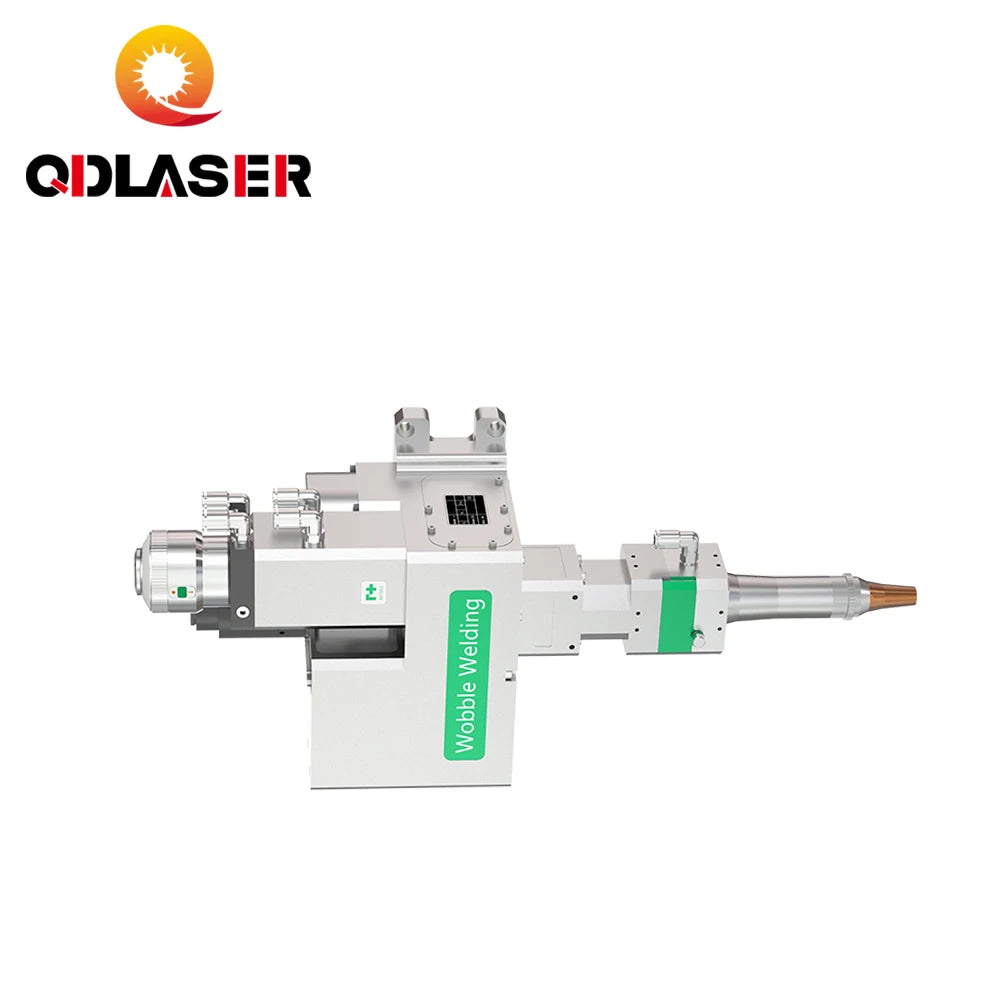

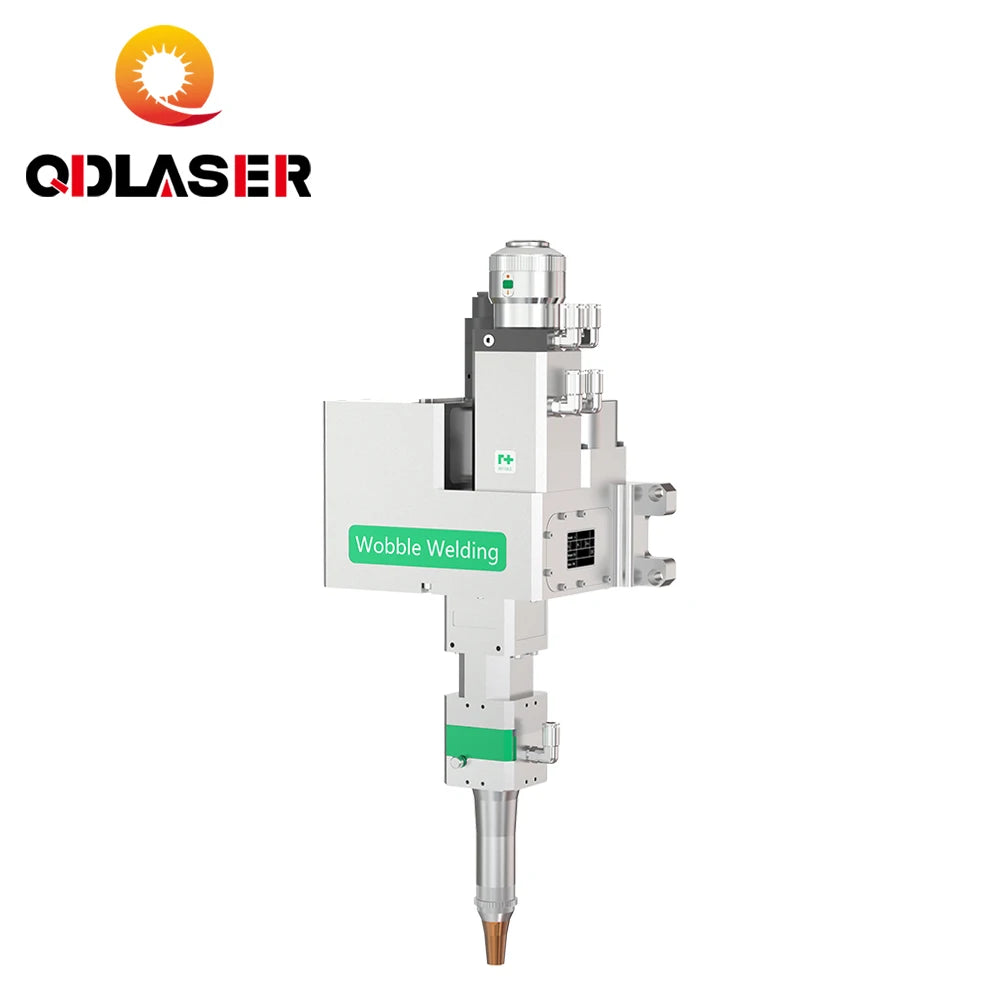

BF330-2F
Excellent welding quality:
Large weld seam, low porosity, high mechanical properties, high surface quality



Rich scan graphics:
Continuous scanning welding supports circle, polyline, sine curve, and scanning spot welding supports circle, line segment, C type, S type



Rich module selection:
It can be adapted to the paraxial light source to realize TCP calibration, the paraxial blue point light source to realize CCD image illumination, the position sensor to realize positioning tracking, the temperature sensor to realize penetration welding, and the paraxial wire feeding mechanism to realize wire filling welding
Lightweight low to medium power scanning welding head:
The maximum laser power is 2KW, and the weight of the whole machine is 5.5kg
Specification
model number
BF330-2S
BF330-2F
Power level
2000W
2000W
Laser wavelength

1064nm
X-axis swing range
0-5mm

Y-axis swing range
0-5mm

Stirring frequency
0-500Hz
≤1500Hz (depending on the stirring diameter)
Auxiliary gas pressure

Air knife: 6bar - Welding shielding gas: 25L/min
Clear aperture
20mm
24mm
Weight
~3kg
~5.5kg
