When the welding gap is large, adjusting the spot spacing can significantly improve the welding quality and make the weld appearance more beautiful

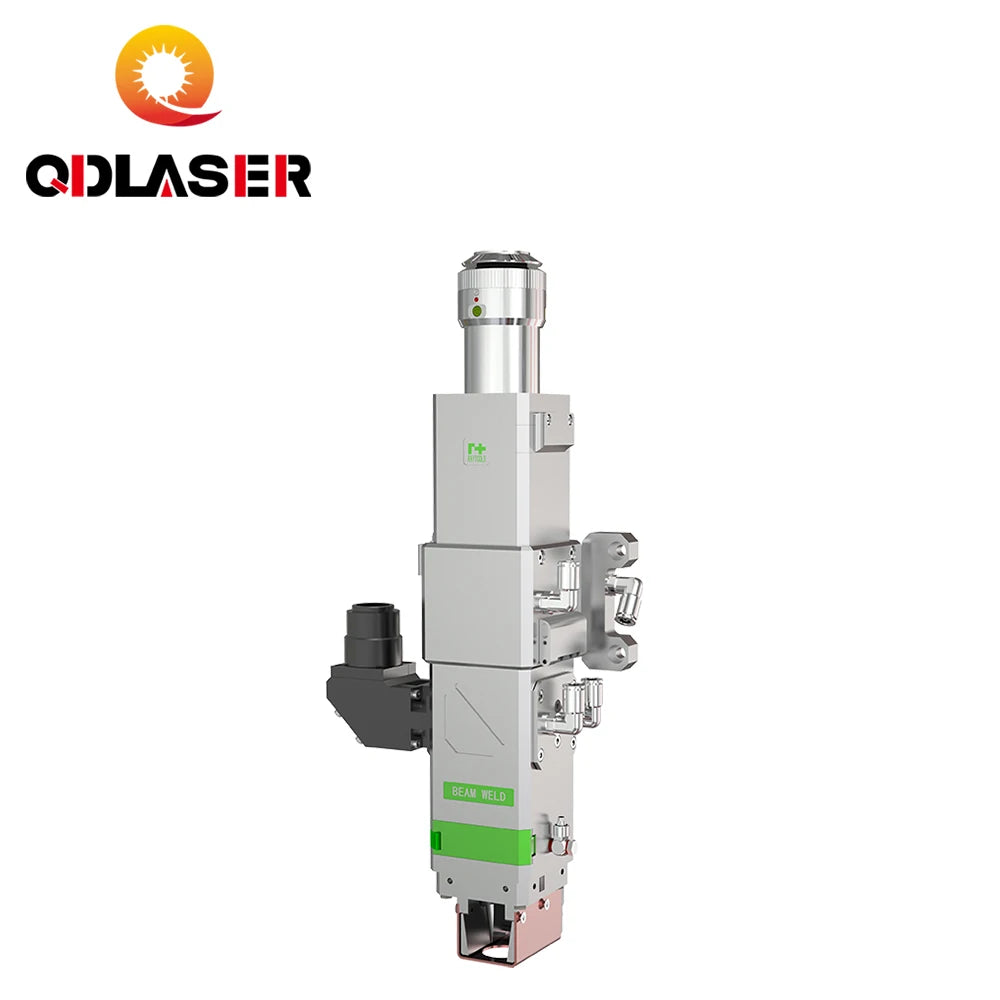

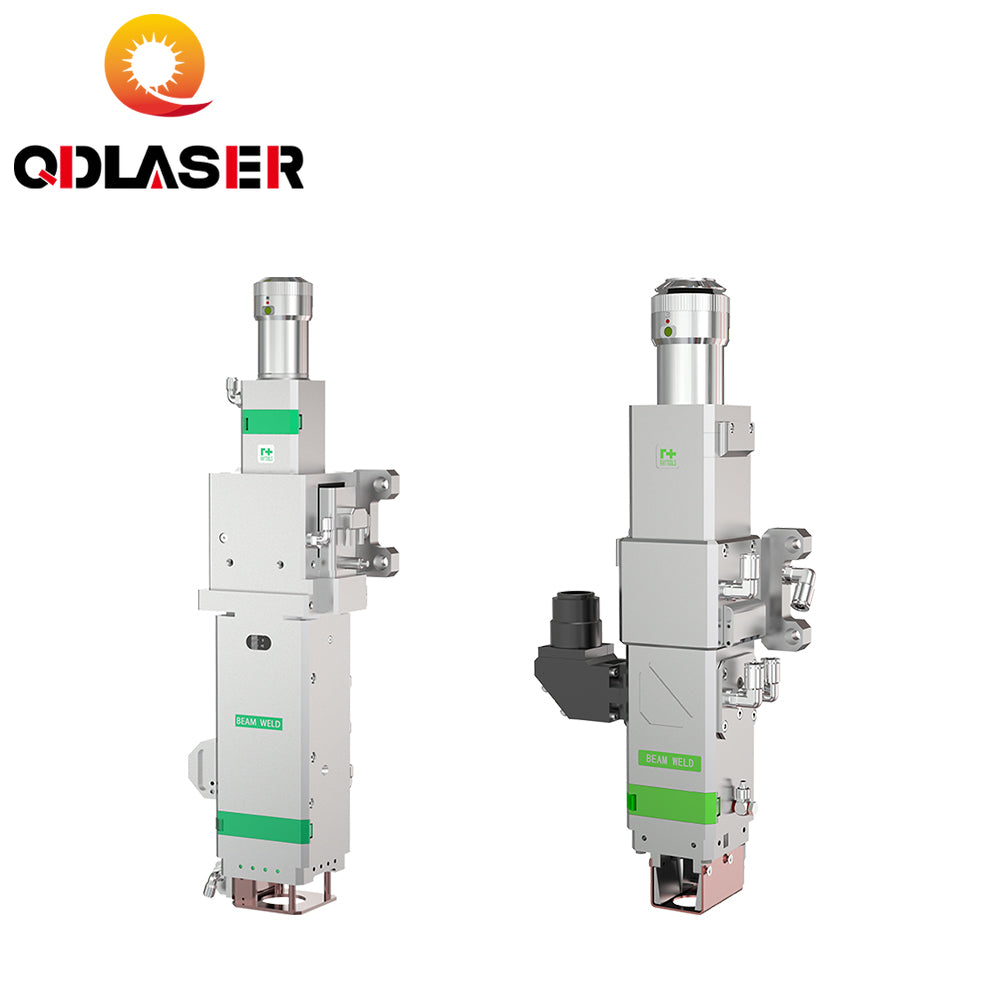

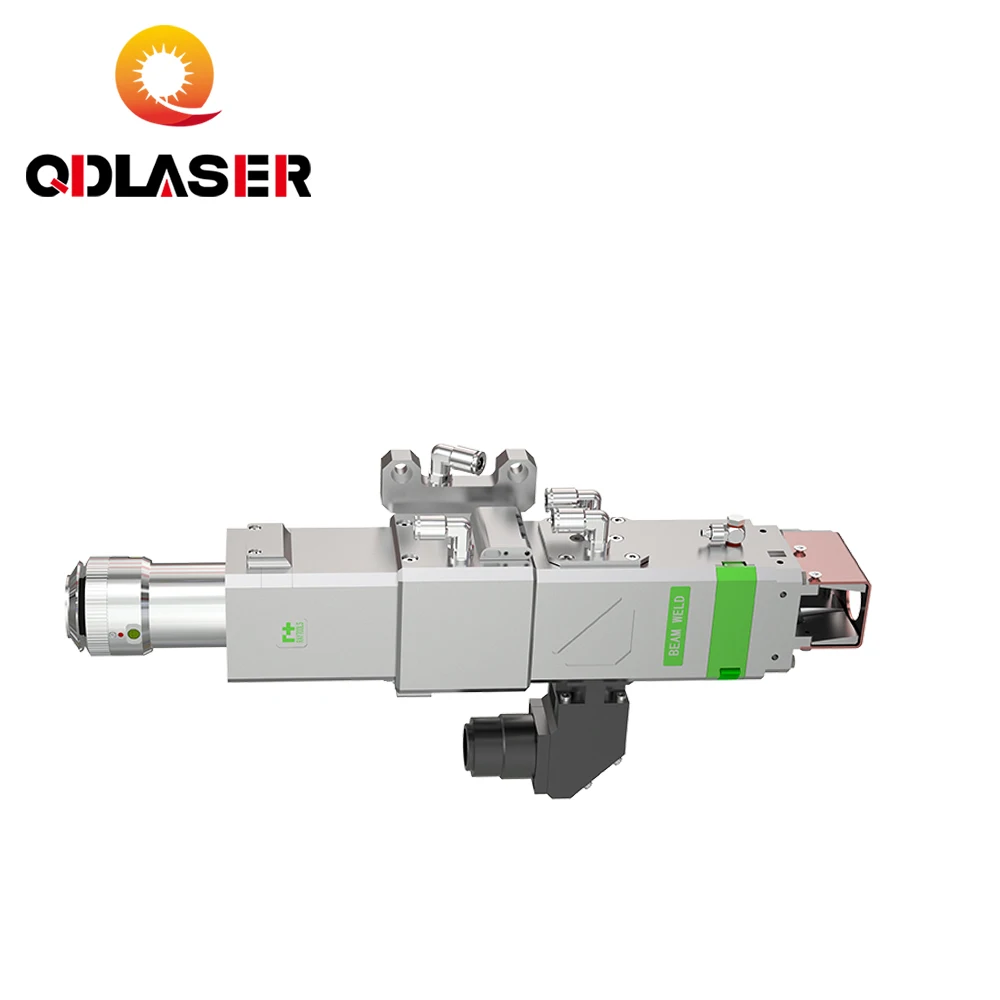

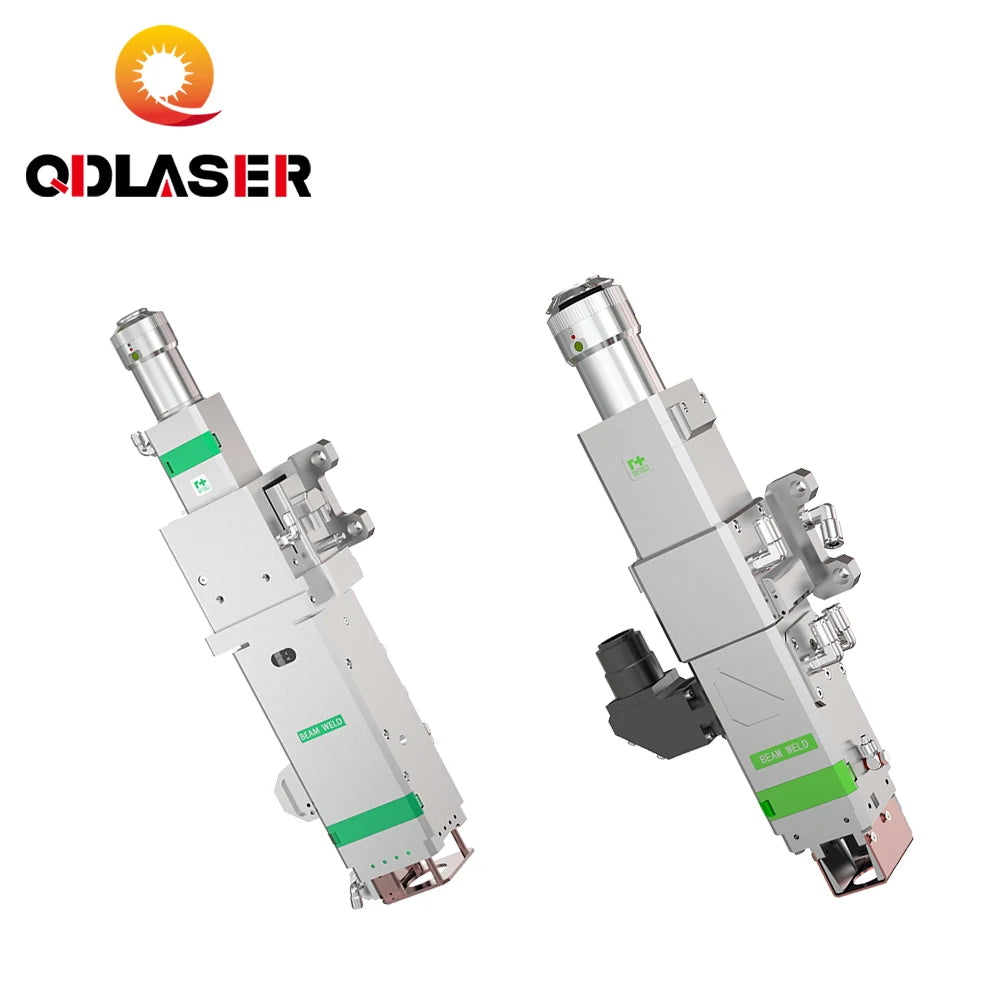

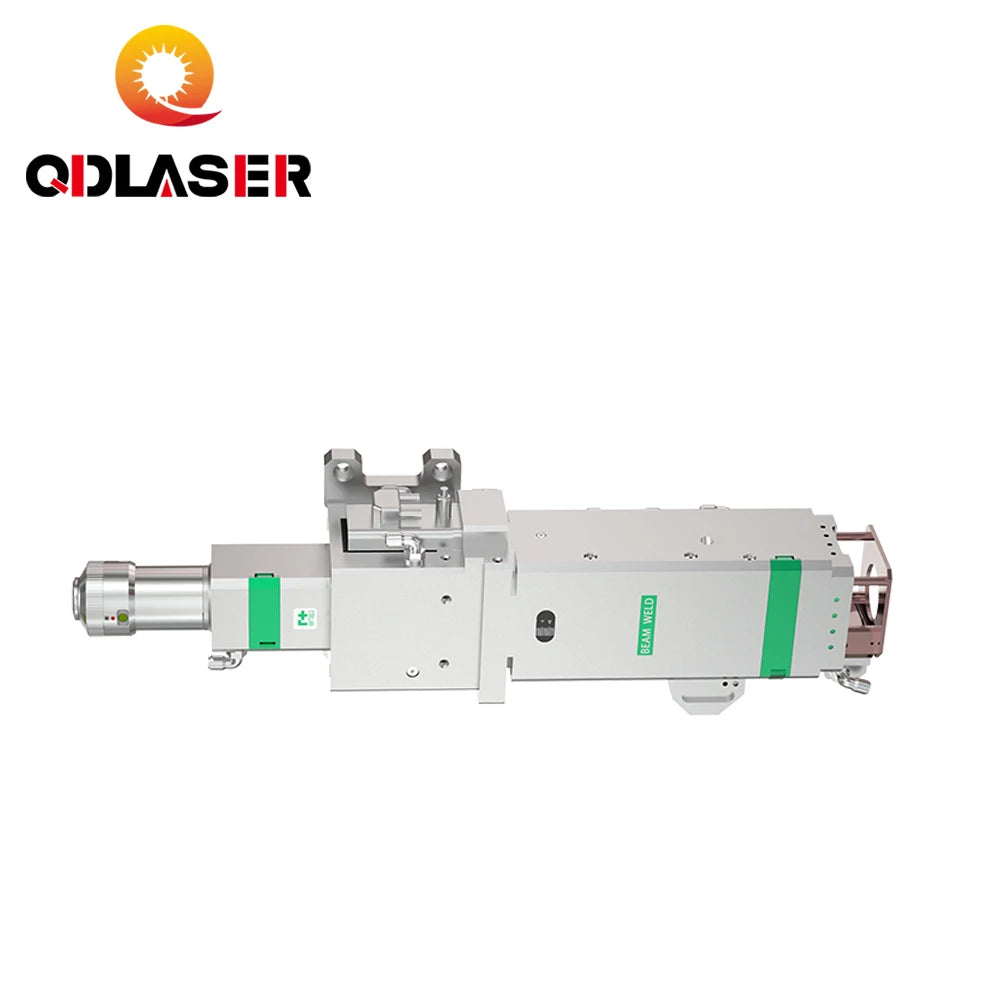

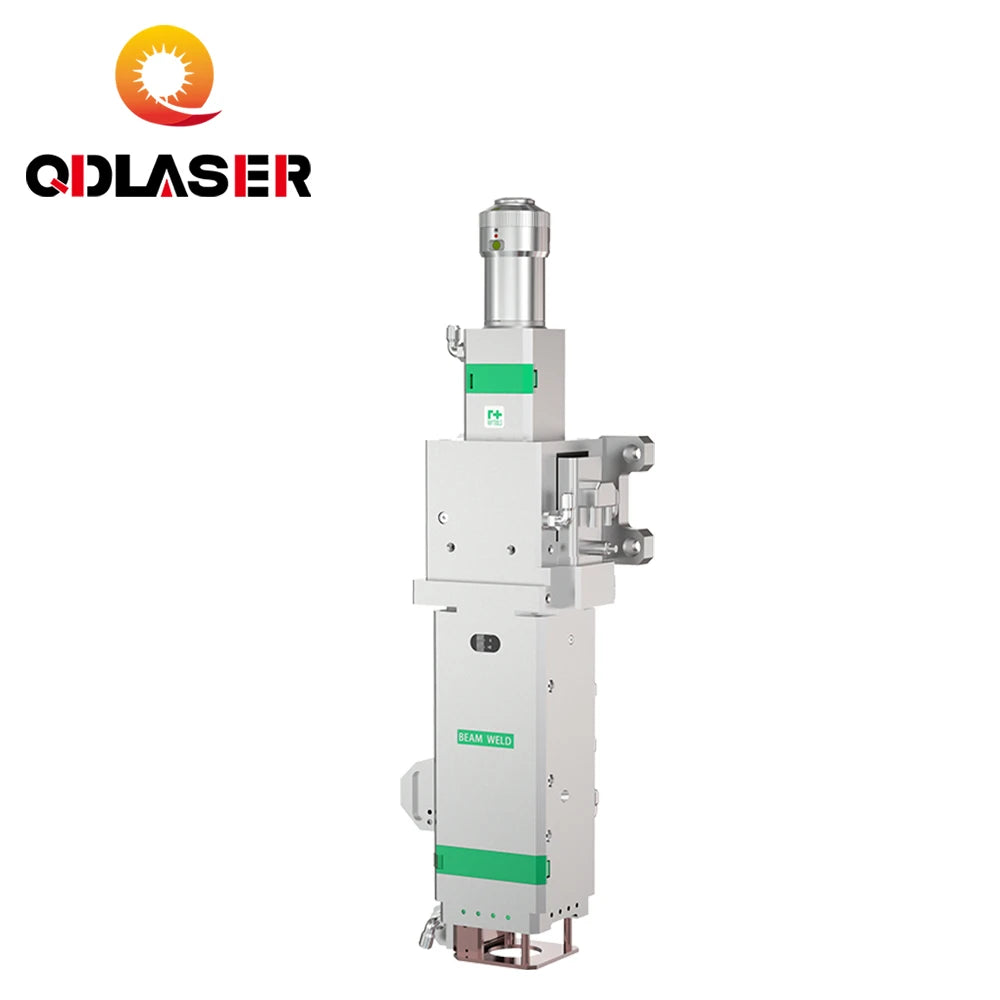

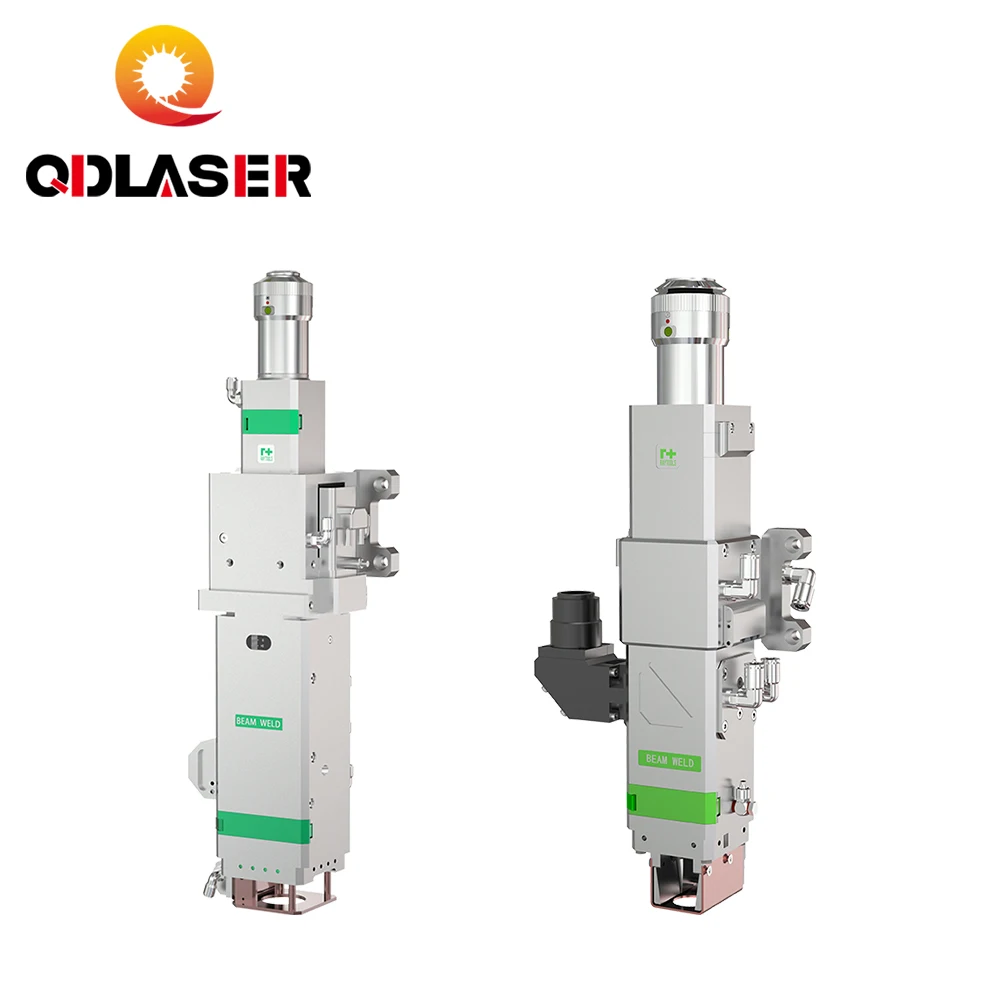

BF310/BF320 Double Focus Rotary Welding Head for raytools Fiber Laser Welding
BF310/BF320 Double Focus Rotary Welding Head for raytools Fiber Laser Welding
Regular price
$3,900.00 USD
Regular price
$3,900.00 USD
Sale price
$3,900.00 USD
Unit price
per
Couldn't load pickup availability
Product Description

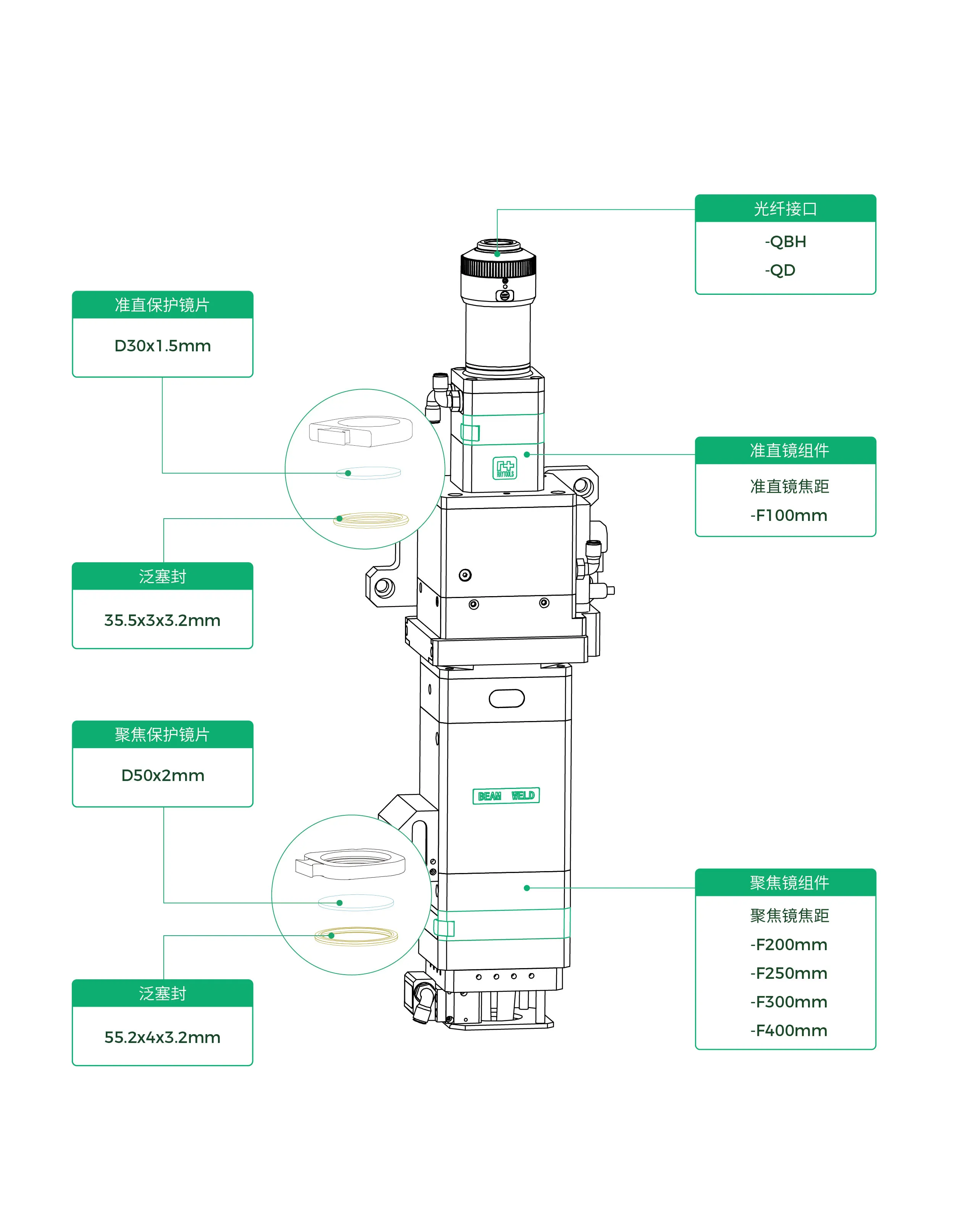

BF310
High clearance tolerance:
Expansion modules are rich:
Extensible modules such as seam tracking or positioning function, easy to realize automatic welding
Premium airflow design:
The side shaft protection nozzle and air knife are designed with smooth and efficient fluid structure, which can obtain the best molten pool protection effect and welding slag blowing effect.
The spot spacing and position are adjustable:
The direction of the spot can be adjusted through the transmission mechanism. In addition, through the precise adjustment mechanism, the distance of the spot can be adjusted to meet the welding requirements of different welds.
Spot energy distribution adjustment range:
23%: 77% — 77%: 23%
Special welding is more beneficial:
For special welding such as unequal thickness tailor welding, dissimilar material welding, galvanized sheet welding, etc., the effect is more stable and the quality is better

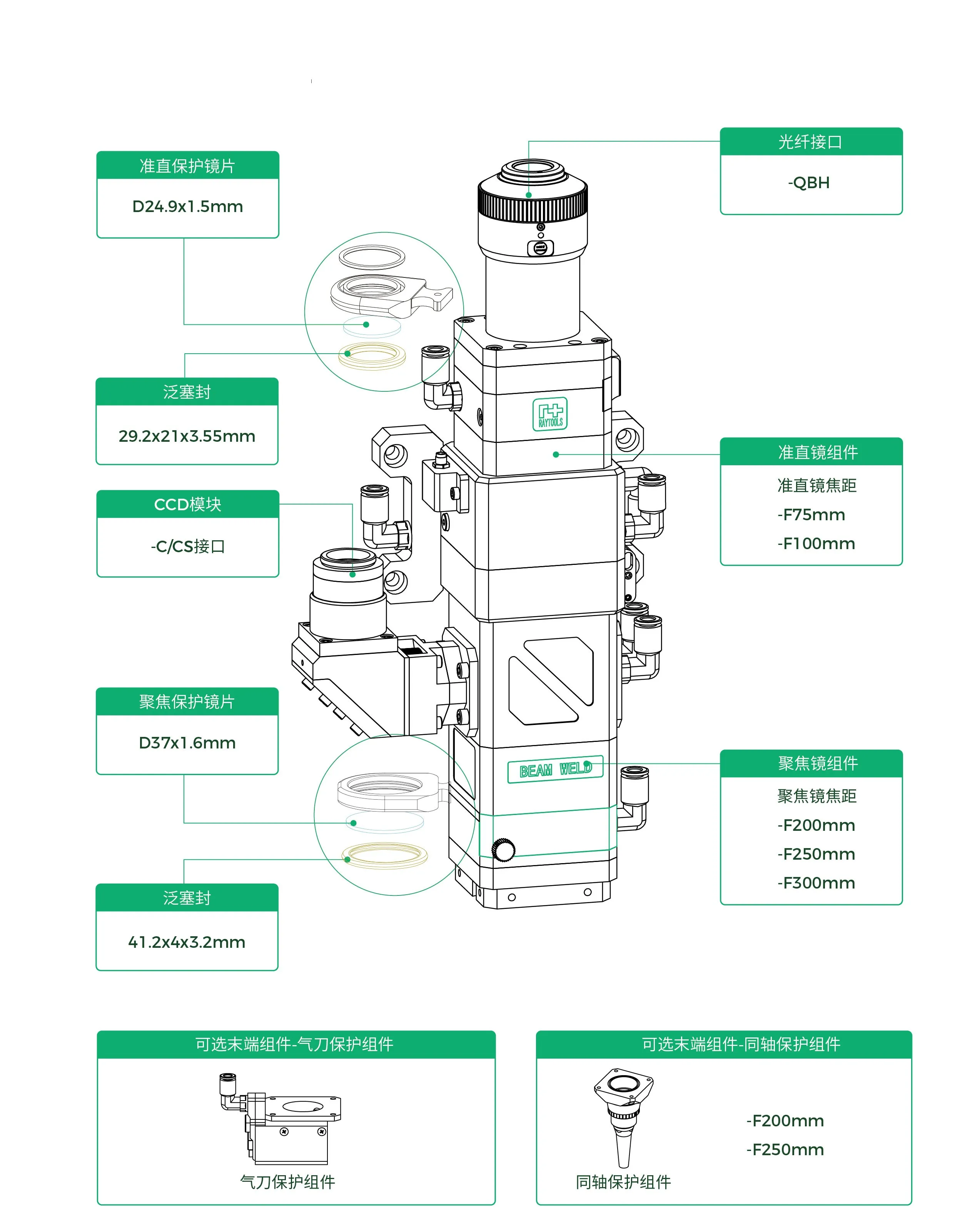

BF320
High welding quality:
Improve the smoothness of the weld surface, reduce the internal pores of the weld, and improve the weld strength; reduce spatter during the welding process
Graphics adjustable:
Adjustable size and frequency of drawing circles
Drawer mounts:
Quick and easy replacement of protective lenses
Efficient water cooling:
The overall circulating water cooling can work stably for a long time under high power
Efficient dustproof:
Reliable sealing design to improve service life
Specification
|
model number
|
BF310
|
BF320
|
|
Power level
|
4000W
|
3000W
|
|
Laser wavelength
|
1064nm
|
1064nm
|
|
Rotation range
|
0-360°
|
|
|
Drawing circle range
|
|
0-4mm (focus 250mm)
|
|
Circle frequency
|
|
0-200Hz
|
|
Auxiliary gas pressure
|
Air knife: 6bar
Welding shielding gas: 10-25L/min
|
6bar
|
|
|
|
|
|
Clear aperture
|
37mm
|
20mm
|
|
Weight
|
~8.5kg
|
~4.5kg
|
