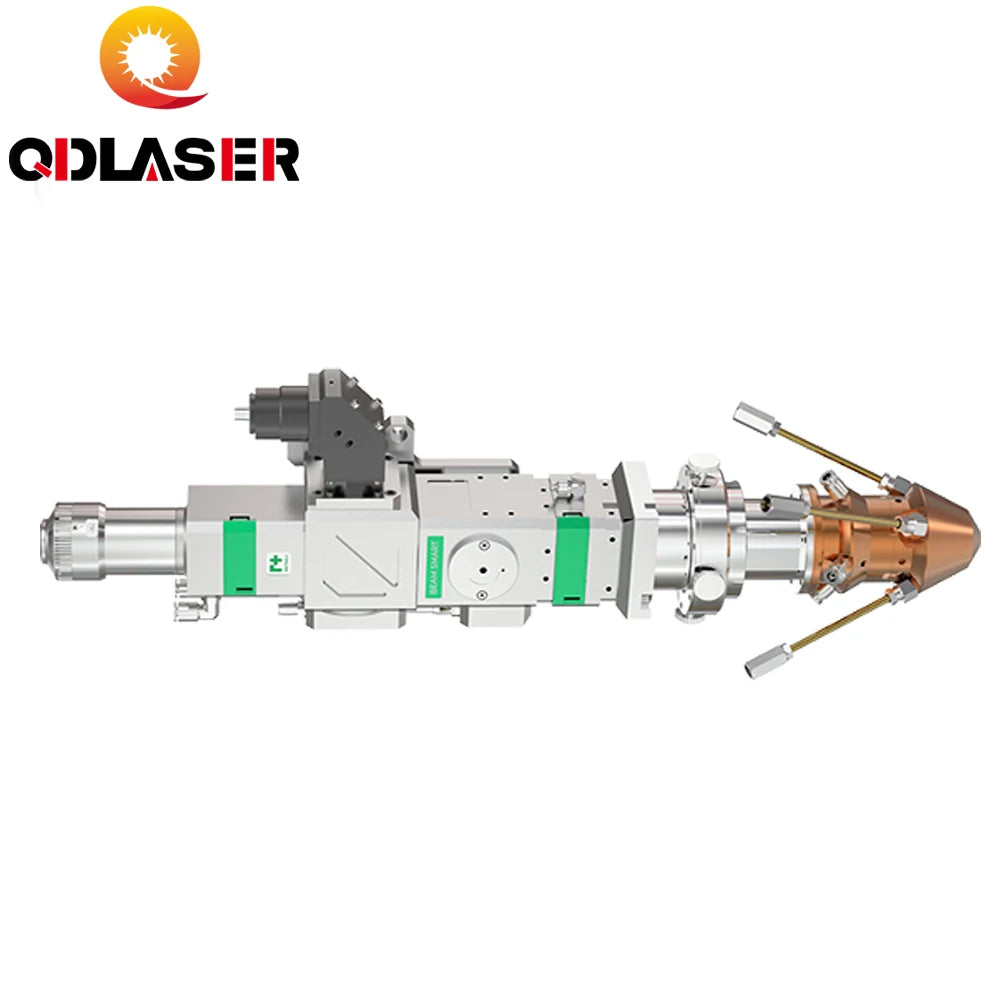

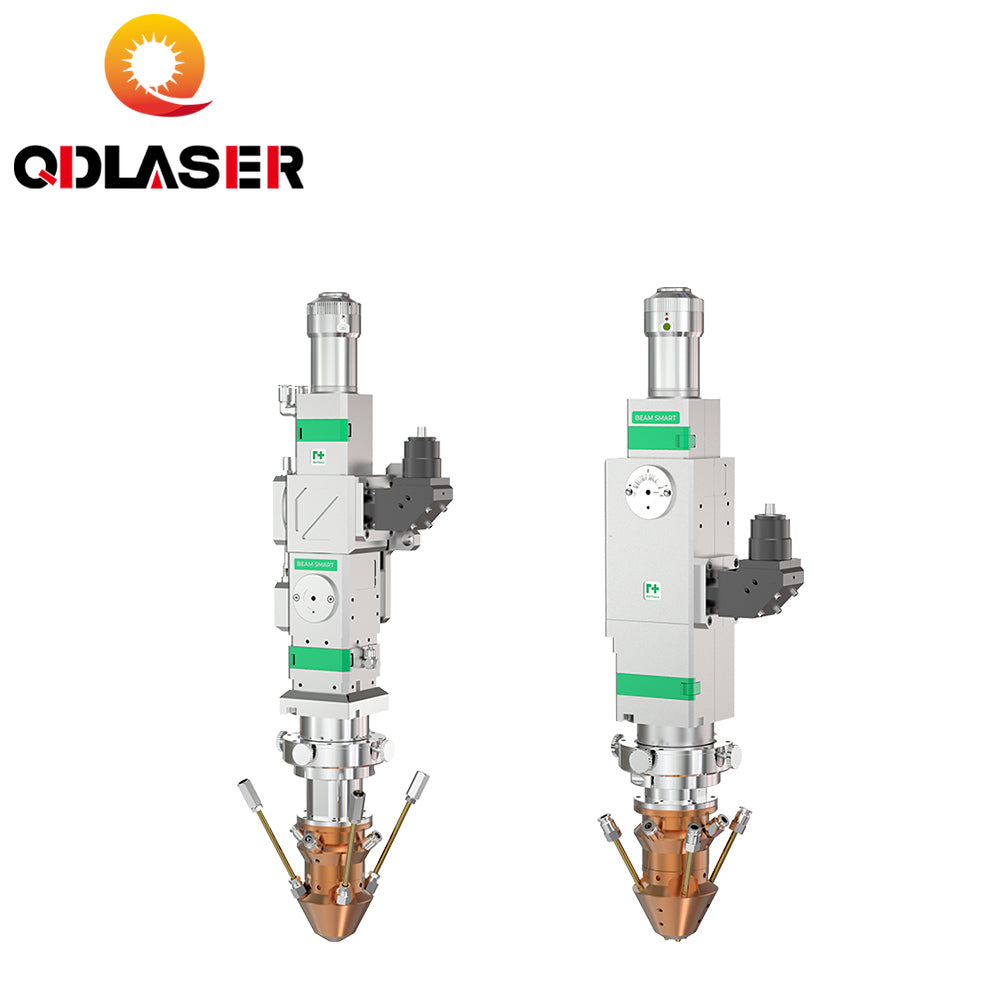

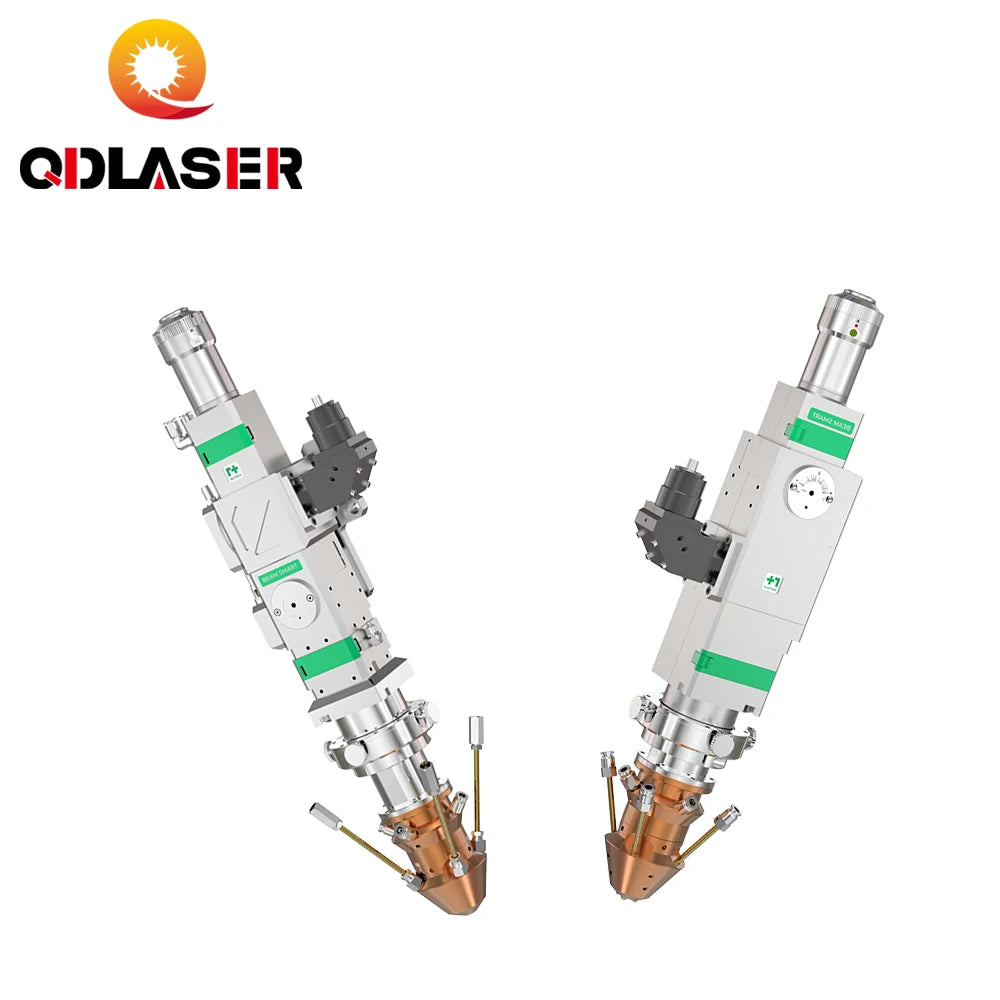

BC104 BC106 Transmission Laser Cladding Head for Raytools Use to Surface Treatment
BC104 BC106 Transmission Laser Cladding Head for Raytools Use to Surface Treatment
Regular price
$6,000.00 USD
Regular price
$6,000.00 USD
Sale price
$6,000.00 USD
Unit price
per
Couldn't load pickup availability
Product Description

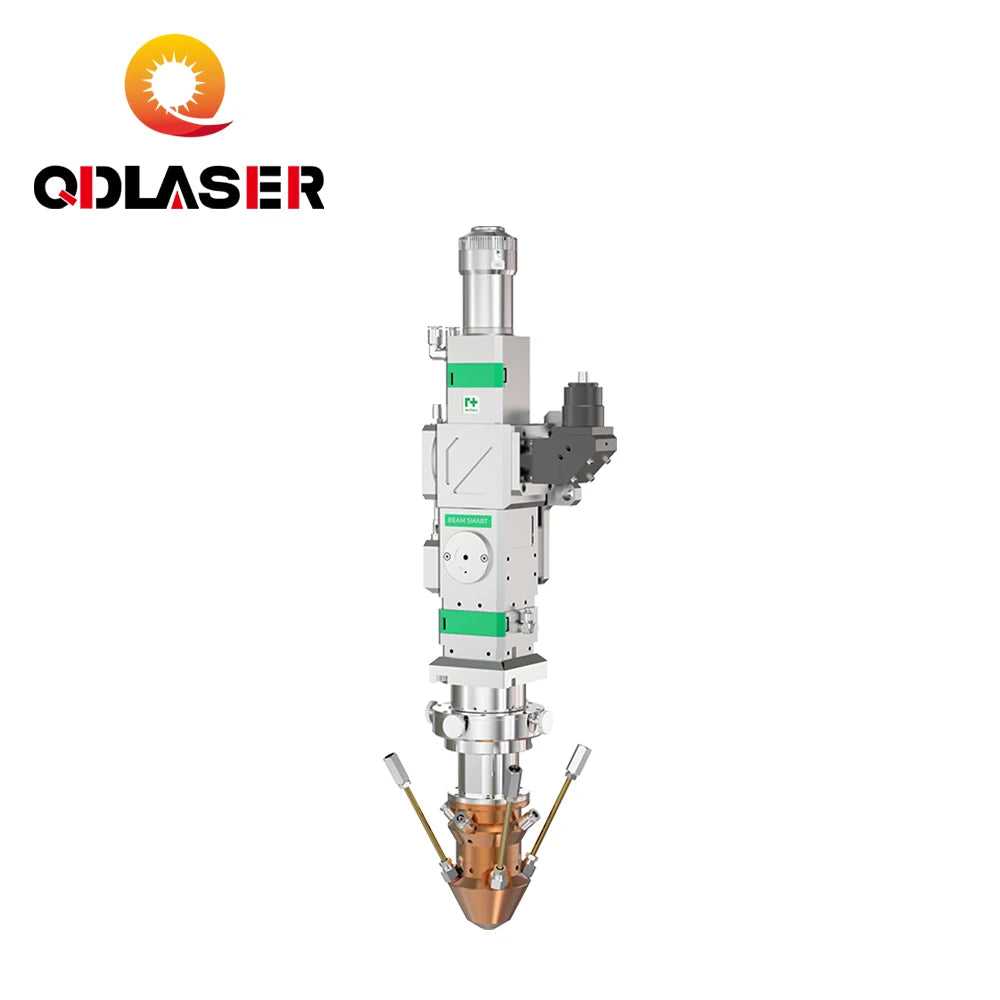

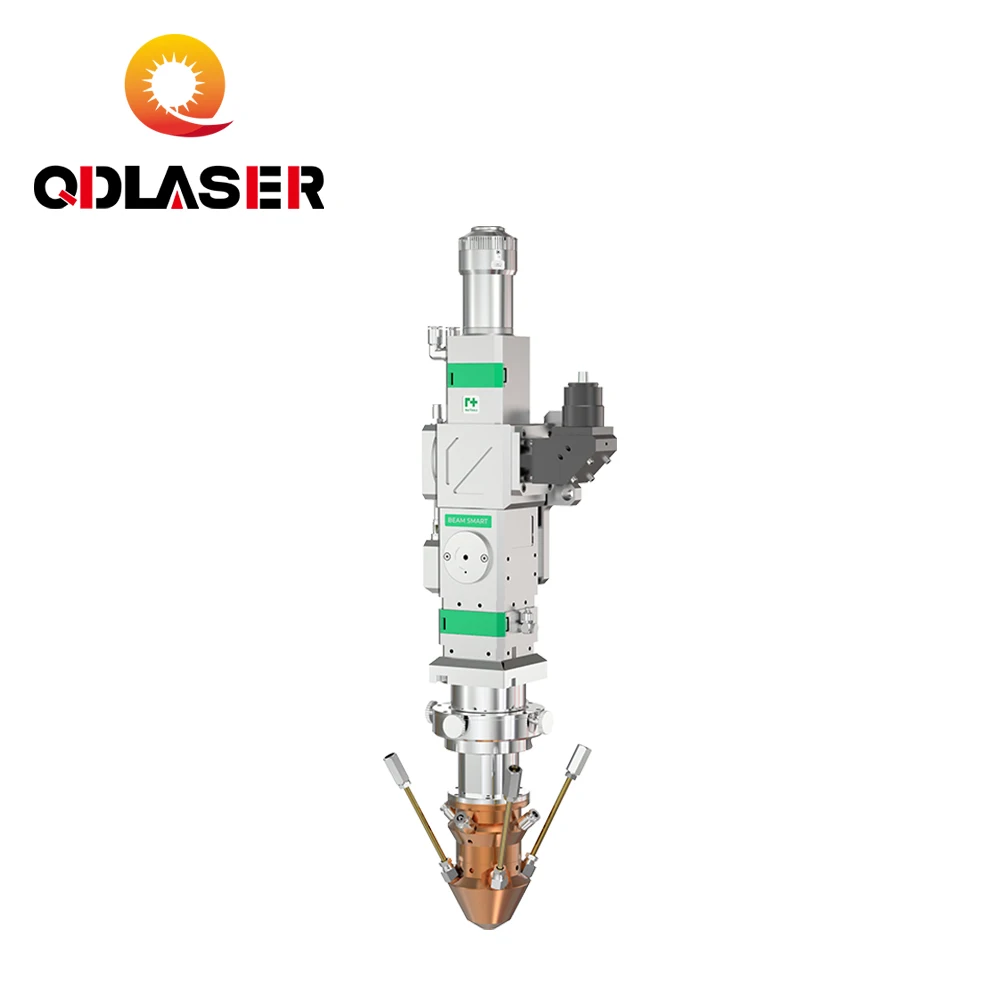

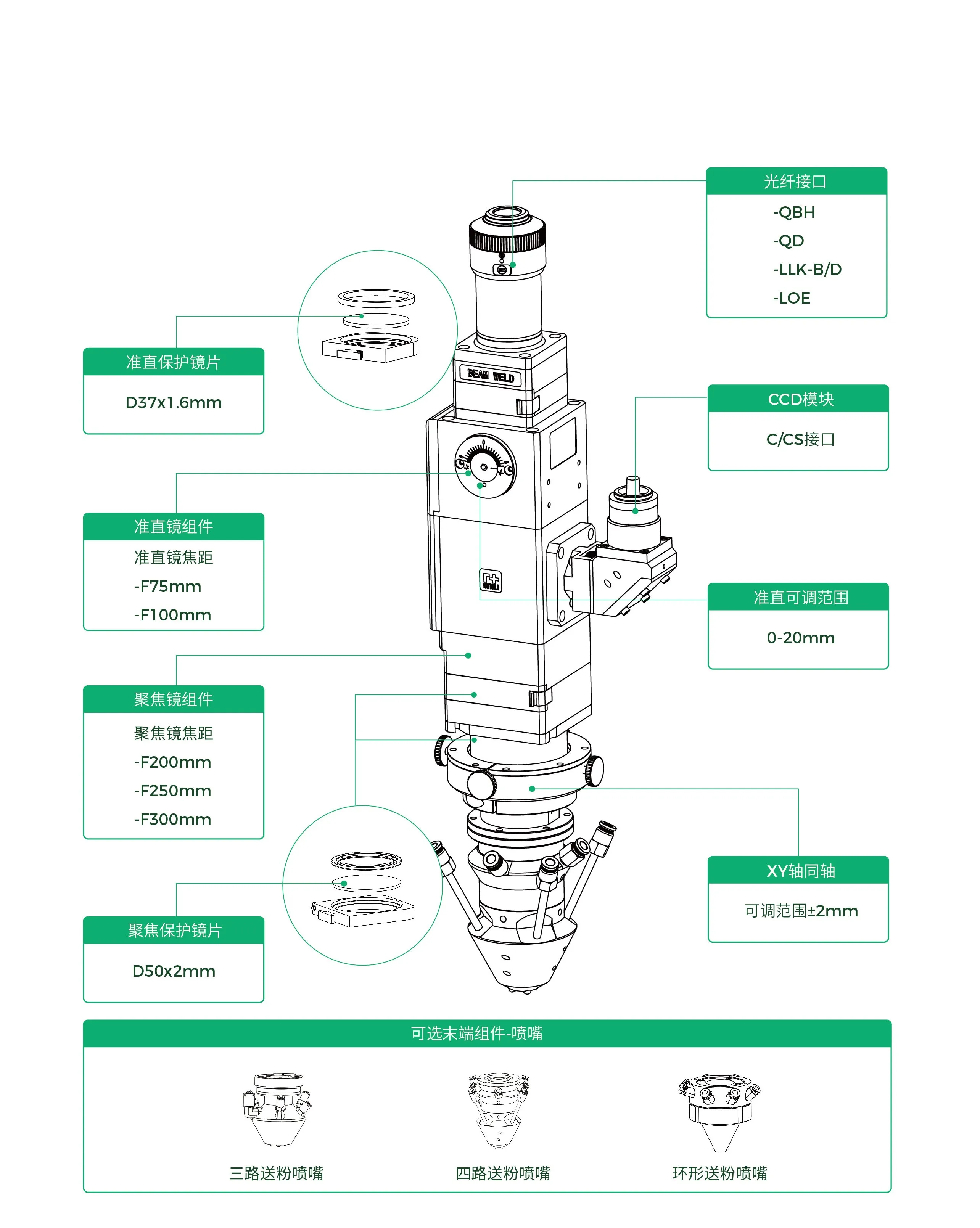

BC104
Product features

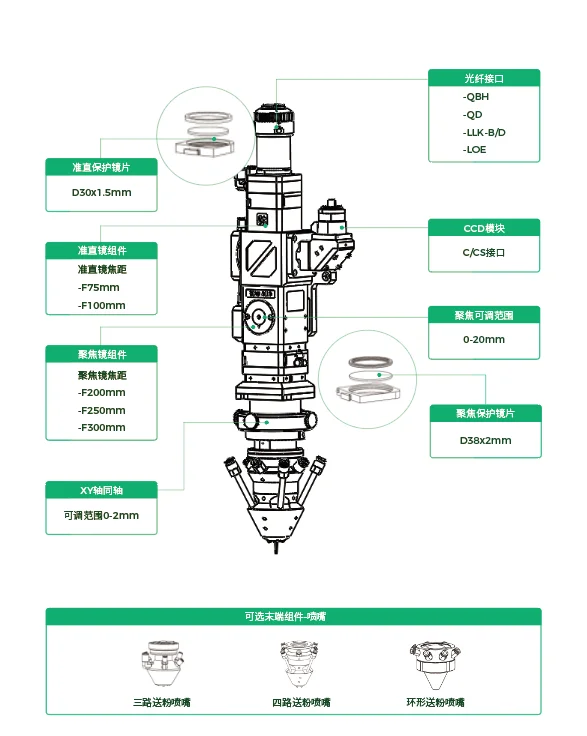

Efficient cooling: All lenses are cooled by water and the water is independent from the outside of the whole head, there is no risk of internal water leakage; Focus adjustable: Change the spot size of the processing position by adjusting the position of the focusing lens Camera monitoring: Configure CCD camera for process monitoring Closed Design: Fully enclosed dust-proof design to avoid dust contamination of the optical part Multifunctional Design: Can be adapted to three-way, four-way, annular, high-speed cladding and other nozzles to meet multi-scenario applications Modular Design: Optional CCD imaging, temperature monitoring and protection lens temperature monitoring and other functions
Product parameters
Power level: 4000W Transmission wavelength: 1060-1080nm Applicable light source: fiber laser Powder gathering size: 1-3mm optional Working height: 13-16mm Nozzle: three-way, four-way, annular, high-speed optional Optional: CCD component, red light positioning component, protection lens temperature monitoring unit, powder distributor, closed-loop temperature control unit, etc. Weight: ~5.0kg

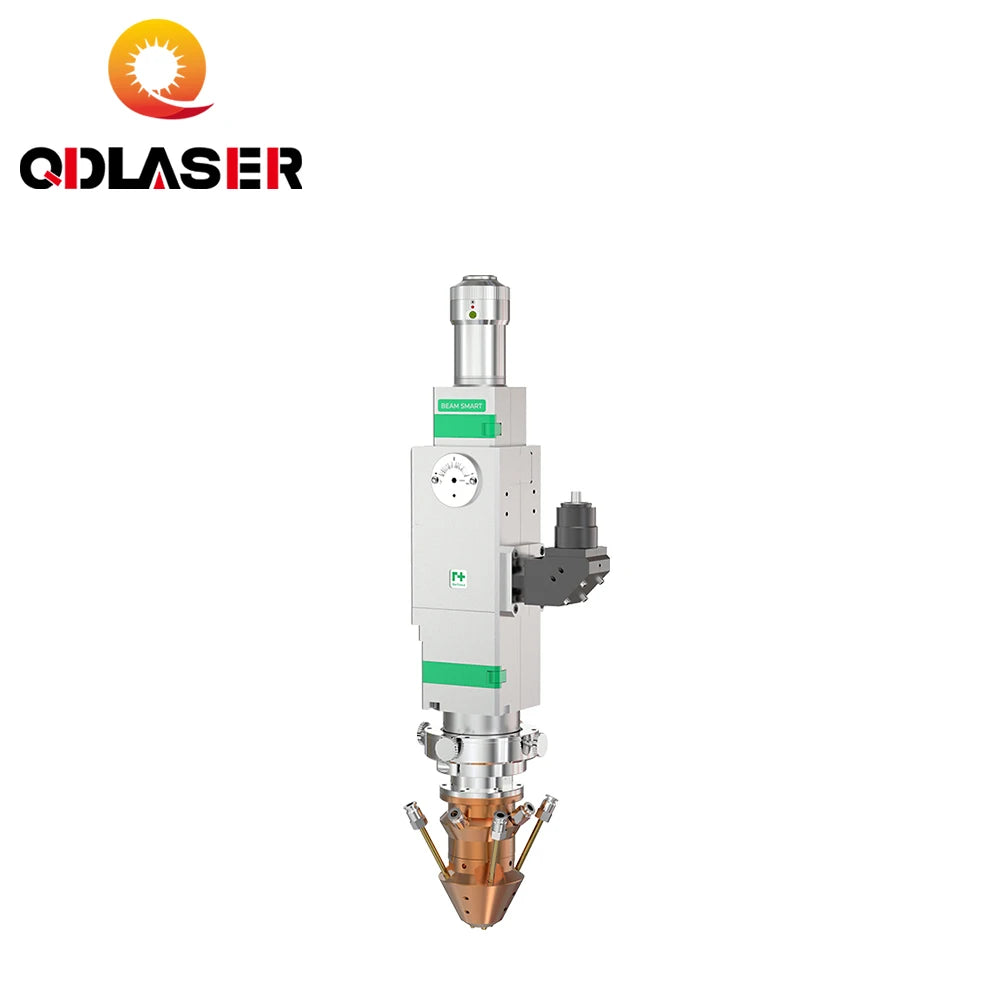

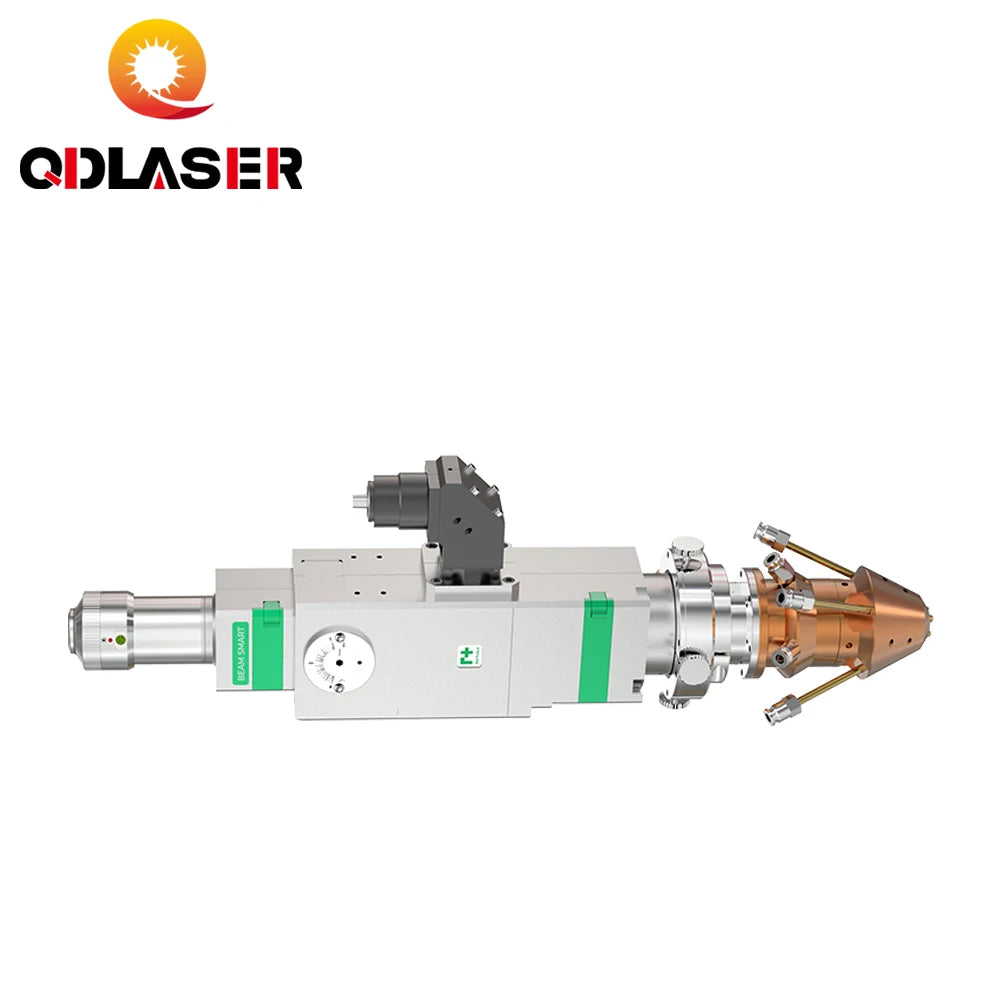

BC106
Product features
High withstand power: With D50 optical lens group, withstand power 6KW Efficient water cooling: All lenses are cooled by water and the water is independent from the outside of the whole head, and there is no risk of internal water leakage. Camera monitoring: Configure CCD camera for process monitoring Closed Design: Fully enclosed dust-proof design to avoid dust contamination of the optical part Collimation and focus: Collimated focusing, the focus adjustable range is larger than the traditional focusing focusing range. Large clear aperture: The clear aperture of the whole head is 48mm, which can effectively reduce the interference of stray light and ensure the cladding
Product parameters
Power level: 6000W
Transmission wavelength: 900-1100nm
Applicable light source: optical fiber, semiconductor laser can be
Powder gathering size: 1-3mm optional
Working height: 13-16mm
Nozzle: three-way, four-way, annular, high-speed optional
Optional: CCD component, red light positioning component, protection lens temperature monitoring unit, powder distributor, closed-loop temperature control unit, etc.
Weight: ~7.0kg
