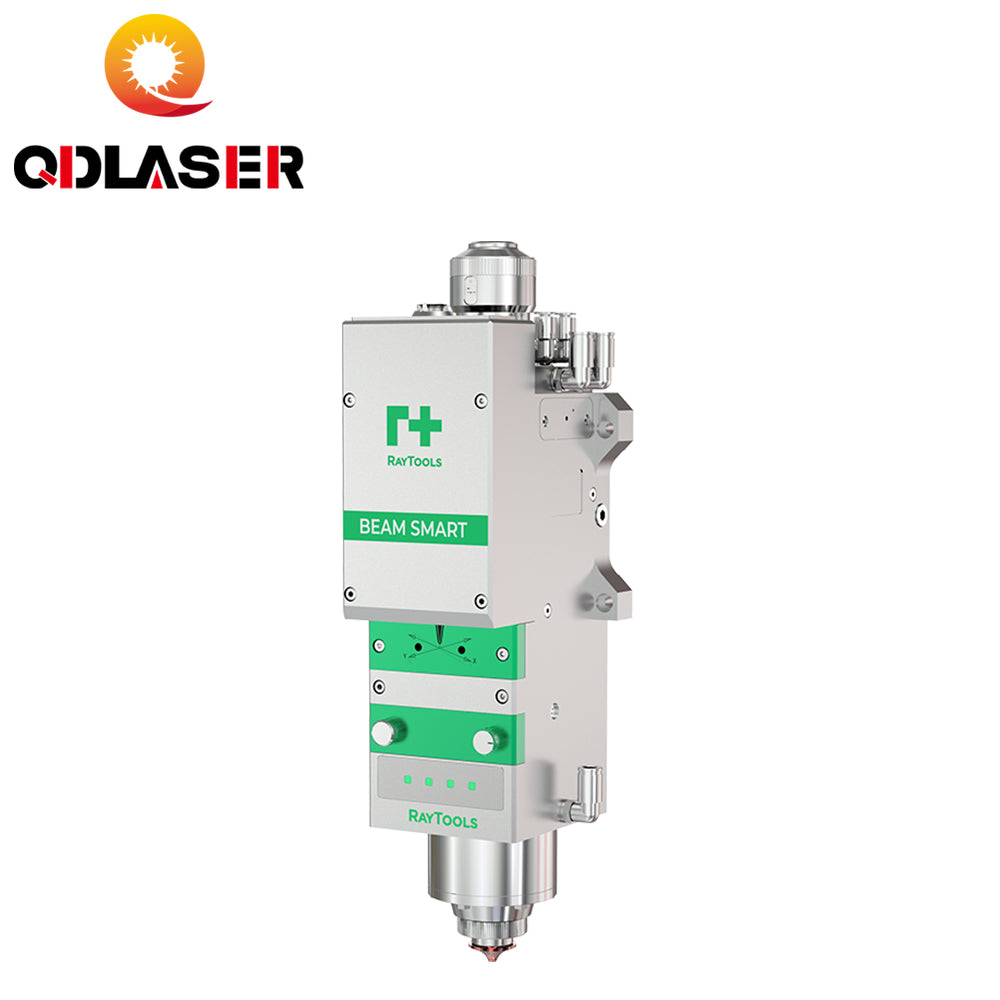

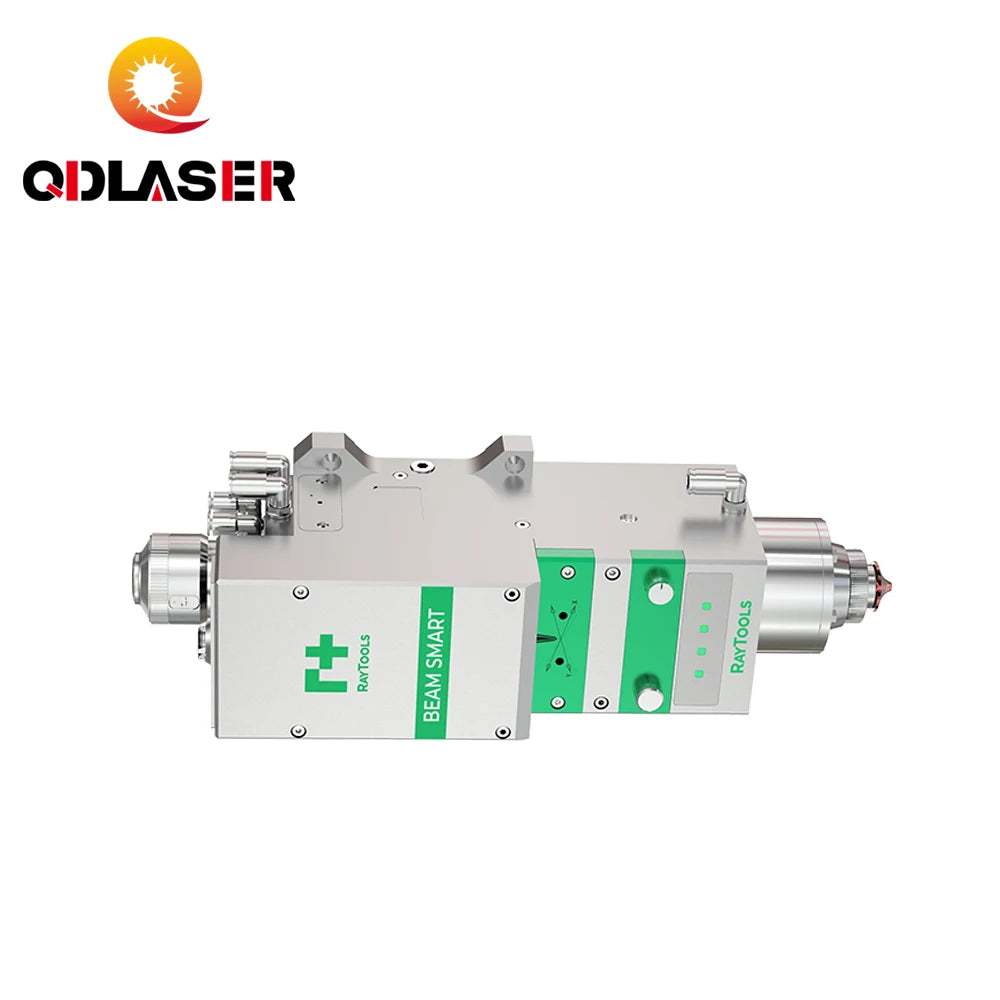

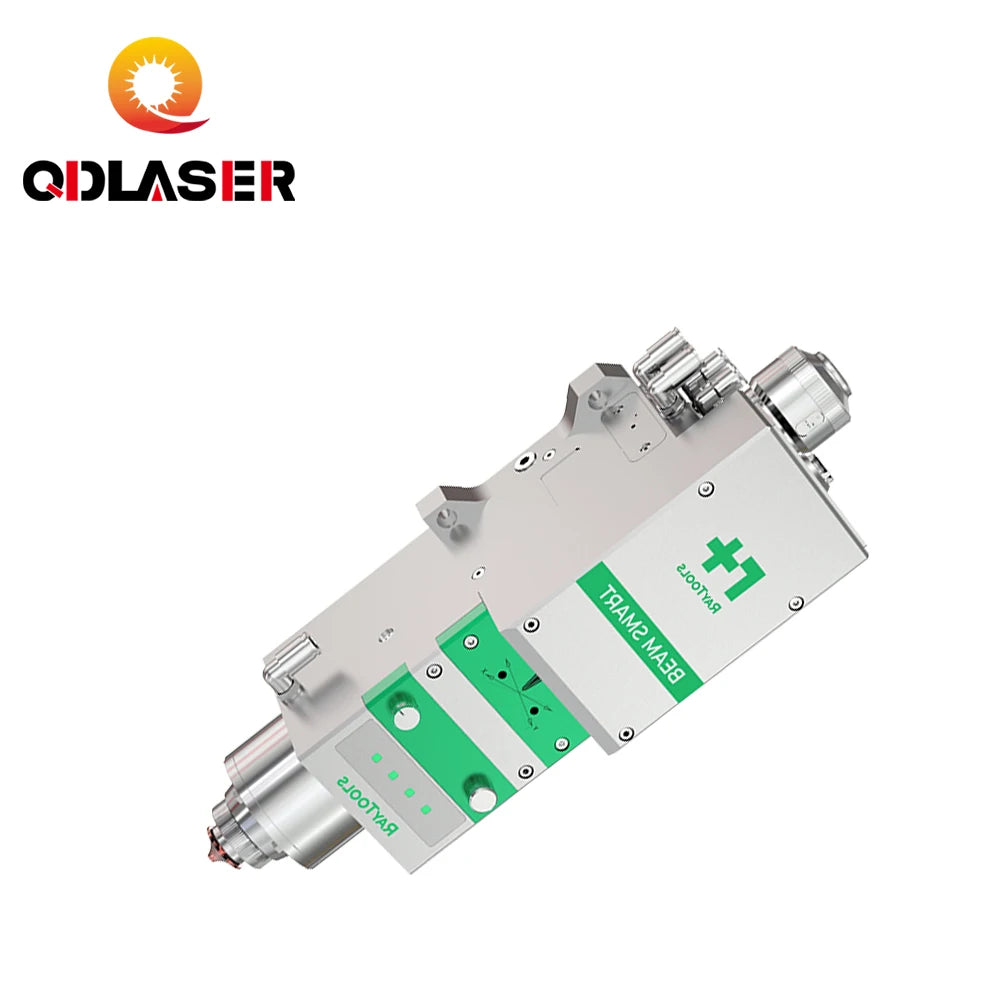

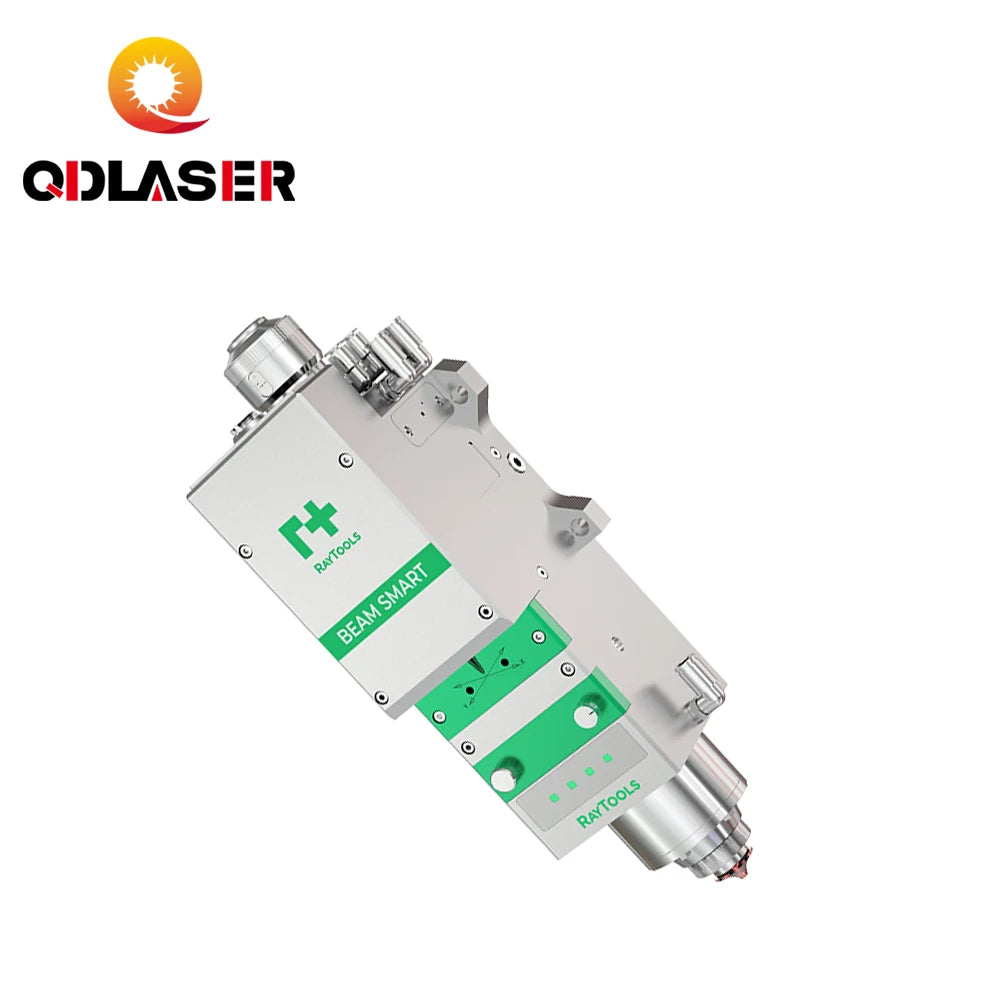

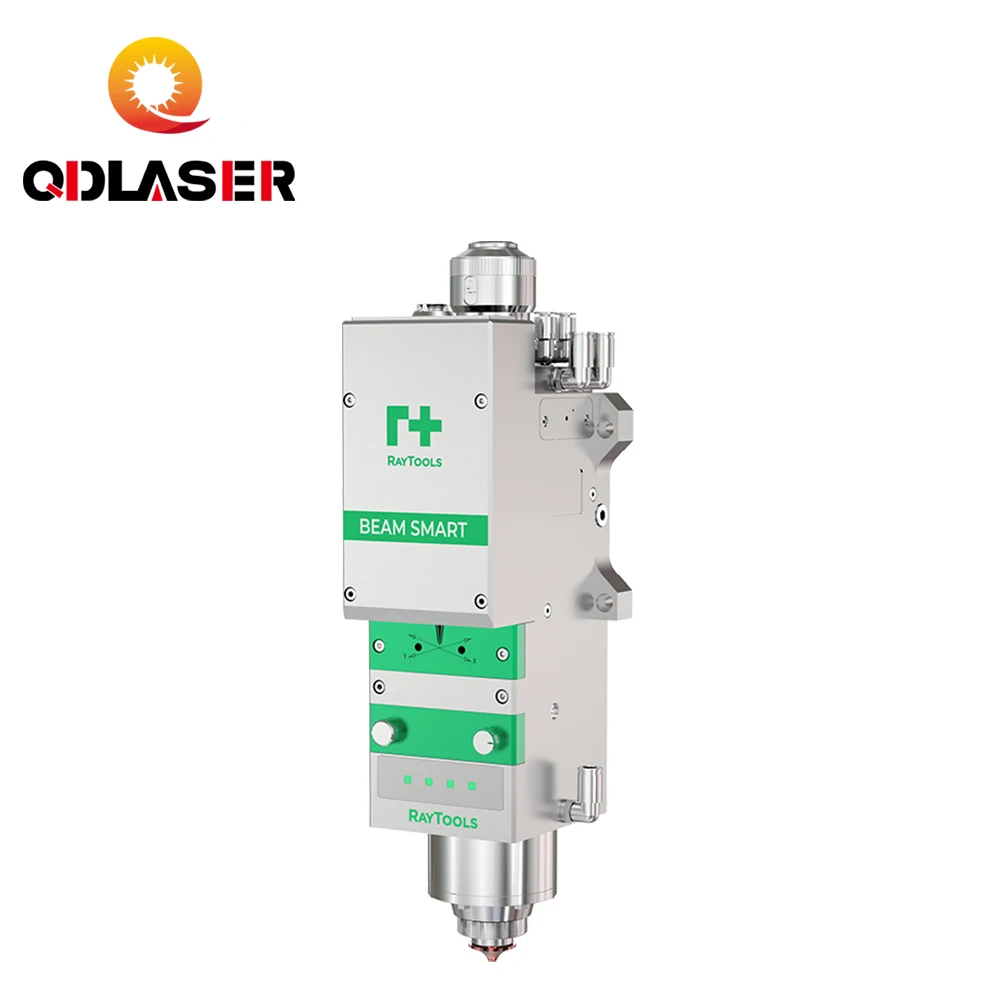

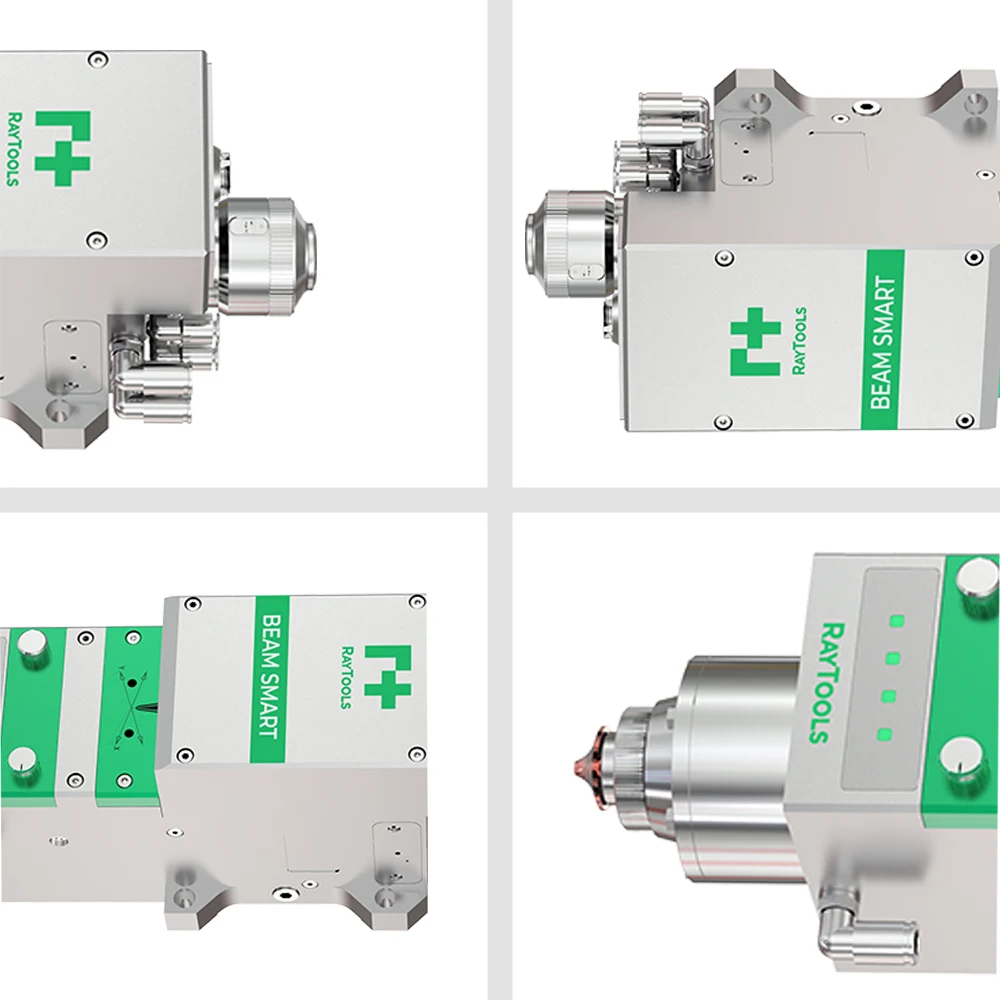

6kw BS06K Fiber Laser Head for Raytools Auto Focus Cutting Head Fiber Laser Cutting Machine
6kw BS06K Fiber Laser Head for Raytools Auto Focus Cutting Head Fiber Laser Cutting Machine
Regular price
$2,900.00 USD
Regular price
$2,900.00 USD
Sale price
$2,900.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Description
Excellent design
Lightweight design and fast acceleration;
At the same time, it has optimized optical configuration and smooth and efficient airflow design, which significantly improves cutting quality and efficiency;


Flexible control methods:
Support a variety of interfaces - analog and pulse to control the focusing unit, users can achieve continuous and rapid focus position adjustment through program settings;
High adaptability:

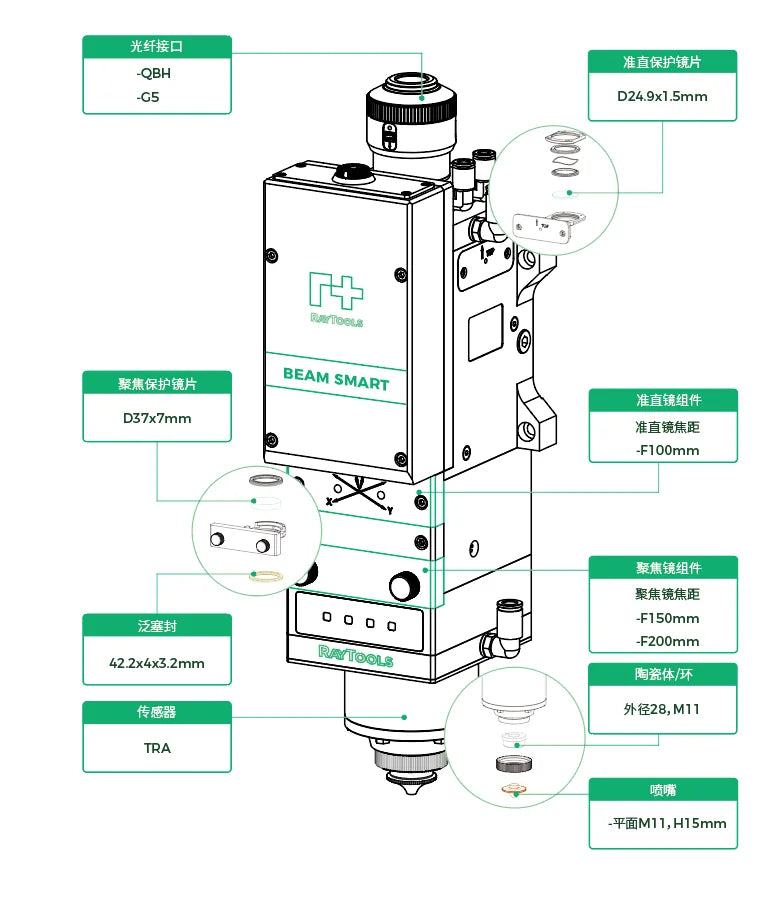

Equipped with QBH and G5 fiber interfaces, which can be adapted to various mainstream lasers;


APP real-time monitoring:
Through the wireless network, the monitoring data can be read on the mobile terminal and CNC system;
Parameter real-time feedback:
Various built-in sensors can provide real-time feedback of parameters in the processing process such as the temperature of the protective lens inside the cutting head, the temperature of the focusing lens, the temperature and humidity of the cavity, the air pressure in the cavity, and the air pressure of the cutting gas.

Specification
Product name
|
Fiber laser cutting head
|
Focus Range
|
-35mm~+25mm
|
Focus Speed
|
≤200mm/s
|
Fiber Interface
|
QBH 锛孏5
|
Auto Focus Accuracy
|
0.01mm
|
Auto Focus Acceleration
|
≤10m/s²
|
Numerical Aperture
|
0.14
|
Nozzle specifications
|
single layer, double layer, non-standard
|
Nozzle hole diameter
|
1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
|
Auxiliary gas pressure
|
≤30bar
|
Weight (KG)
|
8KG
|
