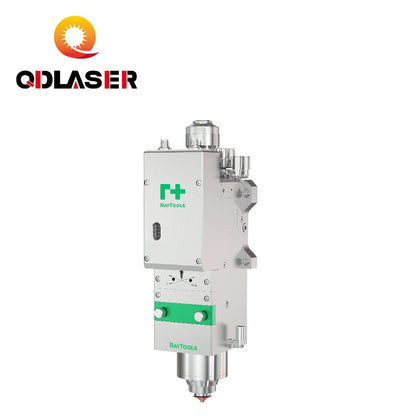

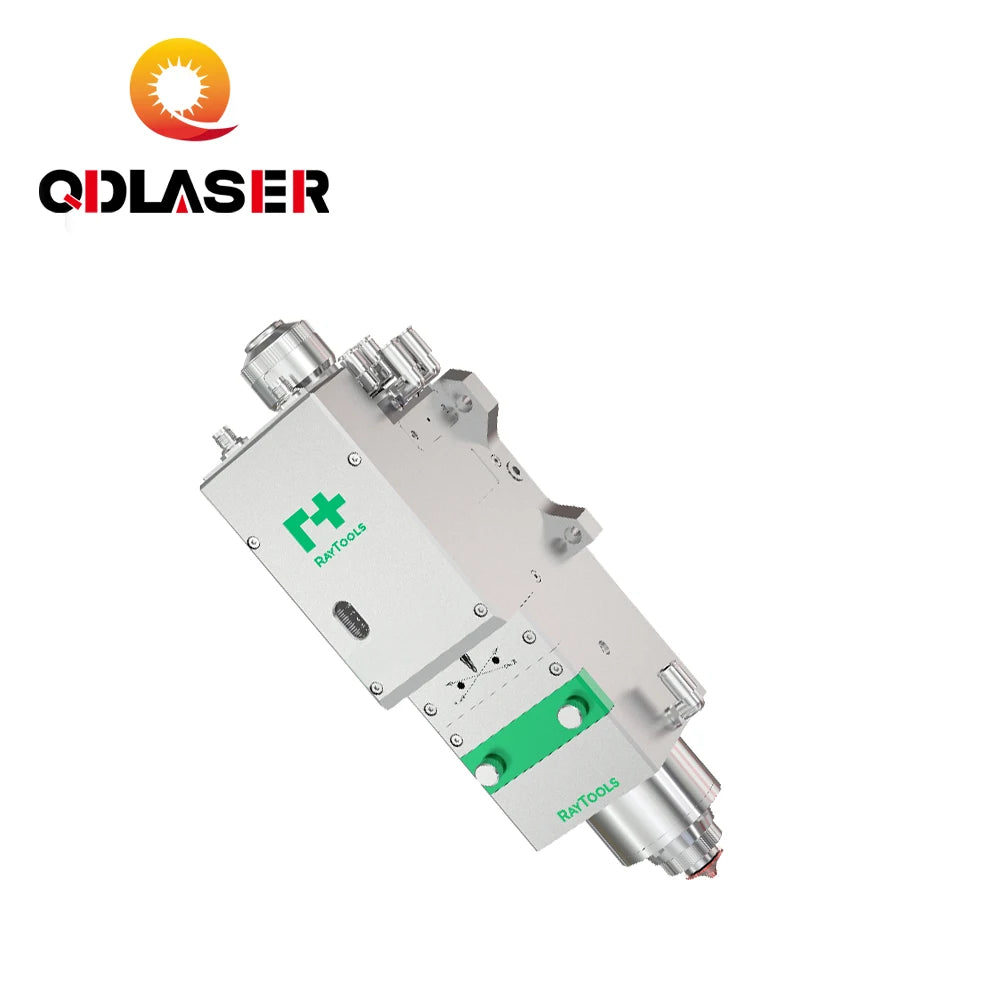

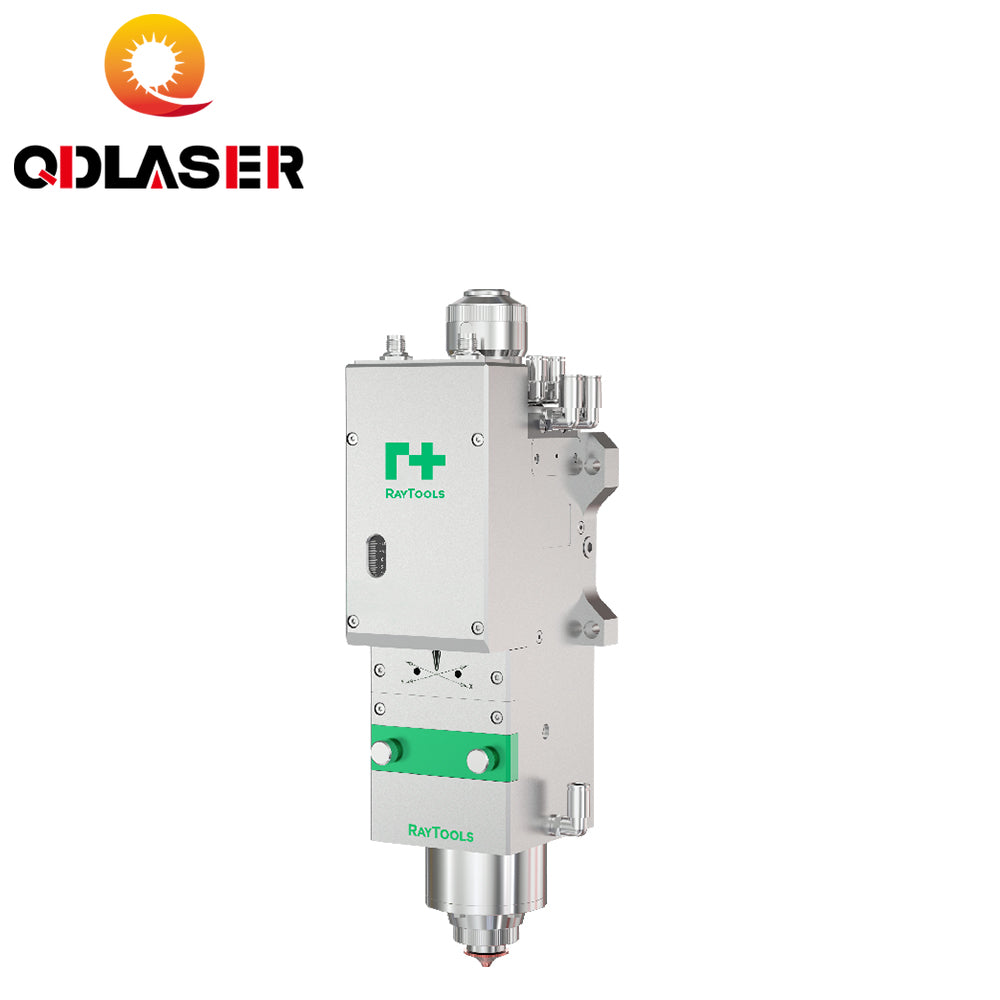

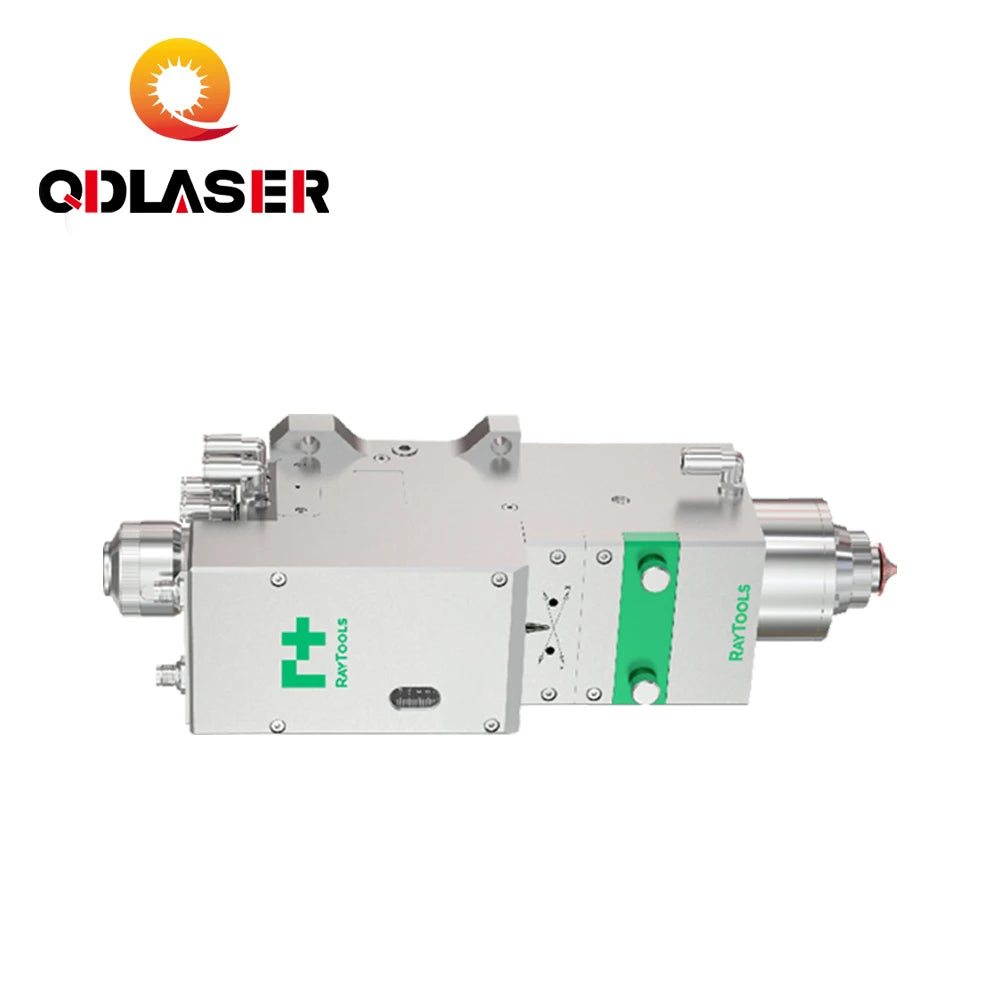

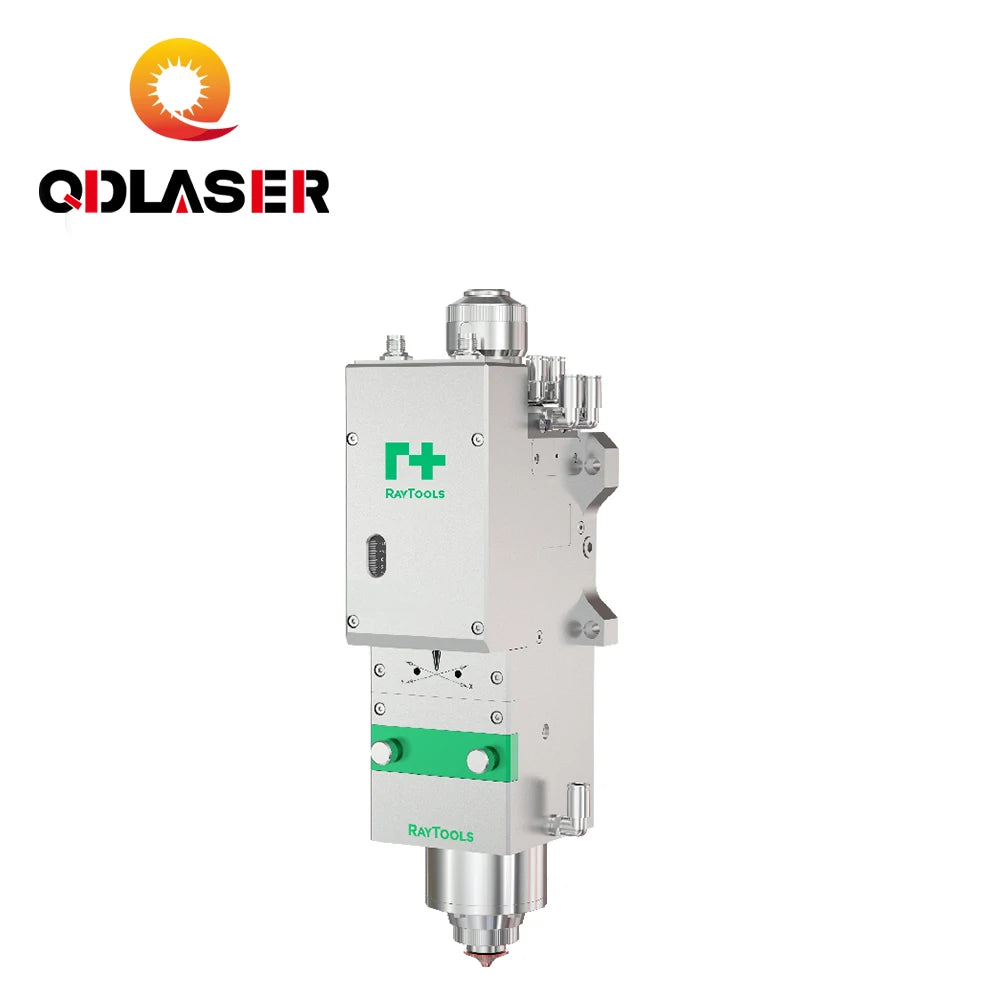

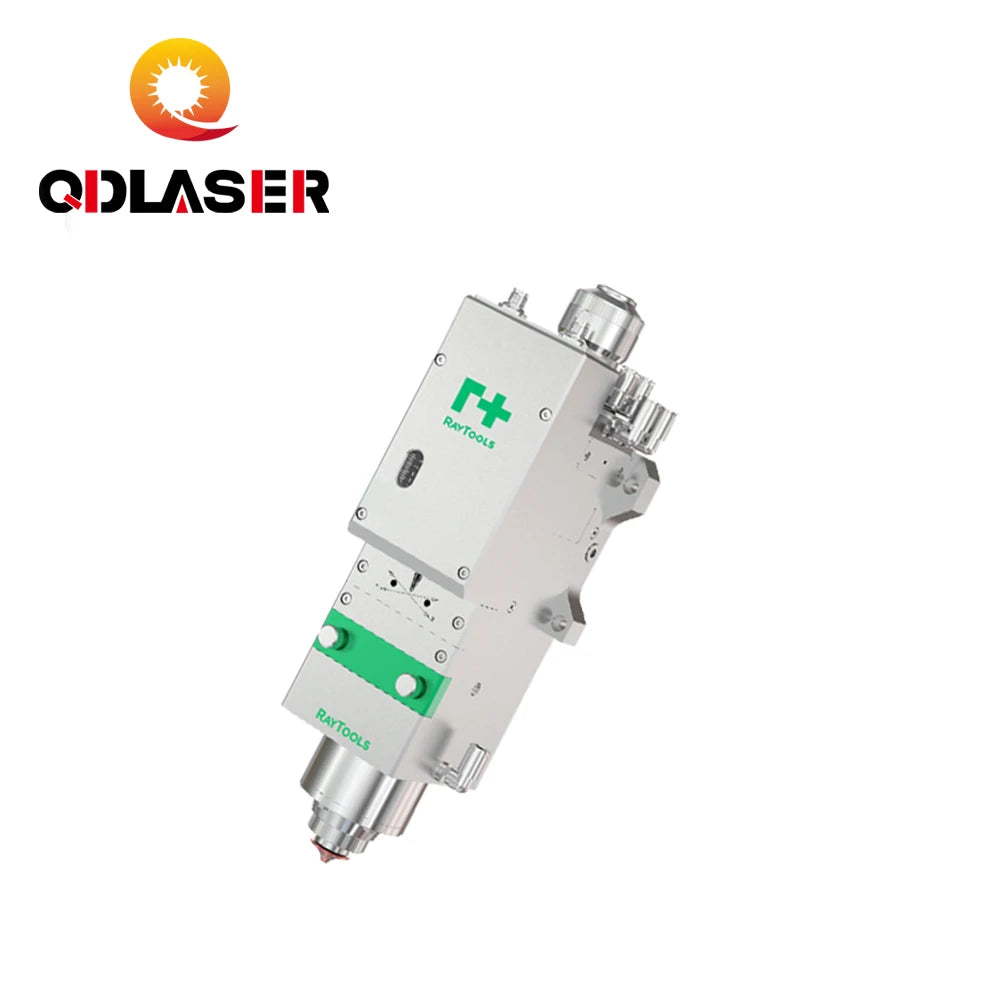

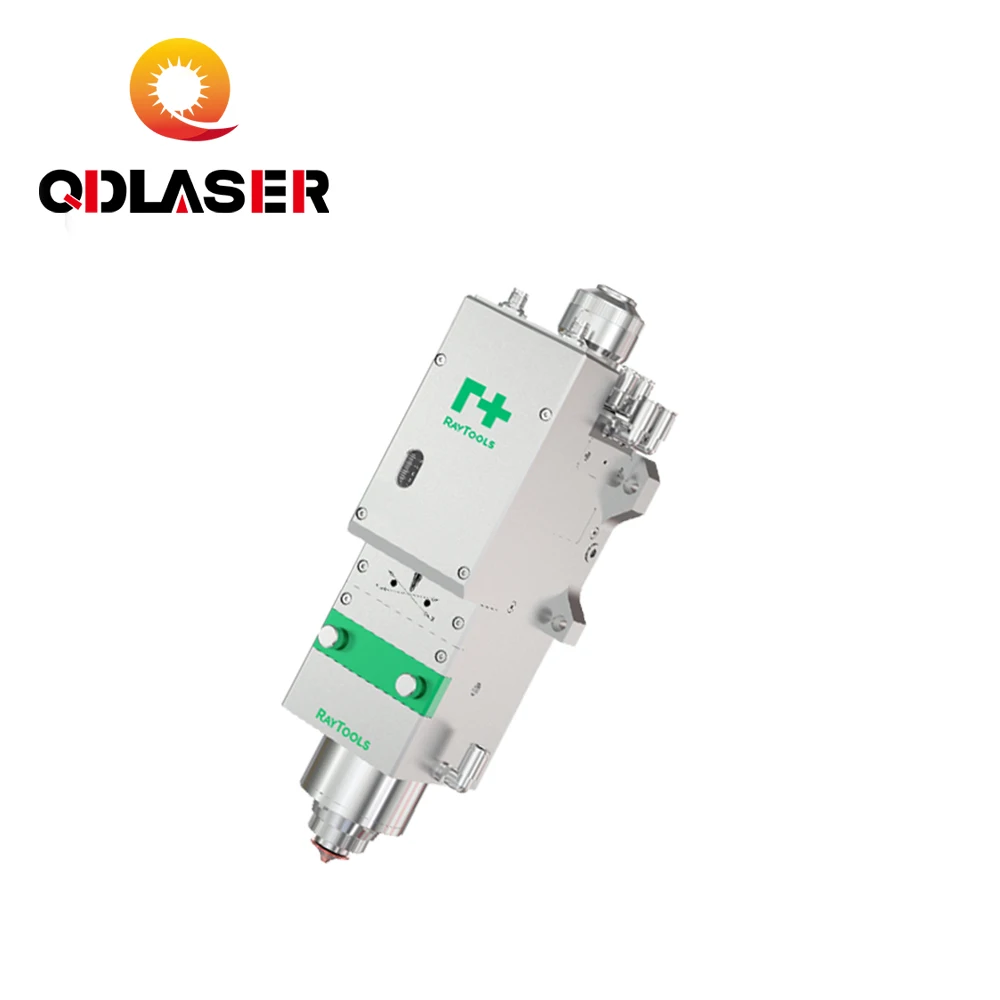

6kw BM06K Fiber Laser Head for Raytools Auto Focus Cutting Head Fiber Laser Cutting Machine
6kw BM06K Fiber Laser Head for Raytools Auto Focus Cutting Head Fiber Laser Cutting Machine
Regular price
$6,000.00 USD
Regular price
$6,000.00 USD
Sale price
$6,000.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
Efficient cooling:
The collimating lens and focusing lens group have cooling structures, and at the same time increase the cooling airflow of the nozzle, effectively protect the nozzle and ceramic body, and prolong the continuous working time
Quick focus:
Using collimation focusing, compared with focusing focusing, the focus moves faster and the focusing range is larger
Fast Piercing High Speed Cutting:
25mm carbon steel plate pre-piercing time < 1 second, @6000W, greatly improving cutting efficiency
Optimized structural design:
Integrated body design to ensure sealing. Improve QBH, QD, G5 fiber interface, improve compatibility with lasers, and no longer get stuck due to water leakage and rust

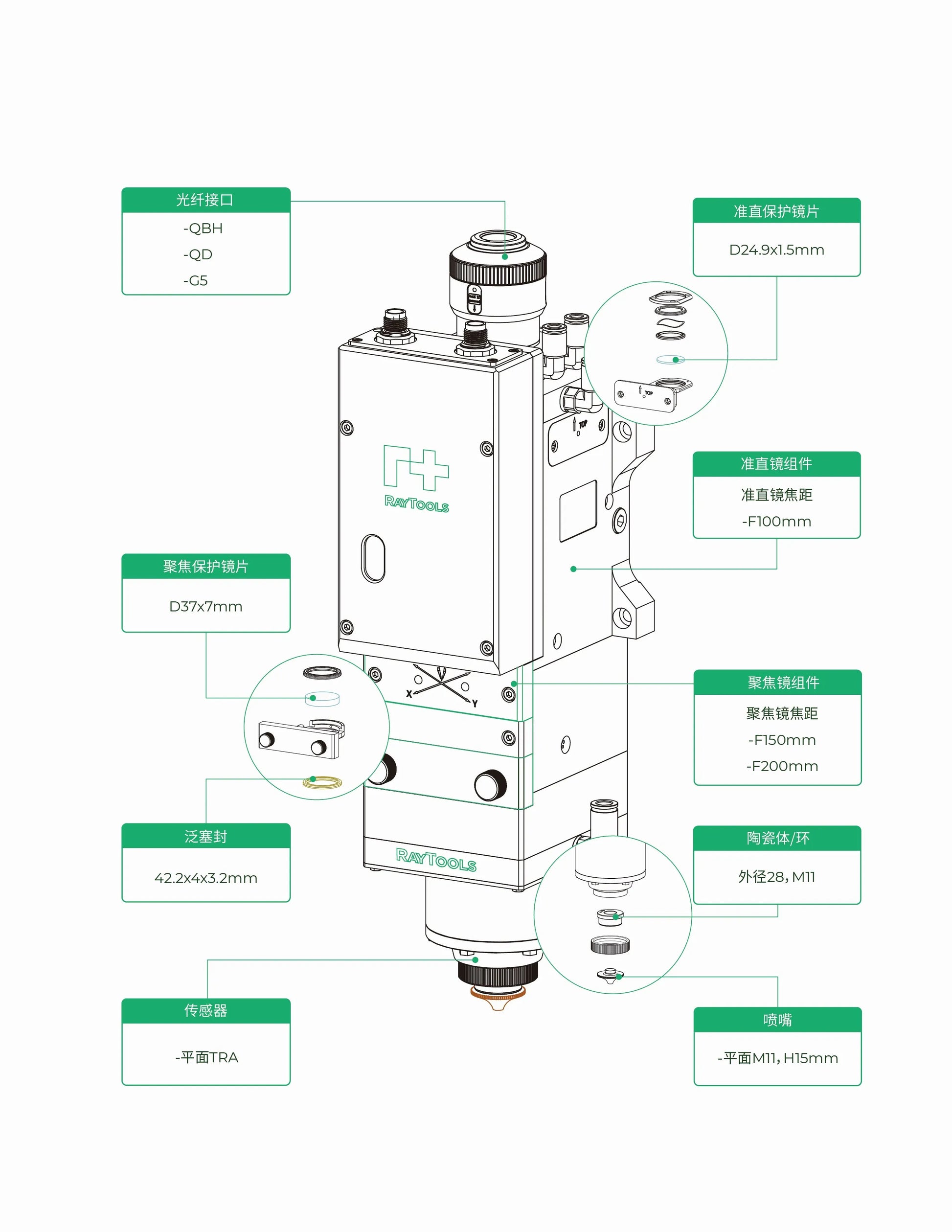

Specification
|
Product name
|
Fiber laser cutting head
|
|
Focus Range
|
-35mm~+25mm
|
|
Focus Speed
|
≤200mm/s
|
|
Fiber Interface
|
QBH , QD锛孏5
|
|
Auto Focus Accuracy
|
0.01mm
|
|
Auto Focus Acceleration
|
≤10m/s²
|
|
Numerical Aperture
|
0.14
|
|
Nozzle specifications
|
single layer, double layer, non-standard
|
|
Nozzle hole diameter
|
1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
|
|
Auxiliary gas pressure
|
≤30bar
|
|
Weight (KG)
|
8KG
|
