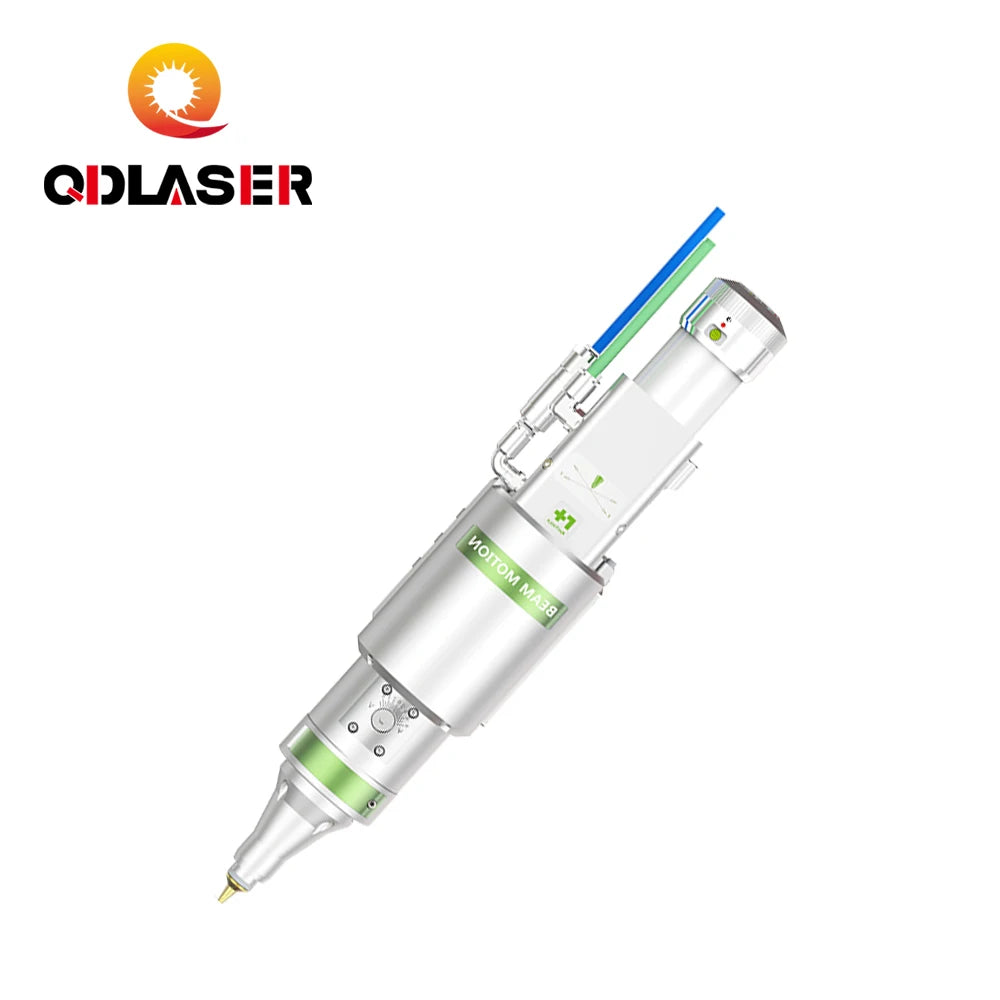

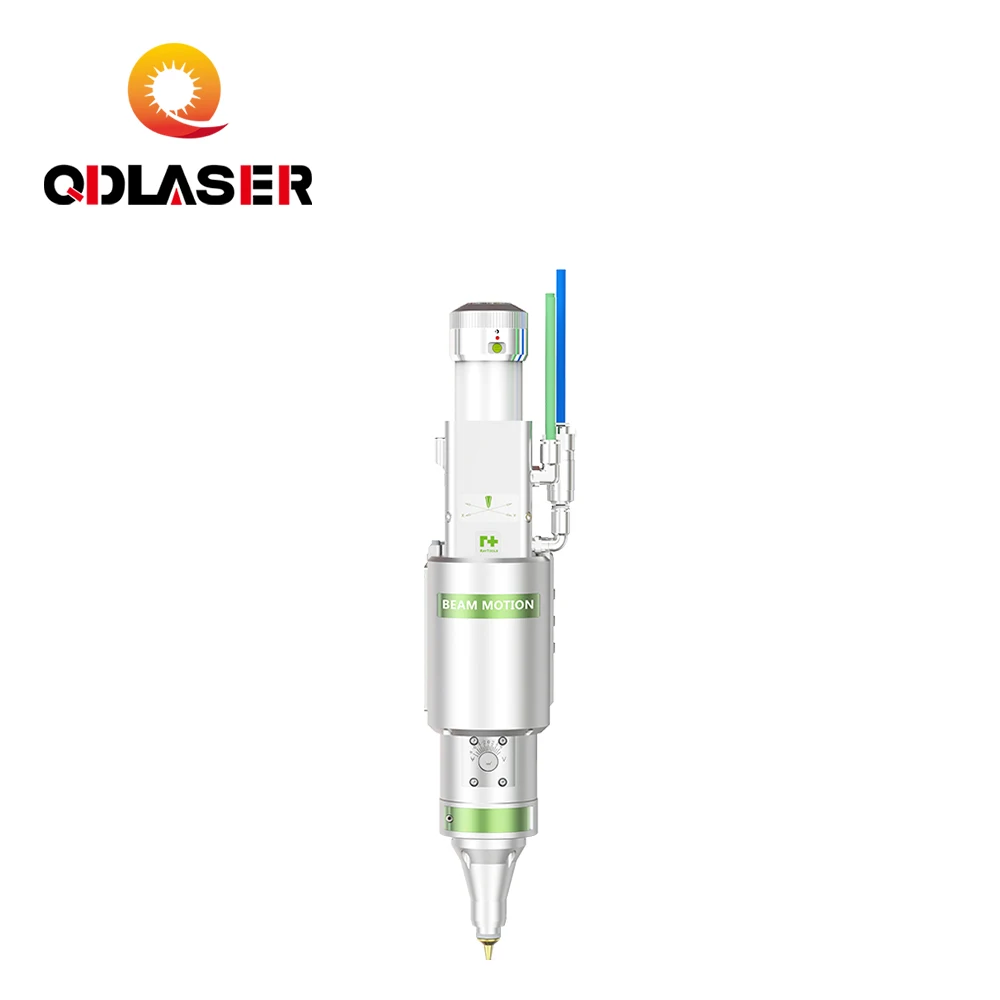

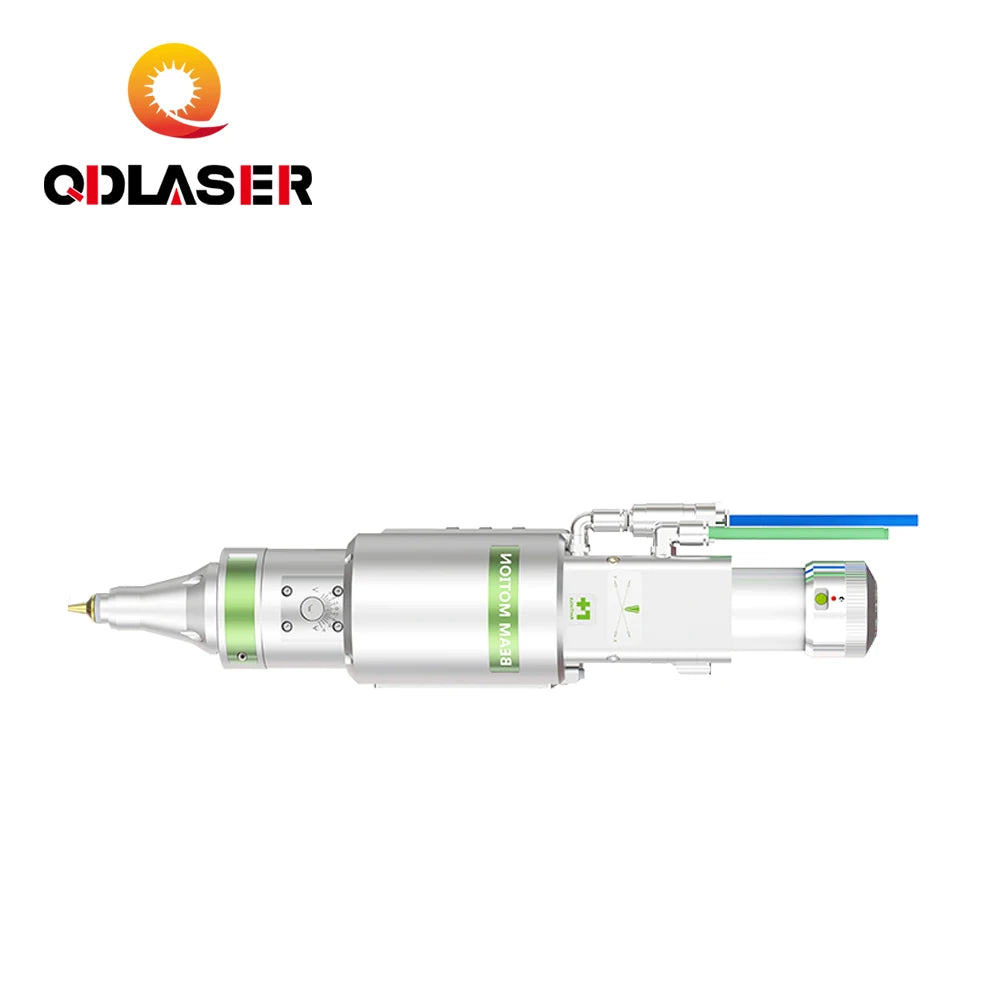

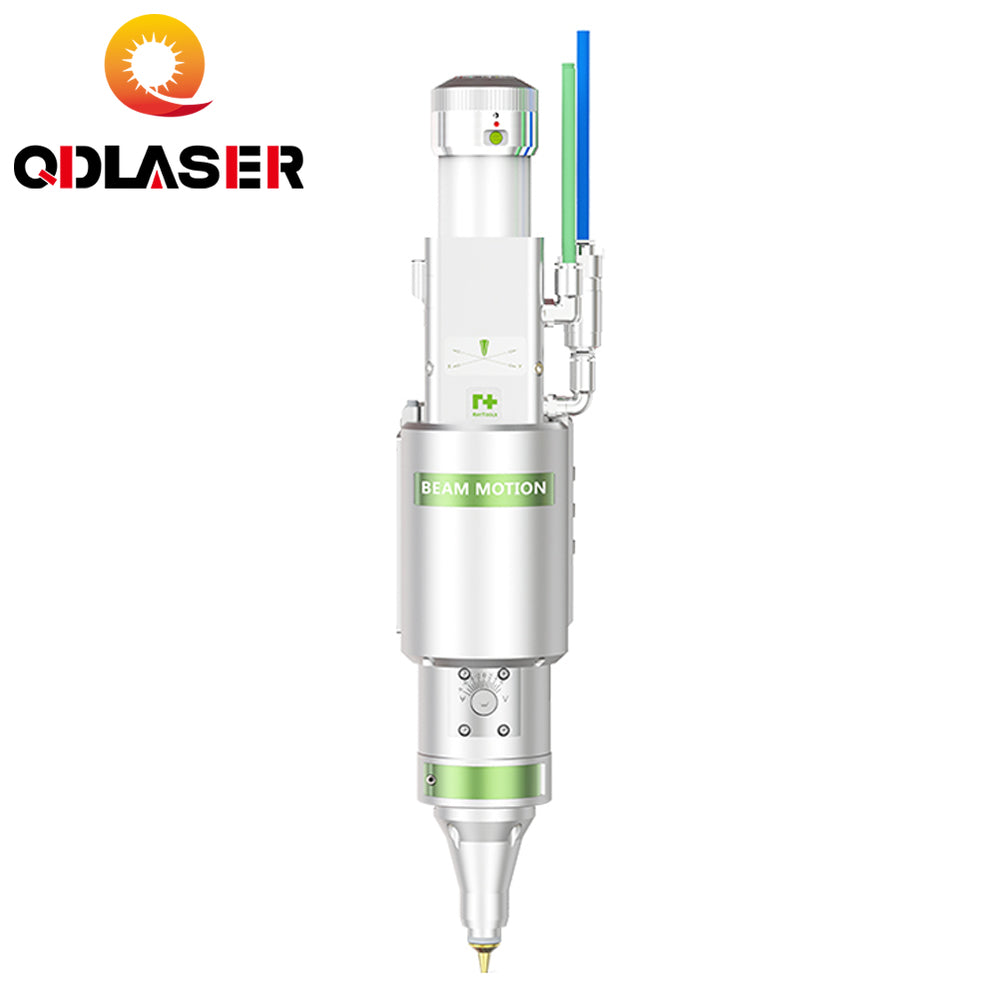

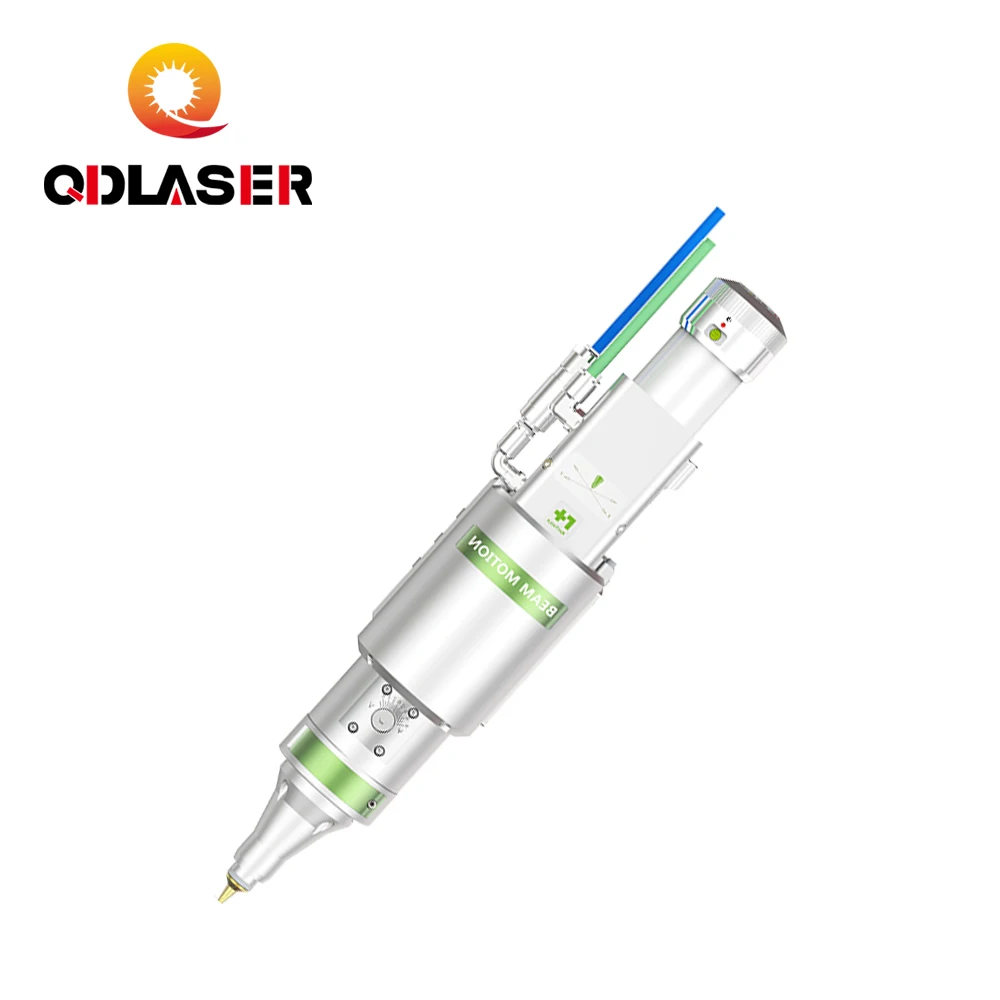

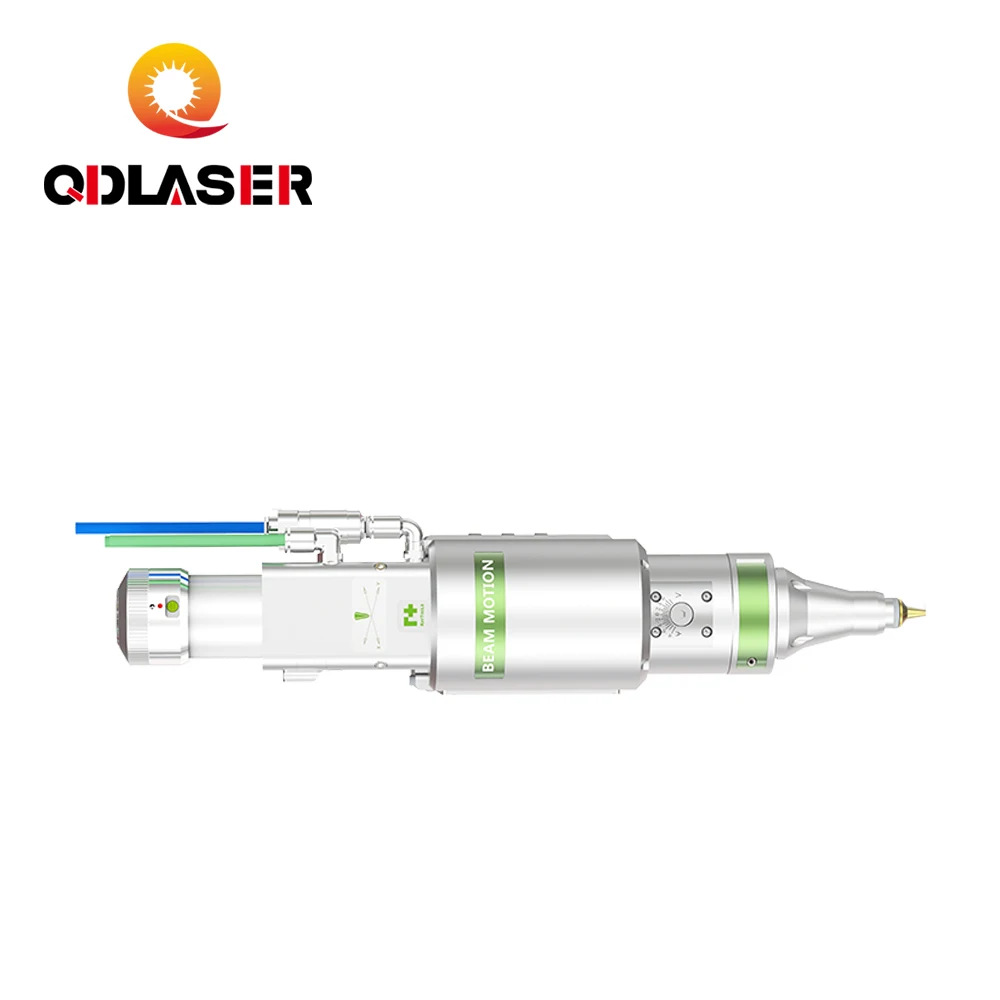

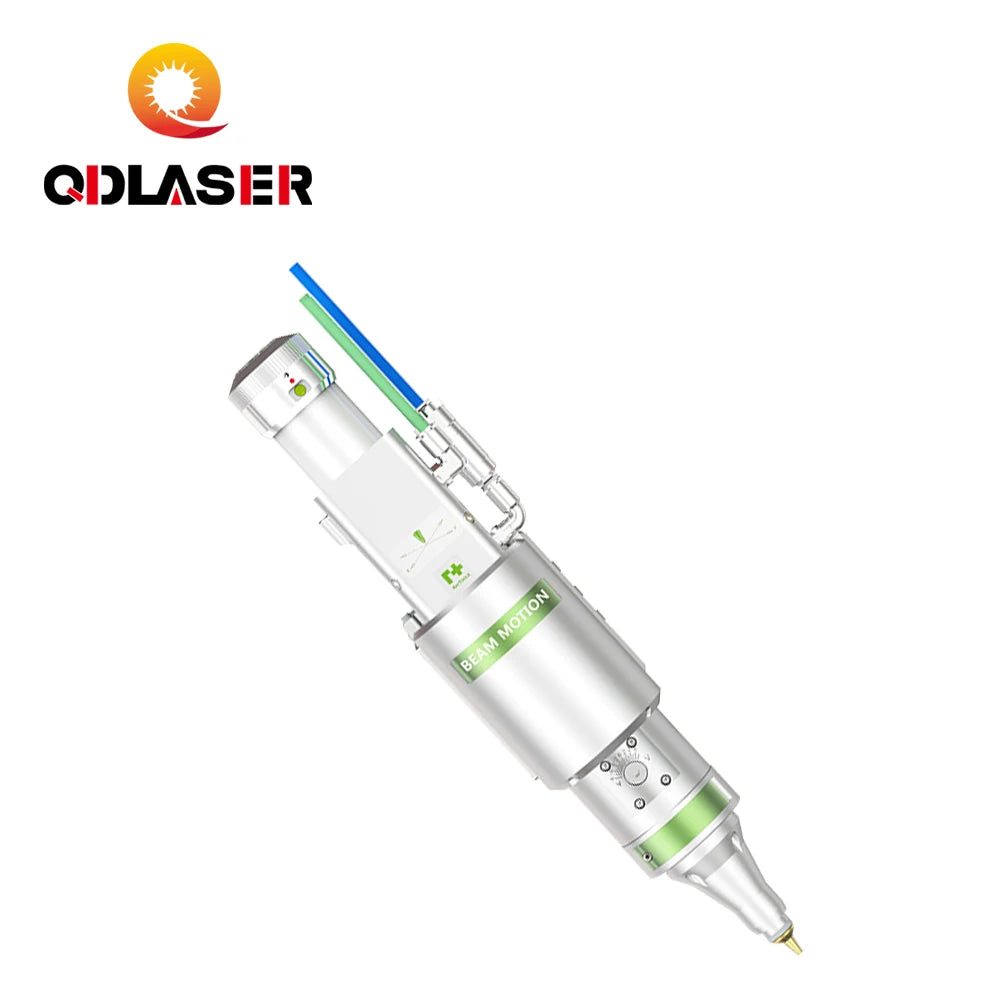

4KW GF101 3D Robot Manual Focusing Cutting Head Replace BM100 for raytools Head
4KW GF101 3D Robot Manual Focusing Cutting Head Replace BM100 for raytools Head
Regular price
$18,000.00 USD
Regular price
$18,000.00 USD
Sale price
$18,000.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
High applicability:

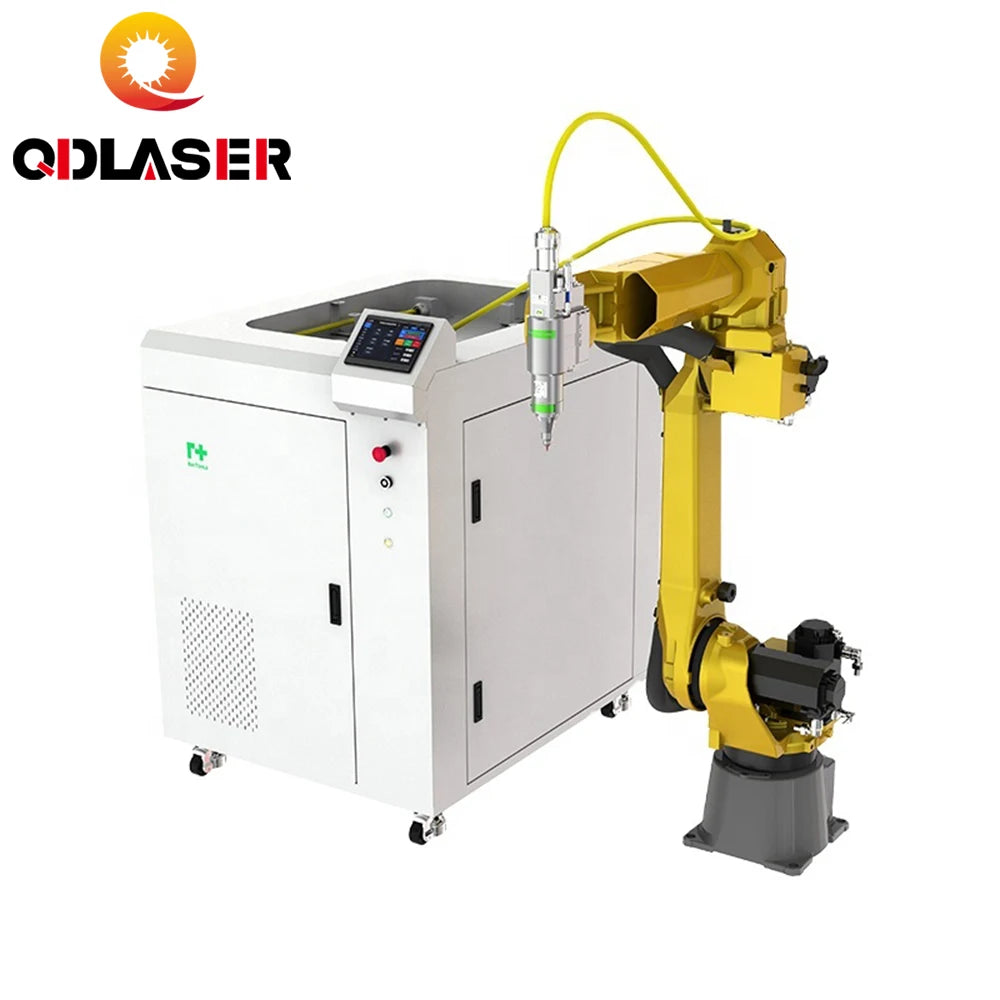

Optimized optical configuration and smooth and efficient airflow design to meet the 3D laser cutting environment for thin plate cutting and other customized requirements for different applications
Lightweight all-in-one design:
Lightweight integrated design, the body weighs only about 3.5KG, reducing robot load
Highly sealed:
Robust sealing, modular elongated nozzle design reduces workpiece interference, reduces downtime and extends service life
The product has a built-in follower unit, and the focus follower module is driven by a linear mechanism to automatically change its position within a certain range
High degree of dust protection:
The protective mirror of the drawer type mirror base is added on the collimating mirror, which can effectively place the collimating mirror that is damaged due to dust.
Recommend Products
Specification
|
Product name
|
Fiber laser cutting head
|
|
Manual focus Range
|
-9mm~+7mm
|
|
Manual focus Accuracy
|
0.05mm
|
|
Fiber Interface
|
QBH,Q+锛孮D
|
|
Clear aperture
|
28mm
|
|
Focal length of collimator lens
|
5mm, 100mm
|
|
Focusing lens focal length
|
125mm, 150mm
|
|
protective lens Collimation protection
|
Φ24.9mm * 1.5mm
|
|
Focus Protection
|
Φ27.9mm * 4.1mm
|
|
Nozzle specifications
|
single layer, double layer
|
|
Nozzle hole diameter
|
0.8mm锛�1.0mm锛�1.2mm锛�1.5mm锛�2.0mm锛�2.5mm锛�3.0mm
|
|
Auxiliary gas pressure
|
≤25bar
|
|
Weight (KG)
|
4KG
|
